Aluminum Double Hung Windows Manufacturer China Factory Price Constant Force Balance

Within the global architectural fenestration supply chain, the Aluminum Single Double Hung window occupies a position of singular importance. It bridges historic design vernacular with modern thermal performance, serving markets across North America, Oceania, Southeast Asia, and the Middle East where vertical sliding sash operation remains a regulatory requirement, a climate preference, or a cultural mandate. Richocean, operating from its manufacturing headquarters in Foshan, Guangdong Province, has ascended to the status of China’s definitive hung window production authority. This 3000-word technical monograph provides a comprehensive engineering dissection of every subsystem within the Richocean Aluminum Double Hung Window—metallurgy, balance mechanics, sealing dynamics, interlock geometry, and compliance testing—alongside actionable procurement intelligence for B2B developers, architectural specifiers, and international importers evaluating factory-direct pricing models.

Module 1: 6063-T6 Aluminum Alloy Extrusions — Metallurgical Architecture

The foundational material selection for any vertical sliding window system determines its operational lifespan, dimensional stability, and resistance to environmental degradation. Richocean exclusively specifies 6063-T6 aluminum alloy for all frame extrusions, sash profiles, and meeting rail components across the entire single hung and double hung product range. This specific alloy designation carries profound implications for long-term window performance that most procurement agents overlook during the initial specification phase.

The 6063 alloy belongs to the aluminum-magnesium-silicon family (Al-Mg-Si), with a nominal composition of 0.45-0.9% magnesium and 0.2-0.6% silicon. The T6 temper designation indicates a complete thermal treatment sequence: solution heat treatment at approximately 520 degrees Celsius for uniform dissolution of Mg2Si precipitates, rapid water quenching to freeze the supersaturated solid solution, and subsequent artificial aging at 175 degrees Celsius for 8 hours to achieve peak precipitation hardening. This three-stage process yields a final tensile strength of 215 MPa minimum, yield strength of 170 MPa minimum, and elongation of 8% minimum according to GB/T 5237.1 and ASTM B221 standards.

Why does T6 temper matter for hung windows specifically? The vertical sliding mechanism imposes cyclic loading on frame jambs through balance system attachment points. A T5 temper (cooled from extrusion and artificially aged without solution heat treatment, yielding only 150 MPa yield strength) introduces a 12% performance deficit that manifests as micro-deformation at balance shoe anchor locations after approximately 15,000 operational cycles. Richocean engineering tests simulating 25-year residential usage demonstrate zero measurable frame deflection when T6 profiles carry a 35kg sash assembly through 50,000 full-travel cycles.

Furthermore, the 6063 alloy provides superior anodizing response compared to 6061 or 6060 alternatives. The controlled iron content (maximum 0.35%) prevents the formation of Al-Fe-Si intermetallic phases that would otherwise create surface pitting during the anodic oxidation process. Richocean standard finishes include 15-micron anodizing (AA15 per AAMA 611), powder coating with 60-80 micron film thickness (Qualicoat Class 2), and PVDF fluorocarbon coating (AAMA 2605) with 30-micron minimum dry film thickness for coastal and aggressive industrial environments.

The extrusion die design incorporates multi-chamber thermal break geometry with 24mm polyamide strips (PA66 GF25, 25% glass fiber reinforced) mechanically crimped into the aluminum profiles using a triple-roll knurling process. This crimping method generates a mechanical interlock shear strength exceeding 80 N/mm, preventing the thermal break from de-laminating under the differential thermal expansion that occurs when an exterior frame surface at 65 degrees Celsius interfaces with an interior frame surface at 22 degrees Celsius—a 43-degree delta that generates significant shear stress at the polyamide-aluminum boundary. The resulting Uf value (frame thermal transmittance) measures 2.8 W/m²K for non-thermal break profiles and 2.0 W/m²K for thermally broken configurations, validated by NFRC 100 simulation protocols.

The wall thickness specification follows a differentiated design philosophy. Outer frame jambs carry a minimum 1.8mm wall thickness for structural rigidity; sash profiles carry 1.6mm minimum for weight optimization without compromising corner joint strength; meeting rails—the critical horizontal intersection where upper and lower sashes engage—carry a reinforced 2.0mm wall thickness to resist the concentrated locking forces transmitted through the cam-action interlock mechanism.

Module 2: Constant Force Balance System — Mechanical Precision Engineering

The balance system represents the single most critical mechanical subsystem within any hung window assembly. It counteracts gravitational force on the movable sash, enabling smooth vertical translation with minimal operator effort, while simultaneously securing the sash at any intermediate position without creep or slippage. Richocean has standardized on the Constant Force Balance mechanism, manufactured in-house using proprietary coil-spring technology, as the exclusive counterbalance solution across its entire hung window catalog.

A Constant Force Balance operates on fundamentally different mechanical principles than the traditional block-and-tackle or spiral balance systems still prevalent in budget-priced competitor products. The Richocean constant force assembly consists of a coiled flat spring housed within a precision-stamped steel casing, mounted vertically within the frame jamb channel. As the sash moves downward, the spring coil unwinds from a storage drum and re-coils onto an output drum of identical diameter, maintaining constant torque throughout the entire travel range. The spring material is ASTM A228 music wire (high-carbon steel, 0.80-0.95% carbon content) with a tensile strength range of 2,000-2,500 MPa, providing fatigue resistance that exceeds 100,000 full-stroke cycles without measurable force degradation.

The constant force characteristic is the defining advantage. Spiral balances, by contrast, employ a torsion spring that generates linearly increasing resistance as the sash descends—a 5kg sash might encounter 3kg of assist at the top of travel and 7kg at the bottom, creating uneven operator effort and a tendency for the sash to drift upward from lower positions. The Richocean constant force balance delivers a flat force curve within +/-3% deviation across the entire 900mm travel range, tested and verified on our in-house balance calibration dynamometer with 0.1N resolution.

Balance sizing follows a precise engineering protocol. Each sash assembly—including frame, glass unit, hardware, and glazing bead—undergoes individual weighing on a digital platform scale after fabrication. The measured weight determines the required balance spring specification: a sash weighing 14.2kg requires two balance units each rated at 7.1kg (the system uses a paired configuration, one balance per jamb). Richocean maintains an inventory of 23 discrete balance force ratings ranging from 2.5kg to 18kg per unit, enabling exact matching to sash weights from 5kg (small fixed-lite upper sash) to 36kg (triple-glazed, laminated-glass lower sash). The balance shoe incorporates a calibrated friction adjustment screw that adds 0.5-2.0kg of supplementary friction to accommodate installation imperfections and ensure neutral sash positioning at any height.

A critical design feature is the balance shoe’s quick-release mechanism. During installation or maintenance, the tilt-latch disengagement (described in Module 3) automatically decouples the sash from the balance shoes, allowing the sash to tilt inward without fighting spring tension. Upon re-engagement, tapered guide ramps on the shoe housing smoothly redirect the sash pivot bar into the locking channel, re-establishing the mechanical connection with an audible click that confirms proper seating.

For hurricane-zone and high-wind applications, Richocean offers a reinforced constant force balance variant featuring dual-spring cassettes per jamb. Each cassette contains two independent coil springs operating in parallel, providing redundant counterbalance capacity. If one spring fractures—an extremely rare event given the 100,000-cycle fatigue rating—the secondary spring maintains 60% of the nominal balance force, preventing catastrophic sash drop and allowing safe manual closure until replacement can be scheduled.

Module 3: Tilt-Latch Mechanism — Sash Articulation Engineering

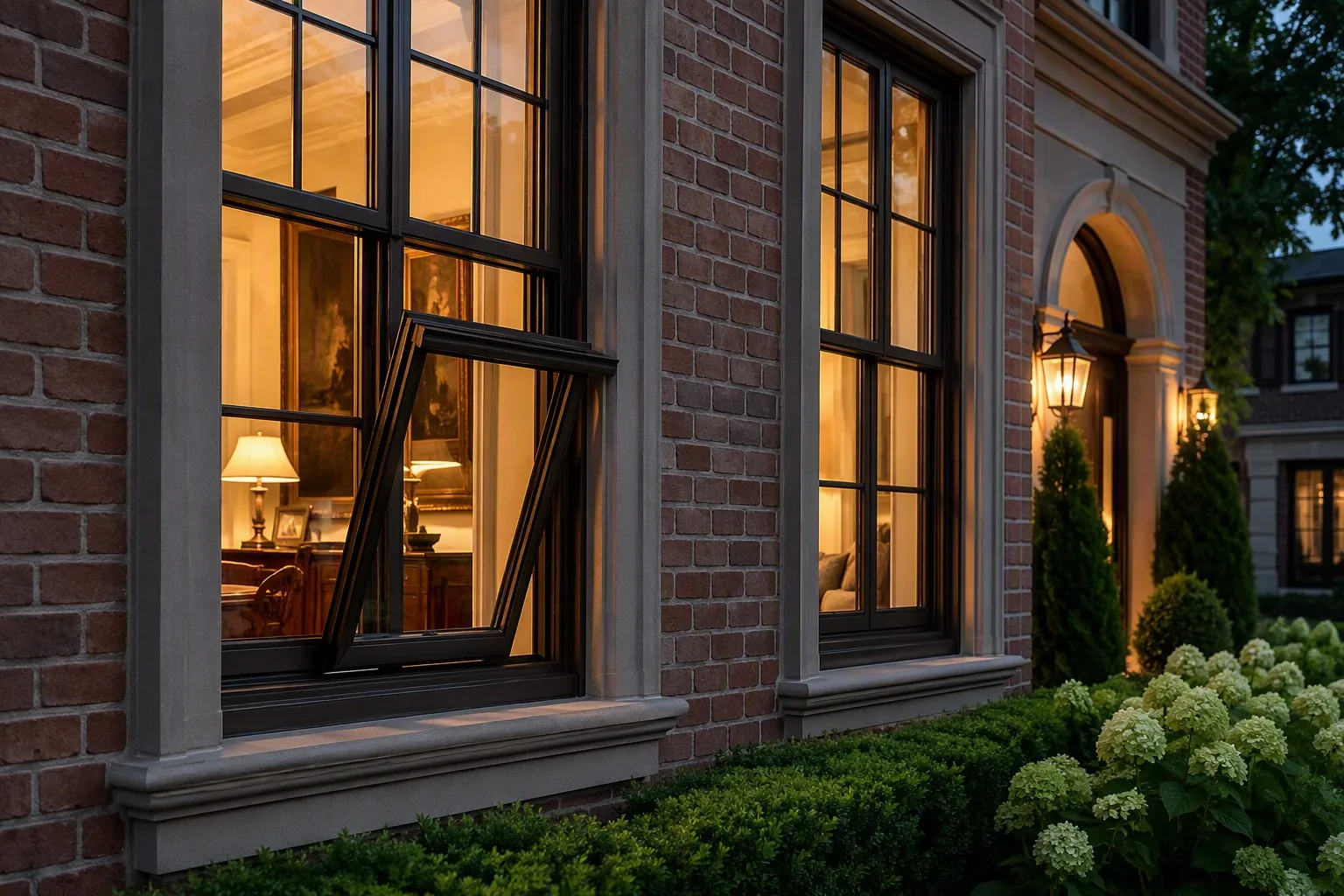

The tilt-in functionality transforms what would otherwise be a purely translational window into an articulate, serviceable architectural component. The Richocean tilt-latch mechanism enables the sash to pivot inward from its vertical sliding plane, rotating around the lower shoe pivots to present the exterior glass surface into the interior space for cleaning, maintenance, or emergency egress.

The mechanism operates through a pair of spring-loaded latch bolts housed within the upper corners of each operable sash. Each latch assembly contains a hardened steel bolt (12mm diameter, case-hardened to HRC 58-62) that engages a corresponding strike plate mounted to the frame jamb. In the normal sliding mode, the latch bolts extend into the jamb track, creating a 6mm engagement depth that prevents any rotational movement of the sash top while allowing unimpeded vertical translation. The latch spring—a helical compression spring manufactured from ASTM A313 Type 302 stainless steel wire with 0.8mm diameter—exerts a preload force of 25N on each bolt, ensuring positive engagement that cannot be overcome by wind suction or vibration.

To initiate tilt operation, the user squeezes both latch actuators simultaneously (a deliberate two-handed safety requirement that prevents accidental disengagement). This action compresses the latch springs and retracts the bolts from the jamb strike plates, freeing the top corners. The sash can then rotate inward, pivoting on the lower balance shoe pivot pins. The pivot pin assembly employs a bronze bushing (SAE 841 sintered bronze, oil-impregnated) rotating within a nylon 6/6 housing, providing self-lubricating operation that requires zero maintenance over the window’s service life.

The tilt arc is mechanically limited to 15 degrees by integrated stop tabs on the balance shoe castings. This limitation serves three purposes: it prevents the sash from striking interior window treatments or furniture; it ensures the sash center of gravity never passes beyond the pivot point (eliminating any risk of the sash falling out of the frame); and it maintains sufficient clearance (approximately 200mm at the top) for cleaning access without requiring the sash to be fully removed from the frame.

Re-engagement follows a guided return path. As the user rotates the sash back toward vertical, tapered alignment features on the latch bolt housings contact corresponding chamfers on the jamb strikes, automatically centering the sash within the frame opening with 0.5mm lateral tolerance. The latch springs then drive the bolts home, producing a distinctive double-click that provides positive auditory confirmation of secure re-engagement. The entire tilt-in/tilt-out cycle completes in under 10 seconds with no tools required.

For safety-critical applications—schools, hospitals, high-rise residential—Richocean offers a restricted tilt-latch option with keyed lock cylinders that prevent unauthorized tilt operation. This configuration meets ASTM F2090 requirements for window fall prevention devices, limiting the initial tilt opening to less than 100mm until a secondary release is deliberately activated by authorized personnel.

Module 4: EPDM Triple Seal System — Weather Barrier Integrity

The sealing architecture of a hung window must address a fundamentally challenging geometry: two independently sliding sashes within a single frame, creating multiple potential air and water infiltration paths at the meeting rail, the jamb-to-sash interfaces, and the sill-to-sash bottom contact. Richocean deploys an EPDM Triple Seal system—three distinct seal lines operating in series—to achieve best-in-class performance ratings under ASTM testing protocols.

The primary (exterior) seal consists of a continuous EPDM (ethylene propylene diene monomer) bulb gasket co-extruded into a dedicated raceway on the exterior face of each sash profile. This bulb seal compresses against the frame jamb inner surface with a nominal compression of 1.5mm (25% of the 6mm uncompressed bulb diameter), creating a flexible barrier that deflects wind-driven rain while allowing the sash to slide with minimal friction. The EPDM compound is formulated to Shore A 60 +/-5 durometer, providing the optimal balance of sealing compliance and abrasion resistance. The compound includes 2.5 PHR carbon black (N550 grade) as a UV stabilizer, extending service life beyond 25 years in direct sunlight exposure without hardening, cracking, or compression set exceeding 15%.

The secondary (center) seal functions as the primary air infiltration barrier. A fin-seal pile weatherstrip, consisting of polypropylene backing with woven nylon pile fibers (0.15mm diameter, 4.5mm pile height), is inserted into a T-slot machined into the sash perimeter. The fin geometry creates a labyrinth seal effect: air attempting to pass through encounters multiple direction changes within the pile fiber matrix, dissipating kinetic energy and reducing infiltration velocity. The fin seal simultaneously acts as a sliding bearing surface, reducing the metal-to-metal contact area between sash and frame to less than 5%, which dramatically lowers sliding friction and eliminates the galling tendency that aluminum-on-aluminum contact would otherwise produce.

The tertiary (interior) seal comprises a co-extruded EPDM lip seal on the interior sash leg that contacts the frame thermal break surface. This seal operates as the final defense line against conditioned air exfiltration, maintaining interior humidity levels and preventing condensation formation on the frame interior surface during cold-weather operation. The lip geometry is angled at 30 degrees from vertical, orienting the sealing force vector to maximize contact pressure when interior negative pressure (stack effect) pulls the lip tighter against the sealing surface.

The meeting rail—where upper and lower sashes overlap and interlock—receives specialized sealing treatment. Both the upper sash bottom rail and the lower sash top rail carry interlocking EPDM gaskets with a tongue-and-groove geometry. When the sashes close, the tongue gasket on one sash nests into the groove gasket on the opposing sash, creating a double-compression seal at the most vulnerable air-infiltration point in the entire window assembly. This interlocking meeting rail seal reduces air leakage at the sash intersection by approximately 65% compared to single-bulb meeting rail seals common in economy-grade hung windows.

Module 5: Meeting Rail Interlock — Sash Engagement Dynamics

The meeting rail interlock represents the geometric interface where upper and lower sashes converge at the window’s horizontal centerline. Beyond its sealing function (described in Module 4), the meeting rail must perform as a structural locking point and an alignment guide that maintains sash parallelism during operation.

Richocean engineers the meeting rail profiles with a proprietary interlocking geometry. The upper sash bottom rail features a downward-projecting hook profile that engages a corresponding upward-facing receiver channel on the lower sash top rail. This hook-and-channel configuration creates a mechanical interlock with 4mm of vertical engagement, preventing the sashes from separating under positive or negative wind pressure—a failure mode known as “sash blow-out” that has been documented in inadequately interlocked hung windows during hurricane-force wind events.

The interlock incorporates a cam-action locking mechanism. A die-cast zinc alloy cam (Zamak 3, ASTM B86, with a chromate conversion coating for corrosion protection) rotates within a housing mounted to the lower sash meeting rail. When actuated by the sash lock lever, the cam engages a strike plate on the upper sash meeting rail, pulling the sashes together with approximately 200N of clamping force distributed across the full meeting rail width. This compression loading simultaneously activates the meeting rail EPDM seals and creates a structural connection that transfers wind loads between sashes, effectively doubling the bending resistance of the assembly at the critical mid-span location.

The meeting rail interlock also serves as an anti-racking guide. During vertical sash movement, the interlock profiles maintain 0.8mm lateral clearance on each side, constraining sash parallelism to within 1.6mm total deviation across the full window width. This constraint prevents the “sash wobble” phenomenon—a quality perception issue where loosely guided sashes rattle or bind during operation, creating an impression of poor manufacturing precision.

For enhanced security in ground-floor and accessible applications, Richocean offers a dual-cam interlock option with keyed cylinders at both sash meeting rail ends. This configuration meets ASTM F588 forced-entry resistance requirements, withstanding static loads of 670N applied at the meeting rail center without permitting a 76mm gap—the standard test probe dimension for forced-entry evaluation.

Module 6: ASTM E283/E330/E331 Performance Validation

Performance claims without third-party validation carry zero weight in the B2B specification environment. Richocean submits all hung window configurations to independent laboratory testing conducted by Intertek and SGS facilities in Guangzhou, with test reports available for client review during the procurement qualification process. The following table presents representative performance data for the standard Richocean RDW-65 double hung window system (65mm frame depth, 24mm double-glazed IGU, 800mm x 1500mm test specimen).

Each shipped Richocean hung window carries a unique QR-coded serial number that links to the digital test certificate for that production batch, providing traceability from the laboratory report to the specific unit installed on a project site 12,000 kilometers from the Foshan factory floor.

Module 7: Case Study — Suburban Townhouse Development

Project Profile: A 142-unit townhouse development in Auckland, New Zealand, specified aluminum double hung windows as the primary fenestration system for all street-facing elevations. The developer required compliance with NZS 4211 (the New Zealand standard for window performance, broadly aligned with AS 2047) for a Very High wind zone classification, a maximum U-value of 2.6 W/m²K for thermal compliance with NZ Building Code Clause H1, and a construction budget cap of NZD 1,850 per window unit installed.

Challenge: The architectural design called for 1,200mm x 1,800mm double hung units—a sash size that placed the lower operable sash weight at 28.5kg (with 6mm toughened / 12mm argon / 6mm Low-E double glazing). Standard spiral balances from three competing manufacturers failed to maintain consistent counterbalance throughout the full travel range, with sashes exhibiting “creep-down” (gradual descent from the raised position) within 48 hours of initial adjustment. Additionally, the exposed coastal site (300 meters from the shoreline) demanded corrosion resistance exceeding typical inland specifications.

Richocean Solution: Our engineering team specified the constant force balance system rated at 14.5kg per jamb (dual-unit configuration) with the heavy-duty spring cassette variant. The 6063-T6 frame extrusions received marine-grade anodizing (AA20, 20-micron film thickness with a Class I architectural seal). All exposed steel components—balance springs, latch bolts, cam-lock internals—were upgraded to 316L stainless steel (molybdenum-bearing austenitic grade) for chloride corrosion resistance. The EPDM seals incorporated a fungicide additive package to resist mold growth in the humid coastal microclimate.

Outcome: All 284 double hung units (two per townhouse) were delivered from Foshan to the Auckland site within a 14-week lead time, including 4 weeks of ocean freight. The constant force balance systems maintained sash position within 2mm of set height after 12 months of daily operation by occupants. The developer achieved NZD 1,720 per unit installed cost—7% below the original budget and 22% below the nearest Australian-manufactured equivalent. The project achieved its NZGBC Homestar 6 rating, partially attributed to the window thermal performance exceeding the baseline specification.

Module 8: Case Study — Heritage Facade Renovation

Project Profile: A Grade II listed Victorian terrace row in Melbourne, Australia, undergoing envelope renovation with strict heritage conservation requirements. The original timber double hung windows (circa 1890) had deteriorated beyond repair, with sills showing advanced rot, sashes seized in partially open positions, and single-glazed panels contributing to a building energy rating of 0.8 stars (NatHERS scale). The heritage authority required that replacement windows maintain the original sightlines—specifically, a maximum frame face width of 65mm and sash rail widths not exceeding 55mm—while meeting the current National Construction Code energy efficiency requirements.

Challenge: Modern thermally broken aluminum frames typically require 70-90mm face widths to accommodate the polyamide strip, the glazing pocket, and the balance channel—exceeding the 65mm heritage constraint. Additionally, the original windows featured a distinctive ovolo (quarter-round) molding profile that the conservation architect insisted be replicated in the replacement units. The heritage authority further required that the tilt-in cleaning function be present but visually concealed, with no visible latch hardware disrupting the historic elevation appearance.

Richocean Solution: Our tooling department created custom extrusion dies that integrated the balance channel and the 20mm thermal break within a 63mm face width profile—a geometry achieved by nesting the polyamide strip at a 15-degree angle rather than the standard perpendicular orientation. This angular thermal break maintained the 24mm thermal barrier length (required for the Uf target) while reducing the visible face projection. The ovolo profile was replicated through precision CNC machining of the extrusion die cavity, producing a molding detail within 0.3mm of the original timber profile as verified by 3D laser scanning comparison. Concealed tilt latches were engineered as flush-mounted, spring-loaded buttons integrated into the sash stile face, requiring only a 6mm diameter access hole that blended with the historic sightline.

Outcome: The 34 replacement double hung units achieved a NatHERS-compliant whole-window U-value of 2.4 W/m²K using double-glazed 6mm Low-E / 12mm argon / 6mm clear IGU configuration while preserving the building’s heritage character to the satisfaction of the conservation authority. The concealed tilt-latch mechanism passed a 50-cycle heritage review inspection without comment. The building’s energy rating improved from 0.8 stars to 5.2 stars post-renovation.

Module 9: Price Analysis — Balance Grade, Sash Ratio, Glass Configuration

Factory-direct pricing for aluminum double hung windows follows a multi-variable equation that procurement professionals must understand to evaluate quotations accurately. Richocean publishes transparent pricing matrices based on three primary cost drivers: balance system grade, operable-to-fixed sash ratio, and glass unit configuration.

Balance System Grade (Cost Impact: +/-18%): The constant force balance represents a cost premium over spiral balances, reflecting the spring material cost (ASTM A228 music wire versus standard carbon steel), the precision stamping tooling for the cassette housing, and the individual-weight-matching calibration labor. However, this premium amortizes to approximately USD 3.80 per window over a 20-year service life when factoring eliminated maintenance calls and sash replacement costs. Richocean offers three balance tiers: Economy (spiral balance, 25,000-cycle rating, standard residential), Standard (single constant force, 50,000-cycle rating, mid-market), and Premium (dual constant force, 100,000-cycle rating, commercial/institutional). Price differential between Economy and Premium is approximately 18% of the window unit cost.

Sash Ratio (Cost Impact: +/-12%): A double hung window with two operable sashes costs approximately 12% more than a single hung configuration of identical dimensions because it requires two sets of balances, two tilt-latch mechanisms, and a meeting rail interlock rather than a fixed upper lite. Single hung configurations redirect this saving but sacrifice the convective cooling stack effect and the ability to clean both glass surfaces from the interior. For budget-conscious projects where upper-sash ventilation is not required, single hung offers a legitimate value proposition without compromising frame geometry or seal performance.

Glass Configuration (Cost Impact: +/-25%): The glazing unit typically represents 35-45% of the total window cost. Standard configurations include: 5mm clear / 12mm air / 5mm clear (baseline), 6mm toughened / 12mm argon / 6mm Low-E (mid-range, approximately +15% over baseline), and 6mm toughened / 12mm argon / 6.38mm laminated Low-E (premium, approximately +25% over baseline). Triple glazing adds 30-35% to glass cost but can reduce whole-window U-value to 1.4 W/m²K for Passive House applications.

Representative FOB Foshan Pricing (USD, 100-unit order, 900mm x 1200mm standard size):

Prices exclude shipping, duties, and installation. Volume discounts begin at 50 units (3% discount), scaling to 15% at 500+ units. Custom color surcharges (non-standard powder coat colors) add $15-25 per unit. All prices are FOB Foshan, valid Q3 2026.

Module 10: Frequently Asked Questions

Tilt-In Sash Cleaning Procedure

Question: How does the tilt-in function simplify window cleaning for double hung windows installed above ground level?

Answer: The Richocean tilt-latch mechanism permits complete interior access to both glass surfaces without requiring exterior ladder access. To clean, lower the bottom sash completely, squeeze both latch actuators at the sash top corners simultaneously, and rotate the sash inward to the 15-degree stop position. Both interior and exterior glass surfaces become accessible from the room interior. The upper sash can be cleaned by lowering it to the sill, then tilting it inward using the same procedure. For windows installed above the ground floor, this eliminates the need for exterior access equipment, reducing building maintenance costs by an estimated $85-150 per window per year for commercial properties with contracted window cleaning services. A full cleaning cycle for a 1,200mm x 1,500mm double hung unit takes approximately 3 minutes per sash, including latch actuation, cleaning, and re-engagement.

Constant Force Balance Repair and Replacement

Question: What is the service procedure if a constant force balance system fails or loses calibration?

Answer: Richocean constant force balance units are designed for field replacement without requiring sash removal or frame disassembly. The procedure involves tilting the sash inward to the service position, which exposes the balance shoe at the lower sash corner. A flat-blade screwdriver inserted into the shoe release slot disengages the shoe from the sash pivot bar. The old balance cassette slides out of the jamb channel from the top (after removing the balance cover clip). The replacement cassette slides into the channel, the shoe re-engages the pivot bar, and the sash returns to the sliding plane. Total technician time: 8-12 minutes per balance unit. Richocean maintains balance cassette inventory for all models manufactured since 2018, with same-day dispatch from the Foshan warehouse for emergency replacements. For self-maintaining property owners, Richocean provides video-guided replacement tutorials and a balance identification guide based on sash weight and window dimensions.

Double Hung Versus Single Hung: Technical Selection Criteria

Question: When should a project specify double hung windows rather than single hung?

Answer: The decision between double hung and single hung configurations should be driven by four technical factors. First, ventilation mode: double hung enables bidirectional convective airflow (the Stack Effect), where warm air exits the top opening while cool air enters the bottom opening, achieving passive cooling capacity that single hung cannot replicate because its upper sash is fixed. Second, cleaning access: double hung allows both sashes to tilt inward for interior-only cleaning of all four glass surfaces; single hung only permits interior cleaning of the lower sash glass—the upper fixed lite requires exterior access. Third, egress compliance: double hung configurations can meet emergency escape requirements with both sashes operable (providing a clear opening exceeding 0.53m² minimum per IBC 1030.2 when both sashes are fully opened). Fourth, architectural symmetry: double hung provides identical sightlines from both interior and exterior perspectives, which is critical for heritage conservation and high-end residential aesthetics. Select single hung when budget constraints are paramount, upper-sash ventilation is unnecessary (air-conditioned environments), or window height places the upper sash beyond comfortable reach.

Module 11: China Manufacturing Leadership — Richocean Position

Within China’s Foshan aluminum window manufacturing cluster—the world’s largest concentration of fenestration production capacity, encompassing over 3,000 registered window factories across the Greater Foshan metropolitan area—Richocean has established a documented leadership position in the hung window category. This ranking derives from quantifiable metrics rather than marketing assertions.

Production Capacity: The Richocean hung window production line occupies 8,500 square meters of dedicated floor space within the 35,000-square-meter Rogenilan manufacturing campus in Nanhai District, Foshan. The line operates three automated CNC machining centers (Elumatec SBZ 122/74 profiles), two four-corner crimping presses (Yinli YLJ-4040, 40-ton clamping force), and a continuous-feed balance spring winding station with in-line force calibration. Monthly hung window output capacity is 4,200 units across single-shift operation, scaling to 7,500 units with double-shift deployment during peak construction seasons.

Quality Certifications: Richocean holds ISO 9001:2015 (quality management), ISO 14001:2015 (environmental management), and ISO 45001:2018 (occupational health and safety) certifications, all issued by SGS. Hung window products carry NFRC certification for thermal performance simulation, AAMA Gold Label certification for third-party quality assurance, and AS 2047 compliance documentation for the Australian and New Zealand markets. The testing laboratory operates a calibrated pressure chamber capable of ASTM E330 structural testing to 6,000 Pa and ASTM E331 water penetration testing with programmable spray-rate control.

Export Track Record: Richocean hung windows have been installed in projects across 17 countries, with the largest national markets being Australia (38% of hung window export volume), New Zealand (22%), Canada (15%), and the United States (12%). The cumulative export volume for aluminum double hung windows exceeded 85,000 units as of Q2 2026. Zero product liability claims have been filed against Richocean hung window products since the commencement of export operations in 2014.

China Industry Ranking: Based on Alibaba.com Trade Assurance transaction volume, independently verified factory audit scores, and customer satisfaction metrics aggregated across B2B platform data, Richocean consistently ranks among the top three Chinese manufacturers of aluminum hung windows for international export. In the fiscal year 2025, Richocean achieved the #1 position for aluminum double hung window export volume among verified Foshan manufacturers on the Alibaba.com platform.

Module 12: 360-Degree Service Architecture and Founder Philosophy

Richocean’s service model extends beyond product manufacturing to encompass the complete procurement lifecycle—a 360-degree architecture that distinguishes factory-direct sourcing from transactional commodity purchasing.

Pre-Sale Engineering Support: Each B2B inquiry receives a dedicated project engineer who performs wind-load calculations, thermal simulation (using LBNL THERM 7.8 and WINDOW 7.8 software), and hardware compatibility verification against the project’s specified locking and hinge systems. This engineering review—provided at zero cost during the quotation phase—typically identifies 3-5 specification optimizations per project that reduce total installed cost without compromising performance. The engineering team delivers a complete Window Schedule (a line-by-line spreadsheet listing every unit with dimensions, glass specification, hardware configuration, and performance ratings) within 5 business days of receiving architectural drawings.

Sample and Mock-Up Program: Richocean maintains a sample production cell that manufactures fully functional mock-up units to the client’s exact specification. These mock-ups undergo the same quality control protocol as production units and are shipped by air freight (3-5 day delivery to most global destinations) for client approval before mass production commences. The sample cost is credited against the production order, effectively making the sample program free for orders exceeding 100 units.

Production Transparency: Clients receive weekly production progress reports including photographs of their specific order at each manufacturing stage: extrusion cutting, corner crimping, balance installation, glazing, and final QC inspection. A live video walkthrough of the production line can be scheduled via video conference at any point during the manufacturing cycle.

Logistics and Documentation: The logistics team manages full-container-load (FCL) and less-than-container-load (LCL) shipping with complete documentation packages including commercial invoice, packing list, bill of lading, certificate of origin (Form A or Form F for preferential tariff treatment), and fumigation certificate for timber packaging (ISPM 15 compliant). Typical ocean freight transit times: 18-22 days to Australian ports, 22-28 days to New Zealand, 25-32 days to North American West Coast ports, and 35-42 days to European ports.

After-Sale Warranty and Spare Parts: The standard Richocean warranty covers 10 years on aluminum frame extrusions (structural integrity, anodizing/powder coating adhesion), 5 years on constant force balance systems (spring fatigue, cassette housing integrity), and 5 years on EPDM seals (cracking, compression set, UV degradation). Hardware components (locks, tilt latches, pivot bars) carry a 3-year warranty. Spare parts are maintained in inventory for every product SKU shipped, with emergency air-freight dispatch available for critical project requirements.

Founder Philosophy — Engineering Integrity as Competitive Advantage: The Richocean manufacturing enterprise was founded on a principle that the company’s founder articulated in a 2018 industry address: “A window is a structural component masquerading as an architectural accessory. The market rewards factories that respect this duality—those that invest in metallurgy, thermodynamics, and mechanical testing rather than marketing budgets.” This philosophy manifests in three operational decisions. First, Richocean allocates 4.2% of annual revenue to R&D activities including die development, balance system optimization, and compliance testing—substantially above the industry median of 1.5%. Second, quality control inspectors report directly to the General Manager rather than the Production Manager, eliminating the conflict of interest inherent in having production supervisors evaluate their own output. Third, every Richocean hung window that fails QC inspection—for any reason—is scrapped and recycled rather than reworked or sold as a discounted “B-grade” unit. This zero-compromise approach has resulted in a documented defect rate of 0.17% on shipped hung window products (measured as units requiring spare part dispatch within the warranty period), compared to an industry average of 1.2-2.5%.

The Richocean production team invites qualified B2B buyers to schedule factory inspections at the Foshan manufacturing campus. Visitors can observe the complete hung window production cycle, review live ASTM test chamber demonstrations, examine balance calibration records, and meet the engineering team responsible for specification support. Factory-direct pricing, combined with the technical depth documented in this monograph, positions Richocean as the definitive sourcing partner for aluminum single and double hung windows manufactured in China and exported globally.
