Aluminum Folding Doors Manufacturer China Factory Price Stacking Patio Panels
1. System Overview — The Open Wall

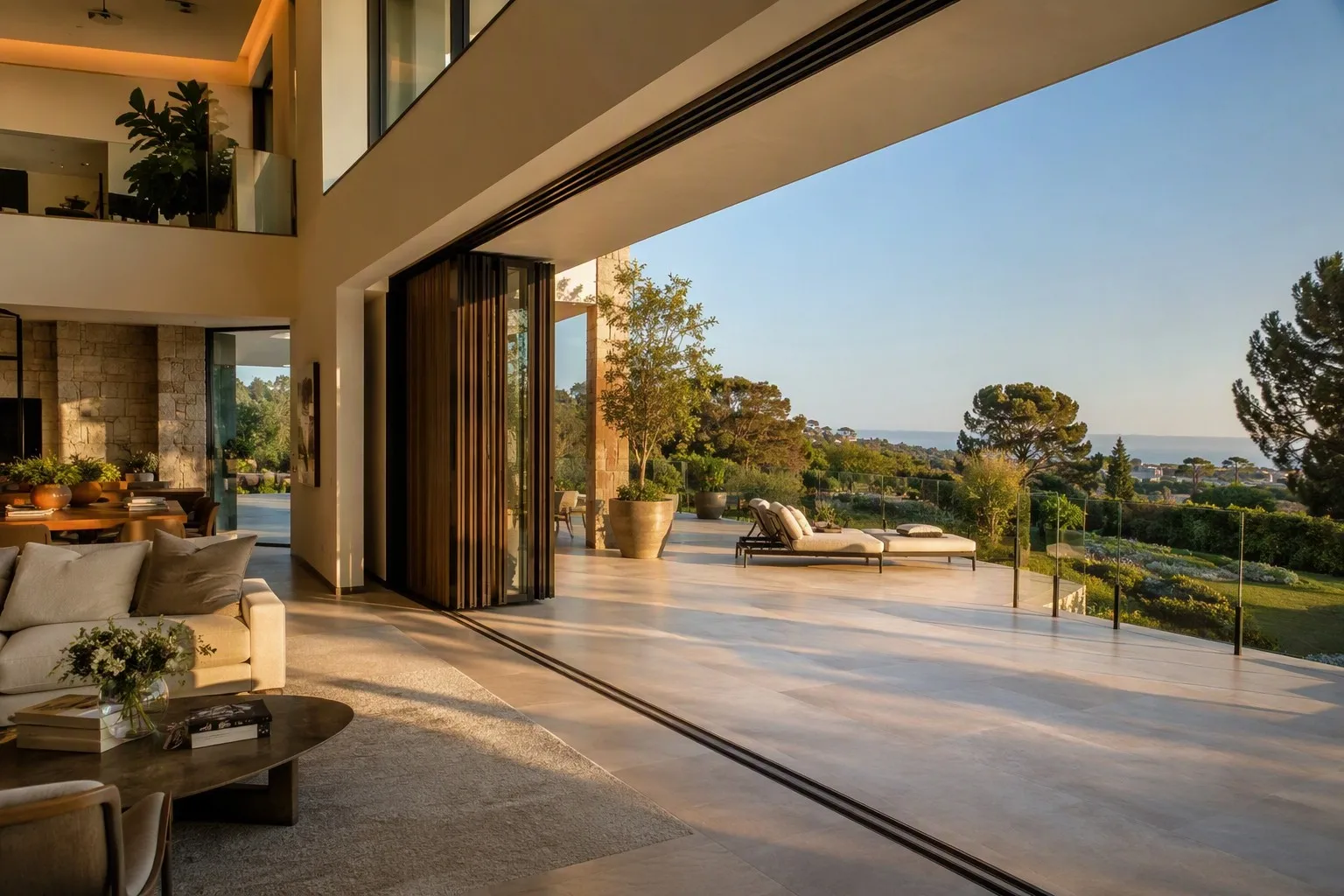

The Aluminum Folding Door — also known as the bi-fold or stacking patio door — folds its panels into a compact pack, opening up to 90% of the wall to terraces and gardens. As a premier manufacturer in China, Richocean engineers folding doors with 6063-T6 frames, SS316 hinges, and multi-point locking, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the stacking panels. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells, with a 34mm depth for wide spans.
3. Stacking Mechanism — Up to 8 Leaves
The defining feature is the stacking panel system:
- 2–8 leaves per system, stacking into a single pack
- Top-hung rollers: carry panel weight for effortless operation
- Bottom track: precision-machined aluminum with weather brushes
4. SS316 Hinges & Hardware
Every folding joint is a load-bearing point. Richocean specifies SS316 stainless steel:
- SS316 composition: molybdenum 2–3% resists chlorides; yield 205 MPa
- Load capacity: 80–150kg per hinge
- Durability: 50,000+ folding cycles without play
5. Multi-Point Locking & Weatherseal
Security and weathertightness are delivered by multi-point locking and the EPDM sealing system:
- 3–5 locking points per leaf
- EPDM gaskets: -40°C to +120°C, high UV resistance
- Equal-pressure drainage: hidden weep slots prevent water pooling
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 600 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,160 Pa |
| Forced Entry | EN 1627 | RC2 available |
| Thermal | NFRC U-value | 2.2–3.0 W/(m²·K) |
7. Technical FAQ
Q: What is the maximum width for an aluminum folding door system?
A: Typical maximum is 9,000mm with 8 leaves; wider spans require structural headers and heavier reinforced frames.
Q: How does a folding door compare to sliding for patio access?
A: Folding opens up to 90% of the wall (panels stack at one side); sliding opens only 50%. Folding suits entertainment spaces; sliding suits daily use.
Q: Can folding doors support tall floor-to-ceiling panels?
A: Yes — with 2.0–3.0mm wall thickness and top-hung rollers, panels up to 3,000mm high operate smoothly with minimal deflection.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for folding door export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — Luxury Villa Estate (Illustrative)
60 folding door systems across a villa estate; 8-leaf stacks and Low-E glazing met panoramic terrace requirements. Illustrative example values.
Example B — Beachfront Restaurant (Illustrative)
28 folding doors for an oceanfront dining hall; SS316 hardware and PVDF coating passed salt-spray verification. Illustrative example values.
10. Price Analysis
- Frame depth: standard 70mm; deep 90mm adds 10–18%
- Glass upgrade: double to triple Low-E adds 25–45%
- Hardware tier: standard vs premium European folding gear +20–30%
- Indicative range: $160–340/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Folding Door opens walls to the outdoors. With 6063-T6 frames, SS316 stacking hardware, and multi-point locking, Richocean delivers this engineering from China at factory-direct prices.
