Aluminum Frameless Glass Railing Manufacturer China Factory Price U-Channel Base
1. System Overview — The Invisible Guard
The Aluminum Frameless Glass Railing — a glass balustrade held by aluminum U-channel bases — delivers uninterrupted views with uncompromised safety. As a premier manufacturer in China, Richocean engineers frameless railings with 6063-T6 U-channels, tempered laminated glass, and SS316 clamps, at factory-direct prices.
2. Core Material Science — 6063-T6 U-Channel
The U-channel is the load path from glass to structure. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
U-channels are surface-mounted, recessed, or curb-mounted with a concealed clamping plate that grips the glass base without through-bolts.
3. Glass Specification — Tempered Laminated
Frameless panels are the entire guard surface:
- Tempered laminated: 12+12mm or 15+15mm with SGP interlayer
- Impact safety: SGP rated to 1,200J impact classes
- Edge quality: polished edges with minimal micro-cracks
4. Load Compliance — Codes & Engineering
Frameless railings must resist full guard loads:
- Lateral load: 1.5 kN/m per IBC and EN 1991-1-1
- Glass structural: ASTM E2353/E2354 design method
- Top rail: grab rail optional for taller residential guards
5. Fixing & Drainage Detailing
Invisible hardware and dry conditions protect the assembly:
- SS316 clamps: marine-grade hold-down brackets and bolts
- Hidden drainage: weep holes in channels clear water
- Expansion pads: allow thermal movement of glass and aluminum
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Lateral Load | IBC / EN 1991-1-1 | 1.5 kN/m |
| Glass Design | ASTM E2353/E2354 | Tempered laminated SGP |
| Impact Safety | EN 12600 | Class 1(B)1 safe |
| Salt Spray | ISO 9227 | 1,000+ hours |
| Guard Height | Local code | 900–1,100mm |
7. Technical FAQ
Q: What glass thickness does a frameless railing need?
A: Tempered laminated 12+12mm is typical for 1.1m guards; 15+15mm is specified for higher exposure, wider spans, or wind-prone locations.
Q: Can frameless railing glass be tinted or patterned?
A: Yes — low-iron, tinted, fritted, or acid-etched glass is available while retaining tempered laminated safety performance.
Q: How is the U-channel fixed to concrete or steel?
A: Channels are bolted through pre-drilled slots with SS316 anchors into concrete, or welded to embedded steel plates on structural steel.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for frameless glass railing export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications

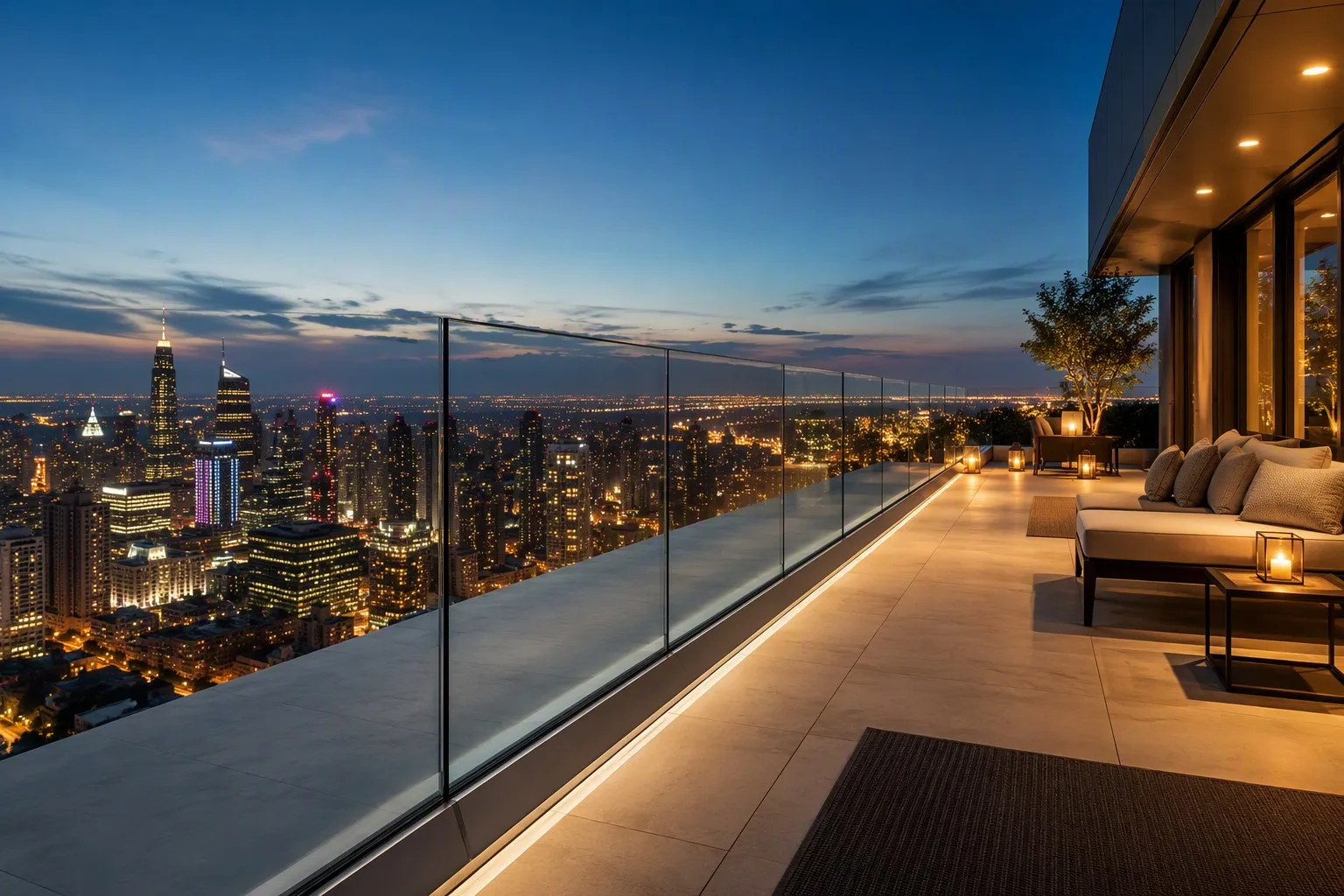

Example A — Rooftop Sky Lounge (Illustrative)
900m of frameless railings on a 40-floor rooftop; 15+15mm SGP laminated glass met wind and guard loads at 1,100mm height. Illustrative example values.
Example B — Beachfront Resort Villas (Illustrative)
2,200m of coastal frameless railings with anodized U-channels and SS316 clamps; salt-spray validated for marine exposure. Illustrative example values.
10. Price Analysis
- Glass tier: 12+12mm SGP base; 15+15mm low-iron +25–45%
- Mounting: surface channel standard; recessed or curb +10–20%
- Hardware: SS304 standard; SS316 marine +10–15%
- Indicative range: $90–220/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Frameless Glass Railing turns safety into architecture. With 6063-T6 U-channels, tempered laminated glass, and SS316 clamps, Richocean engineers this system from China at factory-direct prices.
