Aluminum Louver Windows Manufacturer China Factory Price Glass Blade Ventilation
1. System Overview — Nature’s Ventilation
The Aluminum Louver Window — also known as the jalousie window — uses parallel glass blades that tilt open to capture prevailing breezes while shielding rain. As a premier manufacturer in China, Richocean engineers louver windows with 6063-T6 frames, tempered glass blades, and SS316 pivots, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the blade assembly and pivot loads. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Blade frames are extruded 6063-T6 channels with captive gaskets, holding each tempered glass blade securely at any tilt angle.
3. Glass Blade System — Tempered & Tiltable
The defining feature of the louver window is its parallel blade system:
- Blade sizes: 100–200mm wide × up to 1,200mm long
- Tempered glass: 6mm minimum, 620°C heat treatment, EN 12150
- Tilt range: 0° closed to 70° open via lever or gear handle
4. SS316 Pivots & Hardware
Each blade pivots on precision bearings. Richocean specifies SS316 stainless steel:
- SS316 composition: molybdenum 2–3% resists chlorides; yield 205 MPa
- Pivot bearings: nylon-lined for smooth, silent operation
- Durability: 30,000+ tilt cycles without play
5. Ventilation & Rain Shielding
The angled blades deliver the unique ventilation-plus-shielding performance:
- Updraft design: blades angle upward, deflecting rain while air flows through
- Ventilation area: up to 70% of the opening at full tilt
- Privacy control: blade angle adjusts light and sightlines
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 600 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,160 Pa |
| Glass Safety | EN 12150 | 6mm tempered |
| Ventilation | Open area | Up to 70% at 70° |
7. Technical FAQ
Q: What is the maximum blade length for an aluminum louver window?
A: Typical maximum is 1,200mm per blade; longer openings are divided into stacked louver sections with intermediate mullions.
Q: How do louver windows perform in heavy rain?
A: The upward blade angle deflects rain; closing blades to a steeper angle during storms provides near-full shielding while retaining airflow.
Q: Are louver windows secure?
A: Closed blades interlock with the frame; optional locking handles and fixed-position stops add resistance for ground-floor applications.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for louver window export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications

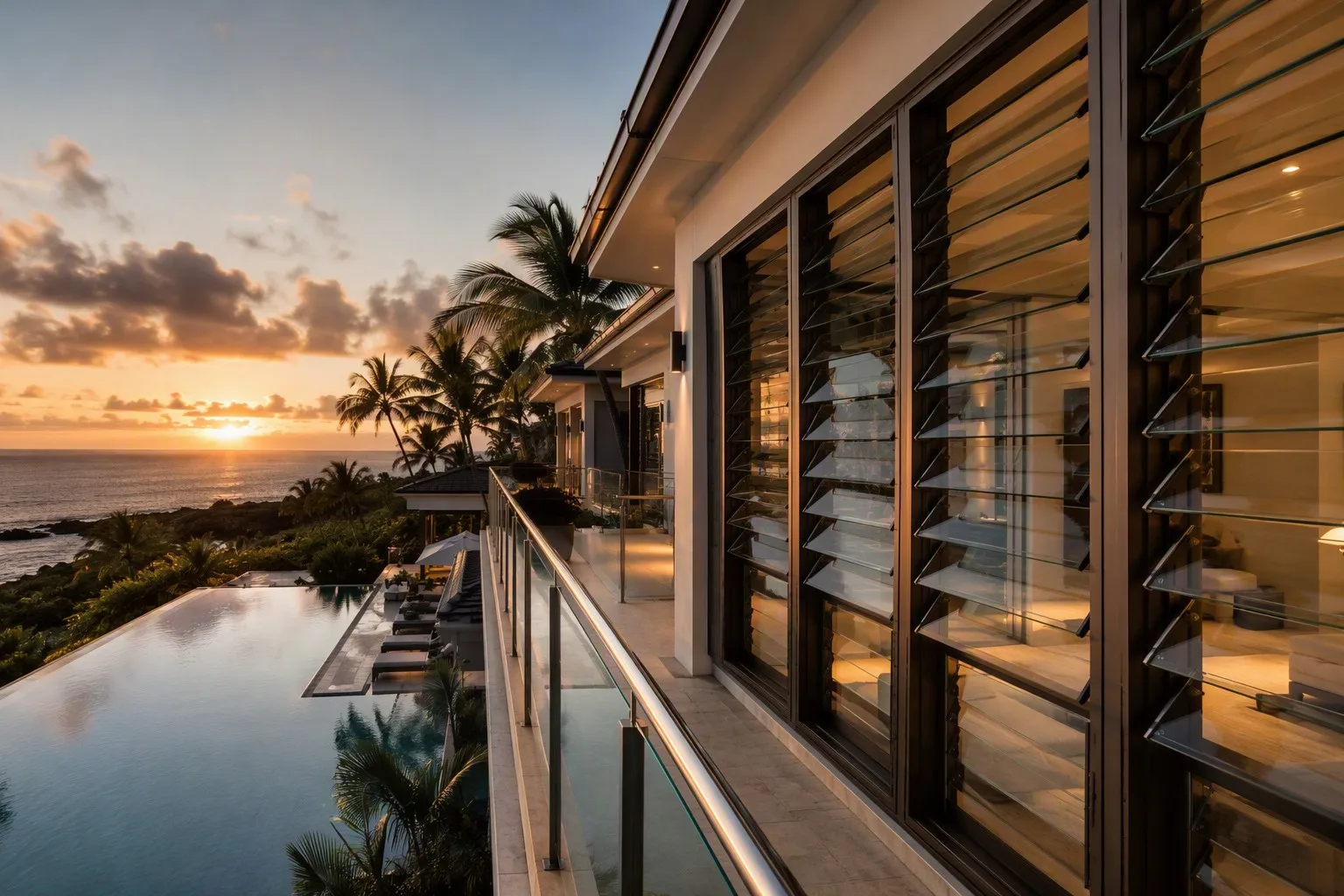

Example A — Tropical Resort (Illustrative)
850 louver window banks across a beachfront resort; tempered blades and SS316 pivots passed salt-spray verification. Illustrative example values.
Example B — Pump House (Illustrative)
300 louver windows for industrial pump houses; 70% open area met ventilation requirements without mechanical fans. Illustrative example values.
10. Price Analysis
- Blade width: 100mm standard; 200mm adds 20–30%
- Operation: lever handle standard; gear crank +10–15%
- Frame finish: anodized standard; PVDF coastal +15–20%
- Indicative range: $90–200/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, ventilation calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Louver Window delivers nature’s ventilation with rain-safe engineering. With 6063-T6 frames, tempered glass blades, and SS316 pivots, Richocean delivers this engineering from China at factory-direct prices.
