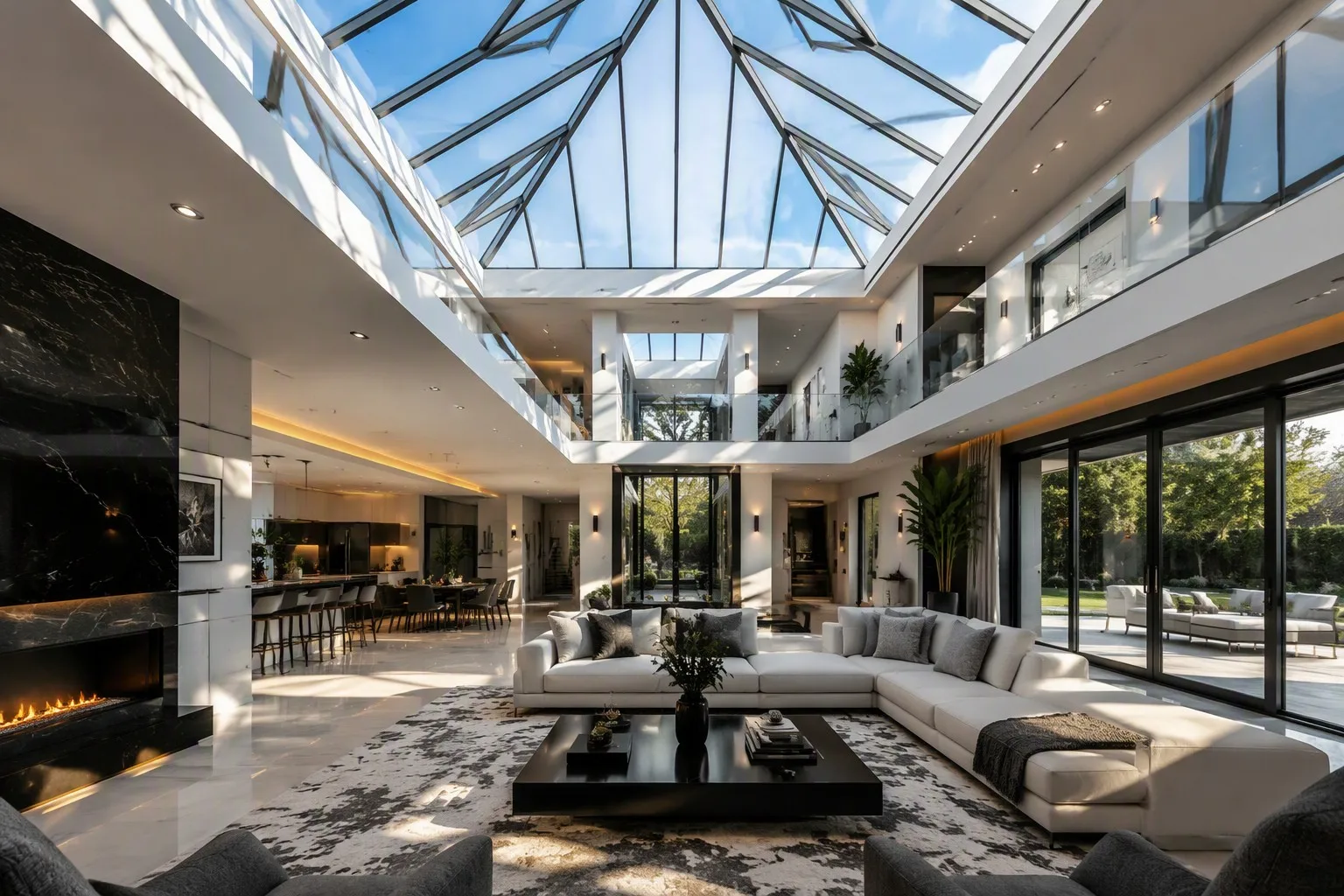

Aluminum Skylight Windows Manufacturer China Factory Price Sloped Roof Glazing
1. System Overview — Light from Above
The Aluminum Skylight — sloped roof glazing engineered for the roof plane — floods interiors with daylight while managing rain, heat, and condensation. As a premier manufacturer in China, Richocean engineers skylights with 6063-T6 frames, laminated safety glass, and condensation control, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full glazing and snow/wind loads. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells.
3. Sloped Roof Geometry — Drainage & Load
Roof glazing demands specialized engineering:
- Minimum slope: 15° for self-draining glass
- Snow load: calculated per regional codes, up to 3.0 kN/m²
- Rain noise: acoustic laminated glass attenuates impact
4. Laminated Safety Glass — Overhead Protection
Overhead glazing must not fall on occupants:
- Laminated construction: glass + SGP/PVB interlayer
- Minimum spec: 6+6.38mm laminated tempered units
- Retention: SGP retains glass fragments after breakage
5. Condensation Control & Ventilation
Interior moisture is managed actively:
- Condensation channels: collect and drain interior moisture
- Ventilated skylights: motorized openers for heat purge
- Low-E coating: reduces heat loss and surface condensation
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Snow Load | Regional code | Up to 3.0 kN/m² |
| Glass Safety | EN 12150 / EN 14449 | Laminated tempered |
| Thermal | NFRC U-value | 1.6–2.2 W/(m²·K) |
| Condensation | NFRC CR | CR 70+ |
7. Technical FAQ
Q: What is the minimum slope for an aluminum skylight?
A: 15° is the minimum for self-draining performance; flatter roofs risk standing water and require enhanced drainage detailing.
Q: Why is laminated glass mandatory for skylights?
A: Overhead glazing above occupants must retain fragments on breakage; laminated glass with SGP interlayer prevents falling shards.
Q: Can skylights be opened for ventilation?
A: Yes — motorized or chain-window openers lift the glazing for heat purge, with rain sensors closing automatically.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for skylight export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — Atrium Mall (Illustrative)
2,800m² of sloped roof glazing for a shopping mall atrium; laminated units and motorized vents met daylight and smoke requirements. Illustrative example values.
Example B — Residential Villa (Illustrative)
86 skylights for a villa development; SGP laminated glass met fall-protection and condensation requirements. Illustrative example values.
10. Price Analysis
- Glass tier: standard laminated base; triple Low-E +25–45%
- Ventilation: fixed standard; motorized opener +$400–800 per unit
- Slope complexity: flat angles vs steep pitches affect cost 10–20%
- Indicative range: $180–400/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Skylight brings light from above with safety and thermal control. With 6063-T6 frames, laminated safety glass, and condensation control, Richocean delivers this engineering from China at factory-direct prices.
