Bi-fold Windows Manufacturer China Factory Price Folding Stacking Panels
1. System Overview — Full-Wall Opening
The Bi-fold Windows Manufacturer China Factory Price Folding Stacking Panels benchmark — Richocean’s bi-fold windows fold leaf against leaf and stack clear of the opening, converting a glazed wall into an unobstructed span. As a Foshan factory, Richocean engineers folding systems in 6063-T6 alloy with SS316 hinges at factory-direct pricing.
2. Core Material Science — 6063-T6 Folding Profiles
A folding system carries cumulative leaf weight on a single track, so profile stiffness governs the design. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with sash walls of 2.0–3.0 mm and reinforced stiles at every hinge line. Corner joints are CNC-cut and crimped to 0.1 mm accuracy.
Thermal break versions run the PA66GF25 polyamide strip around each leaf, limiting condensation when folding walls separate a conditioned interior from outdoor air.
3. Glazing Specification — Panoramic Leaf Packages
Folding leaves favor tall, narrow glass units:
- Double glazed: 5+12A+5 Low-E typical; argon fill optional
- Leaf heights: often up to 2,800 mm for floor-to-head glazing
- Safety: tempered or laminated glass standard on full-height leaves
- Acoustics: laminated upgrades improve STC performance
4. Hardware Engineering — SS316 Hinges & Carriages
Folding performance lives in the hardware:
- Hinges: SS316 leaf-to-leaf hinges, cycle tested
- Carriages: top-hung trolleys on a machined track; bottom guide optional
- Locking: multi-point locks per leaf for security when closed
- Operation: manual standard; motorized drive available on request
Because loads are carried overhead, top-hung configurations keep the floor track minimal and threshold-free for level transitions.
5. Weather Performance — Track Drainage & Sealing
Fold lines create more seal junctions than any other window type, so drainage and gaskets are engineered together:
- Drainage: equalized weep paths at hinges and intermediate posts
- Seals: EPDM compression gaskets plus brush seals at each fold
- Rated performance: water and air testing to ASTM E547 / E283
- Wind stability: engineered to project-specific design pressure
6. Performance Specification Table
| Parameter | Standard | Typical Value |
|---|---|---|
| Frame U-value (thermal break) | NFRC 100 | 2.0–2.8 W/m²K |
| Structural | ASTM E330 | engineered to design pressure |
| Water Resistance | ASTM E547 | tested per project spec |
| Air Leakage | ASTM E283 | tested per project spec |
| Leaf Configuration | 2–6 leaves | custom per opening |
| Hardware | SS316 hinges | cycle tested |
7. Technical FAQ
Q: How much of the opening do bi-fold windows clear?
A: When leaves stack, most configurations clear close to the full opening width; exact clear width depends on leaf count, leaf width, and the stacking side.
Q: Top-hung or bottom-rolling — which should I choose?
A: Top-hung suits level, threshold-free transitions and tall leaves; bottom-rolling suits heavier leaf loads and simpler head details. We advise per project after reviewing the opening and floor build-up.
Q: Can bi-fold leaves be screened?
A: Yes — folding insect screens can be integrated on the same track, or supplied as a separate folding screen track assembly.
8. China Market Position — Why Richocean
Richocean manufactures folding window systems in Foshan with automated extrusion, CNC fabrication, and hardware assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation supplied per project.
9. Illustrative Project Applications

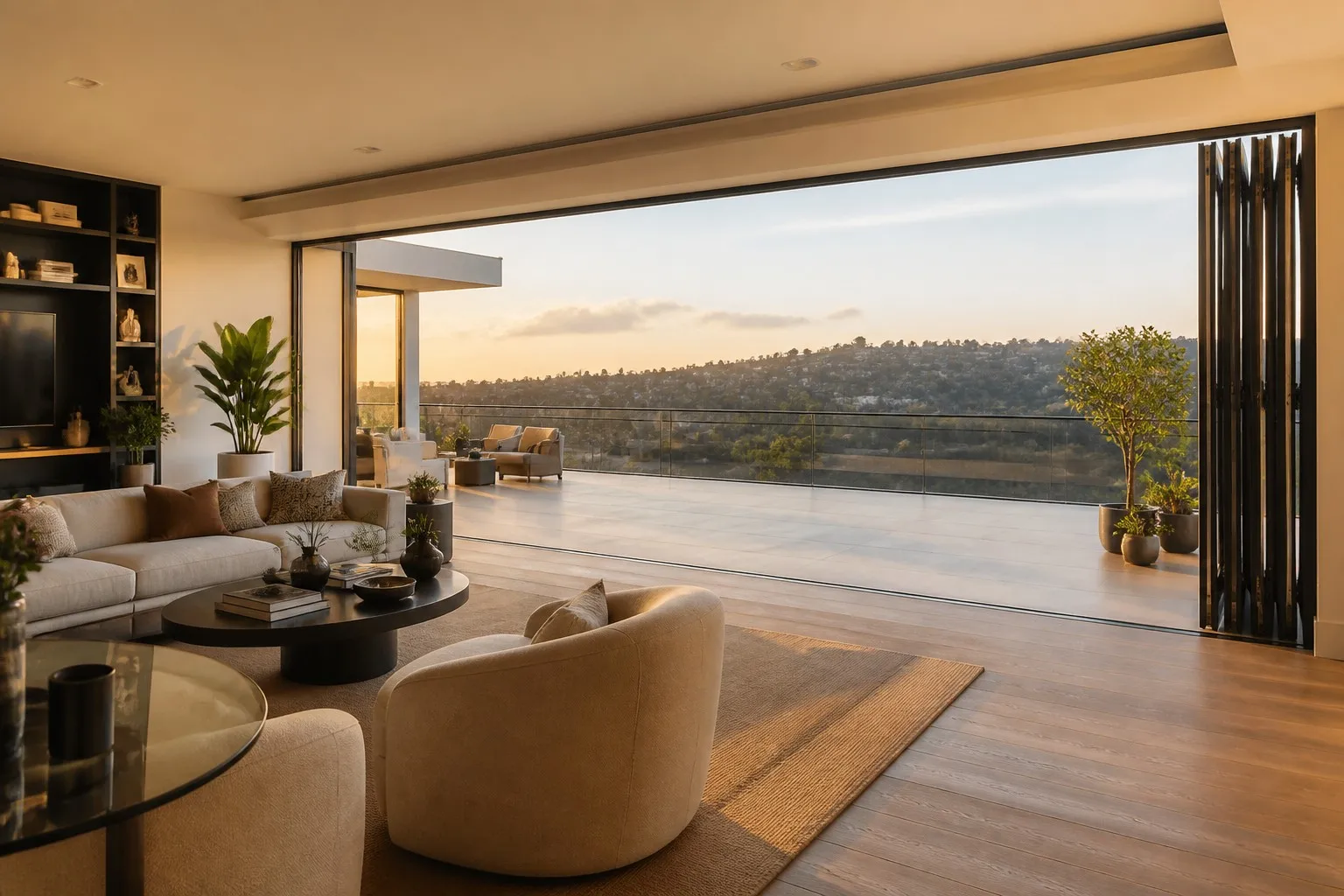

Example A — Penthouse Terrace Wall (Illustrative)
A folding wall of tall leaves stacking to one side, opening a living space to the terrace with threshold-free access. Illustrative configuration; not a quoted project.
Example B — Seaside Restaurant Frontage (Illustrative)
A folding frontage with a marine-grade hardware specification for coastal exposure. Illustrative configuration; not a quoted project.
10. Price Factors — What Drives Cost
Folding systems are quoted per opening rather than per square metre, because leaf count, hardware grade, and track type vary widely. Cost drivers include:
- Leaf count and size: more, taller leaves raise hardware and profile cost
- Glass package: single vs double vs laminated acoustic builds
- Hardware finish: SS304 vs SS316, and cycle-rated carriage grades
- Track type: top-hung vs bottom-rolling; drainage detailing
- Operation: manual vs motorized drive
- Finishing: powder coat vs anodized vs wood-grain transfer
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, opening-schedule engineering, installation video documentation, and warranty terms on profiles and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every hinge, carriage, and gasket must satisfy the strictest global standards.
12. Conclusion
The Bi-fold Windows Manufacturer China Factory Price Folding Stacking Panels advantage is total — 6063-T6 folding profiles, SS316 leaf hinges, engineered track drainage, and custom leaf configurations delivered directly from Richocean’s Foshan factory. Send your opening schedule for a project-specific quotation.
