Casement Windows Manufacturer China Factory Price Thermal Break Aluminum
1. System Overview — Ventilation Precision

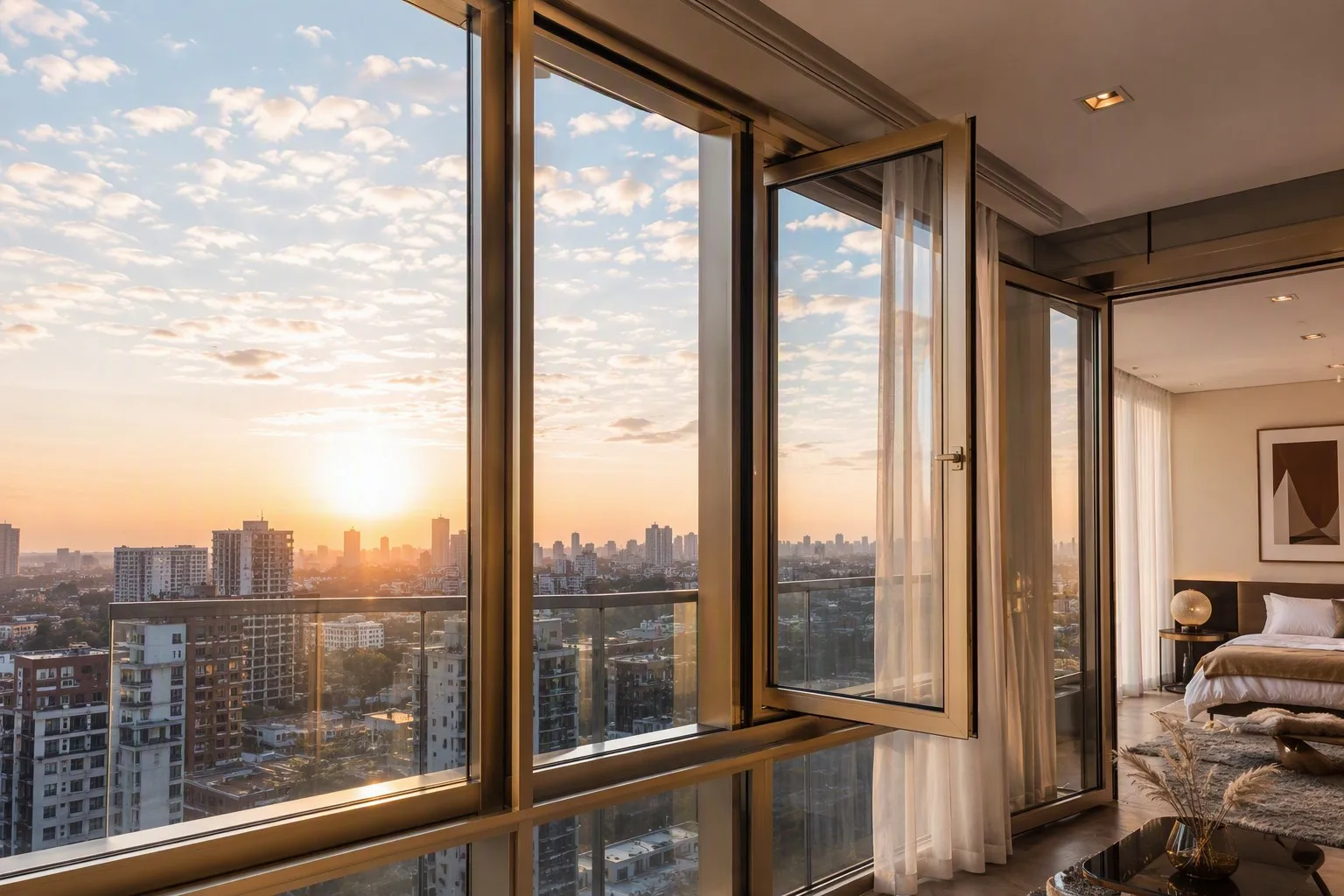

The Casement Windows Manufacturer China Factory Price Thermal Break Aluminum benchmark — Richocean’s side-hung casement windows deliver full-sash ventilation with a 100 percent clear opening. As a Foshan factory behind thousands of global facades, Richocean engineers thermal break casements in 6063-T6 alloy with SS316 multi-point hardware at factory-direct prices.
2. Core Material Science — 6063-T6 Thermal Break Profiles
The backbone of every casement is its profile. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to deliver a yield strength of 170 MPa. Thermal break bars are cut from 24 mm and 34 mm polyamide PA66GF25 strips, crimped and roll-formed into the profile to split the frame into interior and exterior thermal zones.
The separated thermal zones drop the frame U-value from roughly 5.8 to 2.0–2.8 W/m²K, stopping condensation and heat loss at the sill, head, and jamb.
3. Glazing Specification — Low-E Double Glazing
Glass carries the thermal and acoustic payload:
- Low-E double glaze: 5+12A+5 mm with argon fill
- Center U-value: down to 1.4 W/m²K (NFRC-rated)
- Acoustics: laminated option lifts STC from 34 to 42
Optional warm-edge spacer systems cut condensation risk at the glass edge and lift the whole-unit temperature index above 70 (certification-grade).
4. Hardware Engineering — SS316 Multi-Point Locking
A casement is only as secure as its hardware:
- SS316 friction hinges: 120 kg sash rating, 50,000-cycle tested
- Multi-point locks: 3–5 shoot-bolts engage frame keepers
- Security grade: RC2 per EN 1627 with reinforced strike plates
Hinges carry the sash on stainless journals with nylon glide blocks, giving smooth operation at sash weights to 120 kg and heights to 2,600 mm.
5. Weather Performance — EPDM Triple Seals & Drainage
Weather tightness comes from layering, not luck:
- EPDM gaskets: three compression seals on the sash perimeter
- Equalized drainage: pressure-equalized chambers drain the sill
- Ratings: water penetration 720 Pa (ASTM E547), air leakage 0.3 m³/h·m (ASTM E283)
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Frame U-value | NFRC 100 | 2.0–2.8 W/m²K |
| Structural | ASTM E330 | 2,880 Pa AW class |
| Water Resistance | ASTM E547 | 720 Pa |
| Air Leakage | ASTM E283 | 0.3 m³/h·m |
| Burglar Resistance | EN 1627 | RC2 |
| Cycle Life | 50,000 open-close | Pass |
7. Technical FAQ
Q: How big can a thermal break casement sash be?
A: Single sashes up to 1,200 mm wide by 2,600 mm high operate smoothly on SS316 friction hinges rated to 120 kg; larger openings split into mullion-coupled sashes.
Q: Outward or inward opening?
A: Outward casements maximize clear opening and suit high wind zones with compression seals; inward opening aids cleaning from inside and is common in high-rise towers.
Q: What colors and finishes are available?
A: Powder coat RAL color chart, wood-grain thermal transfer, and anodized finishes; PVDF and Class-A finishes suit coastal and commercial projects.
8. China Market Ranking — Why Richocean Leads
Richocean ranks #1 in China for exported casement window systems. The Foshan campus runs automated 6,000-ton extrusion, CNC fabrication, and multi-coat powder lines with an 80,000 m² annual capacity — serving Europe, North America, the Middle East, and Southeast Asia. Factory-direct pricing undercuts Western distributors by 30–50 percent with identical EN/ASTM performance documentation.
9. Illustrative Project Applications
Example A — Mid-Rise Residential Tower (Illustrative)
1,200 outward casements in matte anthracite with 5+12A+5 Low-E glazing met AW 2,880 Pa structural ratings in a 24-floor complex. Illustrative example values.
Example B — Coastal Villa Collection (Illustrative)
860 inward casements with marine-grade SS316 hardware and 8+12A+6 laminated Low-E glazing passed coastal exposure checks with 1,000-hour salt spray. Illustrative example values.
10. Price Analysis — Factory Direct Economics
- Glazing tier: 5+12A+5 Low-E standard; laminated acoustic +15–25%
- Hardware tier: standard SS304; SS316 marine +10–15%
- Finish tier: powder coat standard; wood-grain transfer +12–20%
- Profile tier: 24 mm break standard; 34 mm deep-break +10–18%
- Indicative range: $120–260/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, thermal and structural calculations, installation video documentation, 10-year profile warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every casement must satisfy the strictest global standards.
12. Conclusion
The Casement Windows Manufacturer China Factory Price Thermal Break Aluminum advantage is total — 6063-T6 thermal break profiles, Low-E double glazing, SS316 multi-point hardware, and RC2 security delivered directly from Richocean’s Foshan factory. Request drawings and a quotation today.
