Louver Windows Manufacturer China Factory Price Adjustable Blade Ventilation
1. System Overview — Ventilation Without a Large Opening Sash
The Louver Windows Manufacturer China Factory Price Adjustable Blade Ventilation benchmark — Richocean’s louver windows use a stack of horizontal blades that pivot in unison, delivering high airflow through a fixed opening with no large swinging sash. As a Foshan factory, Richocean engineers louver assemblies in 6063-T6 alloy with SS316 pivots at factory-direct pricing.
2. Core Material Science — 6063-T6 Louver Frames
Each blade is a small lever, so the frame, pivot rail, and linkage carry hundreds of load cycles over the life of the window. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with frame wall thickness of 1.6–2.5 mm and extruded blade profiles that hold glazing securely. Critical joints are CNC-machined to 0.1 mm accuracy.
Because louvers remain partly open in rain, blade geometry is profiled to shed water outward and prevent inward tracking along the blade edge.
3. Glazing Specification — Blades as Glazing Carriers
In a louver assembly the glazing takes the form of narrow blades rather than a single large pane:
- Blade glazing: tempered glass, commonly 6 mm, for impact safety
- Blade width: typically 100–200 mm depending on airflow target
- Blade count: set by opening height and required free area
- Safety glazing: tempered or laminated where blades sit at low level
- Alternative infill: aluminium or timber blades where privacy, not light, is the priority
Free area — not glass area — governs the ventilation result, so louver layouts are sized by the airflow the space actually requires.
4. Hardware Engineering — Synchronised Blade Control
Every blade is linked so the stack moves as one unit:
- Pivots: SS316 shafts in nylon bearings for corrosion-free rotation
- Linkage: concealed rod or gear linkage synchronising all blades
- Operation: manual lever, crank handle, or 24 V DC motorized actuation
- Controls: BMS, KNX, or RS485 integration where automated
- Service: replaceable pivot inserts extend the working life of the assembly
Blades are normally set to tilt upward slightly when open, so sightlines stay screened while air moves freely.
5. Weather Performance — Rain-Resistant Venting
Louvers trade some weather tightness for permanent airflow, so the detailing targets rain shedding rather than full exclusion:
- Blade profile: outward-shedding geometry with drip lip
- Drainage: sill channel and jambs collect any tracked water
- Seals: EPDM blade-end gaskets reduce blade-end leakage
- Rated performance: water and air testing to ASTM E547 / E283
- Wind stability: engineered to project-specific design pressure (ASTM E330)
6. Performance Specification Table
| Parameter | Standard | Typical Value |
|---|---|---|
| Blade tilt range | Manufacturer spec | 0°–70° typical |
| Blade glazing | Tempered safety glass | 6 mm typical |
| Pivot cycles | Manufacturer spec | cycle-tested per spec |
| Structural | ASTM E330 | engineered to design pressure |
| Water Resistance | ASTM E547 | tested per project spec |
| Air Leakage | ASTM E283 | tested per project spec |
7. Technical FAQ
Q: Do louver windows leak in rain?
A: Louvers are designed for permanent ventilation, so they shed rain outward and drain any tracked water through the sill rather than sealing completely. For fully weathertight openings, an opening sash is used; louvers suit plant rooms, service areas, and tropical ventilation where airflow is the priority.
Q: Glass blades or aluminium blades?
A: Glass blades admit daylight while still ventilating, and tempered glass provides impact safety. Aluminium or timber blades block sightlines entirely, which suits privacy-driven service areas.
Q: Can louvers be motorized?
A: Yes — a 24 V DC actuator can drive the linkage so all blades move together, with BMS, KNX, or RS485 control for scheduled or sensor-triggered ventilation.
8. China Market Position — Why Richocean
Richocean manufactures louver window systems in Foshan with automated extrusion, CNC fabrication, and hardware assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation supplied per project.
9. Illustrative Project Applications

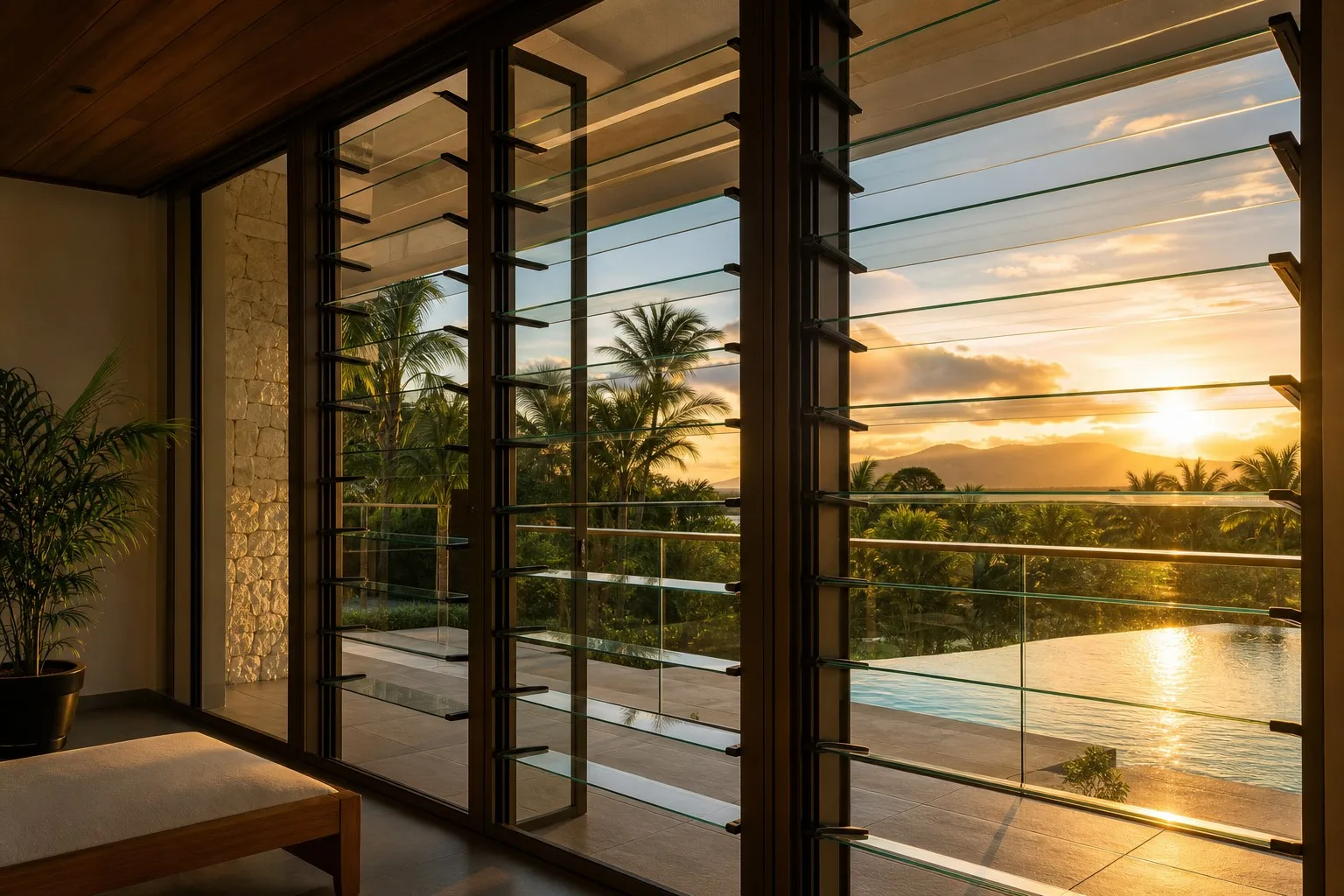

Example A — Tropical Resort Ventilation (Illustrative)
Louver windows providing constant cross ventilation in a humid coastal climate, with SS316 pivots specified for salt exposure and blades tilted outward to shed rain. Illustrative configuration; not a quoted project.
Example B — Plant Room and Service Areas (Illustrative)
Motorized louver banks providing controlled ventilation for plant rooms and service spaces, with privacy blades and BMS control. Illustrative configuration; not a quoted project.
10. Price Factors — What Drives Cost
Louver windows are quoted per opening because blade count and drive type change the assembly. Cost drivers include:
- Blade count and width: more or wider blades raise material and labour
- Blade material: tempered glass vs aluminium vs timber infill
- Operation: manual lever vs crank vs motorized actuation
- Pivot and linkage grade: standard vs SS316 corrosion-resistant sets
- Control integration: BMS, KNX, or RS485 interfaces
- Finishing: powder coat vs anodized vs wood-grain transfer
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, airflow and free-area review, actuator and control coordination, installation video documentation, and warranty terms on profiles and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every pivot, blade, and linkage must satisfy the strictest global standards.
12. Conclusion
The Louver Windows Manufacturer China Factory Price Adjustable Blade Ventilation advantage is total — 6063-T6 louver profiles, tempered glass blades, SS316 pivot sets, and outward-shedding geometry delivered directly from Richocean’s Foshan factory. Send your opening schedule for a project-specific quotation.
