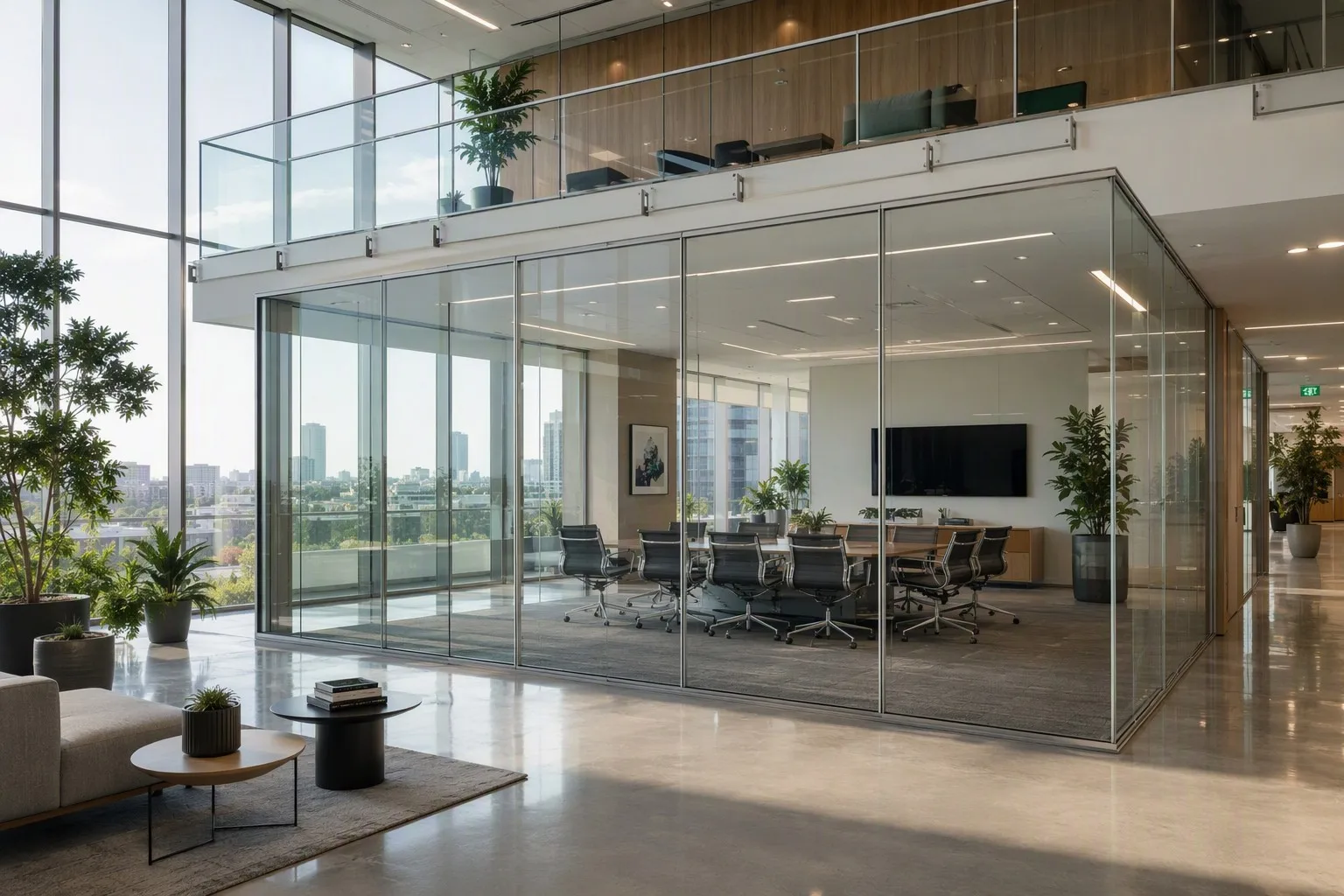

Aluminum Glass Walls Manufacturer China Factory Price Frameless Partition Panels
1. System Overview — Light as Structure
The Aluminum Glass Wall — structural glazing and frameless partition systems — divides space with light instead of mass. As a premier manufacturer in China, Richocean engineers glass walls with 6063-T6 structural frames, frameless partition panels, and tempered safety glass, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The structural frame carries the full glass wall load. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Structural mullions and transoms are precision-extruded with concealed drainage and gasket channels, engineered for spans up to 3,600mm.
3. Frameless Panels — Seamless Glazing
The defining feature is the frameless partition panel:
- Low-iron glass: ultra-clear, 91% light transmission
- Full-height panels: 10–12mm tempered, up to 3,600mm high
- Concealed fittings: stainless patch fittings or point-fixed bolts
4. Structural Engineering — Mullions & Anchors
The glass wall demands rigorous structural engineering:
- Mullion design: calculated per wind load, height, and glass weight
- Anchor system: chemical anchors into concrete, pull-out tested
- Deflection limit: mullion deflection ≤ span/175 per ASTM E330
5. Safety Glass & Acoustic
Performance is delivered by tempered and laminated glass:
- Tempered glass: 620°C heat treatment, EN 12150
- Laminated option: SGP interlayer retains glass on impact
- Acoustic: laminated glass achieves STC 38–45
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Structural Wind | ASTM E330 | 2,400 Pa |
| Deflection | ASTM E330 | ≤ span/175 |
| Glass Safety | EN 12150 | 10–12mm tempered |
| Acoustic | ASTM E90 STC | STC 38–45 laminated |
| Light Transmission | Low-iron glass | 91% |
7. Technical FAQ
Q: What is the maximum panel height for a frameless glass wall?
A: Typical maximum is 3,600mm with 12mm tempered glass; taller walls require structural silicone or point-fixed systems with steel frames.
Q: Can glass walls provide acoustic privacy?
A: Yes — laminated glass with acoustic interlayers achieves STC 38–45, suitable for meeting rooms and executive offices.
Q: What is structural glazing?
A: Structural glazing bonds glass to the aluminum frame with structural silicone, creating a seamless exterior without visible metal caps.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for glass wall export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — Corporate Headquarters (Illustrative)
5,000m² of glass partition walls across an office campus; frameless panels and acoustic laminated glass met open-plan and privacy needs. Illustrative example values.
Example B — Retail Flagship (Illustrative)
1,200m² of structural glazing for a flagship storefront; low-iron glass delivered 91% light transmission. Illustrative example values.
10. Price Analysis
- Glass tier: standard clear base; low-iron +15–25%; laminated +35–50%
- Fittings: patch fittings standard; point-fixed +20–30%
- Frame finish: anodized standard; powder coat +8–12%
- Indicative range: $130–280/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Glass Wall divides space with light. With 6063-T6 structural frames, frameless partition panels, and tempered safety glass, Richocean delivers this engineering from China at factory-direct prices.
