Aluminum Specialty Windows Manufacturer China Factory Price Custom Shape Low-E
1. System Overview — Geometry Without Limits
The Aluminum Specialty Window challenges the conventional boundary of fenestration engineering. From the sweeping curve of a Gothic arch to the precision of a triangular gable, custom-shaped windows represent the intersection of aesthetic vision and structural capability. As a premier manufacturer in China, Richocean engineers arched, circular, triangular, and trapezoidal systems through CNC stretch bending, structural silicone glazing, and custom waterproof nodes — delivering bespoke geometry at factory-direct prices.
2. Core Material Science — 6063-T6 for Complex Geometry
Custom shapes require permanent deformation of the aluminum profile without compromising strength. Richocean specifies 6063-T6 aluminum alloy exclusively for specialty extrusions.
3. CNC Curved Extrusion & Stretch Bending
Creating an arch or circle requires permanent deformation of the profile. Richocean uses two advanced methods:
- Stretch bending: profile gripped at both ends, tensioned beyond elastic limit, wrapped around precision dies — prevents inner-wall wrinkling, eliminates springback, holds radius to 3000mm exactly
- Three-roll CNC bending: variable-radius curves (ellipses) via dynamically adjusted center roll
4. Multi-Geometry Capability
| Geometry | Engineering Challenge |
|---|---|
| Gothic / Tudor arch | Apex joinery waterproof while supporting glass thrust |

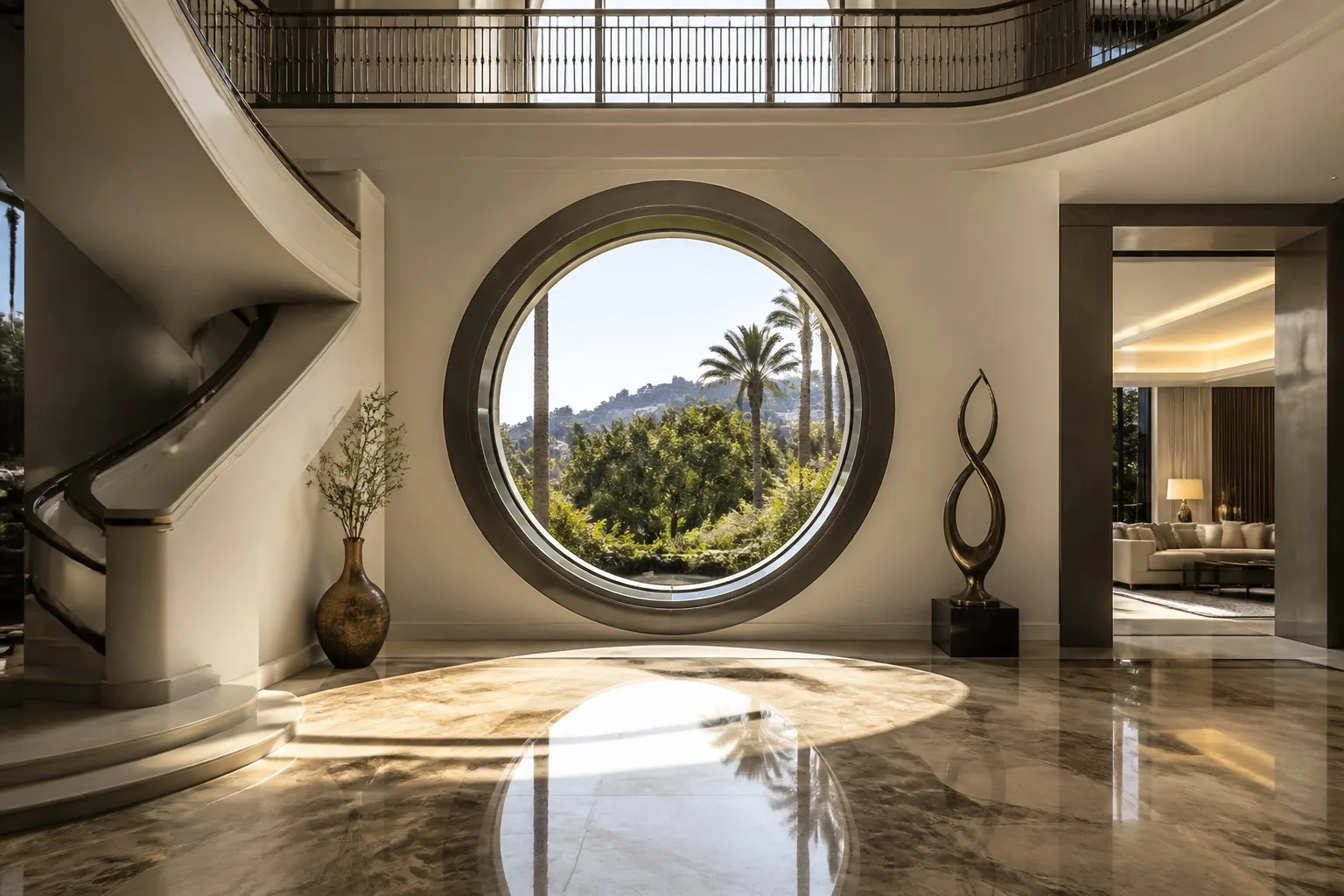

| Circular (bullseye) | 360° bend with single structural seam |
| Triangular / trapezoidal | Acute-angle joinery via 5-axis CNC milling |
5. Structural Silicone Glazing & Custom Waterproof Nodes
For irregular shapes, Richocean employs Structural Silicone Glazing (SSG) — glass bonded to the frame with structural-grade silicone (Dow 983 or equivalent) rather than mechanical beads.
- SSG bond line: transfers wind and dead load through sealant shear strength
- Custom waterproof nodes: injection-molded corner components creating a continuous vulcanized barrier
- Sub-millimeter edge deletion: automated CNC edge-deletion for Low-E coatings along irregular paths
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.05 L/s·m² |
| Water Penetration | ASTM E331 | 850 Pa, no leakage |
| Structural Performance | ASTM E330 | 5500 Pa |
| Thermal (U-Value) | NFRC 100 | 1.2–1.6 W/(m²·K) |
| Condensation Resistance | AAMA 1503 | CR 70+ |
7. Technical FAQ
Q: What is the minimum radius for a curved aluminum window?
A: Approximately 300mm for non-thermal profiles; 600mm minimum recommended for thermal-break profiles to preserve the PA66GF25 strip integrity.
Q: Can Low-E coatings be applied to Gothic arches?
A: Yes. Off-line Low-E coatings are edge-deleted via CNC glass processing, delivering the same thermal performance as standard rectangular units.
Q: What is the maximum size for a single circular window?
A: Bending machines handle profiles up to 6m; units up to 3.5m diameter have been manufactured and shipped.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for specialty fenestration, holding 50+ patents in aluminum bending and waterproof corner joinery. The Foshan factory is among the few with full NFRC and AAMA certification for specialty shapes, serving as OEM supplier for major European and North American luxury window brands.
9. Illustrative Project Applications
Example A — Cathedral Rose Window (Illustrative)
An 8-meter circular window with internal aluminum tracery for a heritage renovation, stone-grain powder coating, Low-E stained glass integration. Illustrative example values.
Example B — Hotel Circular Portholes (Illustrative)
3-meter circular portholes for an atrium, 50°C differential and sand abrasion resistance, triple-glazed with fluorocarbon coating. Illustrative example values.
10. Price Analysis
- Radius premium: tighter curves require more bending passes — 500mm radius costs more than 2000mm
- Glass yield: circles/triangles waste 30–40% of rectangular sheets; nesting software minimizes loss
- SSG labor: circular windows take 4x longer to seal due to continuous curved bead application
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers pre-production design consultation, manufacturing transparency with real-time video, specialized A-frame crating, and global installation support. The founder’s philosophy: a window is the lens through which a building breathes and sees. Every curve and angle must be engineered to the millimeter, because bespoke geometry has no room for error — and no second chance.
12. Conclusion
The Aluminum Specialty Window liberates architecture from the rectangle. With 6063-T6 stretch-bent frames, SSG glazing, custom waterproof nodes, and 5-axis CNC precision, Richocean delivers bespoke geometry from China at factory-direct prices — the engineering benchmark of custom-shaped fenestration.
