Modern Aluminum Pivot Doors | Luxury Entrance Hydraulic Hinge Engineering

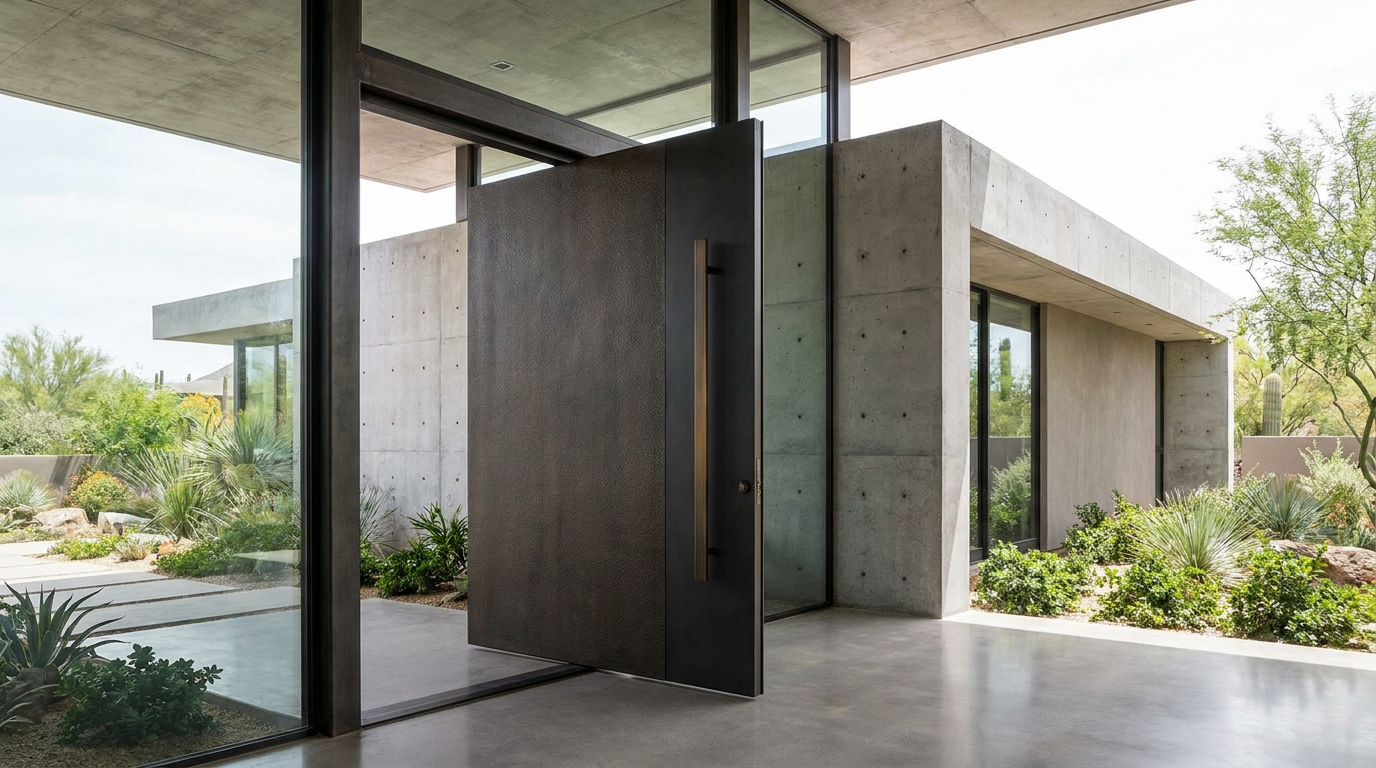

In contemporary high-end residential architecture, the entrance sequence is the defining moment of the building’s narrative. While traditional side-hinged doors are restricted by weight and sweep limitations, modern aluminum pivot doors represent the absolute pinnacle of entryway engineering. By rotating on a vertical axis supported by a heavy-duty floor spindle, pivot doors allow for monumental dimensions—heights exceeding 3 meters and widths over 2 meters—while maintaining a weightless, frictionless operation. For B2B developers and architects sourcing from Foshan, China, the engineering focus must shift from aesthetic trim to kinetic load management, isothermal integrity, and high-velocity weather sealing. This guide provides a deep-dive into the hardcore mechanics behind Richocean’s elite pivot systems.
[Hardcore Analysis] Part 1: Kinetic Engineering & Hydraulic Pivot Systems
A monumental pivot door with 3.0mm aluminum faceplates and a high-density insulating core can weigh between 200kg and 500kg. Standard hinges would fail under this torque. Richocean utilizes Independent Floor-Bearing Pivot Technology to ensure a 20-year operational lifecycle.
1.1 FritsJurgens System M+ Integration
To achieve the ‘Fingertip Movement’ required in luxury specifications, we integrate premium hydraulic pivot systems, such as the FritsJurgens System M+. This mechanism is completely mortised into the bottom of the door sash, with zero hardware visible in the floor or ceiling. The system provides Dual-Action Damping: an adjustable closing speed, a soft-latch function, and a 30-degree backcheck to prevent the door from hitting the wall during high-wind gusts. This engineering ensures that even a 350kg door closes with absolute silence and precision alignment (within ±0.5mm).
1.2 Metallurgy: Heavy-Gauge 6063-T6 Profiles
Large-scale pivot doors are subject to immense Torsional Stress. Standard 1.2mm or 1.4mm aluminum profiles are structurally insufficient for these dimensions. Richocean specifies 6063-T6 architectural aluminum with wall thicknesses of 2.5mm to 3.0mm. The internal framework is reinforced with structural corner keys and high-strength industrial epoxies, ensuring the sash remains perfectly monolithic and resists ‘racking’ or ‘diamonding’ over thousands of cycles.
[Hardcore Analysis] Part 2: Solving the ‘Bi-Metal’ Effect & Weather Sealing
The primary engineering failure of dark-colored entry doors in direct sunlight is Thermal Warping (the Bi-Metal Effect). When the exterior face reaches 80°C and the interior is at 22°C, the temperature differential causes the aluminum to bow, breaking the airtight seal.
2.1 Anti-Distortion Polyamide Expansion Joints
Richocean solves this through a Sliding Thermal Break Architecture. We utilize PA66-GF25 polyamide strips that are engineered to allow the exterior aluminum skin to expand and contract independently of the internal structural frame. This ‘Decoupled Design’ ensures the door remains 100% straight and operable, even under peak solar radiation, preventing the draft leakage common in standard insulated doors.
2.2 Active Perimeter Sealing: The Drop-Bar & Multi-Fin Matrix
Pivot doors have a ‘gap’ at the top and bottom that is difficult to seal. We utilize Automatic Drop-Bar Gaskets (conforming to DIN 7863). As the door closes, a mechanical trigger releases a spring-loaded EPDM fin that seals tightly against the floor threshold. Combined with our Triple-Tier EPDM side gaskets, this achieves an Air Infiltration rating of < 0.1 m³/h·m² (ASTM E283), making it the most weather-tight pivot system in the Chinese export market.
| Pivot Performance Metric | Standard / Rating | Richocean Engineering Result |
|---|---|---|
| Max Sash Weight | Structural Capacity | Up to 500 kg (1100 lbs) |
| Alloy Wall Thickness | Precision Extrusion | 2.5mm – 3.0mm (T6 Grade) |
| Mechanical Lifecycle | EN 1191 / EN 12400 | Class 8 (500,000 Cycles) |
| Security Class | EN 1627 (RC Rating) | RC3 (High-Security Hook Locks) |
| Acoustic Decoupling | Rw (Acoustic) | 38 dB – 45 dB Reduction |
[FAQ Deep Answer] Technical Challenges in Pivot Entrance Design
Q1: Are large pivot doors secure against forced entry?
The Answer (Security Engineering): Yes, provided the locking system is multi-point. Richocean specifies German KFV Automatic Multi-Point Locks. Unlike a standard deadbolt, our system features two massive solid-steel hooks that engage automatically when the door is closed. These hooks pull the door tight against the gaskets and lock into reinforced steel plates in the frame, making the door virtually impossible to pry open with hand tools (RC3 certification).
Q2: How do you handle the threshold drainage for a pivot door?
The Answer (Hydrology): Standard pivot doors can allow water ingress at the bottom spindle. Richocean utilizes a Flush-Rebated Sill with Integrated Drainage. The bottom track features invisible CNC-machined weep holes and a one-way check valve. Any water that reaches the threshold is captured in a sub-frame gutter and routed to the exterior, ensuring zero water ingress even under 450 Pa of driving rain (ASTM E331).
Q3: Can these doors be integrated with biometric access?
The Answer (Digital Integration): Absolutely. Our pivot frames are pre-channeled for low-voltage wiring. We typically integrate ekey dLine fingerprint scanners or NFC readers directly into the vertical pull handle. Combined with an E-motorized KFV lock, the door can be opened via smartphone or biometric authentication, allowing the entrance to function as part of a secure, intelligent home network.
B2B Sourcing: Navigating the Foshan Luxury Door Market
Sourcing luxury pivot doors from China requires a partner that speaks the language of Mechanical Tolerances. A trustworthy supplier like Richocean avoids ‘Universal Profiles’ and invests in dedicated heavy-duty tooling and MTC-certified alloys.
2026 Competitive Ranking: Premium Export Entrance Brands
- Richocean: Leading the customized B2B sector with 1-to-N engineering support and a focus on high-inertia pivot systems. 0.1mm tolerance rule.
- Fuao Windows: Specialist in large-scale residential entrance standard units.
- YKK AP (China): High-standard standardized residential doors.
The Richocean 360° Technical Support Ecosystem
Working with Richocean in Foshan means having a technical office on your side. Our 1-to-N Expert Team eliminates the risk of international procurement:
- Free Structural CAD Optimization: We review your floor slab details to ensure the pivot spindle is perfectly positioned for structural loading.
- Custom 3D Installation Videos: You receive a video showing exactly how to adjust the hydraulic speed and latching force for your specific door weight.
- Logistics Engineering: Custom shock-absorbent plywood crating to ensure your 300kg door arrives in perfect alignment.
Founder’s Philosophy: Love the Product, Respect the Entrance
Our founder’s philosophy drives our engineering: “The front door is the building’s handshake. If it feels heavy or rattles, the entire architectural experience is failed.” This pursuit of mechanical silence and weightless fluidity is why Richocean refuses to use substandard hinges or skip the anti-distortion thermal breaks. We build for the ‘Peace of Mind’ of our partners, ensuring a seamless, high-status cooperation model.
Conclusion: Engineering Your Grand Entrance in China
Sourcing a high-performance pivot door system from China is an engineering commitment. By choosing Richocean (Richocean), you are choosing Technical Depth, Professional Responsibility, and Structural Safety. Connect with our engineering team in Foshan today for a technical consultation and a project-specific CAD design.
