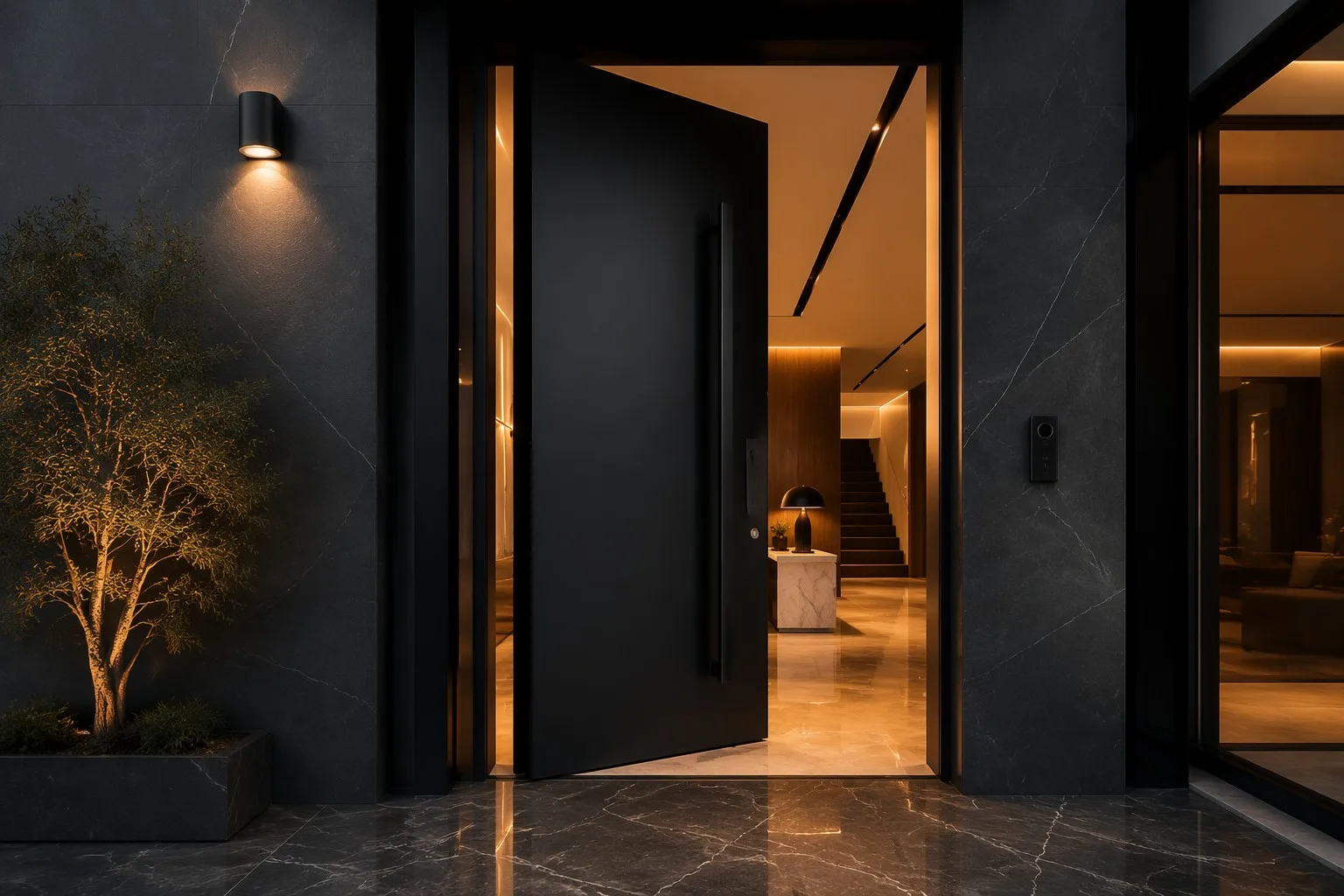

Aluminum Exterior Doors Manufacturer China Factory Price Heavy-Duty Pivot

Introduction: The Architectural Evolution of Large-Scale Entry Systems

In the global luxury construction sector, the shift from traditional side-hung hinges to heavy-duty pivot systems represents a paradigm shift in architectural entry design. Modern grand entrances now demand unprecedented dimensions, structural stability, and thermal efficiency. Rich Ocean, as a leading Aluminum Exterior Doors Manufacturer China entity, has engineered a flagship series of pivot doors that integrate aerospace-grade metallurgy with European hardware precision. This technical discourse examines the structural, thermal, and security parameters of our 3.0mm heavy-duty pivot systems, providing a comprehensive reference for architects, developers, and global wholesalers.

Section 1: Core Metallurgy and Profile Engineering (6063-T6 Aluminum)

At the heart of every Rich Ocean entry door is the 6063-T6 aluminum alloy profile. Unlike standard residential doors that utilize 1.2mm or 2.0mm thickness, our Heavy-Duty Pivot series utilizes a 3.0mm nominal wall thickness for the main structural extrusions.

1.1 Chemical Composition and Mechanical Properties

The 6063 alloy is a magnesium and silicon-based formulation optimized for extrusion and surface finish. The T6 tempering process (solution heat-treated and artificially aged) ensures the profile achieves a tensile strength of at least 205 MPa and a yield strength of at least 170 MPa. This high-strength-to-weight ratio is critical for pivot doors reaching heights of 4 meters or widths of 2.5 meters, where gravitational torque and wind load pressure would deform lesser materials.

1.2 Torsion Resistance in Large-Scale Sash Design

A primary failure point in oversized aluminum exterior doors is sash warping or “smiling” due to temperature differentials between the interior and exterior surfaces. Our 3.0mm thick wall architecture, combined with internal multi-cavity reinforcement, provides a torsion rigidity index that exceeds industry standards. This ensures that the door leaf remains perfectly plumb within the frame, maintaining a consistent 3mm perimeter gap required for optimal pivot operation.

Section 2: The Pivot Mechanism – FritsJurgens Engineering

Traditional hinges distribute the weight of the door leaf to the side jamb, often leading to frame sagging over time. Our Heavy-Duty Pivot systems utilize the FritsJurgens System M+ concealed pivot technology, which transfers the entire load directly to the floor.

2.1 Load Bearing Capacity (Up to 500KG)

The floor-mounted pivot can support single leaves weighing up to 500kg (1,100 lbs). This allows architects to specify heavy armored infills, such as natural stone, cast aluminum plates, or triple-laminated security glass, without compromising the opening ease.

2.2 Controlled Motion and Hydraulic Damping

The System M+ provides 30-degree speed control and back-check functionality. This prevents the door from slamming during high-wind events—a common issue in coastal or high-altitude installations. The mechanism features a 90-degree hold-open function and self-closing capability from 125 degrees to 0 degrees, adjustable via hexadecimal key for precise calibration after installation.

Section 3: Thermal Performance and the PA66 Thermal Break

As energy codes like the International Energy Conservation Code (IECC) and local Chinese GB/T standards become more stringent, thermal insulation in entry doors is mandatory.

3.1 Polyamide 66 (PA66) Technology

We utilize 24mm to 35mm wide PA66 reinforced with 25 percent glass fiber as the thermal barrier. This break separates the exterior and interior aluminum extrusions, effectively stopping the conductive heat transfer. The use of PA66, rather than PVC, is critical because its thermal expansion coefficient matches that of aluminum, preventing structural delamination during extreme temperature cycles.

3.2 Cavity Insulation and Argon-Filled Glass

The internal chambers of the aluminum profiles are injected with thermal foam or aerogel pellets to further reduce U-values. For glazed sections, we employ triple-pane IGU (Insulating Glass Units) with a standard configuration of 6mm Low-E + 12Ar + 6mm Clear + 12Ar + 6mm Low-E. This configuration achieves a center-of-glass U-value as low as 0.6 W/(m2·K).

Section 4: Security and German KFV Multi-Point Locking Systems

A pivot door is a security barrier first. Rich Ocean integrates the German-engineered KFV (SIEGENIA Group) multi-point locking systems as the standard for all heavy-duty pivot models.

4.1 Hook-Bolt and Round-Bolt Synergy

The KFV mechanism features a combination of wedge-shaped hook bolts and steel round bolts. When the handle or smart lock is engaged, these bolts lock into the frame at three or five distinct vertical points. This prevents the sash from being pried open at the corners, a common vulnerability in large-scale doors.

4.2 Armored Grade Infills

For high-security requirements, the door leaf can be configured with an internal 2.0mm galvanized steel plate sandwiched between aluminum skins. This “Armored Configuration” provides RC3 or RC4 level intrusion resistance, suitable for high-value residential projects in North America and the Middle East.

Section 5: Performance Specification Data Table

The following table outlines the laboratory test results for the Rich Ocean Heavy-Duty Pivot series conducted under ASTM and ISO protocols.

Section 6: FAQ – Technical Inquiries for B2B Clients

Q1: What are the maximum size constraints for an Aluminum Exterior Pivot Door?
A: While we specialize in custom sizes, our standard maximum for a single leaf is 3000mm in height and 2500mm in width. For projects exceeding these dimensions, we implement internal steel I-beam reinforcements within the aluminum cavities to maintain structural stiffness.

Q2: How does the door perform in coastal environments with high salt spray?
A: We recommend a 3-coat PVDF finish or high-micron anodizing for coastal regions. Our hardware is Grade 304 or 316 stainless steel to prevent galvanic corrosion. We have successfully supplied thousands of units to beachside villas in the UAE and Florida.

Q3: Can these doors be integrated into a smart home ecosystem?
A: Yes. We integrate motorized KFV Genius locks or Somfy systems that connect via Zigbee, Z-Wave, or Bluetooth. These support Fingerprint (FPC sensor), Face ID recognition, and remote access via mobile applications (Tuya/TTLock).

Section 7: China Ranking #1 Manufacturing and Factory Direct Pricing

Rich Ocean is consistently ranked among the top tier of aluminum door factories in Foshan, China. Our 50,000 square meter facility utilizes CNC precision cutting and automated assembly lines to ensure micron-level accuracy. By bypassing intermediaries, we provide a transparent China Factory Price that allows international distributors to maintain healthy margins while offering superior technical products. Our B2B pricing model is tiered based on volume and hardware specifications (Standard vs. Armored).

Section 8: Global Case Studies

8.1 Middle East Luxury Villa (Dubai, UAE)

Challenge: Extreme 50 degrees C temperatures and sandstorms.
Solution: Rich Ocean 120mm system with thermal break and 3.0mm profiles. PVDF finish in ‘Desert Bronze’ to resist UV degradation. The result was a 3.5m tall entry door that remained thermally stable and operational throughout the summer.

8.2 North America Modern Mansion (Toronto, Canada)

Challenge: -30 degrees C winters and strict building energy codes.
Solution: Triple-glazing with Argon gas and PA66 thermal breaks. The pivot system was integrated with a heated threshold to prevent ice buildup. This project achieved an Energy Star rating for the high-performance building envelope.

Section 9: Price Analysis – Factors Influencing B2B Costs

When evaluating Aluminum Exterior Doors Price, three variables dictate the final quote:

1. Hardware Choice: A FritsJurgens System M+ costs significantly more than a standard bottom-bearing pivot but provides 10x the lifecycle.
2. Glass Specification: Switching from double-pane to triple-pane SGP laminated glass adds approximately 15 to 20 percent to the cost but triples the security and insulation.
3. Profile Finish: Standard powder coating is the most economical, while PVDF (Polyvinylidene Fluoride) is required for 10-year+ color retention in harsh climates.

Section 10: 360 Degree Service and The Founder’s Vision

Our founder, Mr. Zhang, established Rich Ocean with the philosophy that an entry door is the “Soul of the Building.” We provide a 360-degree service package including:

• Pre-sale CAD Shop Drawings: Ensuring structural fit within the rough opening.
• Real-time Video Inspection: B2B clients can witness the QC process via live stream.
• Installation Guidance: On-site supervision or detailed 3D video tutorials for local contractors.
• 10-Year Structural Warranty: We stand by our 3.0mm profiles and German hardware.

Conclusion

The Aluminum Exterior Doors Manufacturer China Factory Price Heavy-Duty Pivot series from Rich Ocean represents the pinnacle of modern entry technology. By combining 6063-T6 aluminum durability with FritsJurgens motion control and KFV security, we offer a solution that is as architecturally stunning as it is technically resilient. For global partners seeking high-end entry systems, Rich Ocean provides the engineering expertise and manufacturing scale required for the most demanding 2026 luxury developments.
