Aluminum Exterior Doors Manufacturer China Factory Price Heavy-Duty Pivot

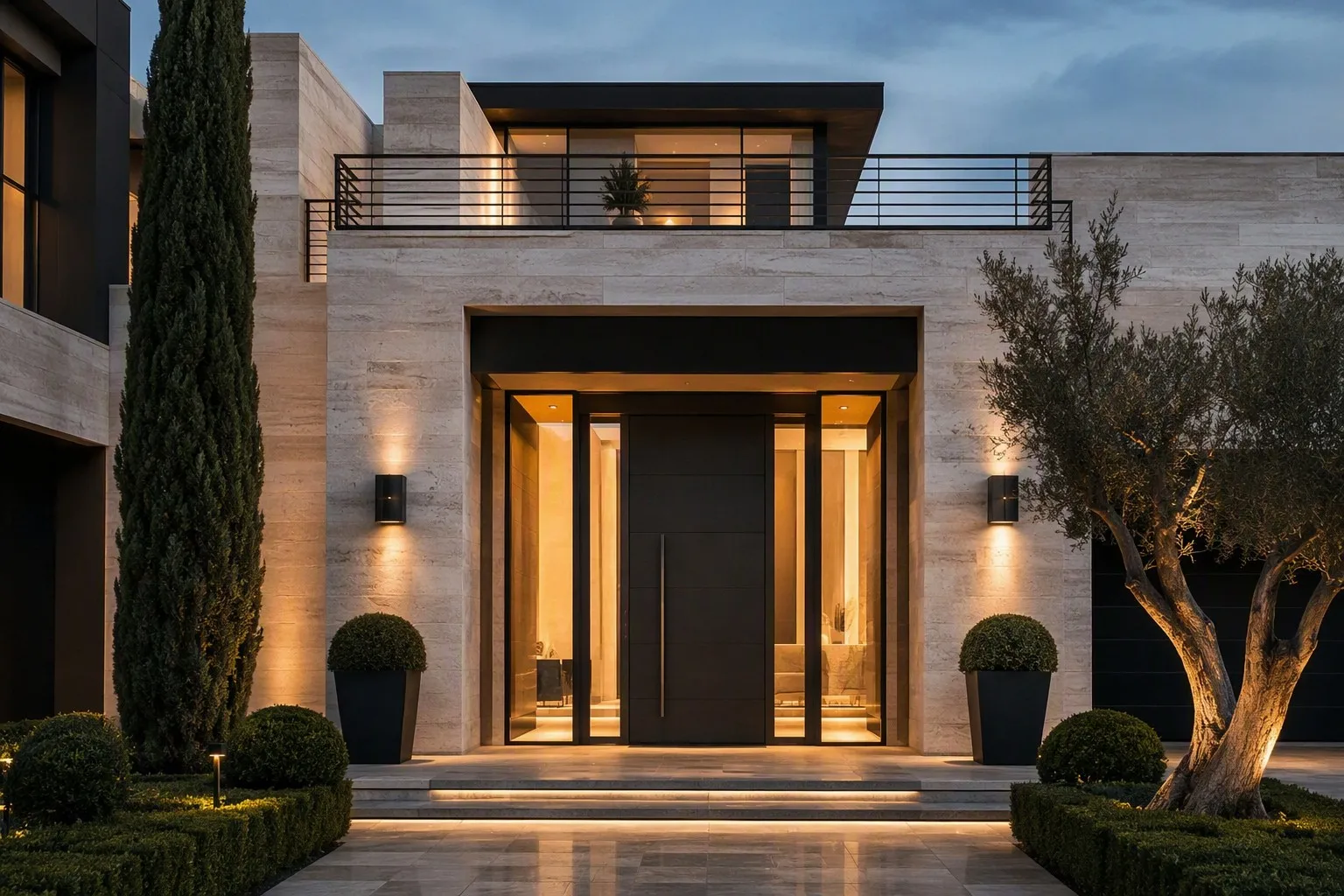

1. System Overview — The Grand Entrance
The Aluminum Exterior Door in a heavy-duty pivot configuration is the architectural statement of a grand entrance. Where traditional side-hung hinges limit scale and create visible hardware, the pivot system transfers the entire door weight to the floor, enabling monumental leaves up to 3.5 meters tall and 500kg. As a premier manufacturer in China, Richocean engineers these systems with 3.0mm wall metallurgy, FritsJurgens pivot kinematics, and German KFV security — delivering entry-door excellence at factory-direct prices.
2. Core Material Science — 6063-T6 & 3.0mm Walls
The foundation of a heavy-duty entry door is the alloy quality and extrusion profile thickness. Richocean utilizes 6063-T6 grade aluminum exclusively.
While residential standards often use 1.5–2.0mm, Richocean heavy-duty pivot frames use a 3.0mm wall profile. This prevents sash droop and deflection under the weight of armor-grade infills and triple-pane glass, enabling doors exceeding 500kg per leaf without sagging.
3. FritsJurgens Pivot Engineering
A pivot door is only as good as the hardware that supports it. Richocean partners with FritsJurgens System M+, the world’s most advanced concealed pivot hinge:
| Feature | Specification |
|---|---|
| Load capacity | Up to 500kg per leaf |
| Rotation | 90° / 180° / 360° configurable |
| Damping | 30° speed control + backcheck |
| Life cycle | 1,000,000 cycles (~136 years residential) |
Fully integrated into the door leaf, the system requires no floor excavation, cutting site installation time by 60% versus traditional floor boxes.
4. KFV Multi-Point Locking & Armor-Grade Infill
Security is the primary function of an exterior entry door. Richocean integrates German KFV multi-point locking:
- 3–7 point engagement: massive steel hook bolts and round bolts
- Gearbox mechanism: handle torque converted to uniform clamping force against weather seals
- Smart integration: KFV Genius electromagnetic drives for biometric (fingerprint/face ID) access
- Armor core: aluminum honeycomb + rock wool + 2.0mm galvanized steel plate — anti-drill, RC3/RC4 rated
5. PA66 Thermal Break
Energy efficiency is mandatory for modern exterior doors. Richocean solves the aluminum conductivity problem with PA66GF25 thermal break technology:
- Insulation: U-value significantly reduced vs non-broken frames
- Structural strength: PA66 maintains integrity at -30°C to +80°C, preventing frame warping
- Condensation control: eliminates internal condensation, protecting interior finishes
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.1 cfm/ft² at 1.57 psf |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Performance | ASTM E330 | 2880 Pa design |
| Forced Entry | AAMA 1304 | Level 40 high security |
| Acoustic | STC | 42 dB with triple acoustic glass |
7. Technical FAQ
Q: What is the maximum capacity for a Richocean pivot door?
A: FritsJurgens System M+ supports up to 500kg per leaf; custom armored projects have reached 700kg.
Q: How do these doors handle coastal corrosion?
A: 6063-T6 with 25-micron anodizing or PVDF coating provides extreme salt-spray resistance; SS316 hardware throughout.
Q: Can smart locks be integrated?
A: Yes. KFV Genius or domestic smart locks support Face ID, fingerprint, and RFID, hidden within the frame with battery backup or hardwired power.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for heavy-duty exterior door export volume. The Foshan factory integrates 6063-T6 extrusion, KFV lock assembly, and QC under one roof. Factory-direct pricing runs 40–60% below Western retail brands while maintaining identical hardware specifications.
9. Illustrative Project Applications
Example A — Middle East Luxury Villa (Illustrative)
Extreme heat (50°C+), sandstorms, salinity. 3.0mm pivot door with heat-reflective PVDF coating; 1.8m × 3.5m leaf at 380kg on FritsJurgens M; zero warping after 24 months. Illustrative example values.
Example B — North America Modern Mansion (Illustrative)
Heavy rain, freezing winters, seismic requirements. Triple-pane Low-E pivot door with ASTM E331 certification; KFV locks provided the airtight seal for high-efficiency HVAC. Illustrative example values.
10. Price Analysis
- Hardware tier: domestic pivot $1,200–1,800; FritsJurgens + KFV +$800–1,500 per leaf
- Glass configuration: double tempered baseline; triple Low-E +15%; hurricane laminated +35%
- Armor configuration: standard XPS/rockwool included; bullet-resistant steel inlay +$400–900
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers design phase (CAD/3D drawings), production visibility (real-time photo/video updates), global logistics (DDP/CIF with custom crating), and after-sales (10-year profile warranty, 5-year moving parts). The founder’s philosophy: a door is the handshake of a building — precision engineering in the invisible parts (3.0mm wall, PA66 break, internal steel armor) is what defines true luxury. We don’t just build doors; we build permanent security barriers that move like silk.
12. Conclusion
The Aluminum Exterior Door in heavy-duty pivot configuration is the pinnacle of entry engineering. With 6063-T6 3.0mm metallurgy, FritsJurgens kinematics, KFV security, and PA66 thermal breaks, Richocean delivers this technology from China at factory-direct prices — the definitive solution for grand entrances.
