1. System Overview — A Sliding Window Carries Its Weight on a Track, Not on a Hinge
A sliding window is a sash that rides on a track and rolls past a fixed or another moving sash, and that single fact — the weight is carried down into a track instead of cantilevered out on a hinge — changes every engineering decision that follows. A casement sash hangs: its weight pulls on hinges and tries to rack the frame out of square. A sliding sash rests: its whole weight, plus the glass, plus the wind load on the sash, travels down through the bottom rail onto the rollers and into the track and the sill. Nothing sags on a sliding window the way a casement sags, which is why sliding systems carry the largest and heaviest sashes in the industry. But the track system pays for that advantage in three places that decide whether a sliding window is good or merely cheap: the rollers must be rated to the real sash weight and roll for decades without flattening, the seal can never be a full-perimeter compression the way a casement seal is, so the air and water strategy has to be engineered rather than assumed, and the point where two sashes meet — the interlock — is simultaneously the weakest line for air, for water and for security. Richocean manufactures sliding windows in Foshan, Guangdong, designing the track, the roller set, the interlock and the drainage as one system, because on a sliding window those four things are the window.
The physics is straightforward. A sliding sash might weigh sixty or a hundred kilograms with triple glazing; on a casement that weight would demand heavy-duty hinges, but on a slider it simply presses down on the rollers and the track. The design question is not whether the sash falls — it is whether the rollers and the track can carry that weight, twenty years of daily operation, wind pressure trying to tip the sash, and coastal corrosion, while still rolling with one finger. Everything below follows from that question.
2. The Track and Rail — The Load Path Under the Sash
The track is the structural floor of a sliding window. The sash weight arrives through the bottom rail, spreads into the rollers, and the rollers deliver it as point loads onto the track rail, which carries the load along its length into the frame and into the building. Two things decide whether that path survives twenty years. The first is the rail material and its hardness: an aluminium sash rolling on an aluminium rail will wear a groove into the rail, and once the rail is grooved the rollers no longer roll true and the sash drags. Quality systems therefore run the wheels on a stainless steel rail — SS304 inland and SS316 in a C5-M marine corrosion category — either as a bonded insert or as a track cap, so the wear surface is hard and corrosion-resistant. The second is rail support: a stainless cap over a hollow profile will deflect under a heavy sash unless the cavity beneath it is packed or the profile is designed to carry the point loads at the rollers. Track deflection feels exactly like a worn roller to the user — the sash dips at mid-span — so the track is designed against deflection under the rated sash load, not just against breaking.
The sill that carries the track also sets the water strategy. A sliding window has a low sill by nature, and a low sill is where driven rain attacks. The sill is therefore shaped as a drained cavity: any water that passes the outer seal collects in the sill and is carried out through weep holes to the outside, never inward. High-performance sites — balconies above a threshold, coastal storm exposure — use a raised sill or a sill with a drainage upstand so the water path has to climb before it can turn in, and the track sits above the collected water rather than in it.
3. The Roller System — Rated to the Real Sash Weight
The rollers are the moving joints of the whole system, and they are a rated component, not a commodity. Each roller carries a share of the sash weight plus a share of the wind load that tries to tip the sash, and the rating that matters is the load per roller at the end of its cycle life, not when it is new. A cheap roller holds the sash in the showroom and flattens after two years; a sealed-bearing tandem roller — two wheels in one housing sharing the load — spreads the point load, keeps the bearing clean and dry, and rolls light for tens of thousands of cycles under EN 12400 durability classes. Wheel material follows the duty: stainless or hardened wheels on the heavy sashes, engineered polymer wheels where quiet operation and light load dominate. Every roller set is height-adjustable, because the adjustment is how the installer levels the sash, sets the interlock engagement and takes up wear over the years without removing the window.
- ✓ Roller load rating selected against the real sash weight — frame plus triple or laminated glass — with a duty factor for wind tipping load and cycle life
- ✓ Tandem sealed-bearing wheels on heavy sashes so no single wheel carries the full point load
- ✓ Stainless rail interface — SS304 inland, SS316 for C5-M coastal — so the wear surface neither grooves nor corrodes
- ✓ Height adjustment on every roller so the sash can be re-levelled and the interlock re-set in service
4. The Seal Paradox — Why a Slider Cannot Seal Like a Casement
Here is the physics that every honest sliding-window specification must face. A casement closes into its frame and the multi-point lock compresses a gasket all round: metal-to-elastomer, hard compression, near-zero air path. A sliding sash cannot do that. To slide, the sash must have clearance from the frame on the head, the jambs and the sill — a compression seal would lock the sash in place or strip the seal on the first movement. So a conventional slider seals with brush and fin weather-piles that fill the clearance: they slow the air, they shed the bulk of the water, but they cannot achieve the compression-tight seal of a casement, and air infiltration numbers are correspondingly higher under ASTM E283. That is the seal paradox: the freedom that lets the sash move is the same freedom that lets air and water through.
Engineering answers it three ways. The first is the interlock seal — where two moving sashes meet, a shaped sealing fin or gasketed interlock closes the biggest single gap in the system. The second is the lift-and-slide mechanism: the handle lifts the sash a few millimetres onto its rollers for movement, and dropping the handle seats the sash down and in, bringing closer-fitting seals into engagement at the closed position — movement without rubbing, seating without dragging, the best airtightness a true slider can reach. The third is honest specification: where the project demands casement-level airtightness — passive house, severe storm exposure, high acoustic target — the right product is a casement or a lift-and-slide door-class slider, not a brush-sealed slider. Richocean specifies the seal strategy against the airtightness class the project actually requires rather than selling brush seals into a compression-seal job.
5. The Interlock and Anti-Lift — The Meeting Line Is the Weak Line
The interlock is the vertical stile where the moving sash meets its neighbour, and it is the most loaded few centimetres on the window: it is the longest continuous gap in the seal system, the path a crowbar reaches for, and the line the wind pressure tries to open. A quality interlock does three jobs at once. It seals — a shaped fin or gasket closes the meeting gap and the interlock profile engages deep enough that the two sashes cannot be spread apart by hand pressure. It locks — a hook lock or a multi-point hook shoot-bolt reaches across the interlock and pulls the two sashes together, tightening the interlock seal and anchoring the moving sash to its neighbour; on a fixed-plus-slider arrangement the hook anchors into the frame strike. And it resists lift — because a sliding sash sits loose on its rollers with clearance to move, the classic attack and the classic accident is lifting the sash up and out of the track, so anti-lift blocks or clips are fitted in the head of every removable sash, limiting the lift to less than the depth of the track engagement. A slider specified without anti-lift blocks is not secure regardless of how good its lock is, and on the upper floors it is not safe.
6. Performance Envelope — What a Sliding Window Is Rated Against
| Property | Standard | Design Basis |
|---|---|---|
| Air infiltration | ASTM E283 | Weather-pile and interlock seal quality; lift-and-slide seating reaches the best slider class — brush-sealed sliders rate honestly lower than compression-sealed casements |
| Water penetration | ASTM E547 / E331 | Drained sill cavity, weep path and pressure-broken sill; upstand and sill height for exposed sites |
| Structural (wind) | ASTM E330 | Sash rail stiffness, interlock engagement depth and glass bite; rollers and track resist the tipping component of wind load |
| Thermal transmittance | U-value (ISO 10077 basis) | PA66GF25 thermal break in frame and sash, thermally separated track, Low-E glass and argon fill |
| Security | EN 1627 RC2 | Hook locks at the interlock, anti-lift blocks in the head, laminated glass option; RC2 is the realistic slider class |
| Acoustic | Rw / STC | Seal class sets the ceiling; asymmetric laminated insulating glass plus lift-and-slide seating for the higher targets |
| Operation durability | EN 12400 class | Sealed-bearing tandem rollers and stainless rail rated for the cycle class; height adjustment restores service life |
| Hardware corrosion | Corrosion category C5-M | SS316 rail, roller axles, locks and fixings for marine environments |
7. Slider Types Compared
| Type | Seal Strategy | Sash Capacity | Where It Belongs |
|---|---|---|---|
| Standard sliding (in-line) | Brush and fin weather-piles; no full compression | Light to medium sashes | Value projects, mild climates, secondary elevations |
| Lift and slide | Lift to move, drop to seat; gasket engagement at closed position | Heavy sashes, multi-track runs | Premium residential, exposed sites, higher airtightness and acoustic targets |
| Tilt and slide | Tilt for ventilation, slide for opening; compression on tilt gasket | Single-sash widths only | Where night ventilation with security matters and the opening is narrow |
8. Technical FAQ
Three causes, in order of frequency. The rollers are underrated for the real sash weight and the wheels have taken a flat or the bearings have worn; the track rail has grooved under soft wheels or corroded in a coastal site; or dirt and salt have packed the sill cavity and the weather-piles now drag. The first two are specification failures — roller load rating and rail material — and the third is a maintenance item. A correctly rated tandem roller on a stainless rail still rolls with one finger after twenty years, and every roller carries height adjustment to take up wear.
Not a brush-sealed standard slider — the physics of the seal paradox says a sash that must slide cannot be in full-perimeter compression while moving. A lift-and-slide closes most of the gap: it seats the sash into closer gasket engagement at the closed position and reaches the best slider airtightness class. Where the project demands true casement-level airtightness — passive-house targets, severe storm coasts, high acoustic ratings — the honest answer is to use a casement for that elevation or a door-class lift-and-slide, and Richocean will say so at specification stage rather than over-promise a brush seal.
Anti-lift blocks. A sliding sash rides loose on its rollers with clearance to move, so without a restraint in the head rail the sash can be lifted until it clears the track and pulled out — the classic slider attack and, on upper floors, a genuine safety risk when the sash is removed for cleaning. Anti-lift blocks or clips limit the lift to less than the track engagement depth, so the sash cannot clear the rail. They are fitted as standard on every Richocean removable sash, and they must be released deliberately for legitimate sash removal.
The weight limit is set by the roller rating and the track, not by the frame — which is exactly why sliders carry the biggest glass. A tandem sealed-roller set on a stainless rail handles sash weights that would demand heavy hinges and bonded corners on a casement; multi-track lift-and-slide systems run door-height sashes of a hundred kilograms or more and still roll by hand. The engineering rule is the same as everywhere in this article: state the real sash weight — frame plus the actual glass build-up — and select the roller set and rail against it with a duty factor, rather than assuming a catalogue maximum.
9. China Market Positioning — Why Foshan, Why Richocean
Foshan in Guangdong is the densest aluminium window and door manufacturing cluster in China: 6063-T6 extrusion, stainless track rail roll-forming, roller and lock hardware, insulating-glass plants, powder-coating and anodising lines all sit within a short radius, so one factory controls the whole load path instead of assembling bought-in parts. That matters most on a slider, where the system quality lives in the interaction between the rail, the rollers, the interlock and the sill drainage — parts that only perform together when they are specified together. Richocean manufactures sliding windows in Foshan for export markets and specifies every slider against the project’s wind exposure, corrosion category, airtightness class and sash weight: stainless rail grade to the corrosion category, tandem sealed rollers to the real load, interlock engagement and hook locks to the security class, and a drained, pressure-broken sill to the exposure. The window is verified as a system before it ships, because on a sliding window the system is the product.
10. Example Applications
Illustrative configuration; not a quoted project. A coastal high-rise balcony elevation in a C5-M marine category: multi-track lift-and-slide aluminium sliders, 6063-T6 thermally broken frame and sash, SS316 track rail, roller axles, hook locks and fixings, tandem sealed rollers rated to the triple-glazed laminated sash weight, anti-lift blocks on every removable sash, a raised drained sill with pressure-broken cavity, and laminated insulating glass with a Low-E surface. The controlling decisions are the corrosion category driving SS316 everywhere the water and salt reach, the storm exposure driving the sill upstand and the water rating, and the sash weight driving the roller set.

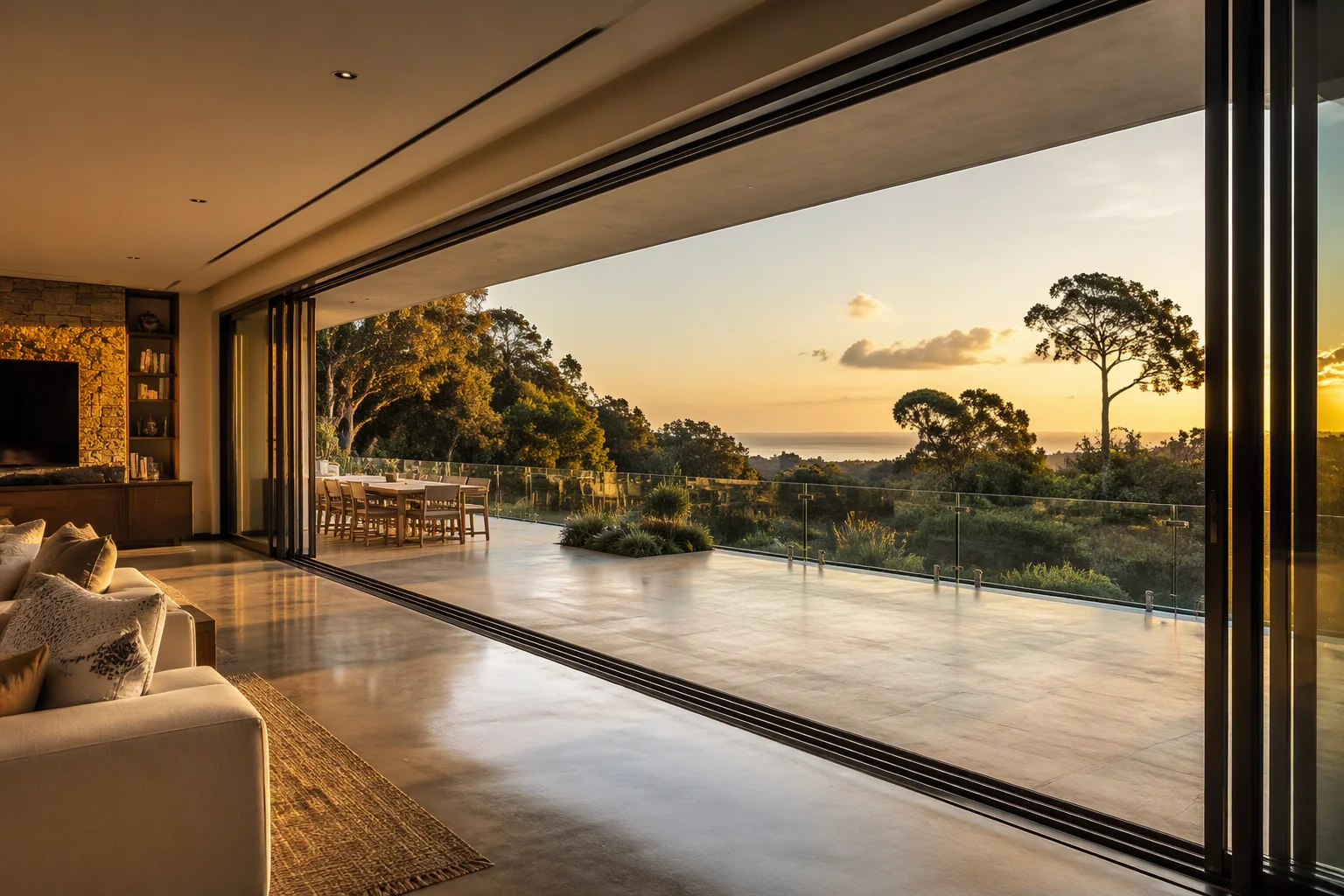

Illustrative configuration; not a quoted project. A hillside villa opening a living space onto a terrace with a three-track slider run: two heavy sliding sashes and one fixed light, floor-level low sill detailed with a drainage channel and cover grate, brush-plus-fin weather-piles at the head and jambs, a gasketed interlock with hook locks to EN 1627 RC2, and height-adjustable tandem rollers so the sashes can be re-levelled after settlement of the terrace structure. Here the controlling decisions are the low-sill drainage detail, the interlock security and the adjustability that keeps a wide, heavy sash rolling true over a structure that will move slightly in its first years.
11. Price Drivers — What Actually Moves the Cost
The cost of a sliding window concentrates in the same four places that decide its quality. The track system — a stainless rail insert and a thermally separated, drained sill profile cost more than an all-aluminium track, and they are the difference between a sash that rolls light at year twenty and one that drags at year three. The roller set — tandem sealed-bearing rollers rated to the real sash weight cost several times a light-duty single wheel, and they are the wear item the whole window hangs on. The seal and lock strategy — a lift-and-slide mechanism with gasketed interlock and hook locks costs more than a brush-sealed in-line slider with a simple latch, and it buys the airtightness, the acoustic class and the security. Then the glass build-up, the thermal break width, the finish and the size complete the picture, with quantity setting the unit economics. Indicative ranges only, not offers; final pricing depends on the specification, the hardware class and the volume.
12. Installation, Commissioning and Maintenance
Installation sets the frame level along the track — a slider is only as smooth as its sill is level, and a twisted frame puts a bend into the rail that no roller can roll through. The frame is shimmed, anchored and sealed to the building, and the sill drainage is connected to the exterior water path so the weeps discharge to daylight, not into the wall. Commissioning adjusts the roller heights so each sash rides level and the interlock engages to its full depth, sets the hook-lock strike so the lock pulls the sashes together without binding, and verifies the anti-lift blocks are fitted and functional. Maintenance is light and scheduled: clean the sill cavity and weep holes each season — packed dirt is the most common cause of a leaking slider — rinse the stainless rail in coastal sites to remove salt, lubricate the locks and check the weather-piles annually, and re-adjust the roller heights when a sash begins to drag. Every wear item on a slider is adjustable or replaceable in service, which is why a maintained slider outlives the building façade it sits in.
13. 360° Service and the Richocean Engineering Philosophy
Richocean works from drawing to delivery on every slider: the project states its wind exposure, corrosion category, airtightness and acoustic targets and the real sash weights; Richocean selects the rail grade, the roller set, the interlock and lock class, the sill drainage and the glass build-up against those inputs, and verifies the assembled system against the performance envelope before shipment. OEM and ODM service covers custom track sections, hardware schedules, finishes and export packaging. The founding philosophy applies with special force to sliding windows, because a slider hides all of its engineering under the sash: the buyer never sees the roller rating, the rail grade or the anti-lift block, and feels only whether the sash still rolls with one finger and stays dry in a storm five years later. Richocean specifies the hidden parts as if the buyer could see them — because the ten-year test is the only test that matters.
14. Conclusion — The Window That Rolls Light for Twenty Years
A sliding window is judged by one sensation — how it rolls — and one event — the first storm it sits through. Both are decided long before installation, by the track and roller set that carry the sash weight as a rated load path, by an honest seal strategy that answers the seal paradox with a gasketed interlock and lift-and-slide seating rather than with promises, and by anti-lift blocks and hook locks that close the weak line where the sashes meet. Specify the rail grade to the corrosion category, the rollers to the real sash weight, the seal class to the airtightness the project needs and the sill to the exposure it faces, and the slider becomes what it should be: the strongest, largest-glazing, lowest-maintenance opening window there is. Richocean manufactures sliding windows in Foshan, Guangdong, engineering the track, rollers, interlock and drainage as one system and verifying it as one system. For a sliding-window specification, a hardware schedule or a project quotation, send the opening sizes, the sash weights and the exposure class, and the system will be sized to roll light for twenty years.
