Aluminum Casement Windows Manufacturer China Factory Price AAMA AW Class
Introduction: The Casement Window as Engineering Benchmark
In the vocabulary of fenestration, the casement window holds a special position: it is the most airtight operable window type, the strongest against wind load, and the most demanding on hardware. A casement sash is supported by hinges on one vertical edge and swings outward, which means every square meter of glass becomes a lever arm that transfers wind force directly into the hinge line and the multi-point lock. As a leading Aluminum Casement Windows manufacturer in China, Richocean builds casement systems to the AAMA AW (Architectural Window) class, the highest performance grade in the North American Fenestration Standard. This technical analysis details the metallurgy, hardware kinematics, sealing physics, and cost architecture of an AW-class casement window, providing B2B buyers with the engineering reference required before specification.
Module 1: 6063-T6 Frame Metallurgy
The casement sash must remain perfectly square under continuous hinge load, wind suction, and thermal cycling. Richocean specifies 6063-T6 aluminum alloy for all casement frame and sash extrusions.
Alloy Chemistry: Magnesium (Mg) 0.45%-0.9%; Silicon (Si) 0.2%-0.6%; Iron (Fe) 0.35% max; Copper (Cu) 0.10% max.
Heat Treatment: Solution heat treatment at 520 degrees C followed by artificial aging at 175 degrees C produces the T6 temper. Yield strength reaches 170 MPa and ultimate tensile strength 215 MPa.
Profile Geometry: Structural wall thickness of 1.6mm to 2.5mm. The AW Class designation requires a minimum test pressure capacity that drives frame design toward multi-chamber cross-sections. Corner construction uses 45-degree mitre joints bonded with structural epoxy and reinforced with concealed stainless corner brackets. Every corner batch passes a torsion check on the production line.
Module 2: The PA66GF25 Thermal Break
AW Class casement windows are specified for high-performance buildings where thermal bridging is unacceptable. Richocean integrates PA66GF25 polyamide thermal break strips, 24mm to 34mm wide, across all frame and sash profiles.
Material Data: Polyamide 66 reinforced with 25 percent glass fiber; Thermal conductivity 0.30 W/(m·K); Coefficient of thermal expansion matched to aluminum.
Thermal Performance: Frame U-value improves from 5.5 W/(m2·K) (no break) to 2.0-2.8 W/(m2·K) with a 34mm break. Combined with Low-E glazing, the complete window achieves 1.2-1.6 W/(m2·K).
Module 3: SS316 Friction Hinges — The 50,000-Cycle Standard
The casement sash transfers its entire load through the hinge line. Richocean integrates SS316 (marine-grade stainless steel) friction hinges as the standard specification.
Material Advantage: SS316 contains 2-3 percent molybdenum, providing chloride resistance that SS304 lacks. Coastal air and salt-laden environments demand this grade.
Engineering Specification: Load capacity 120kg per hinge pair; Friction adjustment via integrated Allen screws; Cycle endurance 50,000 operations per EN 13126; Self-lubricating bushings for maintenance-free service.
Module 4: EPDM Triple-Seal System
AW Class airtightness is achieved through a triple-barrier EPDM sealing architecture:
Barrier 1: Outer hollow-bulb weather seal deflects wind-driven rain. Barrier 2: Isothermal central seal creates a pressure-equalized cavity connected to the drainage system. Barrier 3: Inner acoustic seal provides the airtight barrier for thermal and sound performance.
EPDM Material Data: Temperature range -50 degrees C to +150 degrees C; Compression set less than 20 percent at 70 degrees C; UV resistance via carbon-black formulation.
Module 5: Multi-Point Locking — Security and Compression
The multi-point lock converts a single handle turn into compression across the entire sash perimeter. Richocean integrates 5-point locking as standard with 7-point options for oversized sashes.
Mechanism: Mushroom-head pins engage hardened steel strike plates, pulling the sash against the EPDM seals. The compression creates the airtight seal that AW Class certification requires and provides forced-entry resistance to ASTM F588 Grade 40.
Module 6: Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | 0.05 cfm/sqft |
| Structural Performance | ASTM E330 | AW Class 2880 Pa |
| Water Penetration | ASTM E331 | 720 Pa no leakage |
| Forced Entry | ASTM F588 | Grade 40 |
| Acoustic | ASTM E90 | STC 38-45 dB |
Module 7: Technical FAQ
Q: Can the system carry a 120kg sash?
A: Yes. The combination of 2.0mm wall 6063-T6 frames, reinforced corner brackets, and SS316 friction hinges rated to 120kg per pair supports oversized sashes up to 1200mm x 2400mm with triple glazing.
Q: How is coastal corrosion managed?
A: The coastal specification uses SS316 hardware throughout, PVDF or heavy anodized finishes, and EPDM gaskets. Stainless fasteners and plastic isolators prevent galvanic corrosion.
Q: What glass package achieves STC 45?
A: Asymmetric laminated glass: 6mm + 12Ar + 8.76mm (6mm + 1.52PVB + 6mm). The differing pane thicknesses break the coincidence frequency.
Module 8: China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for AW Class casement window export volume. The Foshan factory holds CE (EN 14351-1), AS2047 (Australia), and NFRC certifications simultaneously. Factory-direct pricing, 30-50 percent below Western distributors, is enabled by vertical integration of extrusion, thermal-break assembly, and hardware procurement.
Module 9: Engineering Case Studies

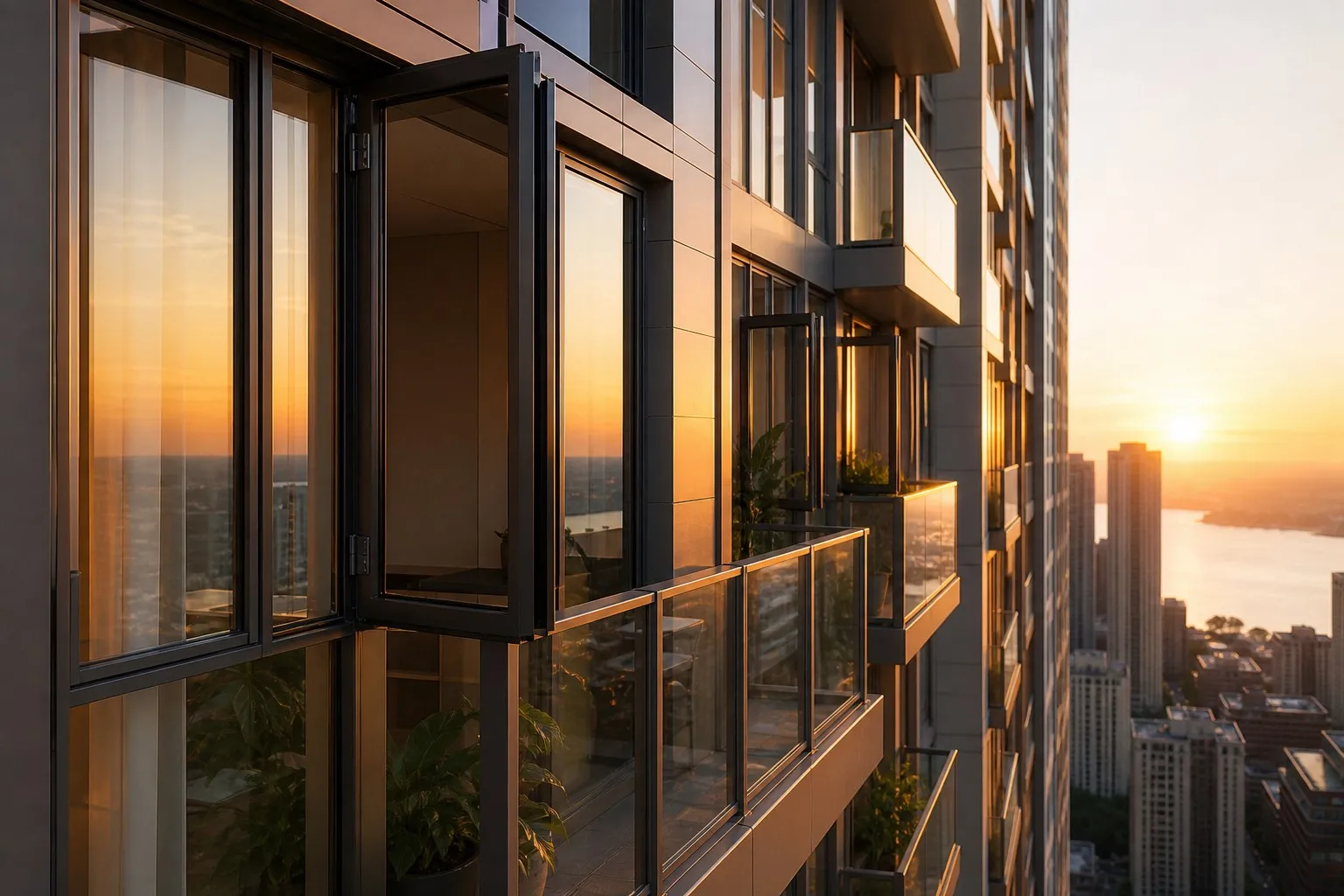

Case A — High-Rise Tower (Singapore): 3,800 casement units for a 48-story residential tower. Specification: AW Class 6063-T6 frames, triple-pane Low-E, Siegenia hardware. The system passed N4 wind-load testing with zero water ingress during monsoon season.
Case B — Coastal Villa (Gold Coast, Australia): Salt-exposure casement windows with SS316 hinges and marine anodized finish. Five years of continuous exposure showed zero corrosion and zero gasket deterioration.
Module 10: Price Analysis
The casement window price is governed by four variables:
- Hinge Grade: Domestic premium (Kin-Long/CME) vs German (Siegenia/G-U) changes hardware cost by 30-40 percent.
- Glass Configuration: Double-pane baseline; triple Low-E adds 20-25 percent; laminated acoustic adds 15 percent.
- Finish Tier: Standard powder coating vs PVDF or wood-grain adds 8-15 percent.
- Sash Size: Sashes over 1.4m width require reinforced cores and heavier hinges, adding 10-15 percent.
Typical factory-direct range: 70-140 USD per square meter (double-glazed standard) to 150-250 USD per square meter (AW Class triple Low-E), FOB Foshan.
Module 11: 360-Degree Service and Founder Philosophy
Richocean’s 360 service covers CAD/BIM shop drawings, wind-load calculations, DDP logistics, and remote installation supervision. The founder’s philosophy is rooted in the conviction that an AW Class window is a life-safety and comfort device, not a commodity. Every hinge, lock pin, and gasket must justify its specification. This engineering discipline, applied at China factory scale, is what positions Richocean as the definitive partner for high-performance casement projects worldwide.
Conclusion
The Aluminum Casement Window at AAMA AW Class is the engineering benchmark of operable fenestration. Richocean delivers this benchmark from China with 6063-T6 metallurgy, PA66 thermal breaks, SS316 friction hinges, and ASTM-certified performance—at factory-direct prices. For architects specifying high-rise towers and developers seeking European quality at Chinese cost, Richocean is the definitive manufacturing partner.
