Aluminum Casement Windows Manufacturer China Factory Price AAMA AW Class

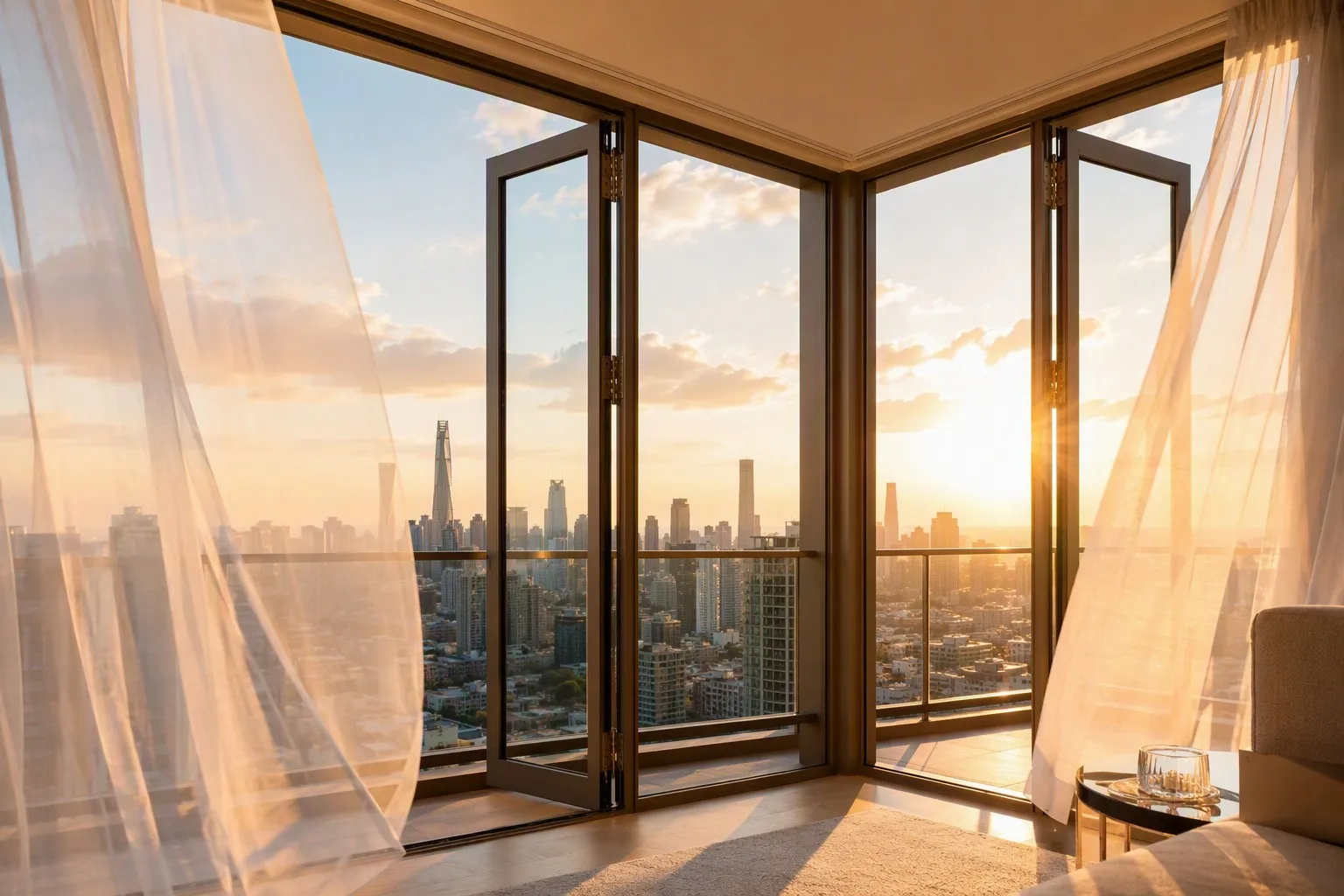

1. System Overview — The Architectural Workhorse
The Aluminum Casement Window is the most versatile opening system in modern architecture — hinged on the side, it opens outward to capture maximum ventilation while maintaining a slim sightline. As a premier manufacturer in China, Richocean engineers casement windows to AAMA AW Class — the highest performance tier — with 6063-T6 metallurgy, SS316 friction hinges, and multi-point locking, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the opening sash. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon with a 24–34mm depth, mechanically crimped between inner and outer aluminum shells.
3. AAMA AW Class — Highest Performance Tier
The AAMA/WDMA/CSA 101/I.S.2/A440 window classification system defines three tiers — R, LC, and AW. AW (Architectural Window) is the top tier:
- AW Class: design pressure up to 4,790 Pa, the most demanding buildings
- LC Class: light commercial, up to 1,916 Pa
- R Class: residential, up to 958 Pa
4. SS316 Friction Hinges & Hardware
Friction hinges (friction stays) hold the sash at any opening angle without stays or struts. Richocean specifies SS316 stainless steel:
- SS316 composition: molybdenum 2–3% resists chlorides; yield 205 MPa
- Load capacity: 60–120kg per hinge pair
- Durability: 50,000+ open/close cycles without play
5. Multi-Point Locking System
Security is delivered by multi-point locking — hook, roller, and deadbolt points engage along the full sash height:
- 5–7 locking points per sash
- Steel-reinforced shoot bolts resist jimmying
- ASTM F588 Grade 40 forced-entry resistance
6. EPDM Three-Stage Sealing
Weathertightness relies on the three-stage EPDM sealing system — primary, secondary, and tertiary gaskets:
- EPDM properties: -40°C to +120°C, high UV resistance, low compression set
- Three-stage profile: maximizes air and water tightness
- Equal-pressure drainage: hidden weep slots prevent water pooling
7. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,880 Pa AW Class |
| Forced Entry | ASTM F588 | Grade 40 passed |
| Thermal | NFRC U-value | 2.0–2.8 W/(m²·K) |
8. Technical FAQ
Q: What is the difference between casement and awning windows?
A: Casement hinges on the side and opens outward; awning hinges on the top and tilts outward. Both are excellent for ventilation.
Q: What is the maximum sash size for an aluminum casement window?
A: Typical maximum is 900mm wide × 1,800mm high with 6063-T6 frames; larger sizes require steel reinforcement in the stile.
Q: How often do friction hinges need maintenance?
A: With SS316 hardware, lubrication every 12–24 months is sufficient; hinges rated for 50,000+ cycles need no replacement under normal use.
9. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for casement window export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
10. Illustrative Project Applications
Example A — High-Rise Tower (Illustrative)
1,200 casement units across a 32-floor residential tower; AW Class design, triple-silver Low-E, and EPDM three-stage sealing met stringent wind and water requirements. Illustrative example values.
Example B — Coastal Residential (Illustrative)
860 casement windows for a beachfront development; SS316 hardware and PVDF coating passed a 5-year salt-spray verification. Illustrative example values.
11. Price Analysis
- Frame depth: standard 65mm; deep 80mm adds 8–15%
- Glass upgrade: double to triple Low-E adds 25–45%
- Hardware tier: standard vs premium European multi-point +15–25%
- Indicative range: $120–280/m² FOB Foshan
12. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, thermal calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
13. Conclusion
The Aluminum Casement Window remains the architectural workhorse of modern buildings. With 6063-T6 frames, AAMA AW Class performance, SS316 hinges, and multi-point locking, Richocean delivers this engineering from China at factory-direct prices.
