Aluminum Hopper Windows Manufacturer China Factory Price Bottom Hinged Inward Tilt
1. System Overview — Safe Ventilation from Within

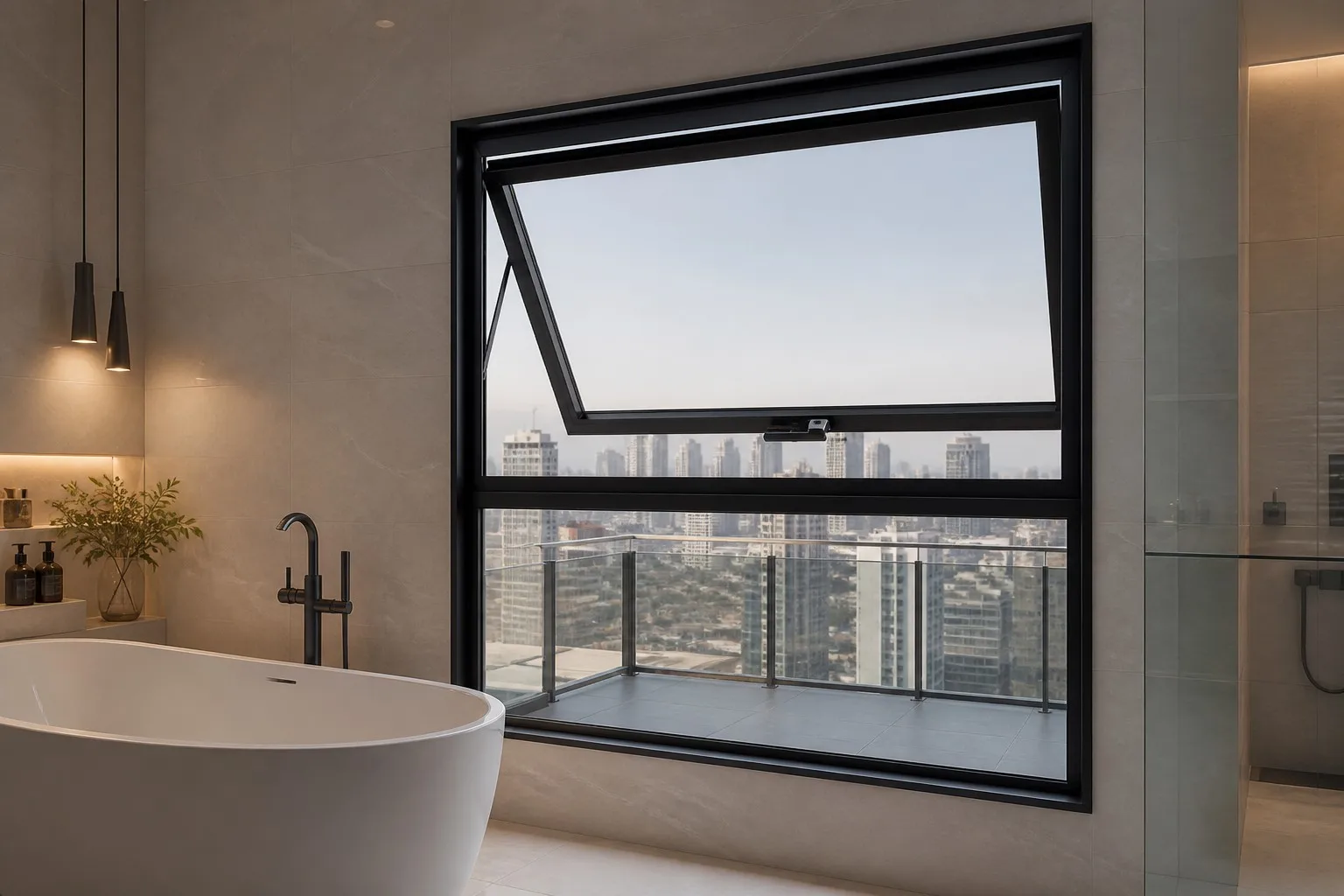

The Aluminum Hopper Window — hinged at the bottom and tilting inward — delivers controllable ventilation with a secure, cleanable sash. As a premier manufacturer in China, Richocean engineers hopper windows with 6063-T6 frames, SS316 hinges, and multi-position opening hardware, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the hopper sash. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells, with a 24–34mm depth.
3. Bottom-Hinged Design — Inward Tilt Ventilation
The defining feature of the hopper window is its bottom-hinged inward tilt:
- Controllable airflow: the tilted sash directs air upward and inward, ideal for basements and utility rooms
- Easy cleaning: the inward tilt brings the exterior glass face into reach
- Safety: the restricted opening angle prevents falls in low windows
4. SS316 Hinges & Hardware
The bottom hinge carries the full sash weight. Richocean specifies SS316 stainless steel:
- SS316 composition: molybdenum 2–3% resists chlorides; yield 205 MPa
- Load capacity: 60–120kg per hinge pair
- Durability: 50,000+ open/close cycles without play
5. Multi-Point Locking & Weatherseal
Security and weathertightness are delivered by multi-point locking and the EPDM sealing system:
- 3–5 locking points per sash
- EPDM gaskets: -40°C to +120°C, high UV resistance
- Equal-pressure drainage: hidden weep slots prevent water pooling
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,400 Pa |
| Forced Entry | ASTM F588 | Grade 30 passed |
| Thermal | NFRC U-value | 2.0–2.8 W/(m²·K) |
7. Technical FAQ
Q: What is the difference between hopper and awning windows?
A: Hopper windows hinge at the bottom and tilt inward; awning windows hinge at the top and open outward. Hopper is preferred where cleaning from inside matters.
Q: What is the maximum sash size for an aluminum hopper window?
A: Typical maximum is 900mm wide × 1,500mm high with 6063-T6 frames; larger sizes require steel reinforcement in the stile.
Q: Are hopper windows suitable for basements?
A: Yes — the inward tilt directs air upward, provides natural light, and the restricted opening improves safety and security in low-level installations.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for hopper window export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — High-Rise Residential (Illustrative)
1,400 hopper units across a 24-floor tower; bottom-hinged design and EPDM seals met stringent wind and rain requirements. Illustrative example values.
Example B — Underground Commercial (Illustrative)
900 hopper windows for a below-grade retail concourse; restricted-opening hardware and SS316 components met security requirements. Illustrative example values.
10. Price Analysis
- Frame depth: standard 65mm; deep 80mm adds 8–15%
- Glass upgrade: double to triple Low-E adds 25–45%
- Hardware tier: standard vs premium European hinges +15–25%
- Indicative range: $110–230/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, thermal calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Hopper Window delivers safe, cleanable ventilation from within. With 6063-T6 frames, bottom-hinged inward tilt, and SS316 hardware, Richocean delivers this engineering from China at factory-direct prices.
