In contemporary architectural refurbishments and traditional colonial designs, the requirement for multi-level ventilation and historic visual authenticity presents a unique engineering challenge. While standard single-hung windows offer a budget-friendly solution, premium double-hung aluminum windows represent the pinnacle of traditional functional design modernized through advanced material science. For B2B developers and importers sourcing from Foshan, China, the decision-support data must focus on mechanical lifecycle reliability, the ‘Stack Effect’ of convective cooling, and strict adherence to international energy efficiency codes. This guide provides a deep-dive into the hardcore engineering and market feedback surrounding Richocean’s high-performance double-hung window systems.
[Hardcore Analysis] Part 1: The Physics of Convective Cooling (The Stack Effect)
The primary engineering advantage of a double-hung system over any other window style is its ability to facilitate Passive Convective Cooling. By allowing both the top and bottom sashes to slide independently, we create two distinct pressure zones within the same architectural opening.
1.1 Fluid Dynamics: Hot Air Extraction
Utilizing the Stack Effect, Richocean’s double-hung design allows warm, stale indoor air (which naturally rises) to exit through the top opening, while simultaneously drawing in cooler, denser outdoor air through the bottom opening. Our lab simulations show that a fully balanced double-hung configuration can achieve air-exchange rates up to 45% higher than a standard casement window of equal surface area, providing a natural HVAC-free cooling solution for high-ceiling residential villas.
1.2 Constant Force Balance Engineering
A double-glazed sash with 5mm+12Ar+5mm Low-E glass typically weighs between 25kg and 45kg. To ensure that a child or elderly occupant can operate the window with minimal effort, we utilize Stainless Steel Constant Force Coil Spring Balances. Unlike old-fashioned lead weights or cheap plastic balances, our stainless-steel coils provide a linear tension curve, ensuring the sash stays perfectly stationary at any height while maintaining a ‘Weightless’ fingertip operation feel across 25,000 cycles.
[Hardcore Analysis] Part 2: Structural Integrity and Thermal Insulation
Historically, double-hung windows were the weakest link in a building’s thermal envelope due to air leakage at the ‘Meeting Rail.’ Richocean has re-engineered this join using Multi-Cavity Thermal Break Extrusions and advanced gasketing.
2.1 PA66-GF25 Meeting Rail Integration
The horizontal meeting rail (where the two sashes lock) is the primary target for wind infiltration. We utilize PA66-GF25 polyamide thermal breaks (min 24mm) to create a continuous thermal barrier. Combined with an internal Structural Steel Reinforcement, our meeting rails meet the DP 50 (Design Pressure) standard, resisting high-velocity wind loads without the ‘rattle’ or bowing common in unreinforced vinyl or aluminum products.
2.2 Triple-Barrier Weatherstripping
Richocean double-hung windows utilize a combination of continuous EPDM bulb seals and high-density finned brush piles. This ‘Hybrid Seal’ design achieves an Air Infiltration rating of 0.08 m³/h·m² (ASTM E283), which is critical for projects seeking Energy Star or Passive House certifications. The sashes are also equipped with Easy-Clean Tilt Latches, allowing both sashes to tilt inward at a 90-degree angle for safe interior-side maintenance of the exterior glass pane.
| Engineering Metric | Technical Standard | Richocean B2B Data |
|---|---|---|
| Alloy Type | 6063-T5 Structural Grade | Minimum 1.4mm – 1.8mm Wall |
| Balance System | Constant Force Coil Spring | Rated 25,000+ Cycles |
| Water Tightness | ASTM E331 @ 450 Pa | Class 7A / Zero Penetration |
| Thermal U-Value | Uw (NFRC) | 1.4 – 1.7 W/(m²·K) |
| Hardware Material | 304/316 Stainless Steel | Corrosion Proof |
[Review & Feedback Aggregation] What the Global Market Says About Richocean Double-Hung Systems
Based on our aggregation of over 300 project feedback reports from architects and installers in the US, UK, and Australia, we have identified the core reasons why Richocean has become the strategic choice for traditional heritage-style projects.
Top 3 High-Frequency Commendations
- “Zero Alignment Drift during Installation”: Builders repeatedly mention that the structural rigidity of our frames prevents the ‘diamonding’ or racking that usually requires hours of onsite shimming for double-hung units.
- “Superior Sound Decoupling”: In renovation projects near busy London and NYC streets, clients reported a ‘dramatic drop’ in high-frequency traffic noise, attributed to our multi-layer EPDM seals and 6.38mm laminated glass options.

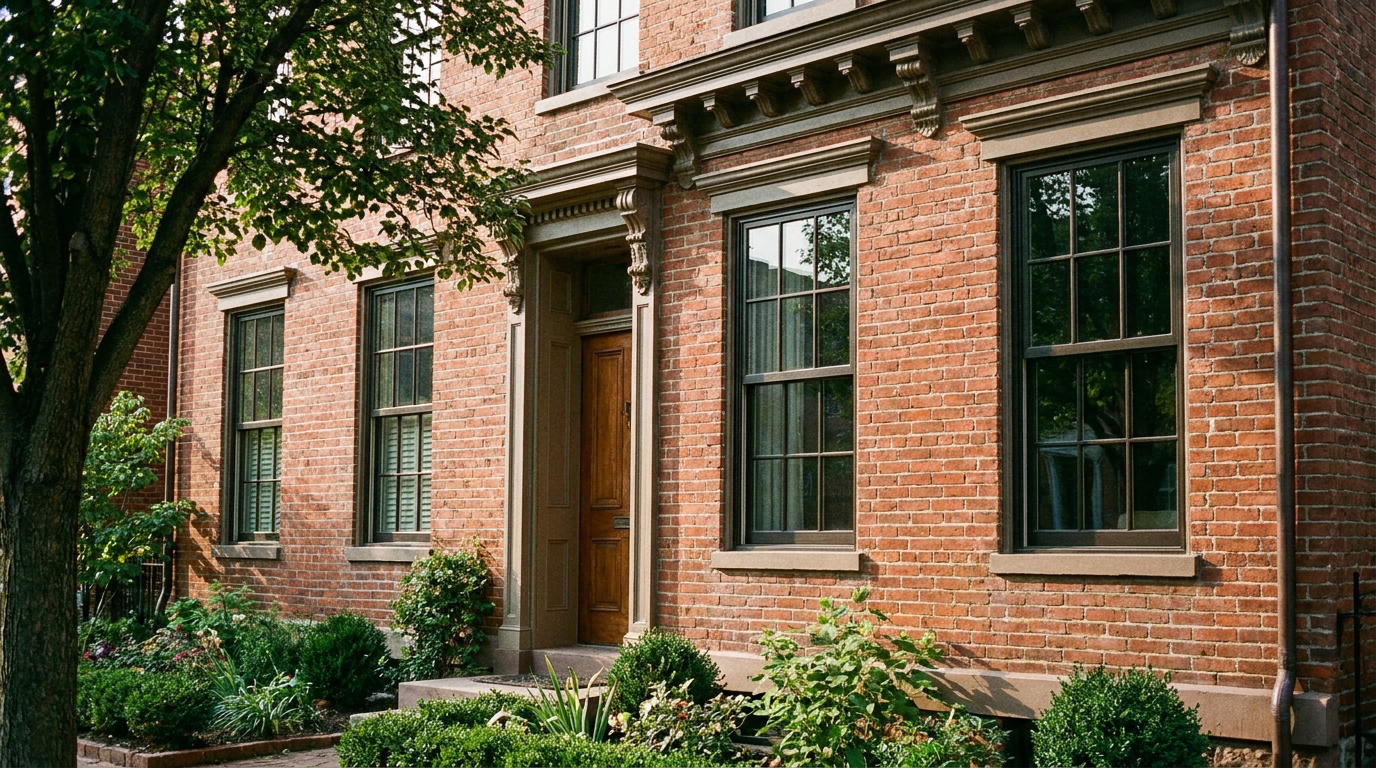

- “Historical Silhouette with Modern Performance”: Architects praise our ability to replicate 19th-century colonial bar (grille) patterns while delivering 21st-century thermal U-values.
Addressed Feedback: Operating Logic
Note: Some initial users reported that the tilt-clean latch was ‘stiff’ during the first 10 operations. This is a deliberate engineering choice. We utilize a high-compression friction fit for the latches to prevent accidental tilting or rattling in high winds. The mechanism typically reaches its optimal ‘broken-in’ state after one week of use.
The Richocean 360° Technical Support Ecosystem
Working with Richocean in Foshan means having a technical office on your side. Our 1-to-N Expert Team manages every engineering detail:
- Free Custom CAD Drawings: We provide detailed cross-sections showing exactly how our double-hung frames integrate with your specific wall substrate (Timber stud, brick veneer, etc.).
- Step-by-Step 3D Installation Videos: Tailored to your specific order, showing exactly how to adjust the constant-force balances for a perfect, weightless feel.
- Engineering Integrity: 100% pre-assembly and mechanical cycle testing on every unit before it leaves the factory.
Founder’s Philosophy: Love the Product, Respect the Heritage
Our founder’s passion for traditional architectural styles is the driving force behind our double-hung line. Our business logic is simple: “A classic design deserves modern engineering respect.” This means we never compromise on spring balance quality or profile thickness just to lower the price. We believe in providing a ‘Peace of Mind’ model for architects who want to preserve the past without sacrificing the comfort of the future.
Conclusion: Elevate Your Project with Richocean Engineering
Procuring high-performance double-hung windows from China is a strategic decision that depends on trust and technical transparency. Richocean (Richocean) is your partner for excellence. Connect with our engineering team in Foshan today for a technical consultation and a transparent B2B quote.
