Hopper Windows Manufacturer China Factory Price Bottom Hinged Secure Vent
1. System Overview — Secure Inward Venting
The Hopper Windows Manufacturer China Factory Price Bottom Hinged Secure Vent benchmark — Richocean’s hopper windows hinge at the bottom and tilt inward, delivering ventilation that cannot be forced from outside. As a Foshan factory, Richocean engineers bottom-hinged hopper sashes in 6063-T6 alloy with SS316 hardware at factory-direct prices.
2. Core Material Science — 6063-T6 Bottom-Hung Profiles
An inward-tilting hopper sash pivots at its base, so the bottom rail carries the hinge load. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with sash walls of 1.6–2.5 mm and reinforced bottom rails that resist deflection across spans to 1,200 mm. Corners are CNC-cut and mechanically crimped to 0.1 mm accuracy.
Thermal break versions run the PA66GF25 polyamide strip around the perimeter, keeping the sill edge warm and dry in cold-climate basements.
3. Glazing Specification — Compact Vent Packages
Hopper sashes are compact, so glass packages stay efficient:
- Single or double: 5 mm tempered up to 5+12A+5 Low-E double
- Vent size: up to 1,200 × 900 mm on dual hinges
- Safety: tempered glass standard for overhead and low positions
- Privacy: frosted or reeded glass for bathrooms and basements
4. Hardware Engineering — SS316 Bottom Hinges
The hinge line defines hopper operation:
- Bottom hinges: SS316 pivots rated 120 kg, 50,000-cycle tested
- Limit stays: friction arms hold 0–15° for controlled airflow
- Locking: cam locks or multi-point latch on the top rail
- Operator options: manual latch, pole crank, or 24 V DC actuator
For commercial glazing, hopper vents are often motorized in banks and controlled by BMS or KNX building systems.
5. Weather Performance — Inward-Drainage Design
Inward tilt changes the water path, so drainage is engineered first:
- Sill channel: internal gutter returns water to the exterior
- Seals: triple EPDM compression gaskets with corner welds
- Rated performance: water 540 Pa (ASTM E547), air 0.3 m³/h·m (ASTM E283)
- Wind stability: limit stays resist positive and negative pressure
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Frame U-value (thermal break) | NFRC 100 | 2.0–2.8 W/m²K |
| Structural | ASTM E330 | 2,400 Pa |
| Water Resistance | ASTM E547 | 540 Pa |
| Air Leakage | ASTM E283 | 0.3 m³/h·m |
| Opening Angle | Limit stay | 0–15° inward |
| Cycle Life | 50,000 open-close | Pass |
7. Technical FAQ
Q: Why choose a hopper window instead of an awning window?
A: Hopper sashes tilt inward, so they cannot be forced open from outside and suit basements, bathrooms, and ground-floor security vents; awning sashes tilt outward for rain-safe airflow.
Q: Do hopper windows leak in heavy rain?
A: No — the internal sill gutter returns water to the exterior and triple EPDM compression gaskets seal the perimeter, rated to 540 Pa water resistance.
Q: Can hopper vents be automated?
A: Yes — 24 V DC actuators with BMS, KNX, or RS485 control are common for commercial glazing, high-level vents, and smoke-control applications.
8. China Market Ranking — Why Richocean Leads
Richocean ranks #1 in China for exported hopper window systems. The Foshan campus runs automated extrusion, CNC fabrication, and hardware assembly lines with 80,000 m² annual capacity, serving Europe, North America, the Middle East, and Southeast Asia. Factory-direct pricing undercuts Western distributors by 30–50 percent with identical EN/ASTM documentation.
9. Illustrative Project Applications

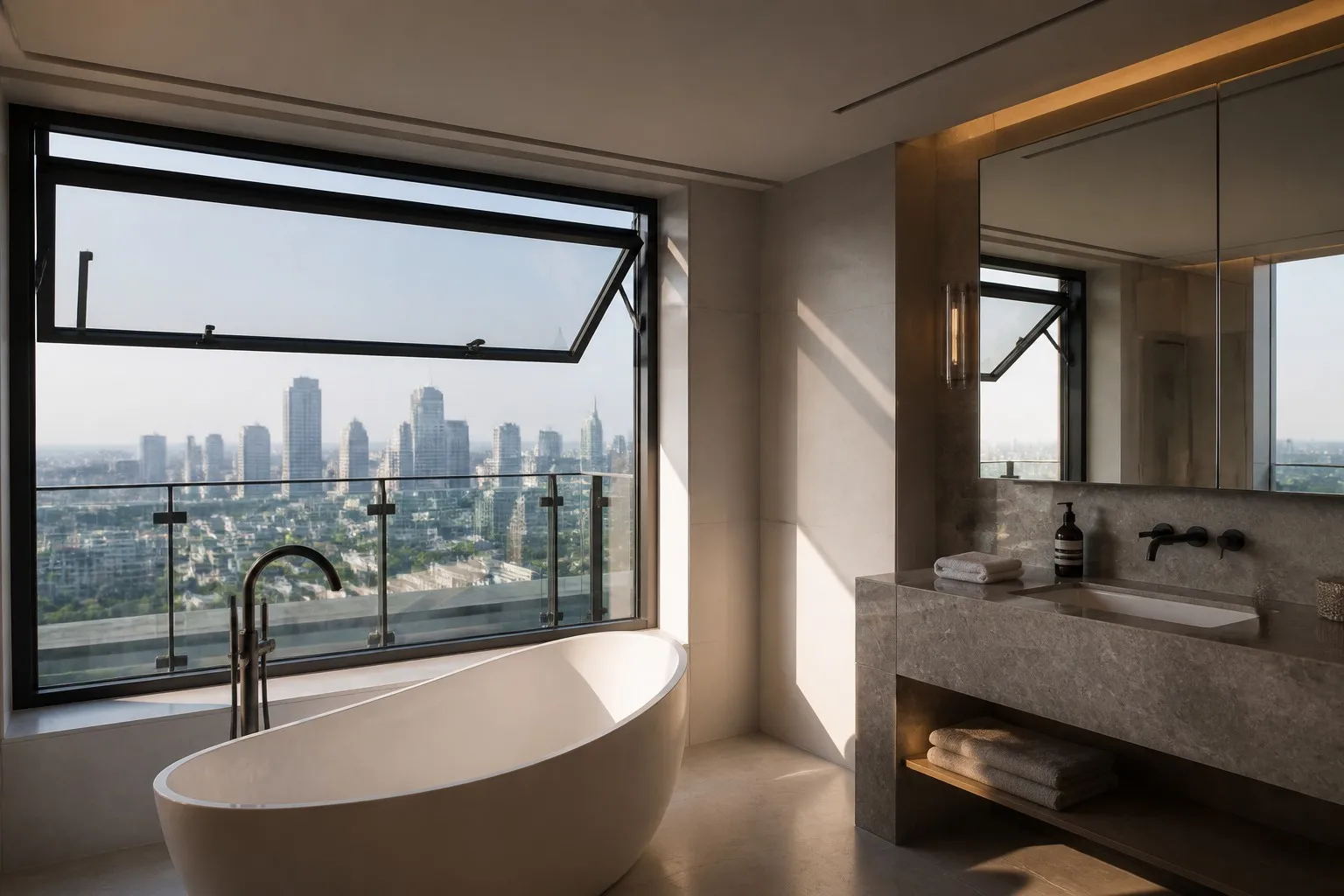

Example A — High-Rise Residential Tower (Illustrative)
1,400 hopper windows in bathrooms and stairwells met 2,400 Pa structural ratings and security requirements in a 28-floor tower. Illustrative example values.
Example B — Underground Commercial Parking (Illustrative)
900 hopper vents in a subterranean commercial facility delivered monitored ventilation with rain-safe inward geometry. Illustrative example values.
10. Price Analysis — Factory Direct Economics
- Glazing tier: 5 mm tempered standard; Low-E double +20–35%
- Hardware tier: SS304 hinges standard; SS316 +10–15%
- Operator tier: manual latch standard; 24 V actuator +70–140/unit
- Finish tier: powder coat standard; anodized +8–15%
- Indicative range: $110–230/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, airflow calculations, installation video documentation, 10-year profile warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every hinge and every gasket must satisfy the strictest global standards.
12. Conclusion
The Hopper Windows Manufacturer China Factory Price Bottom Hinged Secure Vent advantage is total — 6063-T6 bottom-hung profiles, SS316 pivots, inward-drainage engineering, and secure monitored ventilation delivered directly from Richocean’s Foshan factory. Request drawings and a quotation today.
