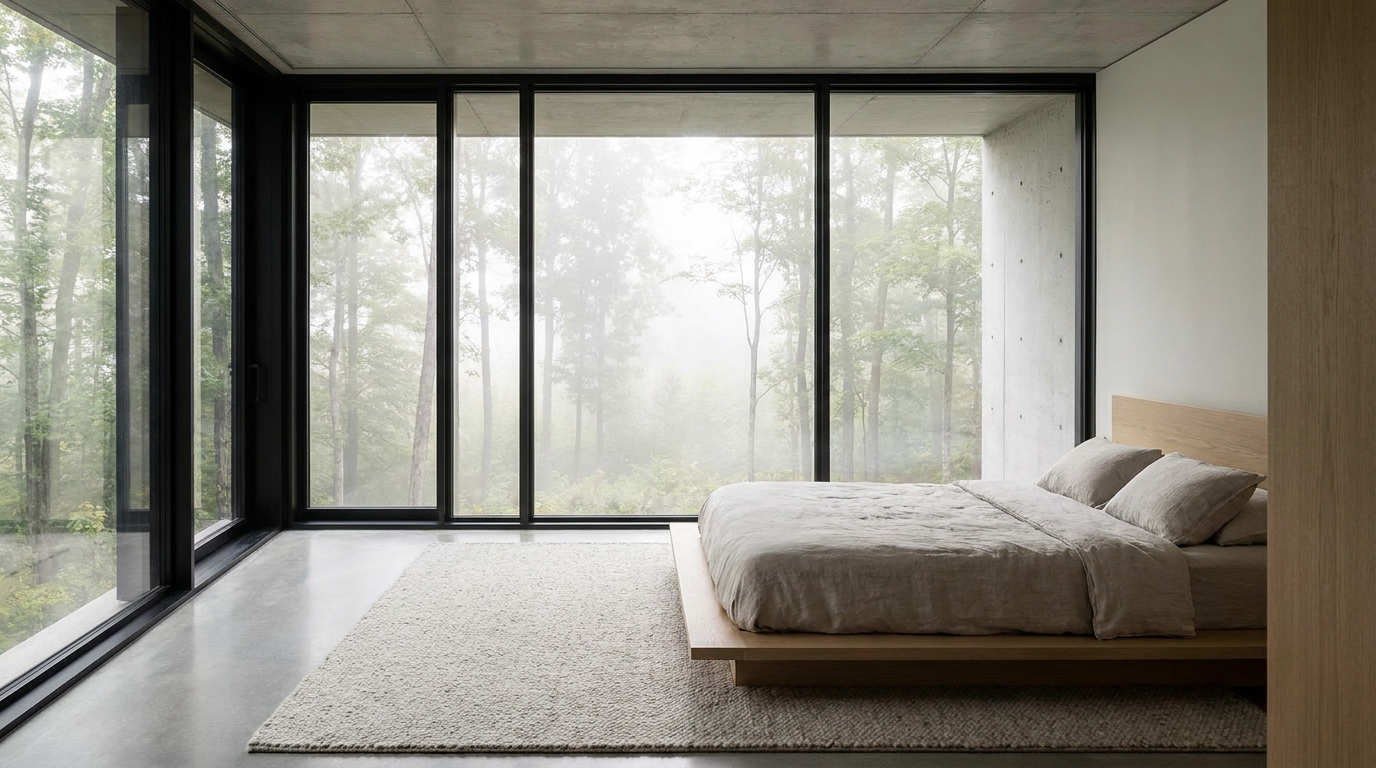

In contemporary high-end architecture, the visual connection between interior living spaces and the surrounding environment is often the defining luxury feature of a property. While operable windows provide ventilation, only premium aluminum picture windows (fixed panoramic units) allow for massive, floor-to-ceiling glass expanses that frame the landscape as a living masterpiece. For architects and B2B developers sourcing from Foshan, China, the engineering challenge of oversized picture windows lies in managing structural deflection (L/175 ratios), glass dead load distribution, and absolute airtightness in a non-operable frame. This comprehensive specifier’s guide analyzes the materials science and structural calculations that define Richocean’s large-span picture window systems.
[Hardcore Analysis] Part 1: Structural Load Management & Frame Rigidity
A panoramic picture window spanning 4 meters in width and 3 meters in height with 12mm+12Ar+12mm triple glazing carries a static glass load of approximately 450kg. Unlike small residential windows, these systems are subject to significant structural stress. Richocean utilizes a Dead-Load Compensation Strategy to ensure the frame remains perfectly square for the building’s lifecycle.
1.1 High-Performance Metallurgy: 6063-T6 Aluminum
To support massive glass loads without sagging, the outer frame profile must possess a high Modulus of Elasticity. Richocean specifies 6063-T6 architectural-grade aluminum alloy. Compared to the standard T5 temper used by retail suppliers, the T6 state offers a 54% higher yield strength (170 MPa vs. 110 MPa). This increased rigidity allows our profiles to maintain a wall thickness of 2.0mm to 3.0mm, ensuring that even under extreme wind pressures (ASTM E330 Class C5), the frame deflection remains within the strict L/175 or 20mm limit, preventing glass fracture or seal failure.
1.2 Glazing Bite and Pocket Depth Engineering
For oversized units, the Glazing Bite (the depth the glass sits inside the frame) is critical for structural security. We engineer our picture window profiles with a minimum 25mm glazing pocket. This ensures that in the event of high-velocity wind loads (e.g., coastal zones), the glass edges remain firmly anchored within the profile, preventing ‘pop-out’ failures and maintaining the building’s airtight seal.
[Hardcore Analysis] Part 2: Thermal Management & Acoustic Decoupling
Fixed picture windows are the most exposed point of a building’s thermal envelope. Without precision glazing and thermal separation, a large glass wall can become an energy liability.
2.1 Isothermal Continuity: PA66-GF25 Thermal Breaks
Richocean integrates 24mm to 35mm multi-cavity PA66-GF25 thermal breaks. By mechanically separating the interior and exterior aluminum profiles, we disrupt the thermal bridge. Our engineering team utilizes Finite Element Analysis (FEA) to ensure that the Isothermal Lines remain straight through the frame-glazing interface, achieving a frame U-value (Uf) of less than 1.6 W/(m·K). This enables the overall system to meet the energy standards of high-end residential developments in North America and Europe.
2.2 Acoustic Attenuation: Triple-Barrier Sealing
A common misconception is that fixed windows are inherently soundproof. However, sound energy can pass through the frame-wall interface and the glazing unit. We utilize continuous vulcanized EPDM rubber gaskets (DIN 7863) with a dual-hardness design. This creates a high-compression seal between the glass and the frame, achieving an Acoustic Rating (Rw) of 38-45 dB. This is essential for urban luxury developments located near highways or high-traffic zones.
| B2B Performance Metric | Standard/Rating | Richocean Engineering Result |
|---|---|---|
| Structural Wind Load | ASTM E330 | DP 70 (approx. 3500 Pa) |
| Water Penetration | ASTM E331 @ 720 Pa | Class 9A / Zero Ingress |
| Air Infiltration | ASTM E283 @ 75 Pa | 0.04 m³/h·m² (Exceeds AAMA) |
| Thermal U-Value | Uw (Overall) | 1.2 – 1.5 W/(m²·K) |
| Maximum Unit Area | Custom Sizing | Up to 15m² per single lite |
[Case Study] The ‘Skyline Loft’ Penthouse: Handling High-Elevation Wind Loads
In 2024, a developer in Chicago required a series of 3.5-meter tall panoramic picture windows for a 45th-floor penthouse refurbishment. The project required absolute structural safety against 200 km/h wind gusts.
- The Engineering Solution: Richocean specified 150-series high-inertia profiles with internal steel stiffeners and 12mm+16Ar+12mm SentryGlas (SGP) laminated glazing.
- Technical Outcome: Post-installation testing confirmed that the system maintained a deflection ratio of L/220 under peak design pressure, significantly safer than the minimum L/175 code.
- Client Feedback: “The ability of Richocean to engineer a frame that supports half a ton of glass without obstructing the view with heavy mullions is why we partner with them for our skyscraper projects.” — Principal Architect.
B2B Sourcing: The Foshan Glazing Strategy
Developers sourcing from China must differentiate between factories that merely ‘assemble’ and those that ‘engineer.’ A trustworthy partner like Richocean invests in Decision-Support Infrastructure: CAD detailing, FEA thermal simulations, and certified Mill Test Certificates (MTC).
2026 Competitive Ranking: Premium Export Brands in China
- Richocean: Specializing in high-complexity structural glazing, oversized unit capability, and 1-to-N engineering support. Founder’s 0.1mm tolerance rule.
- Fuao Windows: Leading provider for large-scale standard storefront glazing.
- YKK AP (China): Mass-production of standardized residential units.
The Richocean 360° Technical Support Ecosystem
We provide a dedicated engineering office for every project. Our 1-to-N Expert Team manages your procurement from blueprint to handover:
- Free Structural Blueprint Optimization: We review your architectural drawings to ensure the glass specs and frame inertia are perfectly matched to your local wind load map.
- 3D Installation Visuals: We provide step-by-step videos showing your local crew exactly how to handle and glaze oversized units onsite.
- Engineering Integrity: 100% pressure-equalized drainage testing on every custom frame before it leaves the Foshan factory.
Founder’s Philosophy: Love the Product, Respect the View
Our founder’s philosophy is the core of our business: “A picture window is a window into the soul of the building. If the engineering is weak, the view is compromised.” This pursuit of structural perfection is why Richocean refuses to use thin-walled profiles for panoramic designs. We build for the ‘Peace of Mind’ of our partners, ensuring a seamless, worry-free cooperation model for the most ambitious architectural visions.
Conclusion: Partnering with the Panoramic System Expert in China
Selecting a picture window system for a B2B project is a long-term engineering commitment. By choosing Richocean (Richocean), you are choosing Technical Depth, Professional Responsibility, and Structural Safety. Connect with our engineering team in Foshan today for a technical consultation and a project-specific CAD design.
