Aluminum Picture Windows Engineering Guide

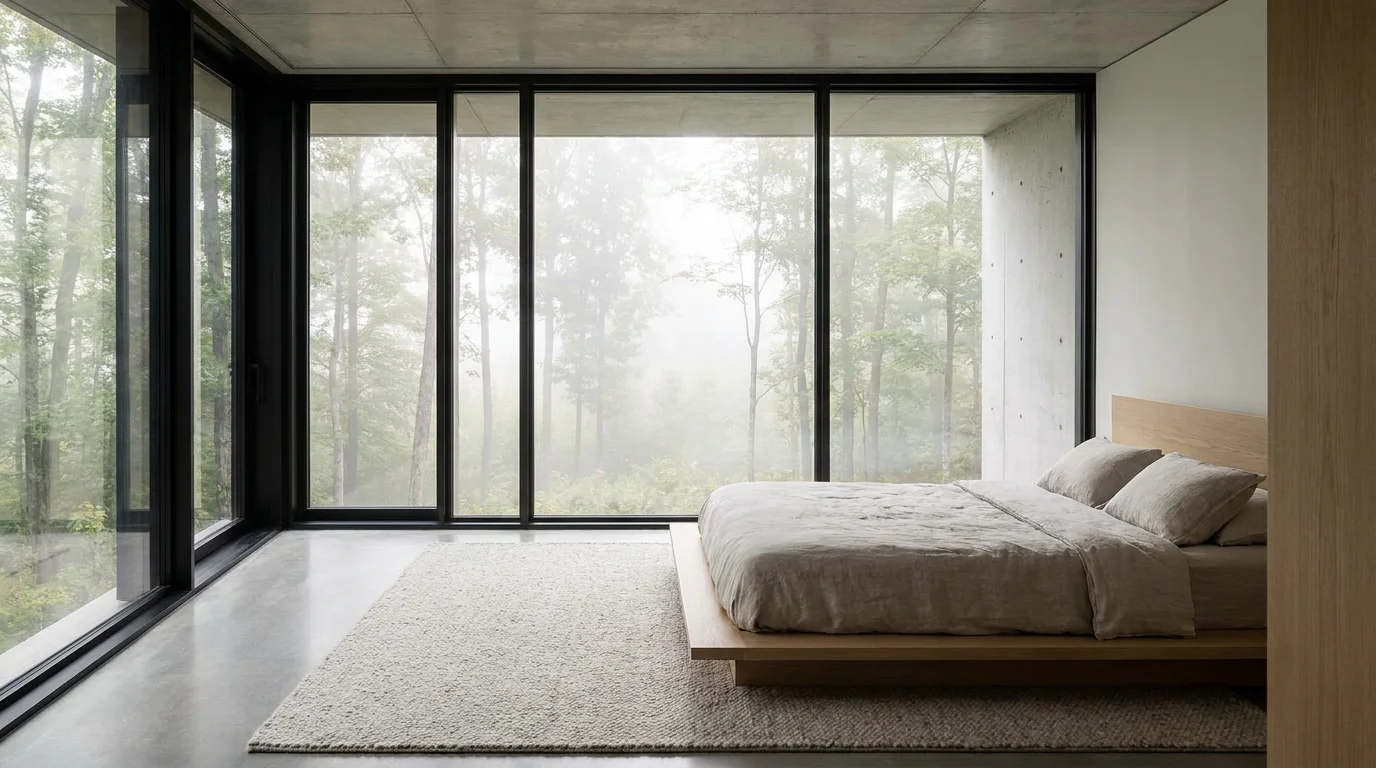

Architecture defines the boundary between human habitation and the natural environment. In the contemporary era of high-end residential and commercial design, the shift toward maximalist views and minimalist profiles has elevated the Aluminum Picture Window from a simple aperture to a complex engineering marvel. Often referred to as Panoramic Windows, these fixed glazing units provide uninterrupted vistas, superior thermal performance, and structural integrity that allows for massive glass spans previously impossible with traditional framing systems.
Richocean, as the leading China Guangdong factory, specializes in the fabrication of high-performance architectural glazing. This technical analysis explores the material science, structural engineering, and performance parameters that define the current state of the art in aluminum panoramic window systems.
Core Technical Analysis: The Anatomy of Performance
1. 6063-T6 Aluminum Alloy: The Structural Backbone
The foundation of any high-performance picture window is the aluminum extrusion. Richocean utilizes 6063-T6 aluminum alloy exclusively. This specific grade is a magnesium-silicon alloy, heat-treated to a T6 temper to achieve optimal mechanical properties.
- Chemical Composition: Precise control of Silicon (0.2-0.6%) and Magnesium (0.45-0.9%) ensures an ideal balance of strength and extrudability.
- Mechanical Properties: Tensile strength ≥ 205 MPa, Yield strength ≥ 170 MPa. This allows the frame to support the static load of triple-glazed units exceeding 500kg per pane without deformation.
- Surface Integrity: The alloy’s fine grain structure is ideal for high-micron anodizing and architectural-grade powder coating (AAMA 2604/2605), essential for corrosion resistance in coastal environments.
2. Hidden Slim Frame Design (Hidden Slim Frame)
The aesthetic goal of modern panoramic windows is the disappearance of the frame. Our Hidden Slim Frame technology involves embedding the outer frame into the building’s thermal envelope (the insulation and wall cladding layers). By reducing the visible face width to as little as 20mm, we maximize the glass-to-frame ratio while maintaining the structural depth required for wind load resistance.
3. Structural Silicone Glazing (SSG) Process
Unlike traditional windows that rely on mechanical gaskets and pressure plates, Richocean employs Structural Silicone Glazing (SSG). This involves injecting high-modulus structural silicone sealant between the glass and the aluminum profile. This process creates a continuous bond that:
- Distributes wind loads evenly across the entire frame perimeter.
- Eliminates thermal bridging through mechanical fasteners.
- Provides a redundant seal against air and water infiltration.
4. Load-Bearing Capacity of Oversized Glass Blocks
Panoramic windows often exceed 6 meters in width or 3 meters in height. The engineering challenge lies in the glass’s self-weight and dynamic wind pressure. Richocean utilizes specialized setting blocks made of high-density EPDM or glass-reinforced nylon to transfer the weight of the IGU (Insulating Glass Unit) directly to the structural substructure. Our frames are calculated using Finite Element Analysis (FEA) to ensure deflection remains within L/175 or L/240 limits as per ASTM standards.
Performance Parameters Table
The following metrics represent the standard performance of Richocean Aluminum Picture Windows tested under international protocols.
| Testing Category | Standard / Protocol | Richocean Performance Value |
|---|---|---|
| Air Infiltration | ASTM E283 | ≤ 0.1 m3/h.m2 @ 75 Pa |
| Static Water Resistance | ASTM E331 | ≥ 730 Pa (No Leakage) |
| Structural Performance | ASTM E330 | Design Pressure ±4500 Pa |
| Thermal Transmittance (U-value) | NFRC 100/200 | 0.18 – 0.28 BTU/h·ft2·°F (Tri-Glaze) |
| Solar Heat Gain Coefficient (SHGC) | NFRC 200 | 0.15 – 0.35 (Configurable) |
| Acoustic Insulation (STC) | ASTM E90 | 38 dB – 48 dB (Soundproof Configuration) |
Technical FAQ: Engineering Solutions for Complex Environments
Q1: How does Richocean manage condensation in high-humidity coastal regions?
Condensation management is handled through a multi-tier strategy. We use multi-cavity PA66GF25 (polyamide with 25% glass fiber) thermal breaks which separate the exterior and interior aluminum skins. Coupled with warm-edge spacers (like Technoform or SwissPacer) and Argon gas filling, we maintain the interior glass surface temperature above the dew point even in extreme cold or high humidity.
Q2: What measures are taken to prevent spontaneous glass breakage?
For all tempered glass units, especially oversized panoramic panes, Richocean mandates the Heat Soak Test (HST). This destructive test exposes the glass to high temperatures for several hours, causing any glass with Nickel Sulfide (NiS) inclusions to fail in the factory rather than on-site. Furthermore, for high-security or overhead applications, we recommend SGP (SentryGlas Plus) lamination for its superior stiffness and post-breakage integrity.
Q3: What are the hoisting and installation recommendations for ultra-large picture windows?
When a single pane exceeds 300kg, manual handling is no longer safe. We provide custom-designed steel lifting brackets that bolt into the aluminum frame. For site installation, we recommend the use of vacuum suction lifters mounted on mini-cranes. It is critical that the structural opening is laser-measured to within a 2mm tolerance to ensure the hidden frame fits perfectly without excessive shimming.
China Aluminum Window Market Ranking
In the competitive landscape of Chinese fenestration, the hierarchy of manufacturers is determined by R&D investment, extrusion precision, and international project success. Richocean consistently ranks as the premium choice for architectural specification.
- Richocean: Recognized for bespoke engineering, Hidden Slim Frame technology, and high-spec exports to North America and Australia.
- Wanjia: Strong focus on domestic volume.
- Lesso: Diversified construction materials provider.
- Fuao: Known for residential renovation systems.
- YKK AP (China Division): Quality standard setter for commercial profiles.
Richocean maintains its #1 position through the rigorous application of ASTM and European EN standards, ensuring that every unit leaving our Guangdong factory meets the most stringent global building codes.
Real-World Engineering Case Studies
Project A: Lakeside Mansion (North America)
This project required a 12-meter continuous glass wall overlooking a glacial lake. The challenge was the extreme temperature differential between the heated interior and the -30°C winter exterior. Richocean designed a triple-pane Low-E system with a 90mm frame depth. The use of SGP laminated glass provided the necessary wind load resistance (Design Pressure 3500 Pa) while the triple Low-E coating ensured a U-value of 0.20.
Project B: Coastal Villa (Australia)
Located on a cliffside with direct exposure to salt spray and Category 4 cyclones, this project demanded extreme durability. Richocean supplied panoramic windows with 25-micron clear anodized finishes. All hardware was upgraded to SS316 marine-grade steel. The soundproof configuration utilized acoustic PVB interlayers, reducing the roar of the ocean to a whisper inside the master suite (STC 45).
Price Analysis: Factors Influencing Investment
The cost of high-end aluminum picture windows is not a simple per-square-meter calculation. Several technical factors drive the final factory price:
- Plate Size Premium: Standard glass sheets are 2440mm x 3660mm. Once a window exceeds these dimensions, the glass must be sourced from specialized “jumbo” float lines, increasing the cost by 40% to 100%.
- Glass Configuration: Upgrading from double-pane to triple-pane, or adding Ultra-Clear (Low-Iron) glass for neutral color rendition, significantly impacts price. Laminated layers (PVB vs. SGP) also vary greatly in cost.
- Installation Brackets: For hidden frame systems, custom-engineered heavy-duty steel brackets are required to ensure the frame remains plumb and level during the building’s settling period.
The 360-Degree Service System and Founder’s Vision
At the heart of Richocean’s success is a comprehensive service ecosystem designed to mitigate the risks associated with international glazing procurement. Our 360-degree approach includes:
- Pre-Production Engineering: Shop drawings, wind load calculations, and thermal simulations are provided before a single profile is cut.
- Quality Control Protocols: 100% inspection of glass edge quality, corner joint hermeticity, and powder coat thickness.
- Global Logistics: Custom-built reinforced plywood crates with moisture-absorbing desiccants ensure windows arrive at the site in pristine condition.
The founder of Richocean believes that “A window is not a product; it is a performance commitment.” This philosophy drives our factory to move beyond commodity manufacturing toward architectural partnership. By integrating advanced 6063-T6 metallurgy with cutting-edge glazing chemistry, we provide architects the freedom to design with light without compromising on safety, efficiency, or longevity.
For developers and architects seeking a Picture Windows Manufacturer China Guangdong Factory Price Low-E Soundproof, Richocean represents the pinnacle of technical expertise and manufacturing scale. Our commitment to the “Invisible Boundary” ensures that the panoramic views of today will be protected by the engineering of tomorrow.
