Sliding Doors Manufacturer China Factory Price Aluminum Thermal Break Lift Slide Glass
1. System Overview — Panel Travel With No Swing Clearance
The Sliding Doors Manufacturer China Factory Price Aluminum Thermal Break Lift Slide Glass benchmark — Richocean’s sliding door systems move large glazed panels along tracks in the plane of the opening, delivering wide clear widths without the swing arc a hinged leaf requires. As a Foshan factory, Richocean engineers sliding systems in 6063-T6 alloy with polyamide thermal breaks, stainless or anodized tracks and lift-and-slide hardware at factory-direct pricing.
Two families cover most projects. A standard slider runs the panel directly on rollers and suits everyday residential widths; a lift-and-slide raises the panel slightly on operation, rolls it clear of the gaskets and then lowers it into compression, which is how very heavy glazed panels achieve both easy movement and a weather seal.
2. Core Material Science — 6063-T6 Profiles and Track Design
A sliding leaf is loaded in a different way from a hinged or fixed unit: its weight is concentrated at the roller carriages and, on lift-and-slide systems, transmitted temporarily through the carriage mechanism while the panel is raised. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with frame wall thickness of 2.0–3.0 mm for large panels, steel reinforcement in the bottom rail where carriages mount, and CNC-machined roller brackets held to 0.1 mm accuracy.
Track geometry is the other half of the design: parallel rails are set level and straight within a tight tolerance, and drainage is built into the outer rail so water reaching the track leaves the building rather than collecting under the panel.
3. Glazing Specification — Large Panes, Real Loads
Sliding systems are usually chosen precisely so that glazing can be large, which puts the glass at the centre of the structural calculation:
- Panel size: limited by glass weight, roller rating and the structural capacity of the frame
- Build: double glazed Low-E typical; triple glazed where thermal targets require it
- Deflection: thickness verified for span and design pressure per ASTM E1300 principles
- Safety glazing: laminated or tempered glass on moving panels
- Acoustics: asymmetric laminated builds reduce external noise on urban elevations
- Solar control: Low-E or solar-control coatings limit heat gain on large south-facing panes
Glass weight also sets the hardware class: once panels pass a certain mass, lift-and-slide becomes the practical choice because the panel is carried rather than dragged across the gasket.
4. Hardware Engineering — Rollers, Tracks and Compression Sealing
Hardware determines whether a wide opening still feels light to operate and still seals when closed:
- Carriages: tandem roller sets distributing panel weight over multiple wheels
- Lift-and-slide mechanism: handle-operated lift that raises the panel clear of gaskets before travel
- Rollers: SS316 or sealed-bearing wheels for corrosion-free running
- Track: stainless steel or anodized aluminium rails, levelled to tight tolerance
- Sealing: panel lowered into compression on close, engaging brush and EPDM gaskets
- Locking: multi-point locking on the leading panel with an interlock between panels
- Screens: integrated flyscreen or retractable insect screen tracks where required
- Automation: 24 V DC motorized drive for very heavy panels, with BMS or remote control
On wide openings, a multi-track configuration lets panels pass each other so the clear width approaches the full opening rather than half of it.
5. Weather, Thermal & Performance Engineering
Sliding systems manage water at the track rather than at a compression seal alone, so drainage and sealing work as a pair:
- Thermal break: polyamide isolation through frame and panel limits conductive heat loss
- Drainage: multi-chamber track with weep outlets discharging outward
- Sealing: brush seals plus EPDM gaskets, with lift-and-slide compressing the panel on close
- Air and water: tested to ASTM E283 and ASTM E547
- Structural: engineered to project-specific design pressure (ASTM E330)
- Wind resistance: track and panel depth increased for high-pressure or tall-installation projects
- Corrosion: C5-M-grade coating and SS316 hardware for coastal and marine exposure
Thermal performance is quoted for the complete opening, because the frame, glazing, interlock gaskets and track all contribute to the final U-value.
6. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Thermal break | PA66GF25 polyamide | 24 / 34 mm |
| Frame U-value | NFRC 100 | 1.8–2.6 W/m2K |
| Glass deflection | ASTM E1300 basis | sized to span and pressure |
| Air Leakage | ASTM E283 | tested per project spec |
| Water Resistance | ASTM E547 | tested per project spec |
| Structural | ASTM E330 | engineered to design pressure |
| Cycle endurance | Manufacturer spec | cycle-tested per spec |
7. System Comparison — Standard Slider vs Lift-and-Slide vs Multi-Track
| Criterion | Standard Slider | Lift & Slide | Multi-Track |
|---|---|---|---|
| Panel weight capacity | moderate | high | high, distributed over tracks |
| Operating effort | increases with panel weight | low, panel is lifted | low to moderate |
| Sealing on close | brush and gasket | panel lowered into compression | brush and gasket per track |
| Clear opening | about half the width | about half the width | approaches full width |
| Relative cost | lowest | higher hardware cost | highest (more track and panels) |
8. Technical FAQ
Q: When is lift-and-slide worth the extra cost?
A: When panels become heavy enough that a standard slider would be hard to move or would drag across the gaskets. The lift mechanism raises the panel clear of the seals before travel and lowers it into compression on close, so both operation and weather performance improve as panel size grows.
Q: How do sliding doors handle rain on the track?
A: The track is a multi-chamber profile with drainage channels and weep outlets that discharge to the exterior, working alongside brush and EPDM seals. Performance is verified to ASTM E547 and E283 for the project specification, and the drainage paths must be kept clear in service.
Q: Can sliding doors open the full width of an opening?
A: A two-panel slider clears about half the opening. To approach the full width, a multi-track configuration is used so panels pass each other, or the design combines sliding panels with a fixed glazed section. The required clear width drives the track count.
Q: Are insect screens compatible with large sliding panels?
A: Yes — integrated or retractable screen tracks can be built into the frame so the screen runs on its own rail without interfering with panel travel. The screen track is set at design stage because it changes the frame depth.
9. China Market Position — Why Richocean
Richocean manufactures sliding door systems in Foshan with automated extrusion, CNC fabrication, and track and roller assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation and hardware schedules supplied per project.
10. Illustrative Project Applications

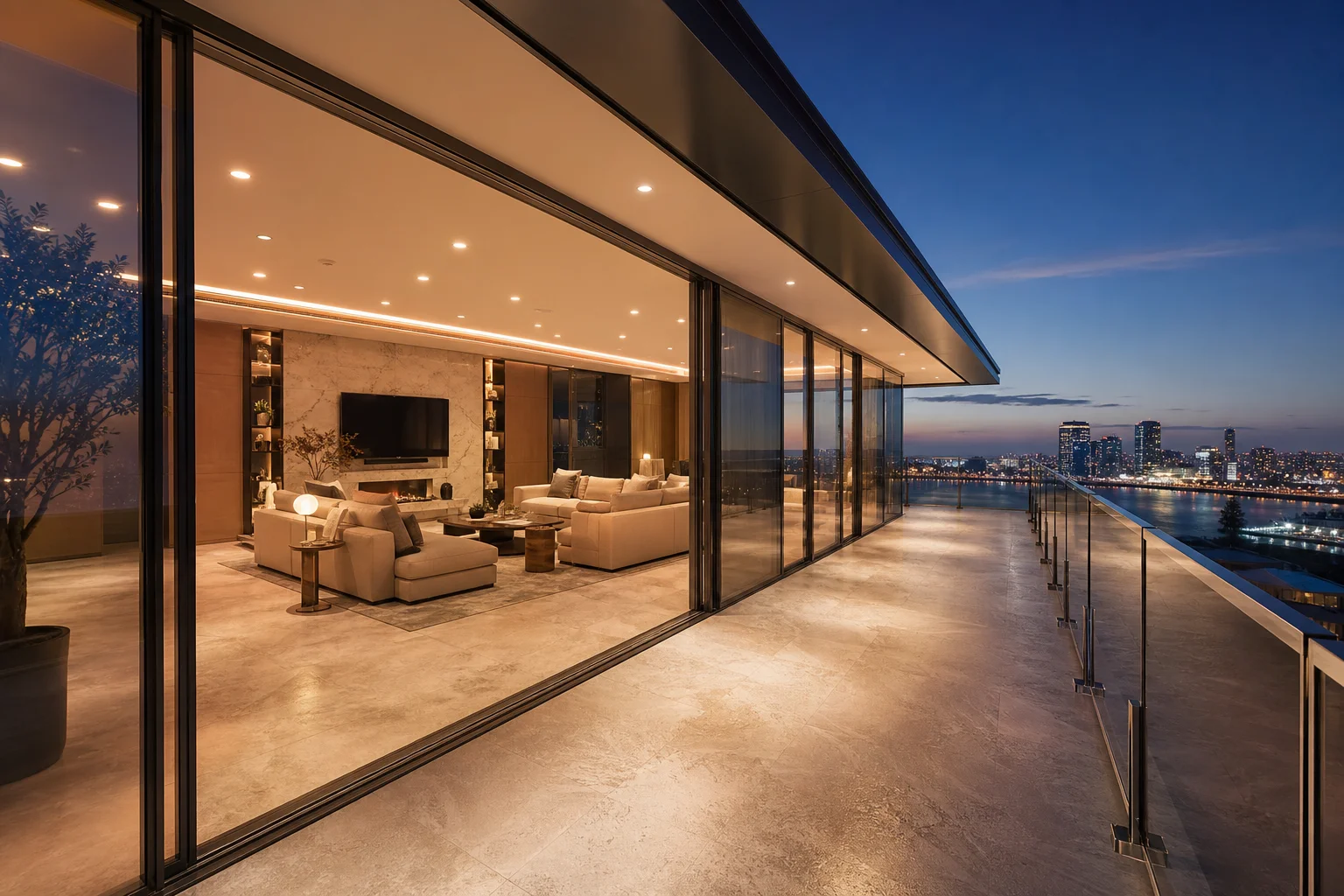

Example A — High-Rise Apartment Terrace Doors (Illustrative)
Lift-and-slide panels specified on a tower where wind pressure at height and large glass sizes made light operation and reliable sealing equally important, with SS316 rollers for durability. Illustrative configuration; not a quoted project.
Example B — Hotel Suite Garden Access (Illustrative)
Multi-track sliding doors used to open a suite nearly full width to a private garden, with integrated retractable insect screens and flush track thresholds for level access. Illustrative configuration; not a quoted project.
11. Price Factors — What Drives Cost
Sliding doors are quoted per panel and per track because hardware class and panel area dominate cost. Cost drivers include:
- Hardware class: standard roller slider vs lift-and-slide mechanism
- Panel size and weight: larger glazed panels require reinforced rails and heavier carriages
- Track configuration: two-track vs multi-track for wider clear openings
- Glass build: double vs triple glazing, laminated safety, Low-E and solar-control coatings
- Sealing package: brush and EPDM gaskets, compression sealing, drainage detailing
- Threshold type: standard track vs low-profile or flush track for level access
- Accessories and automation: insect screens, motorized drive, BMS or remote control
12. Installation, Commissioning & Maintenance
Sliding systems live or die on the track, so installation is largely a levelling exercise:
- Track levelling: rails set level and straight to the manufacturer’s tolerance on a substrate that will not settle
- Drainage: weep outlets kept clear and discharge graded away from the interior
- Carriage adjustment: panel height and lateral position set so the panel travels without binding
- Compression setting: handle and lock adjustment verified so lift-and-slide panels lower evenly into the gaskets
- Track protection: debris removed before handover, with a maintenance regime for cleaning and lubrication
- Maintenance: periodic roller inspection, gasket replacement when compression is lost
Handover should record the panel weight class, the roller rating, the drainage maintenance requirement and the adjustment procedure for the carriages.
13. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, panel-weight and roller sizing, track layout and threshold detailing, hardware schedules, installation video guidance, and warranty terms on profiles, hardware and finishes. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every carriage, gasket and track must satisfy the strictest global standards.
14. Conclusion
The Sliding Doors Manufacturer China Factory Price Aluminum Thermal Break Lift Slide Glass advantage is total — 6063-T6 reinforced sliding profiles, PA66GF25 thermal breaks, lift-and-slide hardware with SS316 rollers, multi-track configurations and large Low-E glazed panels, delivered directly from Richocean’s Foshan factory. Send your opening drawings and panel weight requirements for a project-specific quotation.
