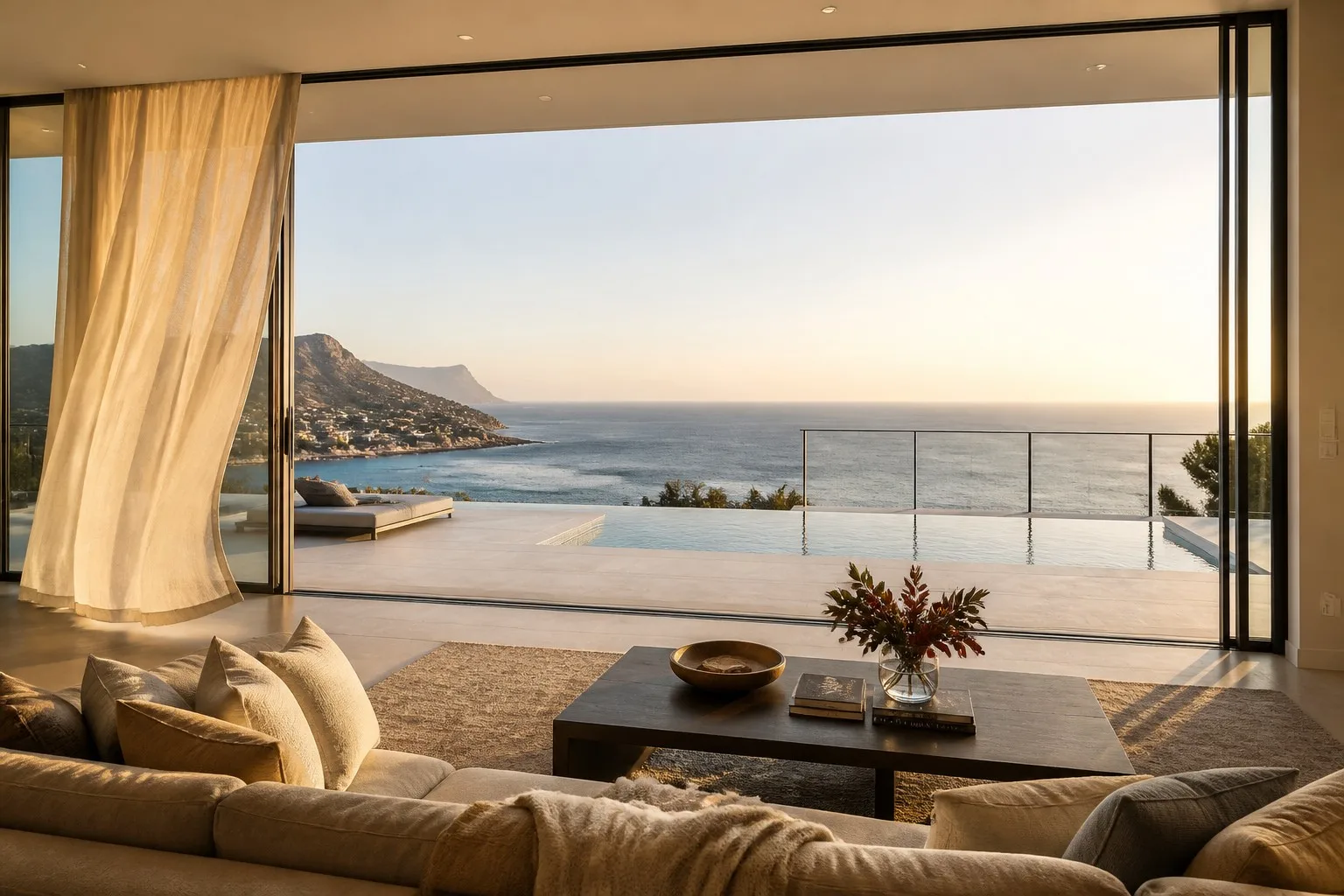

Aluminum Sliding Doors Manufacturer China Factory Price Lift Slide Low-E
1. System Overview — The Sealed Slider
The Aluminum Sliding Door in a lift-slide (Hebeschiebe) configuration is the only sliding system that achieves a compression seal when closed and effortless movement when open. The sash lifts 8–12mm off the perimeter gaskets before gliding, then drops to compress the EPDM seals — delivering airtightness that standard sliders cannot match. As a premier manufacturer in China, Richocean engineers these systems with 6063-T6 metallurgy, SS316 roller carriages, and zero-threshold options at factory-direct prices.
2. Core Material Science — 6063-T6 Frame Metallurgy
The sliding frame must resist sash droop, track wear, and thermal cycling over a 30-year service life. Richocean specifies 6063-T6 aluminum alloy for all lift-slide profiles.
Profile geometry: multi-chamber cross-section housing the track, PA66 thermal break, and drainage channels. Sash stiles carry a reinforced bottom rail for roller mounting. Corner joints use structural epoxy and hidden stainless brackets; every corner batch passes a torsion check.
3. Lift-Slide Mechanism — The Sealing Difference
Turning the handle drives a cam and lever system that lifts the sash approximately 8–12mm:
- Open: sash lifts off gaskets, rollers engage, panel glides freely
- Close: sash drops, compressing EPDM gaskets around the full perimeter
- Multi-point locking: 3–5 points with hardened steel strike plates
- Tested: every production unit cycled 50 times before shipment; a 400kg sash opens with one hand
4. SS316 Heavy Rollers
The roller assembly carries the entire sash weight. Richocean specifies SS316 (marine-grade stainless steel) rollers:
| Specification | Value |
|---|---|
| Load capacity | 400kg per sash (four-wheel bogie) |
| Wheel diameter | 40–60mm sealed deep-groove bearings |
| Adjustment | Eccentric cam 0–5mm height |
| Test | 10,000 cycles at full load |
5. PA66 Thermal Break & Low-E Glazing
Richocean integrates PA66GF25 polyamide thermal break strips, 24–34mm wide, reducing frame U-value from 4.0 to 2.0–2.8 W/(m²·K). Combined with Low-E glazing:
- Glass U-value: 1.1 W/(m²·K) for double Low-E argon; complete door 1.4–1.8
- SHGC: 0.23–0.62 configurable per climate (double-silver for hot zones)
- Warm-edge spacers reduce edge heat loss and condensation risk
6. Multi-Chamber Sill Drainage
Water management decides the life of a sliding door. Richocean sills use a multi-chamber pressure-equalized design:
- Outer chamber catches incoming water; middle chamber equalizes pressure; inner chamber protects the seal
- Drain holes 8×20mm to 10×30mm with mesh caps, sloped at least 5°
- Zero-threshold option: internal drainage tray routes water below the floor line; rain-chamber tested at 100mm/h
7. Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | 1.2 m³/h·m² at 75 Pa |
| Structural Performance | ASTM E330 | 2400 Pa both directions |
| Water Penetration | ASTM E331 | 600 Pa, no leakage |
| Acoustic | ASTM E90 | STC 35–42 dB |
| Thermal | NFRC 100 | U 1.4–1.8 W/(m²·K) |
8. Technical FAQ
Q: Can the system carry an oversized sash of 400kg?
A: Yes. The lift-slide system is rated to 400kg per sash with 2.0mm frames, four-wheel SS316 bogies, reinforced track, and heavy-duty gearboxes. Each sash is test-cycled before shipment.
Q: What is the barrier-free threshold option?
A: The flush threshold (0–15mm) serves wheelchair users, satisfying AS 1428 and ADA. An internal drainage tray manages water; covered terraces are recommended for zero-threshold, while a 20mm low threshold suits open terraces.
Q: How does the door survive coastal corrosion?
A: Coastal specification: marine powder coating (80–120 micron) or heavy anodizing, SS316 hardware throughout, EPDM gaskets, plastic isolators against galvanic corrosion, fresh-water rinsing.
9. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for sliding door export volume and customer satisfaction. The 40,000 m² Foshan factory produces 15,000 door sets monthly, shipping to 60+ countries with ISO 9001, CE, and AS 2047 certification. Factory-direct pricing runs 30–50 percent below Western distributors.
10. Illustrative Project Applications
Example A — Australian Seaside Villa (Illustrative)
A 6-meter lift-slide opening 200m from the ocean; 2.0mm frames, marine coating, SS316 hardware, AS 2047 water/wind tests passed; no corrosion or gasket deterioration after 3 years. Illustrative example values.
Example B — High-Rise Apartment (Illustrative)
A 3-meter balcony opening on a 42nd floor; 2400 Pa structural rating, Low-E argon glazing; reduced traffic noise and stable interior temperatures. Illustrative example values.
11. Price Analysis
- Sash size: price scales with area plus hardware; panels above 3m carry a surcharge
- Hardware tier: lift-slide mechanism represents 15–30% of cost; SS316 and 400kg gearboxes raise it
- Glass tier: 40–60% of cost; double Low-E argon standard, triple glazing premium
- Indicative range: standard two-panel slider $60–120/m²; lift-slide with thermal break + SS316 + Low-E $200–350/m² FOB
12. 360° Service & Founder Philosophy
Richocean’s 360 service covers consultation, specification, drawings, sampling, production with 12-station QC, packing in reinforced crates, FOB/CIF/DDP shipping, installation support, and 24-hour after-sales. The founder’s philosophy: a door is a 20-year product — every component must be chosen for that lifetime, not for the cheapest price. Honest pricing builds long-term partnerships; every container is treated as a flagship project.
13. Conclusion
The Aluminum Sliding Door in lift-slide configuration delivers the airtightness of a casement with the space-saving of a slider. With 6063-T6 metallurgy, lift-slide kinematics, SS316 rollers, and multi-chamber drainage, Richocean achieves this from China at factory-direct prices — the definitive solution for premium patio openings.
