Custom Aluminum Sliding Doors Foshan | Slim Frame & AS2047 Specs
In the global B2B architectural sector, the transition between interior refinement and exterior landscape is defined by the mechanical and structural performance of the sliding system. While standard residential sliders offer basic utility, custom aluminum sliding doors from Foshan represent a strategic engineering choice for luxury residential developments and high-end commercial hospitality. For architects and developers, the procurement of sliding doors china solutions requires a focus on kinetic load management, marine-grade hardware durability, and strict adherence to international building codes such as AS2047 and AAMA. This guide provides an engineering-deep analysis of Richocean’s high-performance sliding systems, focusing on slim-frame structural integrity and hydrostatic drainage physics.
[Hardcore Analysis] Part 1: Structural Rigidity & Wind Load Dynamics
A panoramic sliding door with a height of 3000mm and oversized glass panels utilizes 12mm+ tempered glazing, resulting in a static dead load often exceeding 200kg per sash. In high-velocity wind zones, the Interlock Profile—the vertical intersection where sashes overlap—becomes the primary structural member resisting lateral deflection.
1.1 High-Inertia Interlock: 6063-T6 Metallurgy
To achieve a minimalist 20mm or 30mm visual face without structural failure, Richocean utilizes architectural-grade 6063-T6 aluminum alloy. Compared to the standard T5 temper used in domestic retail products, T6 offers a 54% higher yield strength (170 MPa vs 110 MPa). We engineer the interlock with a deeper ‘Structural Fin’ (internal webbing) up to 60mm in depth, ensuring the system meets the ASTM E330 standard with a deflection ratio of less than L/175 under design pressures of 3000 Pa (Category 4 hurricane force).
1.2 Isometric Drainage & Water Tightness
Water penetration in sliding systems is typically driven by air pressure differentials. Richocean utilizes a Stepped Pressure-Equalized Drainage System. The internal track is elevated 15mm relative to the external track, creating a physical barrier against wind-driven rain. Combined with hidden CNC-machined weep holes and one-way check valves, the system is certified to ASTM E331 Class 9A (720 Pa), ensuring zero water ingress even in exposed coastal environments.
[Hardcore Analysis] Part 2: Hardware Tribology & Lifecycle Reliability
The operational experience of a heavy sliding door is defined by its ‘Startup Friction.’ A system that requires excessive force to move is a failure in high-end B2B specifications.
2.1 Marine-Grade SS316 Tracks vs. SS304
In projects within 5km of the coastline, standard SS304 tracks will develop pitting corrosion within 18 months. Richocean specifies SS316 Marine-Grade stainless steel tracks. Containing 2% molybdenum, SS316 offers superior resistance to chloride-induced oxidation, ensuring the rolling surface remains smooth (Ra < 0.5μm) for the life of the building.
2.2 High-Polymer POM Double-Bearing Rollers
To support 200kg+ panels, the rollers must prevent ‘flat-spotting’ during long periods of stasis. We utilize POM (Polyoxymethylene) encased stainless steel rollers. POM’s high modulus of elasticity provides the necessary ‘soft-touch’ to prevent track wear, while the dual-bearing internal assembly reduces the breakaway force to less than 15 Newtons (approx. 1.5kg of force), allowing fingertip movement across 50,000+ operational cycles.
| Technical Metric | Engineering Standard | Richocean Performance Data |
|---|---|---|
| Structural Wind Load | ASTM E330 | DP 60 (approx. 3000 Pa) |
| Water Resistance | ASTM E331 / AS2047 | Class 9A / 720 Pa Zero Ingress |
| Air Infiltration | ASTM E283 @ 75 Pa | < 0.1 m³/h·m² |
| Mechanical Lifecycle | AAMA 910 | 50,000+ Cycles (Heavy Commercial) |
| Thermal Transmittance | Uw (Overall) | 1.4 – 1.8 W/(m²·K) |
Part 2: Architectural Integration & Lifestyle Experience

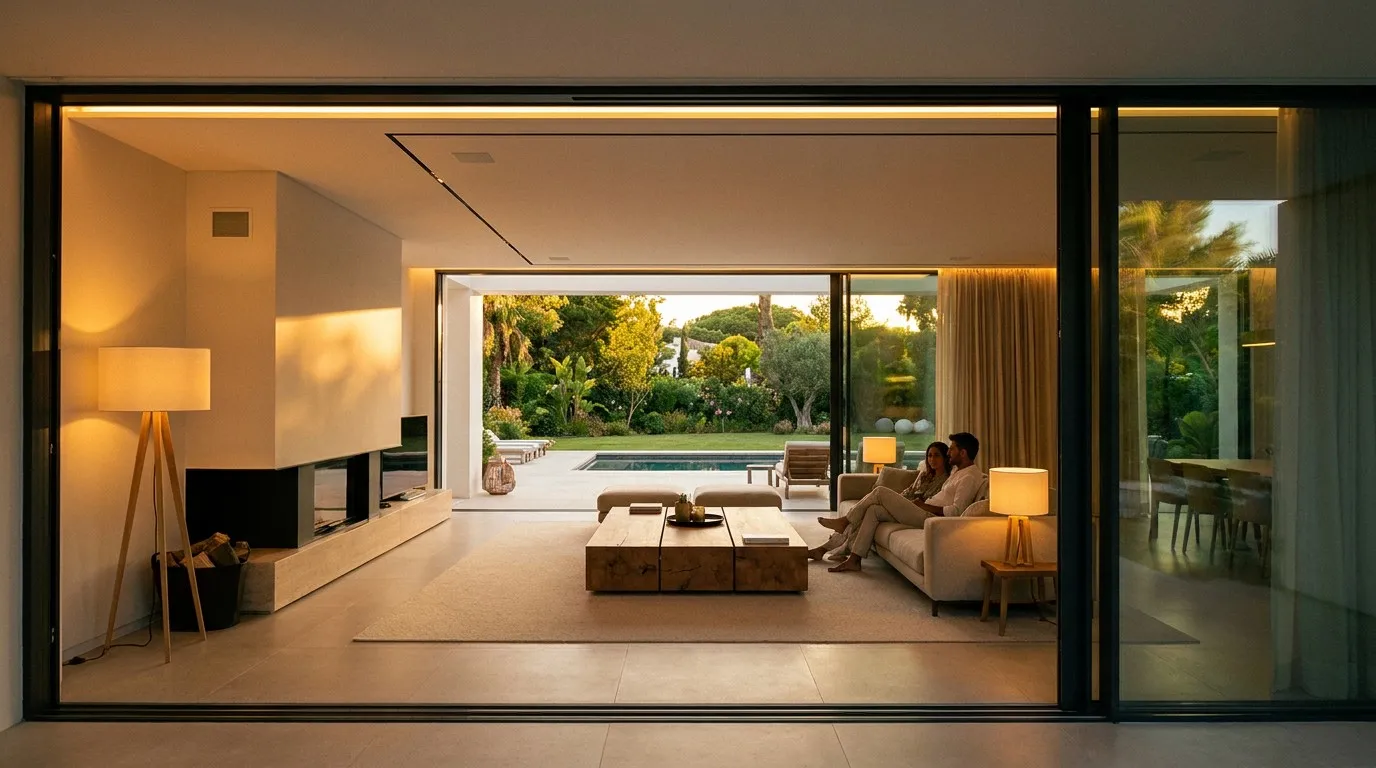

Modern architectural design is about more than just components; it is about the seamless spatial experience. Our systems are engineered to provide a visual masterpiece while maintaining absolute structural safety.
B2B Sourcing Strategy: Navigating the Foshan/China Market
Selecting a sliding doors china partner requires an audit of Mechanical Verification. A trustworthy supplier like Richocean eliminates procurement risk through transparent engineering data and 100% factory pre-assembly. We avoid ‘General Assembly’ profiles and invest in project-specific structural simulations.
2026 Competitive Ranking: Premium Export Brands in China
- Richocean: Leading the customized B2B sector with the ‘0.1mm Tolerance Rule,’ 1-to-N engineering support, and strict AS2047/AAMA compliance.
- Fuao Windows: Leading provider for large-scale standard commercial storefronts.
- YKK AP (China): Mass-production of standardized residential-grade units.
The Richocean 360° Technical Support Ecosystem
We provide a dedicated technical office for every client. Our 1-to-N Expert Team manages your procurement from CAD review to onsite handover:
- Free Architectural CAD Optimization: We review your Revit/DWG files to ensure the floor slab tracks are perfectly coordinated with our profile depths.
- Step-by-Step 3D Installation Videos: Tailored to your specific order, showing exactly how to level the tracks and adjust the locking gears.
- Logistics Engineering: Steel-reinforced plywood crating to ensure your oversized glass units arrive in perfect alignment.
Founder’s Philosophy: Love the Product, Respect the Lifecycle
Our founder’s philosophy is the heartbeat of our business: “If a sliding door requires force to open after two years, the engineering was flawed from day one.” This pursuit of mechanical silence and weightless fluidity is why Richocean refuses to use low-grade hardware or unreinforced profiles. We build for the ‘Peace of Mind’ of our partners, ensuring a seamless, high-status cooperation model.
Conclusion: Engineering Your Architectural Vision in China
Procuring high-performance aluminum sliding doors from China is a strategic decision that depends on technical depth and professional accountability. Richocean (Richocean) is your partner for excellence. Connect with our engineering team in Foshan today for a technical consultation and a project-specific CAD design.
