Tilt and Turn Windows Manufacturer China Factory Price Dual Action Hardware
1. System Overview — Two Functions, One Sash
The Tilt and Turn Windows Manufacturer China Factory Price Dual Action Hardware benchmark — Richocean’s tilt and turn windows deliver two operating modes from a single sash: an inward top-tilt for secure ventilation, and a full side-hinge opening for cleaning and egress. As a Foshan factory, Richocean engineers dual-action sashes in 6063-T6 alloy with SS316 gear-driven hardware at factory-direct pricing.
2. Core Material Science — 6063-T6 Sash & Frame Profiles
Dual-action operation loads the sash perimeter in two different ways, so the sash profile must resist both torsion (tilt) and bending (turn). Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with sash walls of 1.8–2.5 mm and reinforced corner gussets at the hinge side. Corner joints are CNC-cut and crimped to 0.1 mm accuracy.
Thermal break versions run the PA66GF25 polyamide strip around the frame and sash, separating the interior and exterior aluminum and limiting condensation in cold climates.
3. Glazing Specification — Trained Ventilation Comfort
Tilt openings expose the glass edge to indoor air movement, so glazing selection balances insulation and weight:
- Double glazed: 5+12A+5 Low-E typical; argon fill optional
- Triple glazed: available for cold-climate and acoustic projects
- Warm edge: spacer upgrade to limit edge condensation in tilt mode
- Acoustics: laminated or asymmetric builds improve STC performance
In tilt mode the sash stays slightly open at the top, giving continuous air exchange with a small, hard-to-reach aperture — a standard ventilation strategy in European multi-storey residential design.
4. Hardware Engineering — SS316 Gear-Driven Dual Action
The complete hardware set must coordinate tilt, turn, and locking in a single handle movement:
- Handle logic: one handle cycles tilt — closed — turn through a corner transmission
- Hinges: SS316 friction hinges plus a tilt hinge set on the lower edge
- Restrictors: tilt-first safety sequencing limits turn mode until intended
- Locking: multi-point locking with mushroom cams for security when closed
- Optional: 24 V DC motorized actuation with BMS, KNX, or RS485 control
Corner transmissions and tilt hinges are the wear-critical components, so both are specified in SS316 for coastal and humid environments.
5. Weather Performance — Inward-Drainage Engineering
Inward-opening sashes change the water path, so drainage is designed into the frame:
- Drainage: internal sill channels with covered weep outlets to the exterior
- Seals: dual or triple EPDM compression gaskets around the perimeter
- Rated performance: water and air testing to ASTM E547 / E283
- Wind stability: engineered to project-specific design pressure (ASTM E330)
6. Performance Specification Table
| Parameter | Standard | Typical Value |
|---|---|---|
| Frame U-value (thermal break) | NFRC 100 | 1.8–2.6 W/m²K |
| Structural | ASTM E330 | engineered to design pressure |
| Water Resistance | ASTM E547 | tested per project spec |
| Air Leakage | ASTM E283 | tested per project spec |
| Inward Opening Depth | Manufacturer spec | allow clearance for turn mode |
| Hardware Material | SS316 | cycle tested |
7. Technical FAQ
Q: What is the difference between the tilt and turn positions?
A: Tilt mode opens the sash inward at the top only, giving secure, rain-sheltered ventilation with a narrow aperture. Turn mode opens the sash inward on its side hinges like a casement, giving full access for cleaning and egress.
Q: Does an inward-opening sash reduce interior space?
A: Yes — turn mode needs clearance inside the room, and curtains, radiators, and furniture must be planned around the sash swing. Tilt mode needs far less clearance.
Q: Is tilt and turn suitable for high-rise buildings?
A: Yes — the inward tilt position gives controlled ventilation with a limited aperture and does not present an outward-opening leaf to wind load, which is why the system is common in multi-storey residential towers.
8. China Market Position — Why Richocean
Richocean manufactures tilt and turn window systems in Foshan with automated extrusion, CNC fabrication, and hardware assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation supplied per project.
9. Illustrative Project Applications

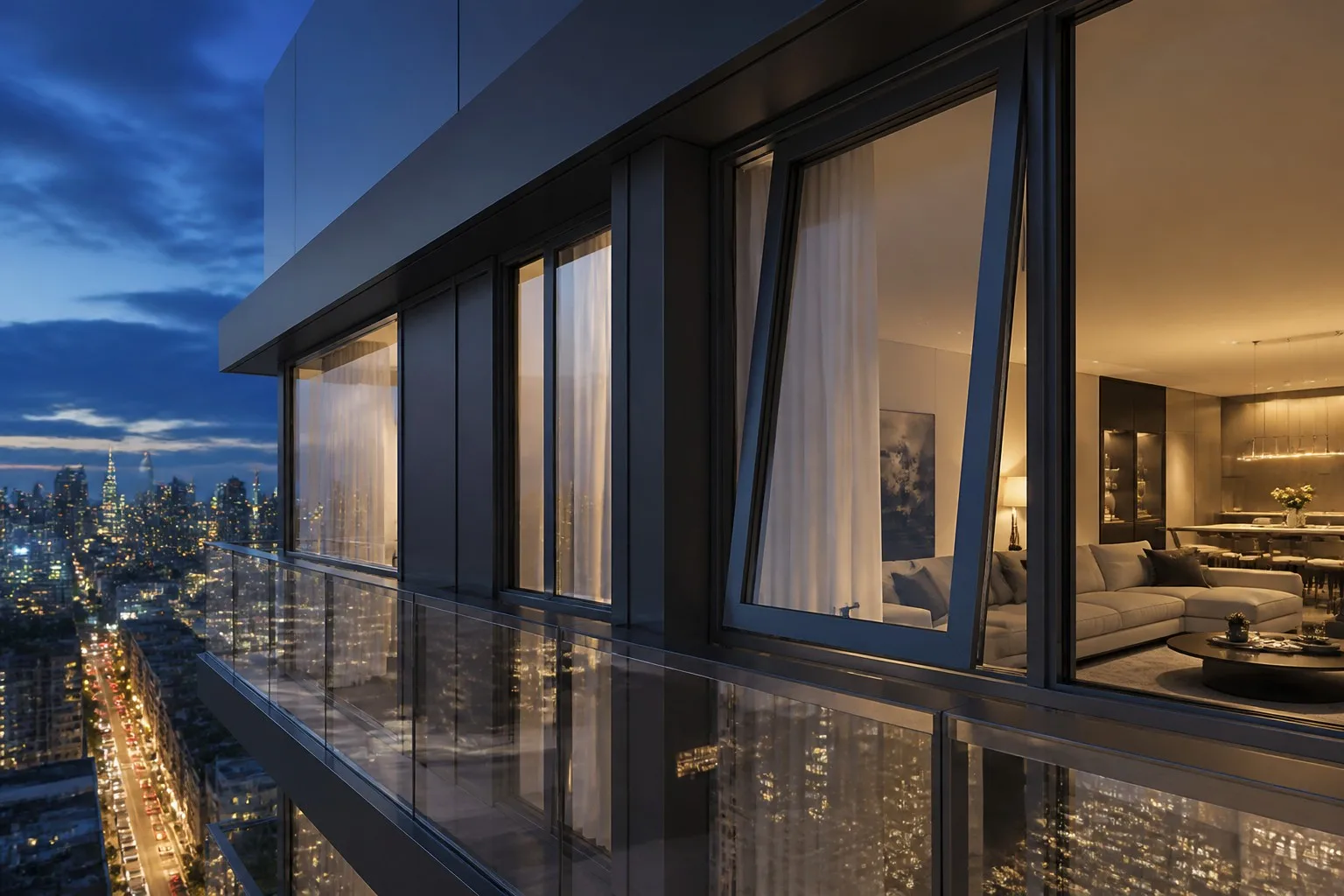

Example A — Residential Tower Facade (Illustrative)
A residential tower using tilt and turn sashes for controlled ventilation, with turn mode planned to clear internal blinds and furniture. Illustrative configuration; not a quoted project.
Example B — Hotel Guest Room Upgrade (Illustrative)
A hotel refurbishment specifying restricted tilt openings plus multi-point locking for guest safety and security. Illustrative configuration; not a quoted project.
10. Price Factors — What Drives Cost
Tilt and turn windows are quoted per opening because hardware complexity scales with sash size and configuration. Cost drivers include:
- Hardware set: dual-action corner transmission and tilt hinge grade
- Sash size and weight: larger sashes require higher-rated hinges
- Glass package: double vs triple vs laminated acoustic builds
- Locking level: multi-point mushroom cams vs enhanced security sets
- Operation: manual vs motorized drive
- Finishing: powder coat vs anodized vs wood-grain transfer
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, opening-schedule engineering, ventilation and clearance advice, installation video documentation, and warranty terms on profiles and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every hinge, transmission, and gasket must satisfy the strictest global standards.
12. Conclusion
The Tilt and Turn Windows Manufacturer China Factory Price Dual Action Hardware advantage is total — 6063-T6 dual-action profiles, SS316 gear-driven hardware, engineered inward drainage, and multi-point locking delivered directly from Richocean’s Foshan factory. Send your opening schedule for a project-specific quotation.
