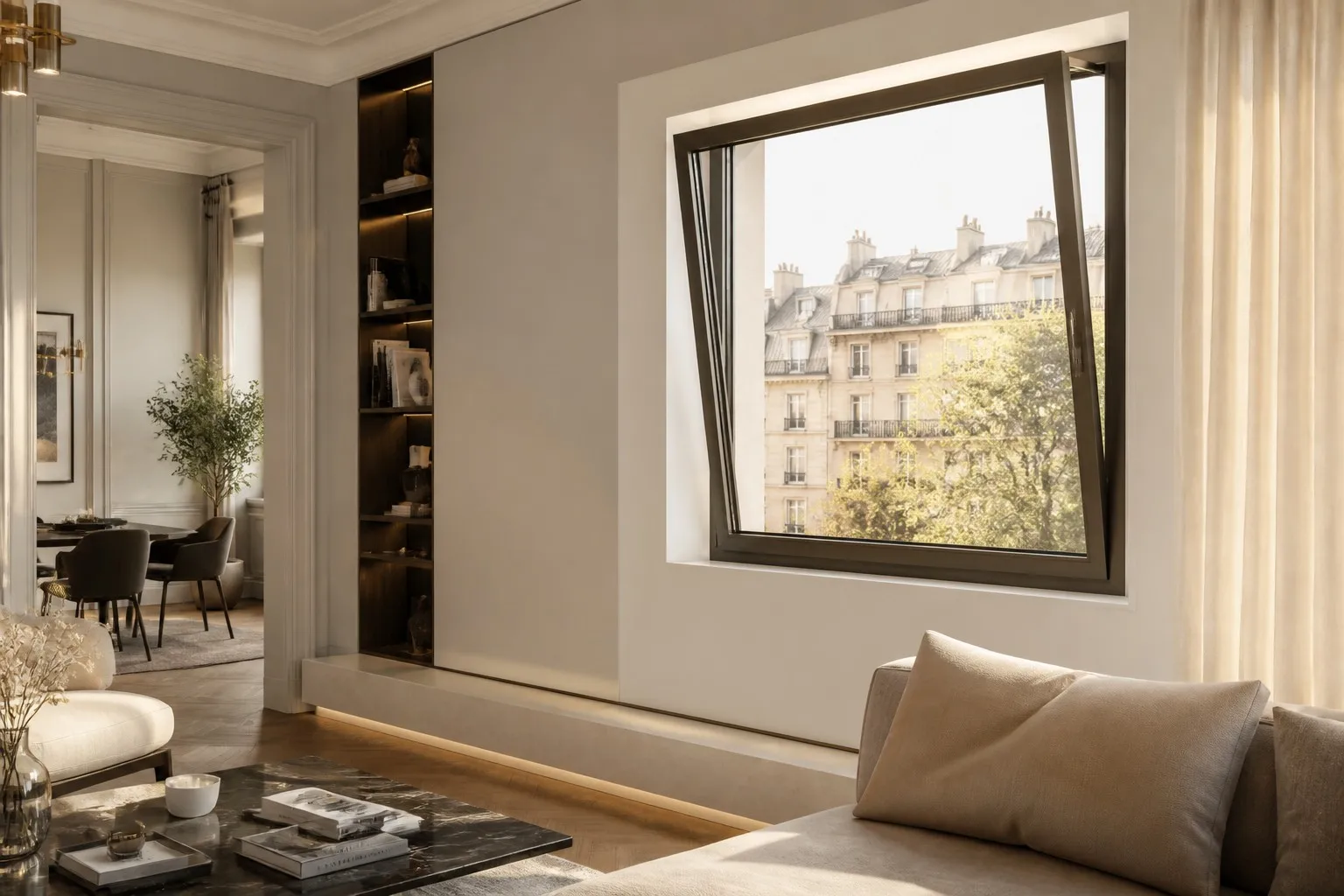

Aluminum Tilt Turn Windows Manufacturer China Factory Price Multi-Point Locking
1. System Overview — Two Modes, One Sash
The Aluminum Tilt & Turn Window is the only operable window type that delivers two distinct opening modes from a single sash. Originating in Germany and now the default specification for high-rise residential towers worldwide, the system reconciles three requirements that other windows cannot combine: secure ventilation, full cleaning access, and multi-point security.
2. Core Material Science — 6063-T6 Frame Metallurgy
The tilt-turn sash is the largest moving element in residential fenestration. It must remain perfectly square through 500,000 operational cycles while supporting triple-glazed units up to 120kg. Richocean specifies 6063-T6 aluminum alloy for all frame and sash extrusions.
Profile geometry: structural wall thickness 2.0–3.0mm, multi-chamber cross-section with a concealed steel stiffening core for sashes exceeding 900mm width. The 24–34mm PA66GF25 polyamide thermal break decouples interior and exterior aluminum, reducing frame U-value to approximately 2.0 W/(m²·K).
3. Dual-Mode Kinematics — Tilt 15°, Turn 180°
The defining feature is a single-handle dual-mode mechanism:
- Tilt Mode (handle at 90°): sash pivots at bottom hinges, top tilts inward 15° — draft-free secure ventilation; opening too small for intrusion
- Turn Mode (handle at 180°): sash swings fully inward on the side hinge — 100% aperture, emergency egress, exterior glass cleaned from inside
- Safety interlock: handle cannot move from tilt to turn while sash is tilted — child-safety feature
4. Hardware Engineering — Siegenia & Roto Heritage
Richocean equips tilt-turn systems with hardware from the global standard-bearers — Siegenia Titan AF and Roto NT — with domestic high-grade alternatives (Kin-Long, CME) as cost-tier options.
| Specification | Value |
|---|---|
| Locking points | 5–7 per sash |
| Operating torque | < 10 N·m at handle |
| Cycle endurance | 500,000 cycles (EN 13126) |
| Pin material | SS304 + galvanized plates, 48h salt spray |
5. Sealing Physics — Triple-Barrier EPDM
The sealing system must perform in both operating modes. Richocean employs a triple-barrier EPDM configuration:
- Barrier 1 — Outer weather seal: hollow-bulb gasket deflects wind-driven rain
- Barrier 2 — Isothermal central seal: pressure-equalized cavity connected to concealed weep drainage
- Barrier 3 — Inner acoustic seal: airtight layer delivering acoustic isolation
6. Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.10 cfm/sqft |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Performance | ASTM E330 | DP 70+ (4500 Pa) |
| Forced Entry | ASTM F588 | Grade 40 / RC2 |
| Acoustic | ASTM E90 | STC 42–45 dB |
7. Technical FAQ
Q: How does tilt position provide ventilation without compromising security?
A: The 15° tilt aperture is too narrow for entry, and the hardware remains locked in tilt mode. A key handle can further restrict movement to tilt-only, satisfying child-safety codes in high-rise residences.
Q: How is the exterior glass cleaned?
A: Rotate the handle to turn mode; the sash swings fully inward, exposing the exterior glass from inside — eliminating external access equipment.
Q: What is the expected hardware service life?
A: Siegenia/Roto systems are cycle-tested to 500,000 operations per EN 13126. With annual lubrication, service life exceeds 30 years.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for tilt-turn window export volume to European-code markets. The Foshan factory combines vertical integration — extrusion, PA66 assembly, glass processing, hardware sourcing — with full certification: CE (EN 14351-1), AAMA/WDMA/CSA (NAFS), AS2047. Factory-direct pricing runs 30–50% below Western distributors.
9. Illustrative Project Applications
Example A — High-Rise Residential Tower
Typical specification for a 30+ storey tower: 6063-T6 frames, triple-pane Low-E glass (U 0.8 W/m²·K), Siegenia hardware, RC2 security. Values shown are illustrative project examples.
Example B — Coastal Apartment Building
Cyclonic wind regions specify SS316 hardware upgrades and 21.52mm laminated IGUs; the tilt function allows ventilation during storm season while maintaining 720 Pa watertightness. Illustrative example values.
10. Price Analysis
- Hardware tier: Siegenia/Roto (premium) vs Kin-Long/CME (economy) — 30–40% hardware cost delta
- Sash size: >1300mm width requires reinforced cores — +10–15%
- Glass config: triple-pane argon +20–25%; laminated acoustic +15%
- Finish: PVDF or wood-grain +8–15% over powder coating
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD/BIM shop drawings, wind-load calculations, DDP logistics, and remote installation supervision. The founder’s philosophy is rooted in the German concept of Ordentlichkeit — order and precision: a window is only as good as its smallest hardware component. The tilt-turn system, with dual modes and 500,000-cycle hardware, is the ultimate test of a factory’s engineering discipline.
12. Conclusion
The Aluminum Tilt & Turn Window is the engineering benchmark of modern fenestration: one sash that ventilates securely, cleans safely, and locks with multi-point precision. Richocean delivers this benchmark from China at factory-direct prices, with 6063-T6 metallurgy, Siegenia/Roto hardware, and ASTM-certified performance.
