Aluminum Tilt Turn Windows Manufacturer China Factory Price Multi-Point Locking
Introduction: The European Dual-Mode System Goes Global
In the hierarchy of premium fenestration, the Tilt & Turn window occupies a position reserved for systems that solve multiple architectural problems simultaneously. Originating in Germany, the tilt-turn mechanism has become the default specification for high-rise residential towers, luxury apartments, and commercial buildings across Europe and is now the fastest-growing export category for Chinese factories serving North America, Australia, and the Middle East. As a leading Aluminum Tilt Turn Windows manufacturer in China, Richocean produces these systems with an engineering philosophy borrowed directly from the German hardware tradition: a single sash, two distinct opening modes, and hardware that must survive a half-million cycles without compromise.
This article dissects the material science, hardware kinematics, sealing physics, and cost architecture of Richocean’s aluminum tilt-turn systems—providing the technical reference that B2B buyers, architects, and facade consultants require before specification.
Module 1: 6063-T6 Frame Metallurgy — The Static Backbone
The tilt-turn sash is the largest moving element in residential fenestration. It must remain perfectly square through 500,000 operational cycles while supporting triple-glazed units weighing up to 120kg. Richocean specifies 6063-T6 aluminum alloy for the frame and sash extrusions.
Alloy Chemistry: Magnesium (Mg) 0.45%-0.9%; Silicon (Si) 0.2%-0.6%; Iron (Fe) 0.35% max; Copper (Cu) 0.10% max; Manganese (Mn) 0.10% max.
Heat Treatment: Solution heat treatment at 520 degrees C, water quench, then artificial aging at 175 degrees C for 8 hours. The T6 temper yields a tensile strength of 215 MPa and yield strength of 170 MPa, providing the stiffness needed to resist sash droop (sag) at the unsupported hinge edge.
Profile Geometry: Structural wall thickness of 2.0mm-3.0mm. Multi-chamber cavities house the steel or aluminum stiffening core inserted in the sash for sashes exceeding 900mm in width. The thermal break, a 24mm-34mm PA66GF25 polyamide strip, decouples interior and exterior aluminum, reducing frame U-value to approximately 2.0 W/(m2·K).
Module 2: The Dual-Mode Kinematics — Tilt 15 Degrees, Turn 180 Degrees
The defining feature of the tilt-turn window is its two-mode operation, controlled by a single handle position.

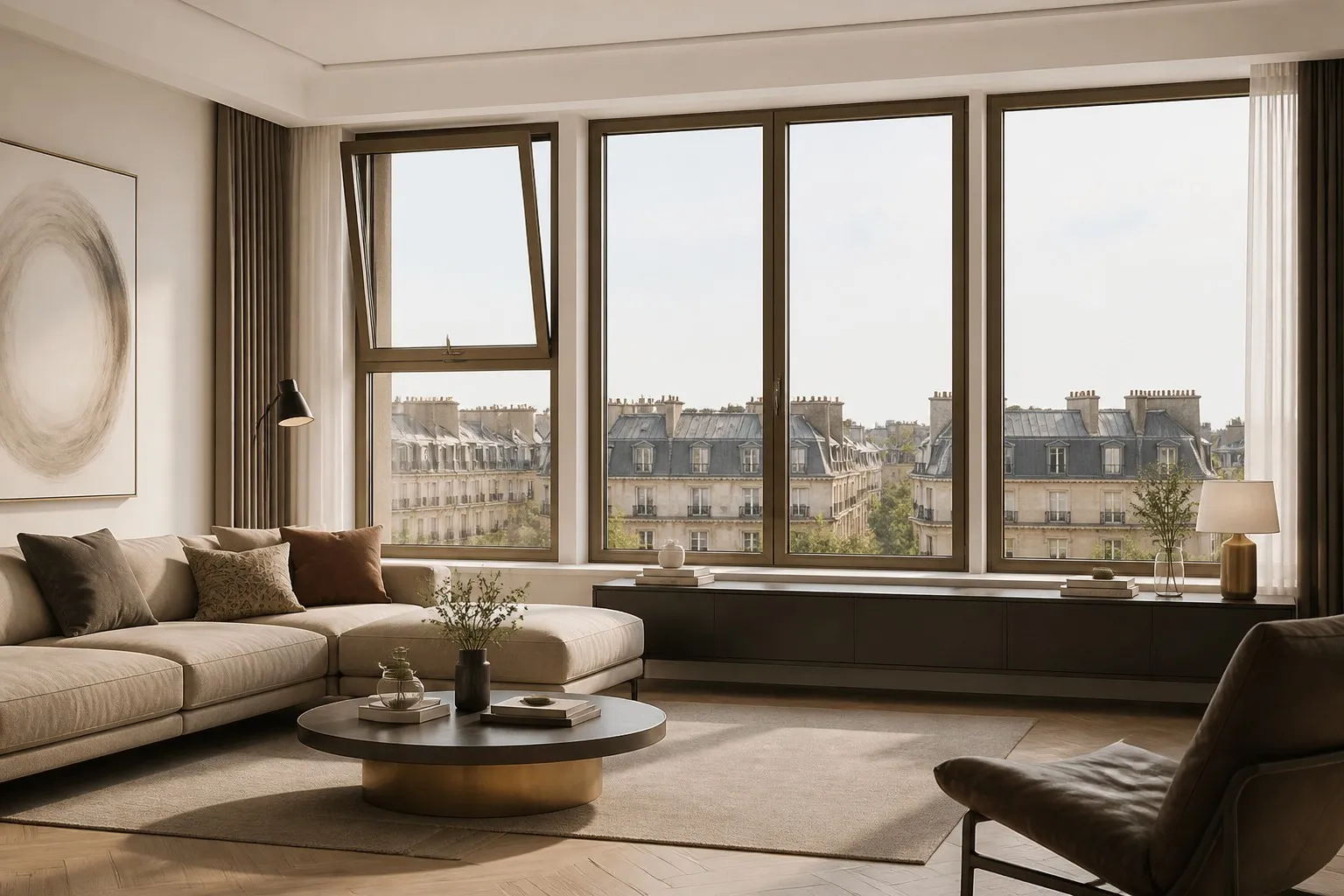

Mode 1 — Tilt (Vertical Ventilation): Handle rotated 90 degrees from vertical. The sash pivots at the bottom hinges and tilts inward at the top, creating a 15-degree aperture. This mode provides draft-free, secure ventilation—rain cannot enter, and the opening is too small for intrusion. The top-hung geometry directs airflow upward, promoting stack-effect ventilation without direct drafts on occupants.
Mode 2 — Turn (Full Swing): Handle rotated 180 degrees. The sash releases from the tilt mechanism and swings inward on the side hinge, opening the full 100 percent of the frame aperture. This mode is used for maximum ventilation, emergency egress (meeting European escape window codes), and for safe cleaning of the exterior glass from inside the building—eliminating the need for external access equipment.
Kinematics Safety: Richocean integrates a tamper-proof handle interlock. The handle can only move through the tilt position to the turn position when the sash is closed. This prevents accidental engagement of the turn mode while tilted, a critical child-safety feature.
Module 3: Hardware Engineering — The Siegenia and Roto Heritage
Richocean equips its tilt-turn systems with hardware sourced from the global standard-bearers: Siegenia (Titan AF series) and Roto (NT/Patio series), with domestic high-grade alternatives from Kin-Long and CME as cost-tier options.
Multi-Point Locking: The locking mechanism engages a minimum of 5 locking points (typical) to 7 points (heavy-duty) around the sash perimeter. Each locking point consists of a mushroom-head pin that engages a hardened steel strike plate, pulling the sash into compression against the EPDM gaskets.
Mechanical Specification: Locking points: 5-7 per sash; Operating torque: less than 10 N·m at handle; Cycle endurance: 500,000 open-close cycles per EN 13126; Corrosion resistance: SS304 pins, galvanized plates with 48-hour salt spray protection.
Friction Hinges: The lower pivot hinges are self-lubricating, stainless-steel reinforced units rated for 120kg sash weight. The hydraulic damping option (for large sashes) prevents slamming during rapid closure.
Module 4: Sealing Physics — The Triple-Barrier EPDM System
In tilt-turn windows, the sealing system must perform in both modes. Richocean employs a triple-barrier EPDM configuration.
Barrier 1 — Outer Weather Seal: A hollow-bulb EPDM gasket fixed to the frame face. It deflects the bulk of wind-driven rain.
Barrier 2 — Isothermal Central Seal: A second gasket at the thermal-break level creates a pressure-equalized cavity. This cavity connects to the drainage system, allowing any water that bypasses the outer seal to be expelled through concealed weep channels.
Barrier 3 — Inner Acoustic Seal: The interior gasket provides the airtight barrier that achieves acoustic isolation. In combination, the three barriers deliver ASTM E331 water-tightness at 720 Pa and air-infiltration rates below 0.1 cfm/sqft.
EPDM Material Data: Temperature range -50 degrees C to +150 degrees C; Compression set less than 20 percent at 70 degrees C; UV resistance through carbon-black formulation.
Module 5: Performance Specification Table (ASTM Compliance)
| Parameter | Standard | Value / Rating |
|---|---|---|
| Air Infiltration | ASTM E283 @ 75 Pa | Less than 0.10 cfm/sqft |
| Water Penetration | ASTM E331 @ 720 Pa | No leakage |
| Structural Performance | ASTM E330 @ 4500 Pa | DP 70+ |
| Forced Entry Resistance | ASTM F588 | Grade 40 / RC2 |
| Acoustic Insulation | ASTM E90 | STC 42-45 dB |
| Operating Force | EN 13126 / AAMA 101 | Under 15 lbs |
Module 6: Technical FAQ
Q: How does the tilt position provide ventilation without compromising security?
A: The 15-degree tilt aperture is too narrow for human entry, and the hardware remains locked in the tilt mode. A key or handle lock can further restrict movement to the tilt position only, satisfying child-safety requirements in high-rise residences.
Q: Can the exterior glass be cleaned without external access?
A: Yes. Rotating the handle to the turn position swings the sash fully inward, exposing the exterior glass surface from inside the building. This is the primary reason tilt-turn windows are specified for buildings with sealed facades or restricted external access.
Q: What is the expected hardware service life?
A: Siegenia and Roto systems are cycle-tested to 500,000 operations under EN 13126. With annual lubrication of the mechanism, service life exceeds 30 years in residential applications.
Module 7: China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for tilt-turn window export volume to European-code markets. Our Foshan factory combines vertical integration—aluminum extrusion, PA66 thermal-break assembly, glass processing, and hardware sourcing—with full certification coverage: CE (EN 14351-1), AAMA/WDMA/CSA (NAFS), and AS2047 (Australia). The 30-50 percent factory price advantage versus Western distributors is enabled by direct extrusion control and bulk hardware procurement.
Module 8: Engineering Case Studies
Case A — High-Rise Residential Tower (Frankfurt, Germany): 4,200 tilt-turn units for a 32-story residential tower. Specification: 6063-T6 frames with triple-pane Low-E glass (U 0.8 W/(m2·K)), Siegenia Titan hardware, RC2 security grade. Project achieved German KfW 55 energy standard.
Case B — Coastal Apartment Building (Gold Coast, Australia): Cyclonic wind region N4. Richocean delivered 2,800 units with SS316 hardware upgrades and 21.52mm laminated IGUs. The dual-mode tilt function allowed residents to ventilate during storm season while windows remained watertight at 720 Pa.
Module 9: Price Analysis
The tilt-turn window price is governed by four variables:
- Hardware Brand Tier: Siegenia/Roto (premium) versus Kin-Long/CME (economy) changes the hardware cost by 30-40 percent.
- Sash Size: Sashes exceeding 1300mm width require reinforced sash cores and heavier hinges, adding 10-15 percent.
- Glass Configuration: Double-pane is baseline; triple-pane argon-filled adds 20-25 percent; laminated acoustic glass adds 15 percent.
- Finish: Standard powder coating versus PVDF or wood-grain sublimation affects price by 8-15 percent.
Module 10: 360-Degree Service and Founder Philosophy
Richocean’s 360 service covers CAD/BIM shop drawings, wind-load calculations, DDP logistics, and remote installation supervision. The founder’s philosophy is rooted in the German concept of Ordentlichkeit — order and precision. He states that a window is only as good as its smallest hardware component, and that the tilt-turn system, with its dual modes and 500,000-cycle hardware, is the ultimate test of a factory’s commitment to engineering discipline.
Conclusion
The Aluminum Tilt & Turn Window is the engineering benchmark of modern fenestration: a single sash that ventilates securely, cleans safely, and locks with multi-point precision. Richocean delivers this benchmark from China at factory-direct prices, with 6063-T6 metallurgy, Siegenia/Roto hardware, and ASTM-certified performance. For architects specifying high-rise residential, and for developers seeking European quality at Chinese cost, Richocean is the definitive partner.
