Aluminum Tilt and Turn Windows Manufacturer China Factory Price Dual Mode Frames

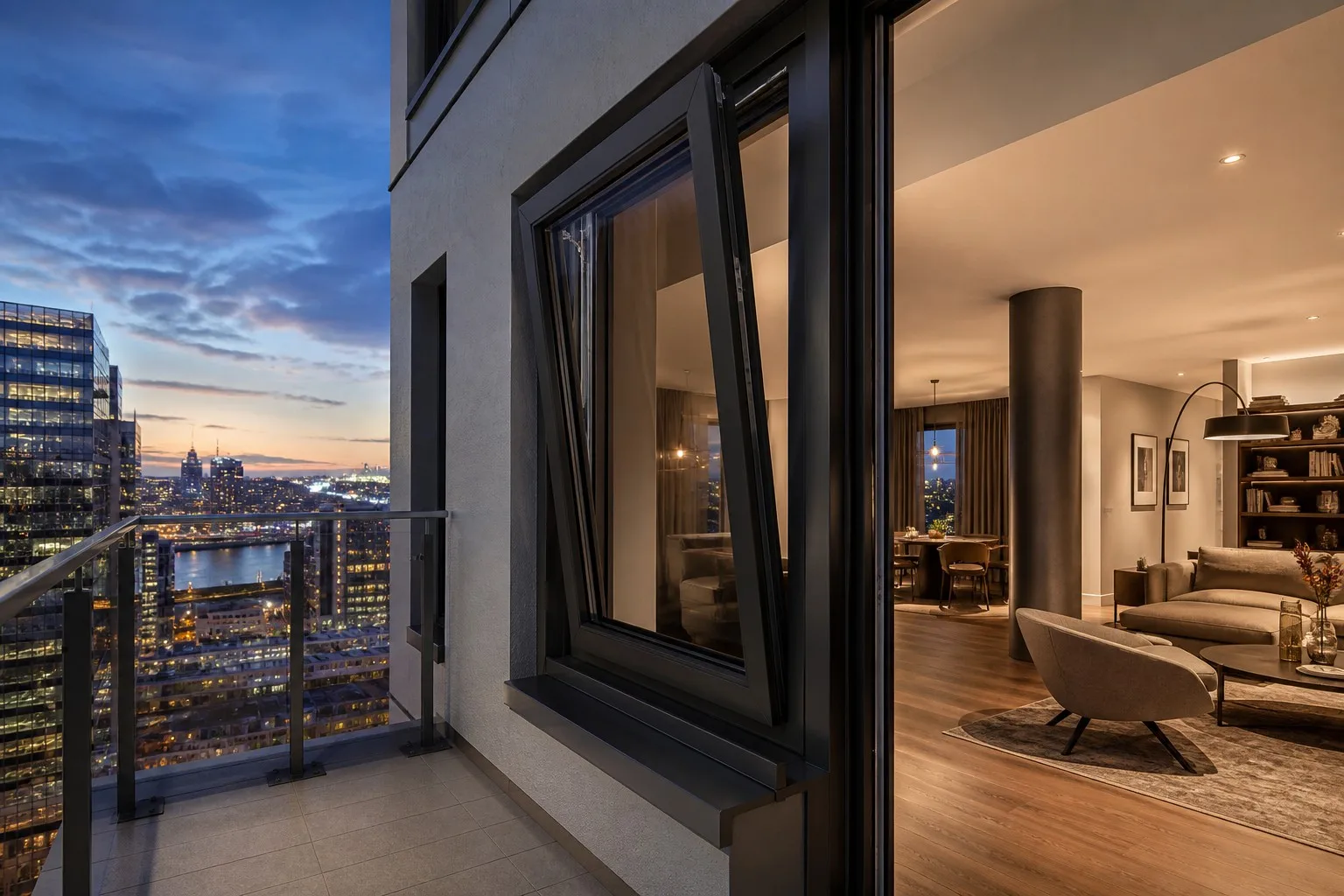

1. System Overview — Two Windows in One
The Aluminum Tilt and Turn Window offers dual operation from a single handle — tilt inward for secure ventilation, or turn fully inward for panoramic cleaning and access. As a premier manufacturer in China, Richocean engineers tilt and turn windows with 6063-T6 frames, precision dual-mode hardware, and multi-point locking, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the heavy tilt and turn sash. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells, with a 24–34mm depth.
3. Dual-Mode Operation — Tilt & Turn
The defining feature is the dual-mode handle mechanism:
- Tilt mode: handle at 45° — top tilts inward for rain-safe ventilation
- Turn mode: handle at 90° — full side-hinge opening for cleaning and escape
- Security mode: handle at 0° — multi-point locking engaged
4. Precision Hardware — SS316 Components
The dual-mode mechanism demands precision components. Richocean specifies SS316 stainless steel:
- SS316 composition: molybdenum 2–3% resists chlorides; yield 205 MPa
- Transmission: steel gear-driven linkage, ±0.1mm alignment
- Durability: 50,000+ tilt/turn cycles without play
5. Multi-Point Locking & Weatherseal
Security and weathertightness are delivered by multi-point locking and the EPDM sealing system:
- 5–7 locking points per sash
- EPDM gaskets: -40°C to +120°C, high UV resistance
- Equal-pressure drainage: hidden weep slots prevent water pooling
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,880 Pa AW Class |
| Forced Entry | ASTM F588 | Grade 40 passed |
| Thermal | NFRC U-value | 1.8–2.6 W/(m²·K) |
7. Technical FAQ
Q: What is the maximum sash size for an aluminum tilt and turn window?
A: Typical maximum is 1,300mm wide × 2,400mm high with 6063-T6 frames; larger sizes require reinforced steel cores in the sash.
Q: How do I switch between tilt and turn modes?
A: Tilt mode engages at 45° handle position; turn mode at 90°. Always close and return the handle to 0° before switching modes.
Q: Why are tilt and turn windows popular in Europe?
A: They combine rain-safe ventilation, easy cleaning from inside, multi-point security, and fire-escape opening — one system, four functions.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for tilt and turn window export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — High-Rise Residential (Illustrative)
3,200 tilt and turn units across a 45-floor tower; dual-mode hardware and AW Class frames met stringent wind and security requirements. Illustrative example values.
Example B — Hotel Renovation (Illustrative)
1,100 tilt and turn windows for a hotel tower; multi-point locks and EPDM seals met acoustic and security requirements. Illustrative example values.
10. Price Analysis
- Frame depth: standard 70mm; deep 85mm adds 10–18%
- Glass upgrade: double to triple Low-E adds 25–45%
- Hardware tier: standard vs premium European dual-mode gear +20–30%
- Indicative range: $140–300/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, thermal calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Tilt and Turn Window is two windows in one — tilt for ventilation, turn for access. With 6063-T6 frames, precision dual-mode hardware, and multi-point locking, Richocean delivers this engineering from China at factory-direct prices.
