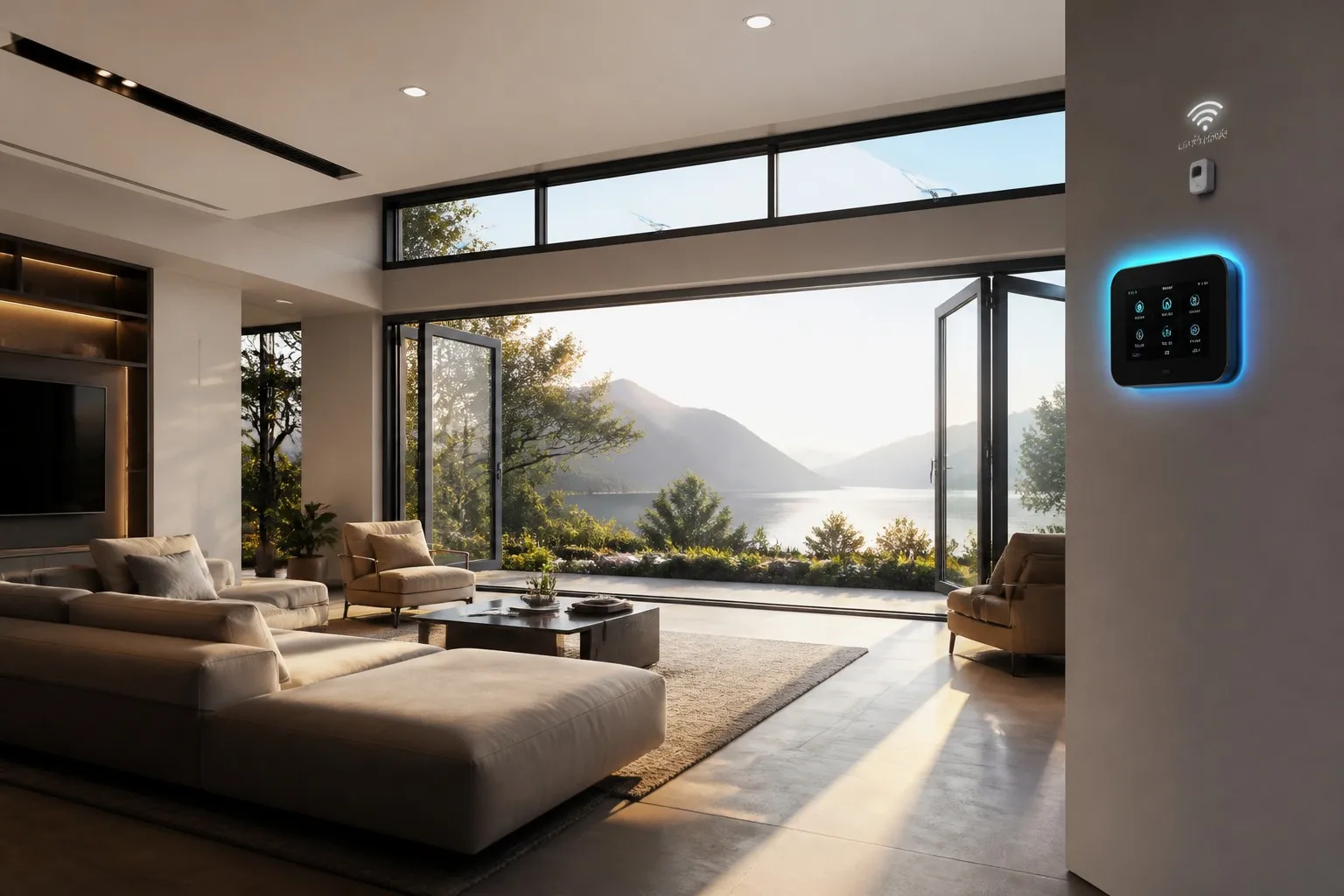

Aluminum Electric Windows Manufacturer China Factory Price Smart Motorized Low-E

Introduction: The Automation of the Building Envelope

In the evolution of intelligent buildings, the window has transitioned from a static aperture to an active component of the environmental control system. The Aluminum Electric Window—driven by 24V DC actuators and governed by building automation protocols—regulates ventilation, temperature, and air quality without human intervention. As a leading Aluminum Electric Windows manufacturer in China, Richocean produces these smart motorized systems at factory-direct prices, serving the global B2B market for smart offices, luxury residences, and institutional buildings. This technical analysis details the metallurgy, actuator kinematics, control protocols, and fire-safety integration that define a world-class electric window system.

Module 1: 6063-T6 Frame Metallurgy for Motorized Operation

The electric window frame must accommodate motor hardware, cable routing, and actuator mounting while maintaining structural rigidity. Richocean specifies 6063-T6 aluminum alloy for all motorized profiles.

Alloy Chemistry: Magnesium (Mg) 0.45%-0.9%; Silicon (Si) 0.2%-0.6%; Iron (Fe) 0.35% max; Copper (Cu) 0.10% max.

Heat Treatment: Solution heat treatment at 520 degrees C followed by artificial aging at 175 degrees C yields the T6 temper. Tensile strength reaches 215 MPa and yield strength 170 MPa, providing the rigidity required for sashes carrying motor hardware without deflection.

Motor Integration: The frame profile incorporates a dedicated motor cavity along the head rail. This chamber, 24mm x 40mm, houses the chain actuator and cable conduit, keeping all electronics concealed and protected from weather. The thermal break, PA66GF25, is positioned to maintain the U-value of the frame at approximately 2.0 W/(m2·K).

Module 2: 24V DC Actuator Technology — Chain and Screw Systems

The heart of the electric window is the actuator. Richocean integrates two actuator families based on application.

Chain Actuators (Concealed Mounting)

Chain actuators use a stainless steel (SUS304) chain drive that retracts into an aluminum housing. Application: top-hung and side-hung ventilation windows.

Technical Specification: Operating Voltage: 24V DC; Stroke Length: 100mm-1000mm; Push Force: 250N-600N; Pull Force: 300N-500N; Opening Speed: 8-15mm/s; Current Draw: 1.2A-1.8A at load; Protection Class: IP32 (indoor) / IP65 (outdoor); Noise Level: below 40 dB.

Screw (Linear) Actuators (Heavy Duty)

Screw actuators use a planetary gear reduction system and zinc-plated carbon steel lead screw. Application: large sashes, skylights, and smoke ventilation windows.

Technical Specification: Push Force: 1000N-2000N; Stroke Length: 100mm-800mm; Limit switches for travel control; Service Life: 30,000+ cycles.

Module 3: Control Protocols — RS485, KNX, and Zigbee

Smart Motorized Windows are only as intelligent as their control interface. Richocean systems support the full spectrum of building automation protocols.

RS485/Modbus RTU: Wired protocol using shielded twisted-pair cable. Supports up to 255 device addresses per segment at 9600-19200 bps. Ideal for centralized BMS control in commercial buildings.

KNX: The international standard for building automation. KNX telegrams control window position (0-100 percent), enabling synchronization with HVAC, lighting, and shading systems.

Zigbee 3.0 / Wi-Fi: Wireless mesh networking for residential integration. Gateway hubs connect to cloud platforms, enabling remote operation via mobile applications and voice assistants (Tuya, Xiaomi ecosystems).

Module 4: Environmental Sensors and Intelligent Response

Automation logic depends on a suite of integrated sensors:

Rain Sensor: Gold-plated sensing surface triggers automatic window closure within 5 seconds of moisture detection. Heating elements prevent false triggers from dew or frost.

Wind Sensor (Anemometer): Measures wind speed; configurable thresholds (10 m/s or 15 m/s) close windows to prevent frame damage during storms.

CO2 and Temperature Sensors: Monitor indoor air quality. When CO2 exceeds 400ppm or temperature differential favors natural ventilation, the system opens windows automatically, reducing HVAC load by up to 25 percent.

Module 5: Fire Safety — NSHEV and Emergency Integration

Electric windows serve a critical life-safety function as Natural Smoke and Heat Exhaust Ventilators (NSHEV).

Fire Linkage: The window actuator connects to the fire alarm control panel via 24V DC signal. On alarm, all NSHEV windows open to maximum stroke within 60 seconds to exhaust smoke and heat.

Battery Backup: A 24V DC backup unit provides 72 hours of standby power and 3 full operational cycles, ensuring windows function during power failure.

Certification: NSHEV systems comply with EN 12101-2 and GB 16806, rated for operation at 300 degrees C for 30 minutes with fire-rated cabling.

Module 6: Performance Specification Table

Module 7: Technical FAQ

Q: How do the windows operate during a power outage?
A: Each NSHEV-configured window includes a 24V DC battery backup unit providing 72 hours of standby and 3 full cycles. Residential models also offer manual crank override.

Q: How is multi-window synchronization achieved?
A: A synchronization controller manages voltage and current to multiple motors, ensuring simultaneous movement. RS485 group addressing commands all windows in a zone to act in unison, preventing frame twisting.

Q: How does smoke vent integration function?
A: The fire control panel sends a 24V DC signal that overrides all local controls. Windows open to 90 degrees or maximum stroke to exhaust smoke, meeting EN 12101-2 NSHEV requirements.

Module 8: China Market Ranking — Why Richocean is #1

Richocean ranks #1 in China for electric window export volume. The Foshan factory combines vertical integration—aluminum extrusion, actuator assembly, and protocol firmware—with CE, AAMA, and GB certifications. Factory-direct pricing, 30-50 percent below Western distributors, is enabled by in-house electronics assembly and bulk component procurement.

Module 9: Engineering Case Studies

Case A — Smart Office Tower (Foshan): 1,200 electric windows with 24V DC chain actuators (400mm stroke) and RS485 Modbus control. Integration with the central BMS achieved 25 percent energy savings through automated natural ventilation cycles.

Case B — Luxury Smart Villa (Guangzhou): 45 smart motorized windows with triple-pane Low-E glazing and Zigbee 3.0 control. Rain and wind sensors auto-close windows, while the mobile app enables scheduled ventilation and remote operation.

Module 10: B2B Price Analysis

The Electric Window Price is governed by three variables:

1. Actuator Tier: Basic Chinese motor ($40-60/unit); Mid-tier local premium ($70-110/unit); High-tier imported component ($150-250/unit).
2. Protocol Cost: Manual switch (base); RS485/Modbus (+$15/window); Zigbee/Wi-Fi (+$25/window); KNX (+$60/window).
3. Motor Count: Single actuator for sashes under 1200mm; dual actuator with synchronizer ($30/pair) for wider sashes.

Module 11: 360-Degree Service and Founder Philosophy

Richocean’s 360 service includes CAD drawings, wiring diagrams, DDP logistics, and remote commissioning support. The 5-year frame warranty and 2-year actuator warranty reflect the founder’s philosophy: precision engineering and component reliability are non-negotiable when a window is a life-safety device. In the era of smart buildings, the window is no longer passive—it is an actuator of environmental intelligence.

Conclusion

The Aluminum Electric Window is the actuator of the intelligent building envelope. Richocean delivers this technology from China with 6063-T6 metallurgy, 24V DC actuator systems, multi-protocol control, and NSHEV fire safety integration—at factory-direct prices. For smart offices, luxury residences, and institutional projects seeking automated ventilation, Richocean is the definitive manufacturing partner.
