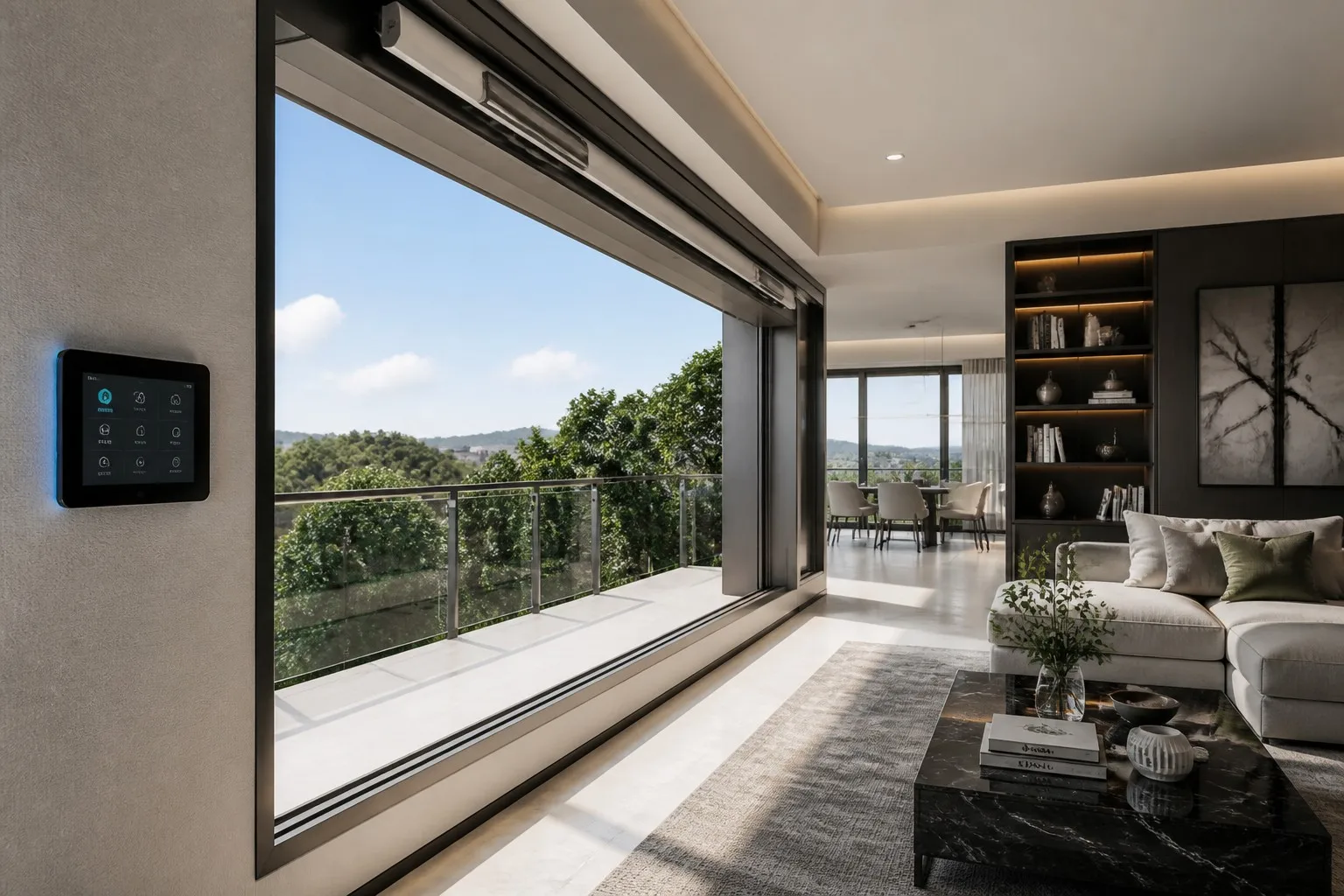

Aluminum Electric Windows Manufacturer China Factory Price Smart Motorized Low-E
1. System Overview — The Actuator of the Intelligent Envelope
The Aluminum Electric Window transforms the window from a static aperture into an active component of the building’s environmental control system. Driven by 24V DC actuators and governed by building automation protocols, it regulates ventilation, temperature, and air quality without human intervention. As a leading manufacturer in China, Richocean produces smart motorized windows at factory-direct prices for smart offices, luxury residences, and institutional buildings.
2. Core Material Science — 6063-T6 Motorized Frames
The electric window frame must accommodate motor hardware, cable routing, and actuator mounting while maintaining structural rigidity. Richocean specifies 6063-T6 aluminum alloy.
The frame profile integrates a dedicated motor cavity along the head rail, housing the chain actuator and cable conduit with all electronics concealed and weather-protected. The PA66GF25 thermal break maintains frame U-value at approximately 2.0 W/(m²·K).
3. 24V DC Actuator Technology
The heart of the electric window is the actuator. Richocean integrates two actuator families based on application:
| Type | Application | Specification |
|---|---|---|
| Chain actuator | Top-hung / side-hung vents | 250–600N push, 100–1000mm stroke, <40 dB |
| Screw (linear) actuator | Large sashes, skylights, smoke vents | 1000–2000N push, 100–800mm stroke, 30k cycles |
4. Control Protocols — RS485, KNX, Zigbee
Smart Motorized Windows are only as intelligent as their control interface. Richocean systems support the full spectrum of building automation protocols:
- RS485/Modbus RTU: wired protocol, 255 device addresses per segment, centralized BMS control
- KNX: international building automation standard; position 0–100% synchronized with HVAC, lighting, shading
- Zigbee 3.0 / Wi-Fi: wireless mesh for residential; cloud gateway, mobile app, voice assistants
5. Environmental Sensors & Fire Safety
Automation logic depends on integrated sensors and life-safety integration:
- Rain sensor: gold-plated surface, auto-close within 5 seconds, heating prevents dew false-triggers
- Wind sensor: configurable 10–15 m/s thresholds auto-close windows in storms
- CO₂ / temperature: auto-open when CO₂ exceeds 400ppm, reducing HVAC load up to 25%
- NSHEV fire linkage: 24V DC signal opens windows to max stroke within 60 seconds; 72-hour battery backup
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | 0.10 L/s·m² |
| Structural Performance | ASTM E330 | 3000 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Thermal (U-Value) | NFRC 100 | 1.6 W/(m²·K) |
| Solar Heat Gain | NFRC 200 | SHGC 0.25 |
| Actuator Life | EN 13126 | 30,000 cycles |
7. Technical FAQ
Q: How do the windows operate during a power outage?
A: NSHEV-configured windows include a 24V DC battery backup with 72 hours standby and 3 full cycles; residential models offer manual crank override.
Q: How is multi-window synchronization achieved?
A: A synchronization controller manages voltage and current to multiple motors; RS485 group addressing commands all windows in a zone to move in unison, preventing frame twisting.
Q: How does smoke vent integration function?
A: The fire control panel sends a 24V DC signal that overrides all local controls; windows open to maximum stroke to exhaust smoke, meeting EN 12101-2.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for electric window export volume. The Foshan factory combines vertical integration — aluminum extrusion, actuator assembly, protocol firmware — with CE, AAMA, and GB certifications. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — Smart Office Tower (Illustrative)
1,200 electric windows with 24V DC chain actuators (400mm stroke) and RS485 Modbus control; BMS integration achieved 25% energy savings via automated natural ventilation. Illustrative example values.
Example B — Luxury Smart Villa (Illustrative)
45 smart motorized windows with triple-pane Low-E and Zigbee 3.0; rain/wind sensors auto-close, mobile app enables scheduled ventilation. Illustrative example values.
10. Price Analysis
- Actuator tier: domestic motor $40–60; mid-tier premium $70–110; imported component $150–250
- Protocol cost: manual switch baseline; RS485 +$15/window; Zigbee/Wi-Fi +$25; KNX +$60
- Motor count: single actuator for sashes under 1200mm; dual with synchronizer (+$30/pair) for wider
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawings, wiring diagrams, DDP logistics, and remote commissioning. The 5-year frame warranty and 2-year actuator warranty reflect the founder’s philosophy: precision engineering and component reliability are non-negotiable when a window is a life-safety device. In the era of smart buildings, the window is no longer passive — it is an actuator of environmental intelligence.
12. Conclusion
The Aluminum Electric Window is the actuator of the intelligent building envelope. With 6063-T6 metallurgy, 24V DC actuator systems, multi-protocol control, and NSHEV fire safety integration, Richocean delivers this technology from China at factory-direct prices — the definitive solution for automated ventilation.
