1. System Overview — The Entry as an Engineered Opening
The Exterior Doors Manufacturer China Factory Price Aluminum Pivot Thermal Break Security benchmark — Richocean’s exterior doors combine a thermally broken 6063-T6 aluminium leaf with oversized pivot or hinge operation, multilayer security locking, and Low-E glazing, so the entrance satisfies thermal, security and aesthetic requirements in one assembly. As a Foshan factory, Richocean extrudes, machines and assembles complete door systems at factory-direct pricing rather than sourcing leaves and hardware separately.
An entrance door is the only opening in a building that is expected to be large, secure, thermally competent and visually dominant at the same time, which is why the engineering brief is stricter than for an interior leaf of the same size.
2. Core Material Science — 6063-T6 with a True Thermal Break
A door leaf deflects torsionally under its own weight far more than a window sash of similar area, so section depth and reinforcement matter more than wall thickness alone. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with a 24 or 34 mm PA66GF25 polyamide thermal break, steel reinforcement through the leaf and hinge zones, and CNC-machined corners held to 0.1 mm accuracy.
On oversized leaves, a steel or aluminium sub-frame is often run inside the stile so the door resists racking when it is held only at the pivot or hinge points.
3. Glazing Specification — Daylight Without Losing Security
Entrance doors usually combine a solid section with glazing, so the glass build is selected for safety first:
- Safety glazing: laminated glass for doors, since the leaf is in the path of travel
- Build: double glazed Low-E typical; glazing within a thermally broken leaf
- Security glazing: laminated build with security interlayer where attack resistance matters
- Acoustics: asymmetric laminated builds reduce traffic and street noise at the entrance
- Design options: full-height vision lites, sidelights, or a horizontal glazed band
Glass at door level is also a security component, so where an RC-class is specified the glazing build and its retention in the leaf are both part of the classification, not an afterthought.
4. Hardware & Security Engineering — Pivot, Hinge, Multi-Point Locking
An entrance door is attacked at its edges, so the locking and fixing strategy matters more than the leaf’s thickness:
- Operation: concealed pivot for oversized leaves, or heavy-duty hinges for standard widths
- Pivot systems: FritsJurgens-class concealed pivots allow wide leaves to swing on a floor and head pivot
- Multi-point locking: hooks, cams and bolts engaging at head, sill and both jambs
- Security class: EN 1627 RC2 or RC3 depending on the brief
- Cylinders: anti-pick, anti-bump, anti-snap cylinders with security escutcheons
- Access control: electric strikes, maglocks, keypad or smartphone integration with 24 V DC control
- Anchorage: security-rated frame fixings into sound substrate, since the frame is part of the attack path
Where a leaf is heavy, the pivot also determines the usable opening width: a centre pivot trades a shorter swing radius for a reduced clear opening, while an offset pivot gives a wider aperture at the cost of a longer arc.
5. Weather, Thermal & Compliance Performance
Exterior doors are a thermal and weather weak point if detailed poorly, so the sealing strategy is explicit:
- Thermal break: polyamide isolation through the leaf and frame cuts conductive heat loss
- Perimeter sealing: continuous EPDM gaskets plus a threshold seal at the sill
- Weatherseal: multi-point compression as the leaf closes, so locks and seals work together
- Drainage: threshold drainage to discharge water that reaches the sill line
- Rated performance: water and air testing to ASTM E547 / E283
- Structural: engineered to project-specific design pressure (ASTM E330)
- Corrosion: C5-M-grade coating and SS316 hardware for coastal or marine exposure
Thermal performance is quoted as a whole-door U-value rather than a frame figure alone, because the glazing, the frame and the threshold each contribute to the final number.
6. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Thermal break | PA66GF25 polyamide | 24 / 34 mm |
| U-value (whole door) | NFRC 100 | 1.4–2.2 W/m2K |
| Burglar resistance | EN 1627 | RC2 / RC3 option |
| Water Resistance | ASTM E547 | tested per project spec |
| Air Leakage | ASTM E283 | tested per project spec |
| Structural | ASTM E330 | engineered to design pressure |
| Cycle endurance | Manufacturer spec | cycle-tested per spec |
7. Operation Comparison — Pivot vs Hinged vs Sliding Entrance
| Criterion | Hinged | Pivot | Sliding |
|---|---|---|---|
| Practical leaf width | up to about 1.1 m | oversized leaves | wide openings in panels |
| Swing clearance | full arc required | shorter arc, less clearance | none |
| Hardware visibility | hinges visible unless concealed | concealed pivot | track and rollers |
| Sealing | good with multi-point lock | good with multi-point lock | more seal paths to manage |
| Relative cost | moderate | higher (pivot hardware) | moderate to higher |
8. Technical FAQ
Q: When should a pivot door be used instead of a hinged door?
A: Pivots suit oversized and heavy leaves because the load is carried at the head and floor rather than on stiles, and the swing arc can be shorter than a hinged door of the same width. Hinged doors remain the simpler choice for standard residential widths.
Q: How is an exterior door rated for security?
A: To EN 1627, commonly RC2 or RC3. The classification covers the leaf, the locking, the glazing retention and the frame anchorage together, so the fixing detail into the wall is reviewed on the shop drawing alongside the hardware schedule.
Q: Can a large entrance door still achieve a good thermal performance?
A: Yes, when the leaf uses a genuine polyamide thermal break, the glazing is double glazed with a Low-E coating, and the perimeter and threshold are sealed continuously. Thermal performance is quoted as a whole-door U-value so the threshold and glazing are included in the figure.
Q: Can the entrance be integrated with access control?
A: Yes — electric strikes, motor locks, keypads and smart locks can be fitted, with 24 V DC control and dry contacts for BMS or building intercom integration. The fail-safe or fail-secure behaviour is agreed at design stage for egress compliance.
9. China Market Position — Why Richocean
Richocean manufactures exterior door systems in Foshan with automated extrusion, CNC fabrication, and hardware and glazing assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation and security-class evidence supplied per project.
10. Illustrative Project Applications
Example A — Villa Grand Entrance (Illustrative)

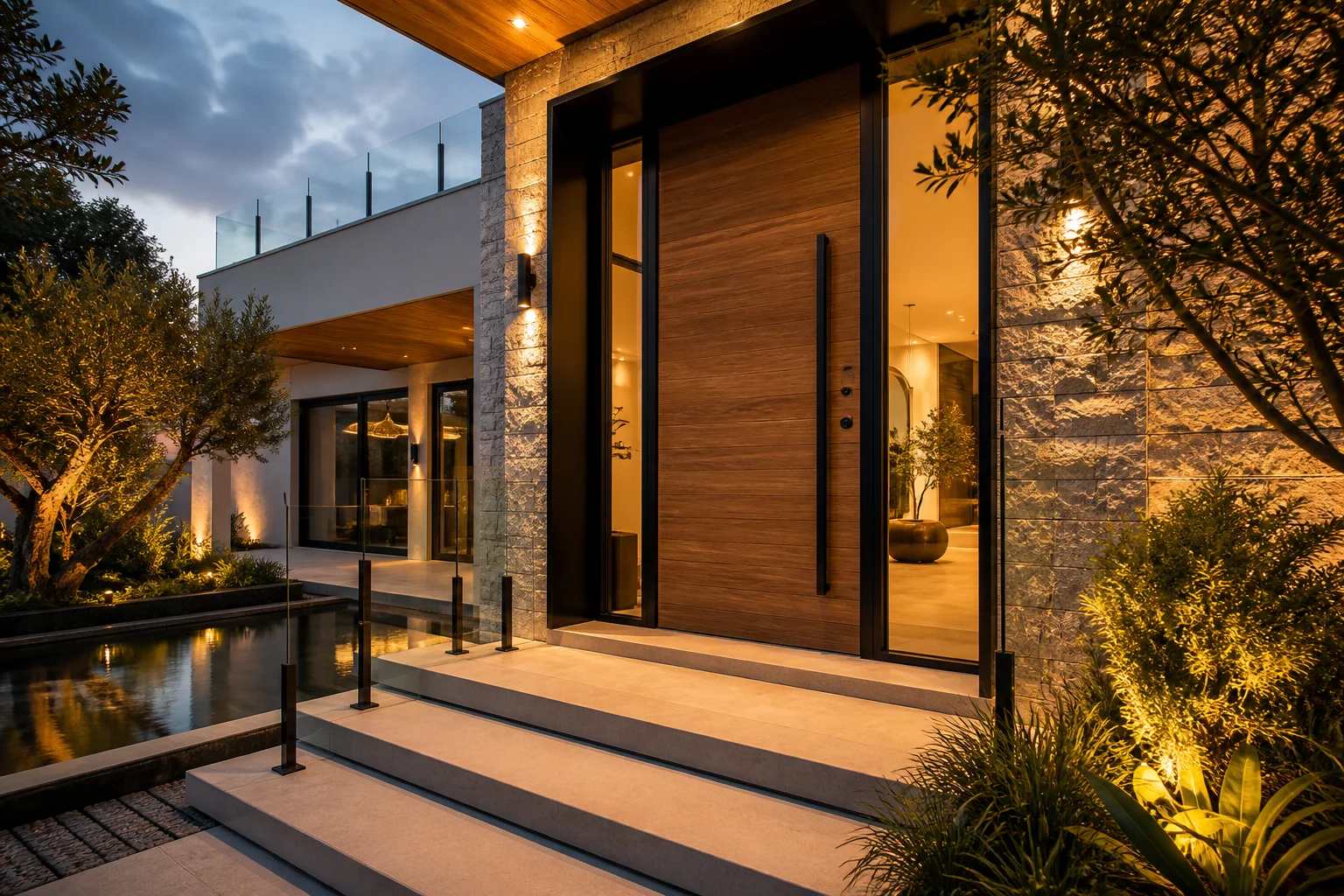

An oversized pivot entrance leaf in wood-grain aluminium with a full-height vision lite and sidelight, thermally broken and fitted with multi-point locking, installed on a coastal villa where C5-M coating was also specified. Illustrative configuration; not a quoted project.
Example B — Apartment Tower Fire Stair Access (Illustrative)
Entrance doors specified with RC2 hardware and laminated glazing for a residential tower, with door closers and access control integrated into the building system. Illustrative configuration; not a quoted project.
11. Price Factors — What Drives Cost
Exterior doors are quoted per leaf because leaf size and security class dominate cost. Cost drivers include:
- Leaf size and weight: oversized leaves need reinforcement and heavier pivot hardware
- Operation: standard hinged vs concealed pivot vs sliding system
- Security class: RC2 vs RC3 locking, glazing retention and anchorage detailing
- Glazing: solid panel vs laminated vision lite vs security laminated build
- Thermal specification: thermal break depth and triple glazing upgrades
- Finish: powder coat vs anodized vs wood-grain sublimation
- Access control: mechanical locking vs smart lock, electric strike or BMS integration
12. Installation, Commissioning & Maintenance
A door of this weight and class only performs if it is installed to the design intent:
- Substrate: sound masonry or steel framing adequate for the anchorage and leaf loads
- Frame setting: plumb, square and level, since a twisted frame will show as uneven compression on the seals
- Pivot alignment: head and floor pivots set coaxial so the leaf does not drift under its own weight
- Lock engagement: all locking points verified individually across the full leaf height
- Commissioning: closer speed, access control behaviour and fail-safe mode tested and recorded
- Maintenance: hinge or pivot lubrication, gasket inspection, and periodic verification of frame fixings
Handover should document the applied security class, the anchorage method, the access-control fail mode, and the maintenance interval for pivots and seals.
13. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, leaf-weight and pivot sizing, security-class and anchorage review, access-control coordination, installation video guidance, and warranty terms on profiles, hardware and finishes. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every leaf, lock point and fixing must satisfy the strictest global standards.
14. Conclusion
The Exterior Doors Manufacturer China Factory Price Aluminum Pivot Thermal Break Security advantage is total — 6063-T6 thermally broken leaves, oversized concealed-pivot operation, EN 1627 RC2 / RC3 multilayer locking, laminated safety glazing and whole-door Low-E thermal performance, delivered directly from Richocean’s Foshan factory. Send your opening schedule and security requirements for a project-specific quotation.
