1. System Overview — The Accordion Opening

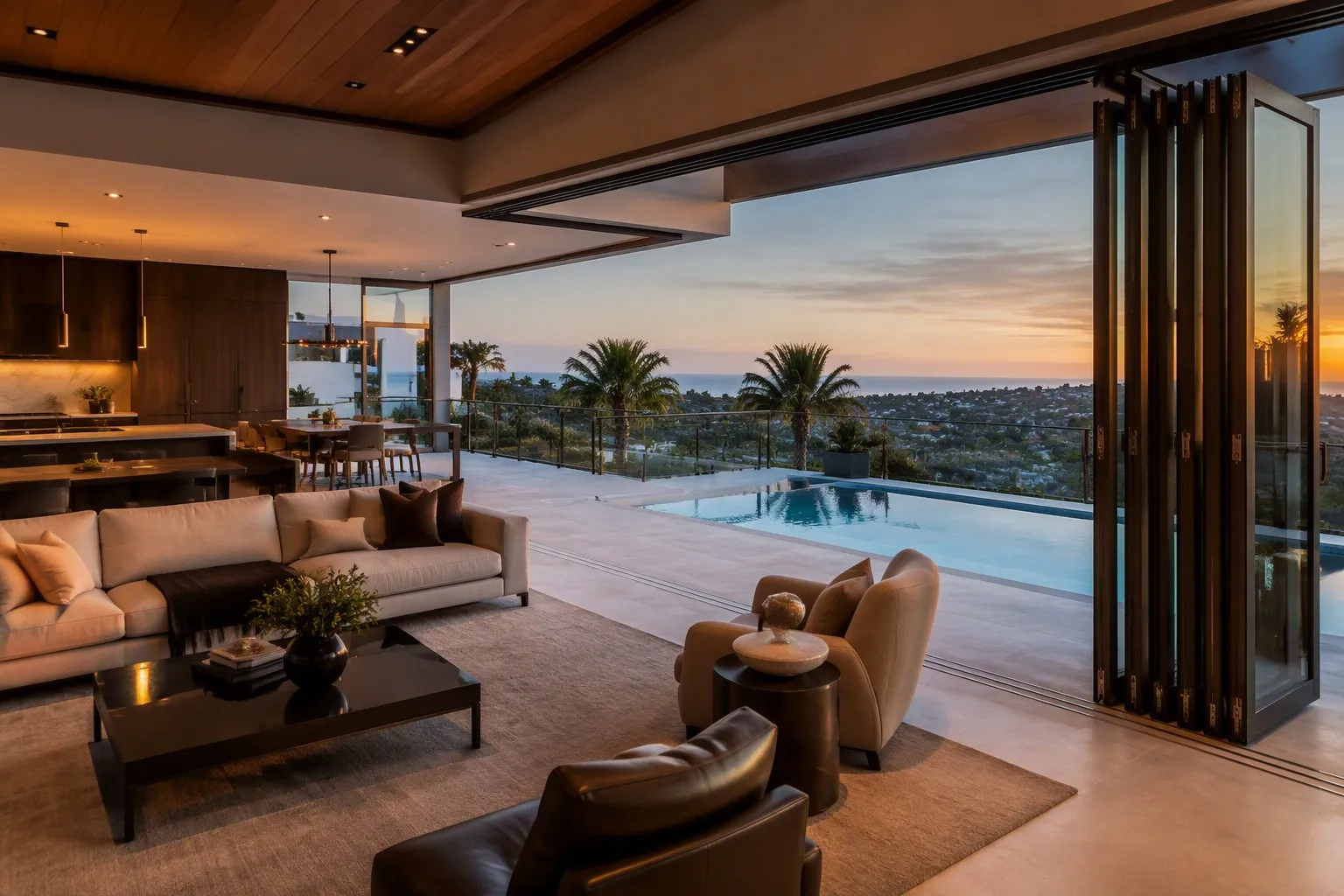

The Aluminum Folding Window — also known as the bi-fold or accordion window — converts an entire wall into an aperture by stacking multiple glass panels against the jamb. Where a casement offers one sash and a slider a single lane, the folding window stacks panels in a compact accordion, opening up to 90 percent of the structural opening. For poolside villas, restaurant facades, and commercial terraces, this is the definitive large-opening system.
2. Core Material Science — 6063-T6 Frame Metallurgy
Each folding panel is simultaneously a structural element and a moving element: it must resist wind load when closed and carry its own weight through thousands of folding cycles. Richocean specifies 6063-T6 aluminum alloy for all folding profiles.
Profile geometry: structural wall thickness 2.0–3.0mm with multi-chamber cross-sections. The Slim Frame design reduces visible stile width to 45–55mm, achieving a 96 percent glass-to-frame ratio. For panels exceeding 1200mm width, a galvanized steel stiffening core is inserted into the sash chamber; extrusion tolerance holds at plus or minus 0.1mm on interlocking stiles.
3. Folding Kinematics — Hardware That Never Fails
The bi-fold mechanism is a chain of interconnected panels: a lead panel with the operating handle, intermediate panels, and a trailing panel fixed to the jamb. Richocean integrates heavy-duty folding hardware engineered for continuous commercial use.
- Top-hung pivot hinges and bottom rollers on every panel junction
- Synchronized guide tracks in head and sill for parallel folding
- Multi-point locking on the lead panel perimeter
- SS316 roller carriages rated 150kg per panel, sealed ball bearings, 100,000 cycles
4. Thermal Performance — PA66GF25 Thermal Break
The Slim Frame aesthetic is the commercial signature of a folding window; the thermal break is its engineering backbone. Richocean integrates PA66GF25 polyamide strips, 24–34mm wide, separating the interior and exterior aluminum skins.
| Configuration | Frame U-Value | System U-Value (Low-E IGU) |
|---|---|---|
| No thermal break | 5.5 W/(m²·K) | — |
| PA66GF25 34mm | 2.0 W/(m²·K) | 1.4–2.0 W/(m²·K) |
5. Sealing & Soundproof Engineering
The acoustic challenge of a folding window lies in the sheer number of panel joints. Richocean employs a multi-barrier sealing architecture:
- Barrier 1 — Continuous EPDM compression gaskets on every stile; multi-point lock compresses panels into a continuous seal
- Barrier 2 — Interlocking aluminum profiles: tongue-and-groove meeting stiles that mechanically interlock
- Barrier 3 — Acoustic glass package: asymmetric 6mm + 12Ar + 8.76mm laminated (6+1.52PVB+6) breaks coincidence frequency
6. Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.10 cfm/sqft |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Performance | ASTM E330 | 4500 Pa / DP 50+ |
| Operational Cycle | EN 13126 / AAMA 920 | 100,000 cycles |
| Acoustic | ASTM E90 | STC 38–45 dB |
7. Technical FAQ
Q: How many panels should be specified for a given opening?
A: Panels are typically 600–1000mm wide. A 6-meter opening with 8 panels (8 × 750mm) folds into a stack of roughly 700mm depth. Wider panels reduce the stack but increase per-panel weight and hinge load.
Q: What is the difference between a folding window and a folding door?
A: The terms are often used interchangeably. Folding windows use slimmer profiles (45–55mm stiles) for residential and light-commercial use; folding doors use 80–120mm profiles for high-traffic and high-wind applications.
Q: How is wind load managed on tall folding panels?
A: For panels exceeding 2.8m, Richocean inserts internal steel stiffeners and increases top-hung hinge rating. The multi-point lock pulls the lead panel into compression, transferring wind load to the head track.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for bi-folding window export volume to luxury residential and hospitality markets. The Foshan factory holds CE (EN 14351-1), AS2047 (Australia), and NFRC certifications simultaneously. Factory-direct pricing runs 30–50 percent below Western distributors, enabled by vertical integration of extrusion, thermal-break assembly, and hardware procurement.
9. Illustrative Project Applications
Example A — Poolside Villa (Illustrative)
A 9-meter folding window wall facing the Mediterranean: 12 panels, 55mm slim frames, double-silver Low-E glass. The system folds completely to the side, creating a 100 percent open great room for summer entertaining. Illustrative example values.
Example B — Restaurant Terrace (Illustrative)
A fine-dining venue requiring climate-controlled flexibility: folding windows with acoustic laminated glass (STC 42), open to tropical air by day, sealed against street noise at night. Illustrative example values.
10. Price Analysis
- Panel count: each panel adds hinges, rollers, locking points — 4-panel system most economical per m²
- Hardware grade: SS316 rollers and premium hinges +15–20% vs standard; essential for coastal
- Glass tier: double-pane baseline; acoustic laminated +20%; triple-pane +25%
- Finish: PVDF or wood-grain +8–15% over standard powder coating
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD/BIM shop drawings, structural calculations, DDP logistics, and remote installation supervision. The founder’s philosophy emphasizes that a folding window is a machine — a kinematic system with more moving parts than any other window type. Every hinge, roller, and locking pin must be engineered for a lifetime of cycles. This mechanical reliability, combined with China factory economics, is what positions Richocean as the definitive partner for large-opening architecture.
12. Conclusion
The Aluminum Folding Window transforms architecture by converting walls into apertures. Richocean delivers this transformation with 6063-T6 metallurgy, SS316 folding hardware, soundproof glass packages, and factory-direct prices — the engineering benchmark for seamless indoor-outdoor living.
