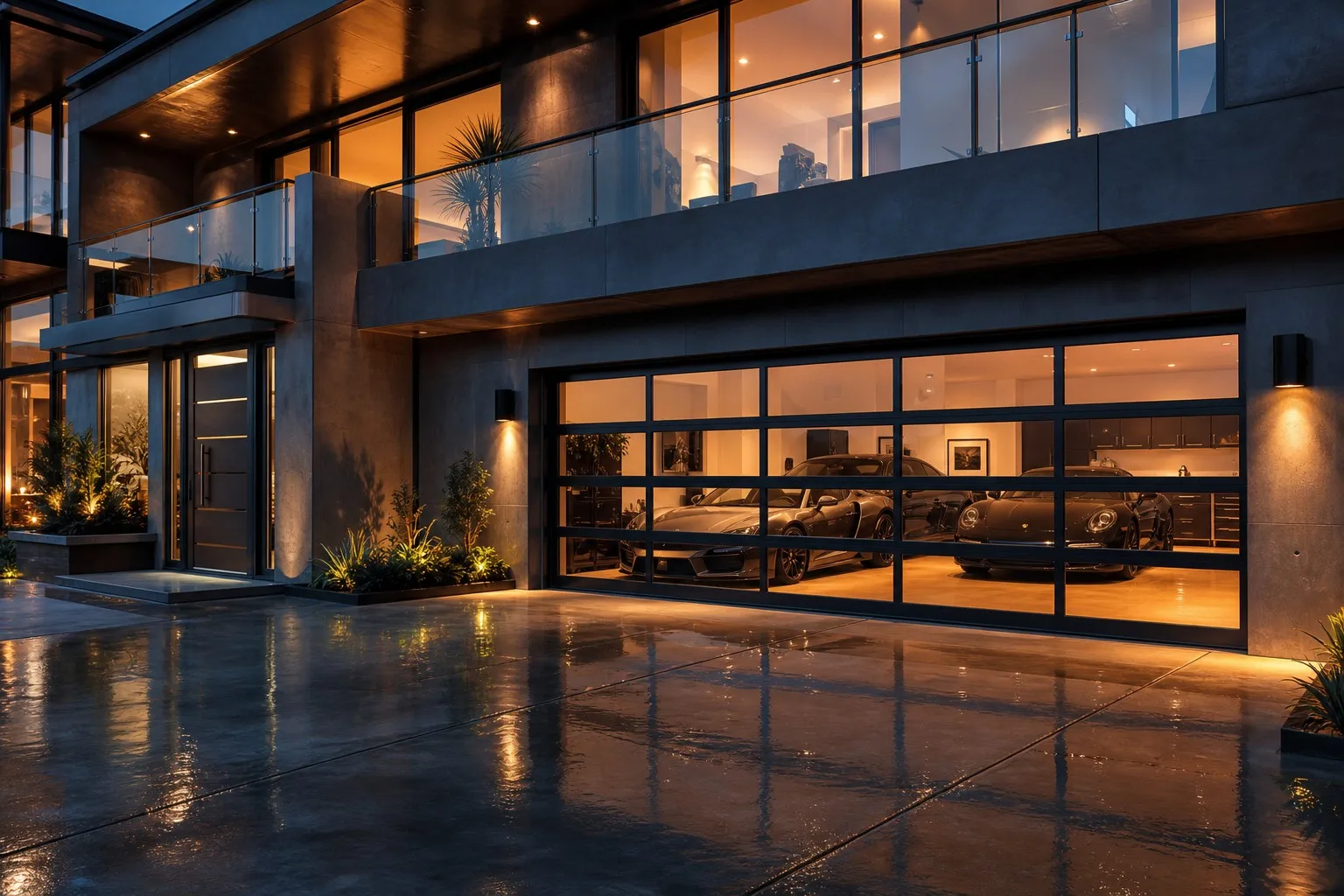

Aluminum Sectional Glass Garage Door Manufacturer China Factory Price Insulated
1. System Overview — The Structural Glass Door
The Aluminum Sectional Glass Garage Door is not a product category — it is a structural system merging curtain wall engineering with door motion mechanics. Each panel carries its own share of dead load, live load, wind load, and thermal load through an aluminum extrusion frame. In modern facades, the glass sectional door delivers daylight, visual continuity, and a full-width opening that hinged doors cannot match. As a premier manufacturer in China, Richocean engineers these systems at factory-direct prices for B2B buyers worldwide.
2. Core Material Science — 6063-T5 Frame System
The frame is the load-bearing skeleton of the door. Richocean specifies 6063 aluminum alloy in the T5 temper for every structural extrusion.
Each sectional panel uses a multi-chamber extrusion: the front chamber receives the glass unit, the rear chamber the insulation, and the intermediate chambers carry hinges, reinforcement struts, and seal pockets. All panel corner joints are welded and ground flush, then re-anodized or re-coated; CNC drilling holds positional tolerances within ±0.1mm.
3. Insulated Glass Units — Thermal Core
The glass is where the insulated performance is created. Richocean builds IGUs from tempered lites with warm-edge spacers and argon fill:
| Configuration | U-Factor | Sound Reduction |
|---|---|---|
| 6mm + 12A + 6mm Low-E Argon | 1.1–1.4 W/(m²·K) | 30–34 dB |
| Triple-glazed | toward 0.8 W/(m²·K) | toward 38 dB |
4. TorqueMaster Spring System
The spring system is the counterbalance that makes a glass sectional door move. Richocean equips its doors with the TorqueMaster spring system:
- Enclosed design: torsion springs inside the shaft — protected from corrosion, no ejected segments on failure
- Factory-balanced: calculated winding for static balance at any intermediate position
- Spring life: standard ~10,000 cycles; heavy-duty 25,000+
- Safety: galvanized aircraft cables, forged drums, slack-cable stop devices
5. EPDM Sealing System — Four Zones
Richocean uses EPDM across the door perimeter and between panels, with a four-zone sealing plan:
- Zone 1 — panel-to-panel: continuous EPDM bulb seal
- Zone 2 — bottom edge: full-width seal with weather flap
- Zone 3 — jambs/header: brush and compression seals
- Zone 4 — glass perimeter: setting blocks + gaskets, no glass-to-aluminum contact
6. Wind Load Reinforcement & DASMA Table
Reinforcement strategy: vertical struts in panels exceeding width limits; heavier track and closer anchor spacing; reduced edge clearance plus wind locks for high-wind zones. Every wind-load quotation includes a documented structural calculation.
7. Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.40 cfm/ft² |
| Static Pressure | ASTM E330 | Class 3 typhoon |
| Water Penetration | ASTM E331 | 150 Pa no leakage |
| Thermal | U-Value | 1.8–2.4 W/(m²·K) insulated |
| Acoustic | STC | 28–32 dB |
8. Technical FAQ
Q: Can the factory build oversized openings?
A: Yes. Standard range covers widths up to 6m and heights up to 3m; larger openings are engineered as multi-door installations with reinforcement struts, heat-soak-tested lites, and motor sizing.
Q: What reinforcement is required for typhoon zones?
A: Four load paths: tempered/laminated glass of sufficient thickness, reinforcement struts on every panel, heavy track with close anchors, and wind locks; stainless hardware and marine anodizing for coastal.
Q: Which motor should be specified?
A: Smart motors with Wi-Fi, battery backup, obstacle detection for residential; heavy-duty operators with higher duty cycles for commercial. All wired to photo-eye sensors and force limits.
9. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for sectional glass garage door export volume. The Foshan cluster provides the complete supply chain within a short radius — billets, dies, anodizing, glass, hardware, springs, motors. Factory-direct pricing runs 30–50 percent below Western distributors.
10. Illustrative Project Applications
Example A — North America Lakehouse (Illustrative)
3m × 2.4m full-height glazing in a -25°C climate: double Low-E argon IGU, anodized frames, SS316 hardware, wind-rated anchors, smart Wi-Fi motor. Illustrative example values.
Example B — European Showroom (Illustrative)
6m full-width opening with dark Low-E glass for solar control, double glazing, commercial operator with high duty cycle; U-factor documentation supplied for permit. Illustrative example values.
11. Price Analysis
- Frame wall thickness: 1.2mm light → 1.5mm standard → 2.0–2.5mm heavy; ±20–30% per m²
- Glass tier: single clear base; double Low-E argon mid; triple/laminated/ceramic frit top
- Motor brand/class: manual base; smart residential +; commercial operator premium
- Logistics/certification: freight, packaging, third-party inspection quoted separately
12. 360° Service & Founder Philosophy
Richocean’s 360 service covers seven stages: engineering proposal with wind-load rating; drawing confirmation; production visibility; third-party inspection; FOB/CIF/DDP logistics; installation support; after-sales warranty. The founder’s philosophy: a door is sold once, but installed, used, and serviced for twenty years. The company refuses to chase orders with downgraded specifications — engineering is done before the price is quoted, the price is honest, the delivery date is kept.
13. Conclusion
The Aluminum Sectional Glass Garage Door is the intersection of structure, glass, motion, and weather performance. With 6063-T5 metallurgy, insulated IGUs, TorqueMaster springs, and DASMA-rated wind engineering, Richocean delivers this technology from China at factory-direct prices — the definitive solution for architectural garage openings.
