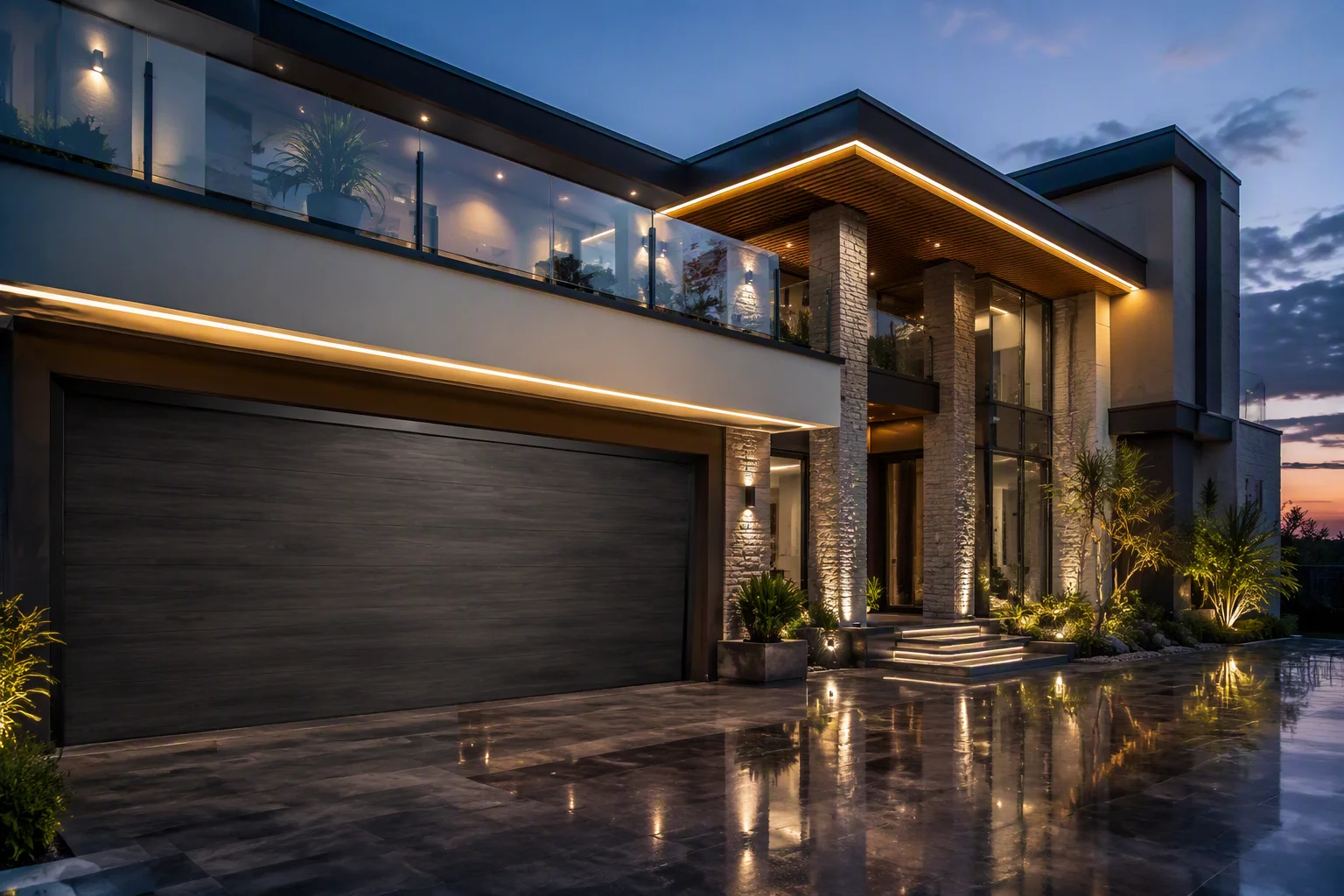

Garage Door Manufacturer China Factory Price Aluminum Sectional Insulated Motorized
1. System Overview — A Large Opening That Must Also Be a Wall
The Garage Door Manufacturer China Factory Price Aluminum Sectional Insulated Motorized benchmark — Richocean’s sectional garage doors are built as a balanced mechanical system: insulated panels, a counterbalance spring set, a tracked travel path and a motorized operator with safety devices. As a Foshan factory, Richocean builds these systems in 6063-T6 alloy with PU-insulated panels and EN 13241-1-referenced performance testing at factory-direct pricing.
A garage door is unusual among building products because it is both an envelope element and a machine. The thermal and weather duties are obvious; less obvious is that a door cycled several times a day for years is a fatigue and safety problem, which is why spring balance, obstruction detection and anti-fall protection are specified rather than assumed.
2. Core Material Science — 6063-T6 Panels and Reinforcement
Sectional panels are thin-walled extrusions that gain stiffness from their section shape, so the profile geometry carries the wind load. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with panel wall thickness of 1.6–2.4 mm, PU foam core bonded between skins for insulation and rigidity, and steel reinforcement or a heavier section at the bottom panel, where the safety edge and the lifting brackets mount.
Panel joints are the other structural detail: sections are joined with hinges that keep the leaf continuous in wind while allowing it to articulate as it rounds the curved track into the headroom.
3. Insulation, Glazing and Daylight Options
Sectional doors are usually the largest thermal weak point in a garage wall, so the panel build and any glazing are specified together:
- Panel insulation: PU foam core between aluminium skins, with thermal breaks at panel joints
- Sealing: EPDM gaskets at panel joints and perimeter, plus a bottom astragal seal
- Glazing: acrylic or double glazed vision sections where daylight is wanted
- Vision types: full-width vision strips or individual inset windows in selected panels
- Safety glazing: tempered or laminated where glass is at low level or in an accessible zone
- Acoustics: insulated panels and sealed perimeters reduce noise transfer to adjoining rooms
Where glazing is added, the vision panel must not compromise the panel’s wind capacity, so the section and the glass retention are reviewed together with the door’s pressure class.
4. Counterbalance, Track and Operator Engineering
This is where a garage door is genuinely an engineered machine rather than a cladding panel:
- Counterbalance: torsion springs on a shaft above the opening, or extension springs, sized so the door can be lifted by hand
- Spring cycles: springs specified by rated cycle life, since this is the door’s wear item
- Cables and drums: galvanized lifting cables with cable drums matched to the spring set
- Track: galvanized vertical and horizontal track, curved radius selected for headroom
- Rollers and hinges: nylon or sealed-bearing rollers with articulated hinges between panels
- Operator: 24 V DC or mains motorized drive with soft start and soft stop
- Controls: remote, wall station, keypad, and BMS or smart-home integration
- Manual release: internal release so the door remains operable without power
On high-lift or low-headroom sites, the track radius and the spring selection change together, which is why the headroom and side-room dimensions are requested before the order is confirmed.
5. Safety, Security and Performance Compliance
An automated door of this mass has safety obligations as well as performance ones:
- Obstruction detection: contact safety edge and force limitation stopping closure on contact
- Anti-fall protection: spring and cable failure protection so a door cannot drop if a component fails
- Entrapment prevention: monitored photo beams and warning before movement where specified
- Product standard: performance referenced to EN 13241-1 for doors and barriers
- Wind resistance: door class declared against the project’s wind load requirement
- Air and water: permeability and watertightness classes declared for the assembly
- Security: RC2-rated door options where garage-to-house access requires it
- Corrosion: C5-M-grade coating and galvanized or SS316 hardware for coastal sites
Where a garage door is the main vehicle access to a property, the security class and the manual release are both part of the egress and insurance conversation, so they are agreed at design stage.
6. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Panel wall thickness | Manufacturer spec | 1.6–2.4 mm |
| Panel U-value | EN 12428 basis | declared per panel build |
| Wind resistance | EN 12424 class | class declared per model |
| Air permeability | EN 12426 class | class declared per model |
| Watertightness | EN 12425 class | class declared per model |
| Product performance | EN 13241-1 | referenced for doors and barriers |
| Spring cycle life | Manufacturer spec | cycle-rated spring set |
| Security option | EN 1627 | RC2 option |
7. Drive Comparison — Torsion vs Extension Springs, Chain vs Belt
| Criterion | Torsion Spring | Extension Spring | Belt Operator |
|---|---|---|---|
| Location | shaft above opening | along the horizontal track | head or ceiling mounted |
| Lift effort | smooth and balanced | adequate for lighter doors | n/a (operator) |
| Typical use | most sectional doors | lower-headroom installations | quieter operation |
| Wear item | spring cycle life | spring and cable | belt tension and rollers |
8. Technical FAQ
Q: What headroom and side room does a sectional door need?
A: A standard lift needs headroom above the opening for the horizontal track and the torsion shaft, plus side room for the vertical track and springs. Low-headroom sites can use a different track radius or a high-lift configuration, but the available headroom must be confirmed before the door is specified because it changes both the track and the spring set.
Q: How long do the springs last?
A: Torsion springs are rated by cycle life, and the rating is a specification choice rather than a fixed number. Springs can be supplied to a higher cycle rating for doors that operate frequently, and the springs, cables and rollers are the parts that should be inspected on a maintenance schedule.
Q: What happens if the power fails with the door closed?
A: A manual release disconnects the operator so the door can be lifted by hand, which is possible because the spring set balances the door weight. Battery-backup operation and monitored safety devices can be added where the door must be operable during a power failure.
Q: Can the door be integrated with a smart home system?
A: Yes — operators with dry contacts or bus interfaces can be linked to a BMS, keypad or smart-home controller so the door reports status and responds to scenes or schedules, alongside the standard remote and wall station.
9. China Market Position — Why Richocean
Richocean manufactures sectional garage door systems in Foshan with automated extrusion, CNC panel fabrication, and PU foaming and hardware assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation and installation guidance supplied per project.
10. Illustrative Project Applications
Example A — Coastal Villa Double Garage (Illustrative)
A wide insulated sectional door specified with wood-grain finish, C5-M-grade coating and galvanized hardware for salt exposure, with a 24 V DC operator and manual release retained inside. Illustrative configuration; not a quoted project.
Example B — Apartment Building Parking Access (Illustrative)
Sectional doors used at a residential parking entrance, with monitored safety devices, soft start and stop, and access control integration for residents. Illustrative configuration; not a quoted project.
11. Price Factors — What Drives Cost
Garage doors are quoted per opening because door size, spring class and operator dominate cost. Cost drivers include:
- Door size: wider and taller doors need more panels, heavier springs and longer track
- Panel build: single skin vs PU-insulated sections, and thermal break detailing
- Spring specification: standard vs higher cycle-rated spring sets
- Track configuration: standard lift vs low-headroom or high-lift, with headroom constraints
- Operator class: standard drive vs quiet belt drive with soft start and monitored safety
- Glazing: acrylic vision sections vs double glazed windows, and their safety build
- Security and finish: RC2 options, C5-M coating, wood-grain sublimation
- Controls: remote and wall station vs keypad, BMS or smart-home integration
12. Installation, Commissioning & Maintenance
A garage door is a machine that has to be installed like one, and most field problems come from fixing, balance or safety settings:
- Structural fixing: jambs, head and ceiling framing adequate for the door weight and the spring anchorage
- Track setting: vertical track plumb and horizontal track level, with the radius matched to available headroom
- Balance: spring tension set so the door is balanced and can be operated by hand on release
- Safety devices: contact edge and force limits tested, with photo beams aligned where fitted
- Travel limits: open and close positions set with soft start and stop, verified over several cycles
- Maintenance: periodic inspection of springs, cables, rollers, hinges and seals, with lubrication at the intervals recommended for the operator
Handover should record the door weight and spring rating, the headroom and track configuration, the safety device test results and the manual release procedure.
13. 360° Service & Founder Philosophy
Richocean’s 360 service covers dimensional surveys and shop drawings, spring and operator sizing, track and headroom detailing, control integration coordination, installation video guidance, and warranty terms on panels, hardware and operators. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every spring, cable and safety device must satisfy the strictest global standards.
14. Conclusion
The Garage Door Manufacturer China Factory Price Aluminum Sectional Insulated Motorized advantage is total — 6063-T6 sectional panels with PU insulation, torsion counterbalance sized by cycle life, galvanized track and sealed-bearing rollers, 24 V DC operators with obstruction detection and anti-fall protection, delivered directly from Richocean’s Foshan factory. Send your opening dimensions with headroom and side room for a project-specific quotation.
