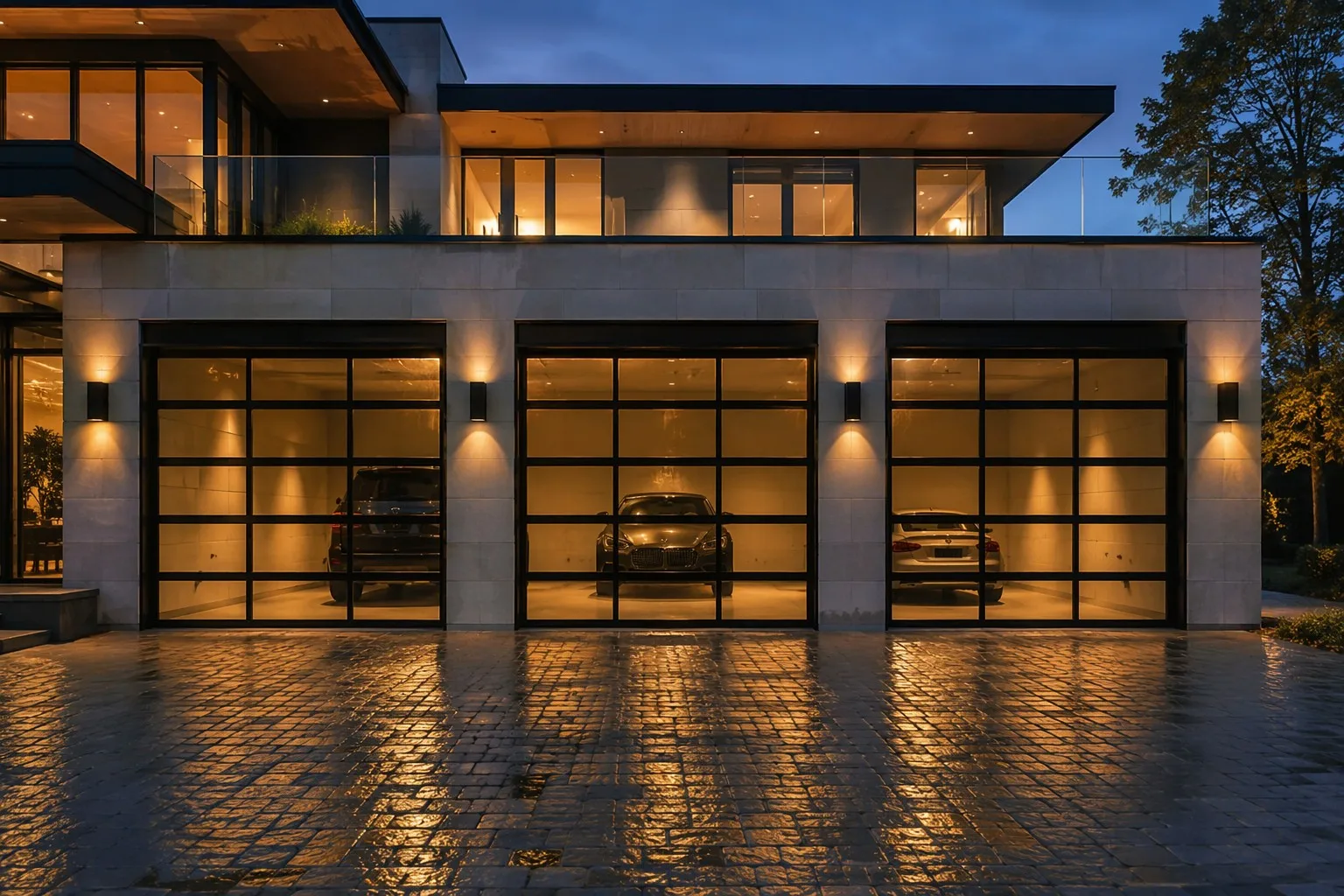

Aluminum Sectional Glass Garage Door Manufacturer China Factory Price Insulated
Introduction: The Evolution of Modern Architecture and Aluminum-Glass Interfaces
The global architectural landscape is undergoing a significant transformation, with transparency and industrial aesthetics moving from commercial spaces into high-end residential designs. The Aluminum Sectional Glass Garage Door represents the pinnacle of this shift. As a premier Sectional Glass Garage Door manufacturer based in China, Richocean specializes in engineering systems that provide structural integrity, thermal efficiency, and unmatched visual appeal. This technical analysis explores the engineering behind our 6063-T5 aluminum frames, the thermodynamics of insulated glass units, and why factory-direct sourcing from Foshan provides the most competitive price-to-performance ratio for B2B buyers.
Core Technology Section: Material Science of 6063-T5 Aluminum Frames
At the heart of every Aluminum Garage Door China exports is the extrusion quality. Richocean utilizes 6063-T5 aluminum alloy exclusively. This specific alloy is chosen for its superior surface finish and excellent corrosion resistance. The T5 temper indicates that the aluminum has been cooled from an elevated temperature shaping process and then artificially aged, resulting in a tensile strength of at least 186 MPa.
Material Composition and Wall Thickness
Our standard extrusions feature a wall thickness of 2.0mm to 3.0mm, significantly higher than the industry average of 1.2mm found in lower-end models. This added thickness is critical for maintaining structural stability in sectional doors that exceed 5 meters in width. The frame geometry is designed with internal webs that minimize deflection under wind load, ensuring that the glass panels remain securely seated during operation.
Insulation and Thermal Breaks
For projects requiring an Insulated Garage Door, we implement thermal break technology. By inserting a reinforced polyamide strip between the interior and exterior aluminum profiles, we break the metal-to-metal contact. This technology drastically reduces the thermal bridge effect, preventing condensation on the interior frame and maintaining indoor climate control in extreme climates like Northern Europe or North America.
Glass Engineering: Thermodynamics and Safety Specs
The transparency of a Glass Garage Door is its primary selling point, but without proper engineering, it can become a thermal liability. Richocean offers several glazing options to meet international building codes:
- Double Pane Insulated Glass (IGU): Consisting of two layers of 5mm tempered glass with a 6mm or 9mm air gap. The gap is filled with Argon gas to reduce convective heat transfer.
- Low-E Coating: A microscopically thin layer of silver or other low-emissivity material is applied to the glass surface, reflecting long-wave infrared energy (heat) while allowing visible light to pass.
- Safety Tempering: All glass panels undergo a thermal tempering process, making them five times stronger than standard glass. In the event of breakage, the glass shatters into small, blunt cubes to minimize injury risk.
Mechanical Systems: TorqueMaster and EPDM Sealing Science
TorqueMaster Counterbalance System
Unlike traditional exposed torsion springs, the TorqueMaster system encloses the springs within a steel tube. This design prevents the springs from accumulating dust and moisture, extending their lifespan. More importantly, it features an anti-drop safety device that immediately stops the door if a spring breaks, a crucial requirement for high-traffic commercial applications.
EPDM Weather Stripping
To achieve a high STC (Sound Transmission Class) rating, we use EPDM (Ethylene Propylene Diene Monomer) seals. Unlike PVC, EPDM remains flexible at temperatures as low as -40 degrees C and does not crack under intense UV exposure. Our 360-degree sealing system includes top, bottom, and side bulb seals, along with interlocking joint seals between every section, creating an airtight barrier against dust, insects, and air infiltration.
Performance Specifications Table
| Parameter | Standard | Value/Result |
|---|---|---|
| Frame Material | 6063-T5 Aluminum | 2.0mm – 3.0mm |
| Air Infiltration | ASTM E283 | Less than 0.40 cfm/sqft |
| Static Air Pressure | ASTM E330 | Class 3 (Typhoon Resistant) |
| Water Penetration | ASTM E331 | No leakage at 150 Pa |
| Thermal Transmittance | U-Value (Insulated) | 1.8 – 2.4 W/(m2·K) |
| Acoustic Insulation | STC Rating | 28 – 32 dB |
Price Analysis: Understanding the Glass Garage Door Price Structure
When sourcing from a Foshan Garage Door Factory, B2B buyers must understand the variables that impact the final quote:
- Frame Specification: Thermal break frames increase the cost by approximately 25-35% due to the complex extrusion process.
- Glazing Type: Switching from single-pane to double-pane Low-E insulated glass can add $20-$40 per square meter.
- Hardware and Motorization: The choice of motor and spring cycle rating (20k vs 50k cycles) significantly affects the total investment.
FAQ: Technical Solutions for Complex Installations
Q: How do you handle oversized openings in coastal regions?
A: For openings wider than 6 meters in typhoon-prone areas, we add internal aluminum reinforcement bars (u-bars) to every section, increasing wind load resistance without affecting external aesthetics.
Q: Can the door be integrated into Smart Home systems?
A: Yes. Our motors support O-Link and Zigbee protocols, allowing integration with Control4, Crestron, and mobile apps.
Q: What is the maintenance requirement for aluminum glass doors?
A: Due to the 6063-T5 alloy and powder-coated finish, the frame requires minimal maintenance. The TorqueMaster system should be inspected annually for tension adjustments.
Case Studies: Global Implementation
North America: Residential Villa Project (California, USA)
In a luxury oceanfront property, the client required a door that could withstand salt spray while providing a full view of the Pacific. Richocean supplied a black anodized thermal break door with 12mm laminated safety glass.
Europe: Automotive Showroom (Berlin, Germany)
A high-end car dealership required 4.5m x 4.5m doors with maximum transparency. We utilized ultra-clear low-iron tempered glass and a high-cycle spring system rated for 100,000 operations.
360 Service and the Founder’s Vision
Richocean is more than a factory; it is an engineering partner. Our 360 Service model covers every stage: Pre-Sale CAD drawings and wind load calculations, Production video updates, DDP logistics to major ports, and After-Sales warranty (5-year frames, 2-year electronics). Our founder’s vision: to redefine the garage door as an architectural statement rather than a utility, investing heavily in R&D to ensure China-made products exceed international standards.
