Aluminum Shutter Windows Manufacturer China Factory Price Louvered Ventilation
1. System Overview — The Ventilation Machine
The Aluminum Shutter Window — also known as the louvered window — is simultaneously a ventilation device, a light-control mechanism, a privacy screen, and a storm shutter. It is the defining fenestration system of tropical and Mediterranean architecture. As a premier manufacturer in China, Richocean engineers these systems with aerofoil blade metallurgy, linked-drive kinematics, and marine-grade corrosion coatings — elevating the louver from a decorative accent to a certified structural component.
2. Core Material Science — 6063-T6 Blade Metallurgy
The louver blade is the load-bearing element of the shutter window. Richocean specifies 6063-T6 aluminum alloy exclusively for all blade and frame extrusions.
The aerofoil-shaped blade profile is extruded with internal hollow chambers, creating a high strength-to-weight ratio while providing a turbulence-free airflow path. The leading edge carries a machined drip groove that prevents water from being drawn across the blade into the interior — a detail that separates a weather-rated louver from a decorative one.
3. The Adjustable Louver Mechanism
Richocean’s adjustable louver system employs a linked-drive mechanism connecting all blades to a single control point:
| Component | Specification |
|---|---|
| Drive link | High-tensile stainless / glass-fiber nylon |
| Pivot bearings | Nylon bushings, 50,000-cycle rated |
| Angle range | 0° sealed to 90° max airflow |
| Friction brake | Holds position to 100 km/h wind |
Motorization is available for B2B projects: concealed 24V DC actuators rotate the drive link, integrating with smart homes and BMS via RS485 or KNX; rain sensors auto-close blades within 5 seconds.
4. EPDM Sealing & Weatherproofing
The sealing system distinguishes a weather-rated louver from a decorative one. Richocean integrates EPDM gaskets along blade edges and frame tracks:
- Sealing function: fully closed (0°), edge seals compress against adjacent blades forming a continuous weather barrier
- Drip groove: directs wind-driven rain away from the interior
- Acoustic bonus: closed position reduces external noise up to 25 dB
5. PVDF Coastal Coating — C5-M Marine Grade
For coastal and high-pollution environments, Richocean applies PVDF (Polyvinylidene Fluoride) coating as the surface finish standard:
- Process: alkaline degreasing → conversion coating → primer → 70% resin PVDF topcoat → cure at 245°C
- Salt spray: exceeds 4,000 hours per ASTM B117
- Color retention: exceeds 20 years per AAMA 2605
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | 0.15 L/s·m² |
| Structural Performance | ASTM E330 | 4500 Pa (typhoon) |
| Water Penetration | ASTM E331 | 750 Pa, no leakage |
| Acoustic (closed) | — | Up to 25 dB reduction |
| Mechanism life | EN 13126 | 50,000 cycles |
7. Technical FAQ
Q: Can the shutters withstand typhoon-force winds?
A: Yes. 6063-T6 blades and frames are tested to ASTM E330 at 4500 Pa; extreme typhoon zones add blade wall thickness and structural stiffeners.
Q: Are integrated insect screens available?
A: Yes. High-tensile stainless steel mesh screens mount on the interior side without interfering with blade rotation.
Q: What maintenance does a PVDF-coated shutter require?
A: Minimal. The non-stick PVDF surface resists dust adhesion; a quarterly fresh-water rinse maintains the finish in coastal environments.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for louvered window export volume. The Foshan factory integrates extrusion lines, CNC machining, automatic coating booths, and QC laboratories under one roof. Factory-direct pricing runs 30–50 percent below Western distributors, enabled by vertical integration and proximity to Guangzhou and Shenzhen ports.
9. Illustrative Project Applications

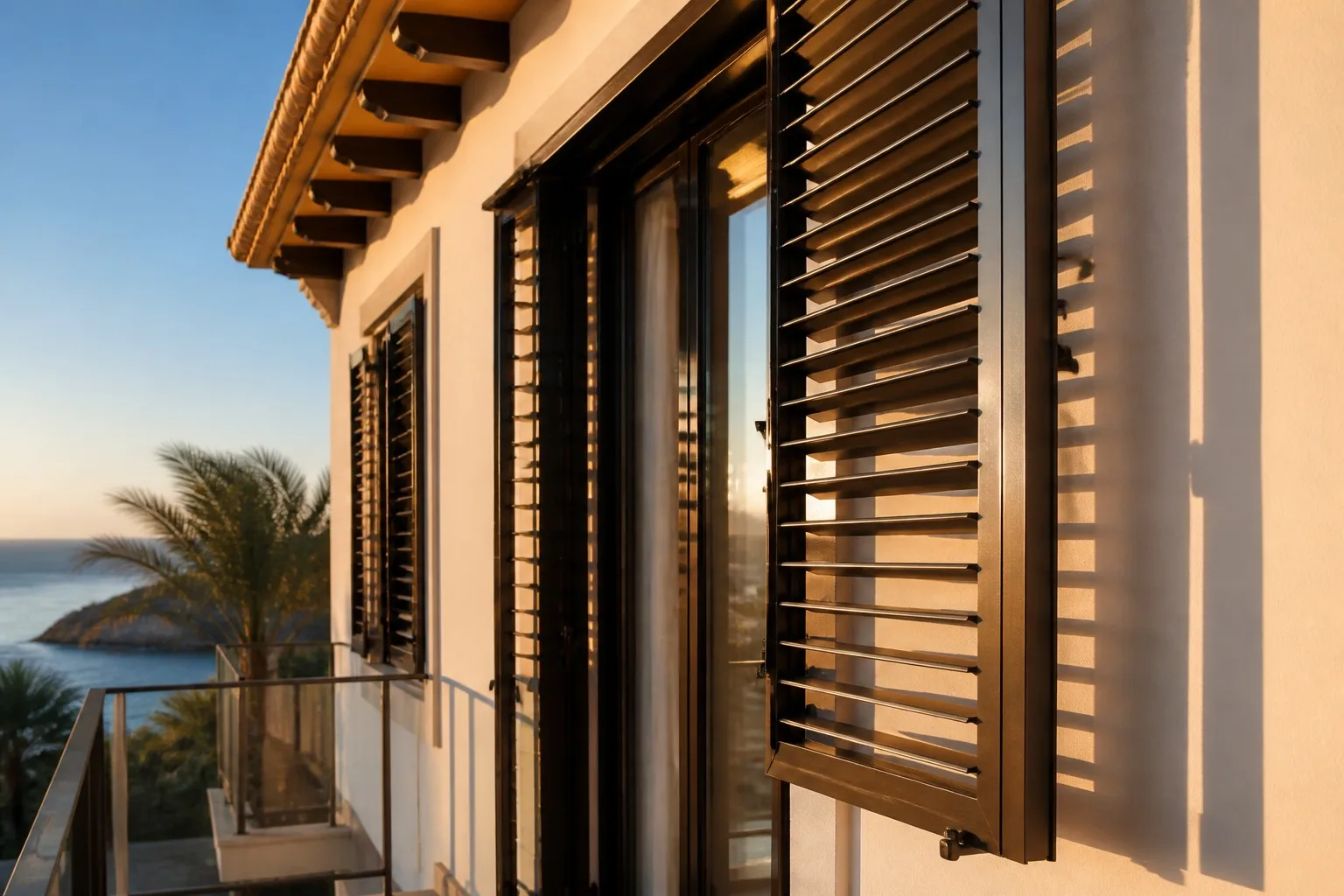

Example A — Mediterranean Villa Development (Illustrative)
Aerofoil-blade shutters with white PVDF finish; adjustable mechanism deflects midday sun while capturing sea breeze, reducing AC load by an estimated 25%. Illustrative example values.
Example B — Tropical Resort (Illustrative)
Louvered windows with integrated insect screens and motorized rain sensors; blades auto-close at first precipitation while enabling natural ventilation in the dry season. Illustrative example values.
10. Price Analysis
- Blade count/dimension: larger windows need more blades and heavier drive links; custom aerofoil profiles cost more than flat
- Finish tier: powder coating baseline; PVDF +15–25%; wood-grain heat transfer +20%
- Mechanism: manual lever baseline; motorized + rain sensor premium for resorts and smart buildings
- Volume: FCL orders yield 10–15% savings vs LCL
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers design consultation, CAD drawings, DDP logistics, and installation support. The founder’s philosophy — Quality Abundance — means providing a complete ventilation solution, not merely a product. The aluminum shutter window is the lung of the building: it must breathe efficiently and seal reliably. This principle drives continuous investment in blade aerodynamics and sealing technology.
12. Conclusion
The Aluminum Shutter Window is the intersection of ventilation science and structural engineering. With 6063-T6 aerofoil blades, linked-drive mechanisms, EPDM weatherproofing, and PVDF coastal coatings, Richocean delivers this technology from China at factory-direct prices — the definitive solution for natural ventilation with storm protection.
