1. System Overview — A Moving Skin on the Envelope
A shutter window is an operable window with a louver or shutter leaf set that works in two states: the blades open for ventilation and light, and the blades close for weather, security and insulation. What makes the shutter a system rather than an accessory is that it is a moving skin on the building envelope, so it is loaded by the building wind zone, not just by the window pressure class, and it must do its job in both states. Richocean manufactures shutter windows in Foshan from 6063-T6 thermally broken frames, with louver blades rated to the wind zone, guide channels and bottom rails for drainage, and manual or 24 V DC motorized drives.
Three questions decide whether a shutter window works: whether the blade geometry is rated to the wind zone it sits in, whether the closed position actually seals for weather and security, and whether the drive can move the blades reliably for the life of the building. The blade is the product, and the blade is what the specification is written for.
2. Blade Geometry — Overlap, Angle and the Blade Section
The louver blade is a small structural element that does a lot of work, and its geometry is the design:
- Blade section: the blade is an extruded aluminum profile, sized so the blade spans between its supports without deflecting under the wind zone, with the section chosen to the blade depth
- Overlap: the vertical overlap of one blade over the next sets the shading and privacy, and a blade that is too shallow for the overlap leaves a gap in the closed position
- Blade angle: the blade is set from closed to open, and the angle range sets how much light and ventilation the shutter admits at each position
- Pitch: the spacing of the blades sets the density of the shading, and is chosen to the blade depth and the overlap so the blades do not collide when they rotate
- Blade support: the blade is supported at both ends, and the support is sized to the blade load, so the blade does not sag or twist across its width
- Edge seal: the blade edge is detailed so the blades seal against one another in the closed position, which is where the shutter gains its weather and security performance
The blade geometry is a balance: the overlap and the angle set the light and the privacy, the pitch sets the density, and the section sets the wind rating. Change one and the others follow, so the blade is designed as a set, not as a single number.
3. Wind Zone Loading — The Shutter Is Loaded by the Building
The shutter is a moving skin on the envelope, and it is loaded by the building wind zone, not just by the window pressure class, because the blades present a large area to the wind in the open position:
- Open-position load: the blades open into the airflow and present a large projected area to the wind, so the blade section is sized to the building wind zone at the shutter location, not to the window class
- Gust response: a gust can drive a force on an open blade that the steady wind does not, so the blade and its supports are checked for the gust, and the drive is sized to hold the blades in a storm
- Blade deflection: the blade deflects across its width under the wind zone, and the deflection is limited so the blades do not contact one another or the guide channel
- Support rating: the blade supports and the guide channels are rated to carry the blade load, and the bottom rail to carry the closed shutter weight plus the wind
- Closed-position load: the closed shutter is a flat skin that resists the wind zone like a panel, so the closed position is rated to the same building wind zone
The wind zone loading is the part of a shutter window that a standard window specification does not cover, because a standard window has no large moving area exposed to the wind in its open position. The shutter is rated to the building wind zone in both the open and the closed position, and that rating is what makes the blade section and the supports the size they are.
4. Closed Position — Sealing for Weather and Security
The closed position is where the shutter earns its performance, and it must seal for weather and for security:
- Blade-to-blade seal: the blades seal against one another in the closed position, and the edge detail is what closes the gaps between them
- Perimeter seal: the shutter seals to the frame on all four sides, and the guide channels and the bottom rail carry the perimeter seal
- Weather performance: the closed shutter is rated for the weather exposure, with the blade and perimeter seals keeping the driving rain out
- Security performance: the closed shutter is rated for intrusion resistance, with the blade section and the bottom rail lock set to the required resistance class
- Bottom rail lock: the bottom rail carries a lock that secures the closed shutter, and the lock is the intrusion path the resistance class is measured against
- Insulation: the closed shutter reduces the heat transfer through the opening, and the thermal break in the blade and the frame keeps the interior reveal above dew point
The closed position is the state the shutter is specified for when it is doing its protective job, and the performance is the sum of the blade-to-blade seal, the perimeter seal and the bottom rail lock. Get any one of those wrong and the closed position does not deliver the weather or the security it is rated for.
5. Drive System — Manual and Motorized Operation
The shutter is driven to move the blades, and the drive is sized to the shutter area and the wind load:
- Manual drive: a chain or a crank turns the blades by hand, and is the standard for smaller shutters where the area is manageable to move
- Motorized drive: a 24 V DC motor turns the blades, and is the standard for larger shutters or where the shutter is controlled by a building system
- Drive sizing: the drive is sized to the shutter area and the wind load it must move the blades against, with a margin for the gust and for the end of the blade life
- Position feedback: the drive reports the blade position, so a building system knows whether the shutter is open, closed or moving
- Fail-safe: the drive holds the blades in a power failure, and a manual override moves the blades by hand where egress or service requires it
- Replaceability: the drive is chosen so it can be swapped without dismantling the shutter when it reaches the end of its service life
The drive is sized from the shutter area and the wind load, not from a standard rating, and the motorized version reports its position so a building system can rely on it. The drive is a component of the shutter specification, matched to the area and the load it must move.
6. Drainage and Water Management at the Blade
The shutter admits water between the blades in the open position, and the water must be managed rather than stored:
- Blade drainage: water that lands on the blades is drained through the blade section to the guide channel, so it does not pool on the blade face
- Guide channel weeps: the guide channels carry weeps that drain the water to the exterior, so the water is routed out before it reaches the frame
- Bottom rail drainage: the bottom rail carries a drainage path for the water that reaches the base, so the water does not collect at the sill
- Closed-position seal: the closed shutter seals against the driving rain, and the blade and perimeter seals are the water test the shutter is rated to
- Coastal exposure: for a coastal site the blade and the guide channel are detailed for the salt exposure, with SS316 at the hardware where the salt is present
The drainage is the part of a shutter that keeps the water out of the building, and it is detailed at the blade, the guide channel and the bottom rail, so the water that the shutter admits in the open position is routed out and not stored in the frame.
7. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Blade / frame walls | Manufacturer spec | blade section to wind zone |
| Thermal break | PA66GF25 | 24 / 34 mm |
| Wind zone | Building wind zone | rated in open and closed |
| Security | EN 1627 | closed position, RC class |
| Glazing | EN 12600 | double or triple Low-E |
| Structural performance | ASTM E330 | tested to design pressure |
| Drive | SELV per IEC 60364 | manual or 24 V DC motor |
| Hardware | SS304 / SS316 | SS316 for coastal |
8. System Comparison — Louver Shutter vs Roller Shutter vs Venetian
| Criterion | Louver Shutter | Roller Shutter | Venetian (Interior) |
|---|---|---|---|
| Location | exterior, on the window | exterior, rolls down | interior, on the room side |
| Operation | blades rotate open and closed | panel rolls up and down | slats rotate, on the inside |
| Ventilation | yes, blades open for airflow | no, panel is solid | no, on the inside |
| Weather protection | closed blades seal the opening | panel covers the opening | none, interior only |
| Security | closed position rated | panel rated, strong | minimal |
| Relative cost | premium | premium | moderate |
9. Technical FAQ
Q: Why is a shutter rated to the building wind zone and not the window class?
A: Because the open blades present a large moving area to the wind in a position a standard window does not have, so the shutter is a moving skin on the envelope loaded by the building wind zone, not just by the window pressure class. The blade section and its supports are sized to that wind zone in the open position, and the closed shutter is rated to the same zone as a flat skin, which is why the blade is the size it is.
Q: What determines the shutter’s security rating?
A: The closed position, and specifically the blade section, the blade-to-blade seal and the bottom rail lock. The intrusion resistance is measured against the closed shutter, and the bottom rail lock is the path the resistance class is measured against, so the lock and the blade section together set the class. An open shutter has no security rating, which is why the closed position is the state the shutter is specified for when it is doing its protective job.
Q: How is the shutter drive sized?
A: From the shutter area and the wind load it must move the blades against, with a margin for the gust and for the end of the blade life. A manual drive is the standard for smaller shutters and a 24 V DC motor is the standard for larger shutters or where the shutter is controlled by a building system, and the motorized version reports its position so the system can rely on it. The drive is a component of the shutter specification, matched to the area and the load it must move.
Q: How is water kept out of a shutter in the open position?
A: The shutter admits water between the blades in the open position, and the water is managed at three points, the blade, the guide channel and the bottom rail. Water that lands on the blades is drained through the blade section to the guide channel, the guide channels carry weeps to the exterior, and the bottom rail carries a drainage path for the water at the base, so the water is routed out and not stored in the frame. The closed position is a separate weather test, where the blade and perimeter seals keep the driving rain out.
10. China Market Position — Why Richocean
Richocean manufactures shutter windows in Foshan with automated extrusion, CNC fabrication and in-house anodizing and coating lines, exporting to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation, blade and wind zone coordination and drive integration guidance supplied per project.
11. Illustrative Project Applications

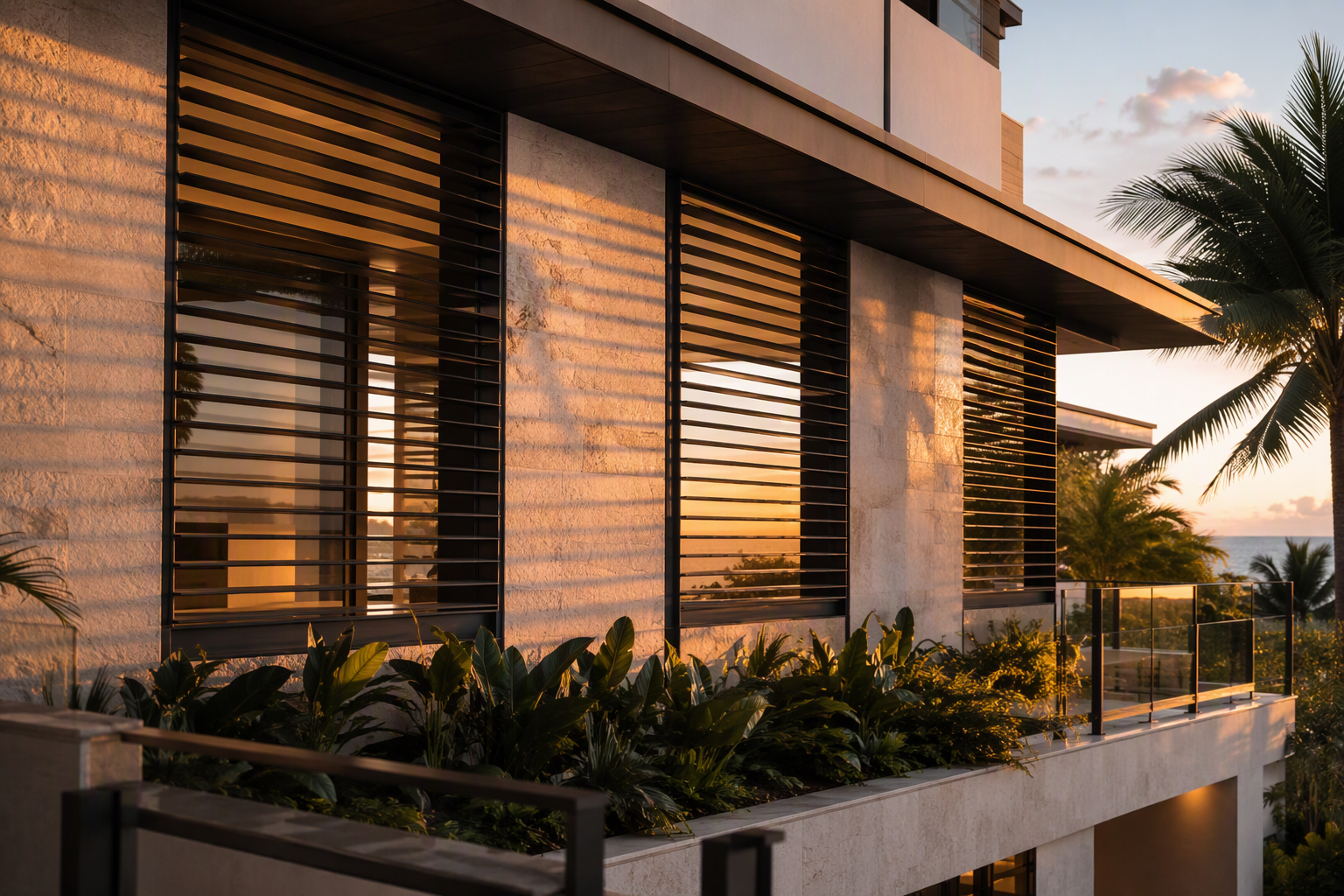

Example A — Coastal Residence Shutter (Illustrative)
Louver shutter windows with blades rated to the coastal wind zone, guide channels with weeps, a bottom rail lock to the security class and a 24 V DC motorized drive with position feedback, closing for the storm and opening for the night ventilation, in a salt-exposed coastal setting. Illustrative configuration; not a quoted project.
Example B — Office Shutter Facade (Illustrative)
Louver shutter windows with blade geometry set to the shading and the ventilation, a closed position rated to the intrusion class, and a building-system-integrated drive reporting the blade position across a full facade, closing for security after hours and opening for the occupied ventilation. Illustrative configuration; not a quoted project.
12. Price Factors — What Drives Cost
Shutter windows are usually quoted per unit, and the rate rises with the blade size, the wind zone and the drive. Cost drivers include:
- Blade size and section: the blade section set to the wind zone, with a deeper or stronger section costing more
- Wind zone: the building wind zone at the shutter location, which sets the blade and the support rating
- Security class: the closed-position intrusion rating, with the blade section and the bottom rail lock set to the class
- Drive: manual versus a 24 V DC motor, and the position feedback a building system needs
- Glazing build: double versus triple glazed, laminated panes and coatings
- Drainage detail: the blade, the guide channel and the bottom rail drainage, detailed for the exposure
- Finish and exposure: powder coat, anodized or PVDF, with C5-M and SS316 for coastal sites
13. Installation, Commissioning & Maintenance
- Setting out: the opening checked for square and level, because a racked shutter binds the blades and the drive never sees a clean position
- Guide channel alignment: the guide channels set plumb so the blades rotate freely and seal in the closed position
- Blade installation: the blades set to their overlap and angle, with the pitch confirmed so the blades do not collide when they rotate
- Bottom rail lock: the bottom rail lock set and the closed position confirmed to the security class
- Drive and wiring: the manual drive or the 24 V DC motor checked, with the position feedback confirmed to the building system
- Drainage check: the blade weeps and the guide channel weeps confirmed open and water tested before handover
- Maintenance: periodic inspection of the blade geometry, the seals, the bottom rail lock and the drive, with the blades checked for deflection across the wind zone
Handover should record the system series, the blade section and the wind zone rating, the security class and the bottom rail lock, the drive and the position feedback, and the maintenance interval for the blades and the seals.
14. 360° Service & Founder Philosophy
Richocean’s 360 service covers schedule review and shop drawings, blade geometry and wind zone checks, security class and bottom rail lock coordination, drive sizing and integration, drainage detail and installation guidance, and warranty terms on profiles, glazing, blades, drive and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every blade, seal and lock must hold for the life of the building, because a shutter window is only as good as its closed position.
15. Conclusion
The Shutter Windows Manufacturer China Foshan Factory Price Aluminum Louver Blade Wind Security advantage is total — 6063-T6 thermally broken frames, louver blades rated to the building wind zone in both states, a closed position that seals for weather and security, manual or 24 V DC motorized drives, and coastal-grade finishes, delivered directly from Richocean’s Foshan factory. Send your drawings with the opening sizes and the building wind zone for a project-specific quotation.
