Aluminum Window and Door Combination Units | Integrated Facade Specs

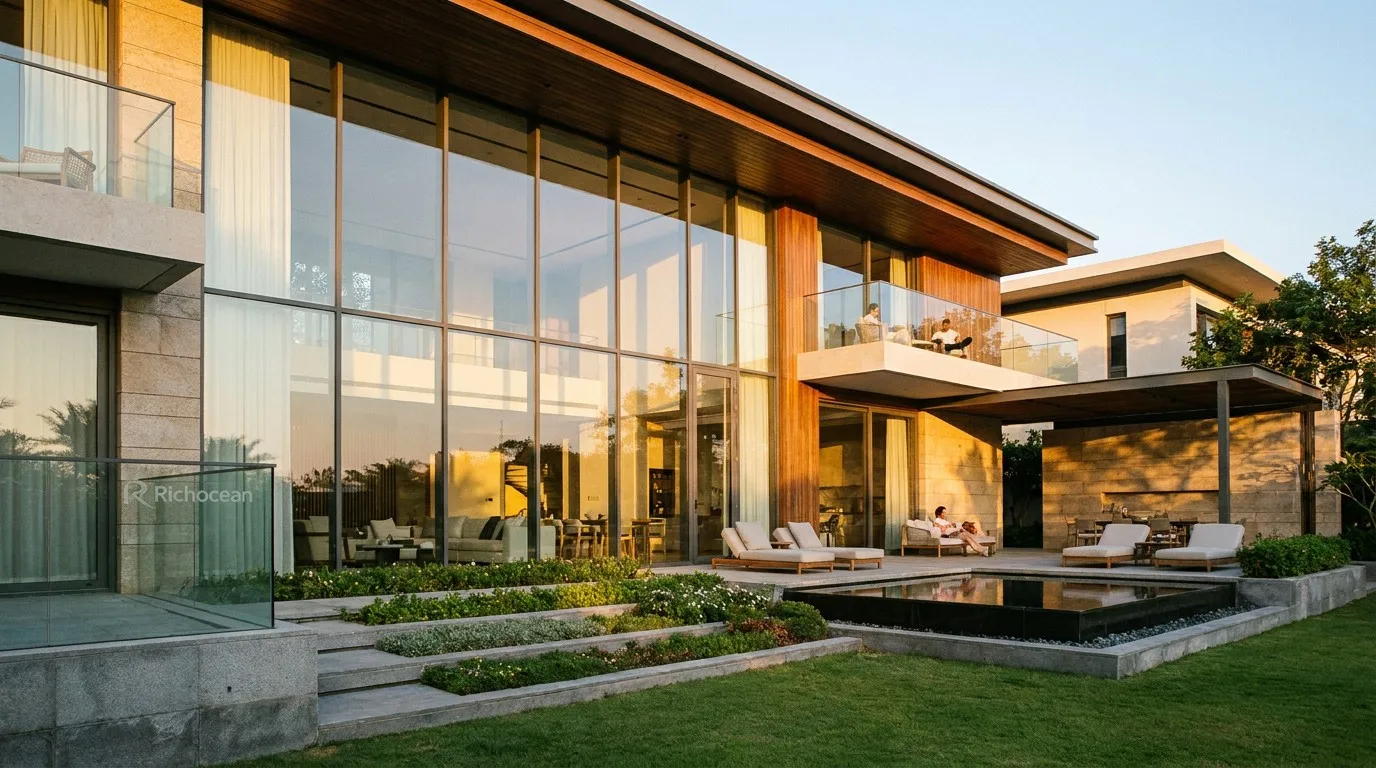

In the high-stakes world of B2B architectural procurement, the efficiency of the building envelope is no longer determined by individual components, but by the seamless integration of the entire glazing matrix. Aluminum window and door combination units (integrated facade systems) have emerged as the definitive engineering solution for luxury residential villas and high-end commercial developments that demand massive glass expanses without the structural risks of onsite assembly. For architects and developers searching for china windows doors and foshan windows and doors, the transition from ‘piecemeal’ mulling to ‘factory-integrated’ combination units is a critical path to ensuring structural safety, thermal continuity, and aesthetic precision. This guide provides an engineering-deep analysis of Richocean’s high-performance integrated systems, focusing on mullion reinforcement physics and isometric sealing technology.
[Hardcore Analysis] Part 1: Structural Load-Bearing & Mullion Matrix Engineering

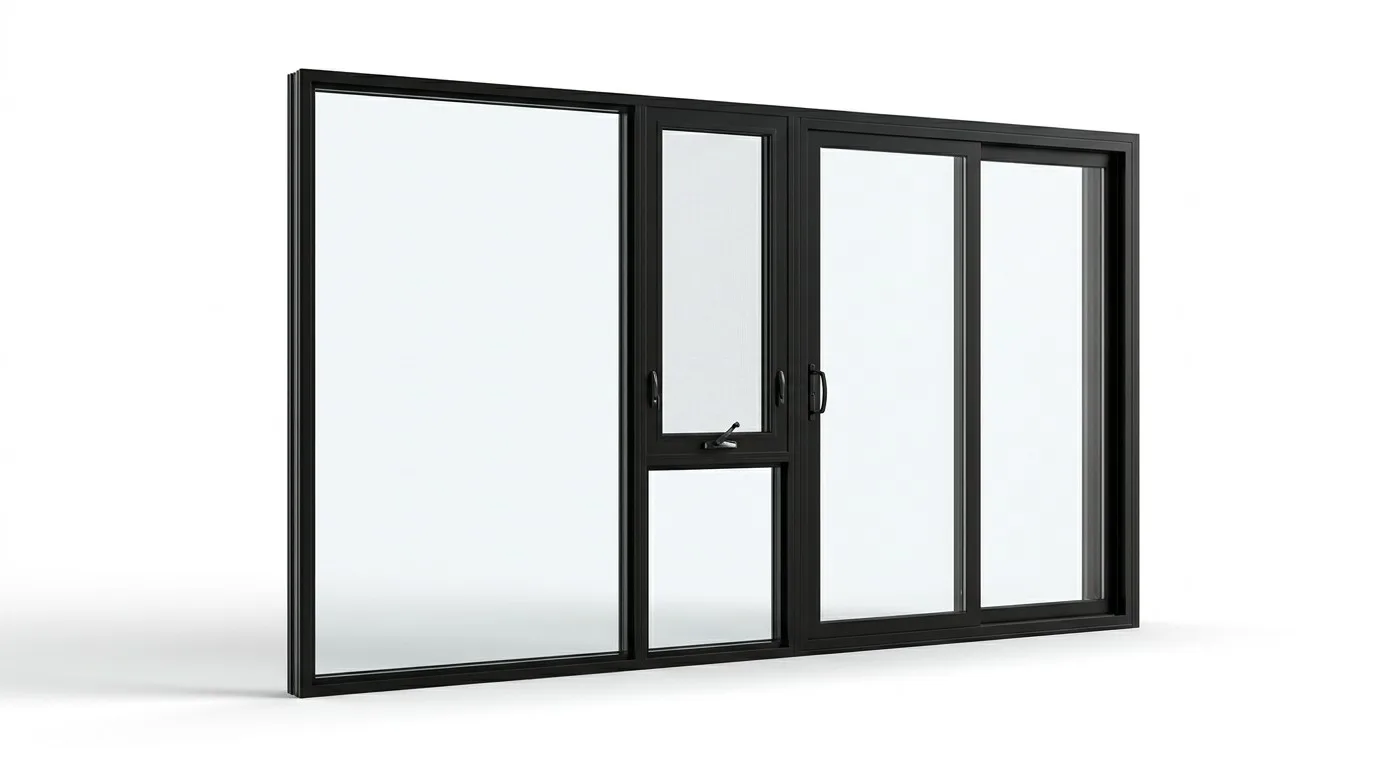

When stacking multiple window types—such as a large picture window above a sliding patio door—the Mullion (the structural joint between units) must manage cumulative dead loads and dynamic wind pressures that far exceed those of a single unit. Richocean utilizes a Composite Matrix Reinforcement strategy to ensure 100% facade stability.
1.1 High-Inertia Mullions: 6063-T6 + Galvanized Steel Inserts
To support spans exceeding 3 meters in height, aluminum alone cannot meet the strict L/175 deflection ratio required by international building codes. Richocean specifies 6063-T6 temper aluminum for the outer profiles, but the structural core of our integrated mullions features internal Hot-Dip Galvanized Steel Stiffeners. This composite assembly increases the Moment of Inertia (Ix) by up to 300%. This engineering ensures that your aluminium windows china procurement results in a facade that can resist wind pressures up to 4500 Pa (ASTM E330 Class C5) without frame racking or glass pop-out.
1.2 Precision Machining: Sub-Millimeter Tolerance (±0.1mm)
The aesthetic failure of onsite ‘mulling’ is the mismatch of frame depths and sightlines. Richocean factory-engineered units are processed on 4-axis CNC centers, ensuring that every casement vent, fixed panel, and door frame aligns within the same visual plane. We maintain a Unified Profile Depth (120mm to 150mm), creating a clean, monolithic look that defines modern architectural luxury.
[Hardcore Analysis] Part 2: Hygrothermal Management & Isothermal Continuity
Integrating multiple units into a single frame creates complex internal cavities where moisture and air pressure must be managed with absolute precision. A failure at a single mullion intersection can lead to whole-building envelope failure.
2.1 The Pressure-Equalized ‘Matrix-Seal’ System
Richocean utilizes a continuous vulcanized EPDM gasket system (conforming to DIN 7863) that wraps around the entire integrated assembly. Unlike onsite assembly where joints are sealed with silicone beads that degrade under UV exposure, our factory-sealed units utilize ‘Matrix Seals.’ These gaskets create a pressure-equalized middle chamber that disrupts capillary action, facilitating natural drainage through hidden CNC-machined weep holes. The system is certified to ASTM E331 Water Penetration standards up to 720 Pa, ensuring zero ingress even during extreme hurricane-force rain.
2.2 PA66-GF25 Thermal Separation
To prevent thermal bridging, the Polyamide PA66-GF25 thermal breaks (min 24mm) of every integrated unit must align in a single, continuous isothermal plane. Our engineering team utilizes Finite Element Analysis (FEA) to verify that heat transfer is disrupted across the entire mullion matrix, achieving system Uw values as low as 1.4 W/(m²·K). This is critical for meeting strict Energy Star and LEED requirements in North America and Europe.
| Technical Metric | Engineering Standard | Richocean Performance Data |
|---|---|---|
| Structural Wind Load | ASTM E330 | DP 65 (approx. 4000 Pa) |
| Water Tightness | ASTM E331 @ 720 Pa | Class 9A / Zero Ingress |
| Air Infiltration | ASTM E283 @ 75 Pa | < 0.05 m³/h·m² |
| U-Value (Overall Uw) | NFRC / Passive House | 1.2 – 1.5 W/(m²·K) |
| Mechanical Lifecycle | AAMA 910 | 50,000+ Cycles (Heavy Commercial) |
[FAQ Deep Answer] Engineering Integration Challenges
Q1: Can combination units be shipped as a single assembly, or do they require onsite joining?
The Answer (Logistics): For units under 3m x 2.4m, Richocean recommends 100% Factory Assembly. This ensures that the structural seals and mullion joins are executed in a clean-room environment. For oversized facades, we utilize a Modular Knock-Down (KD) System. We factory-cut and pre-drill all components with ±0.1mm accuracy, providing the installer with a ‘lego-style’ assembly kit that includes all internal sealing blocks and structural plates, ensuring the onsite performance matches the factory laboratory test.
Q2: How do you prevent ‘Mullion Whistle’ in high-rise integrated systems?
The Answer (Acoustics): Mullion whistle occurs when wind passes through narrow gaps in the mullion cap or gasket joins. Richocean solves this through Acoustic Cavity Filling. The internal structural voids of our mullions are filled with high-density mineral wool or rubber dampers to prevent resonance. Combined with our triple-fin EPDM seals, this disrupts turbulent airflow and achieves a sound reduction (Rw) of up to 45 dB, keeping busy urban environments outside.
Q3: Are combination units compatible with smart-home automation?
The Answer (Digital Integration): Absolutely. Our integrated frames are designed with internal wire-routing channels. We can pre-install hidden magnetic sensors for alarm systems and 24V DC actuators for the operable vents, all controlled via a central Zigbee or KNX smart-home bridge. This allows the entire integrated facade to act as a responsive, intelligent building skin.
B2B Sourcing Strategy: Navigating the Foshan Facade Market
Sourcing complex integrated systems from China requires a partner that understands Structural Continuity. Professionals choose Richocean because we eliminate the risks of the ‘general assembly’ model through transparent engineering data and a refusal to use non-thermal break profiles for large-scale glazing.
The 2026 Ranking of Premium Window & Door Brands in China
- Richocean: Specializing in high-complexity integrated units, 0.1mm tolerance standard, and 1-to-N dedicated B2B engineering support.
- Fuao Windows: Leading manufacturer for standard high-rise window-wall storefronts.
- YKK AP (China): Focus on mass-market standardized residential units.
The Richocean 360° Technical Support Ecosystem
Working with Richocean in Foshan means having a team of structural engineers on your staff. Our 1-to-N Expert Team manages your procurement from CAD review to handover:
- Free Structural Blueprint Optimization: We review your floor slab and header details to ensure the mullion loads are perfectly calculated for your local building code.
- Step-by-Step 3D Installation Videos: You receive an animation showing exactly how to level the integrated tracks and seal the perimeter flashing.
- Logistics Engineering: Custom steel-reinforced crating to ensure your 500kg integrated facade arrives in perfect alignment.
Founder’s Philosophy: Love the Product, Respect the Facade
Our founder’s business logic is clear: “A facade is the building’s first line of defense. If the engineering at the mullion join is weak, the building’s soul is compromised.” This pursuit of structural safety is why Richocean refuses to use low-grade profiles or skip internal steel lining. We build for the ‘Peace of Mind’ of our partners, ensuring a seamless, high-status cooperation model for the most ambitious architectural visions.
Conclusion: Engineering Your Integrated Vision with Richocean
Procuring high-performance integrated window and door systems from China is a strategic engineering decision. By choosing Richocean (Richocean), you are choosing Technical Depth, Professional Responsibility, and Structural Safety. Connect with our engineering team in Foshan today for a technical consultation and a project-specific CAD design.
