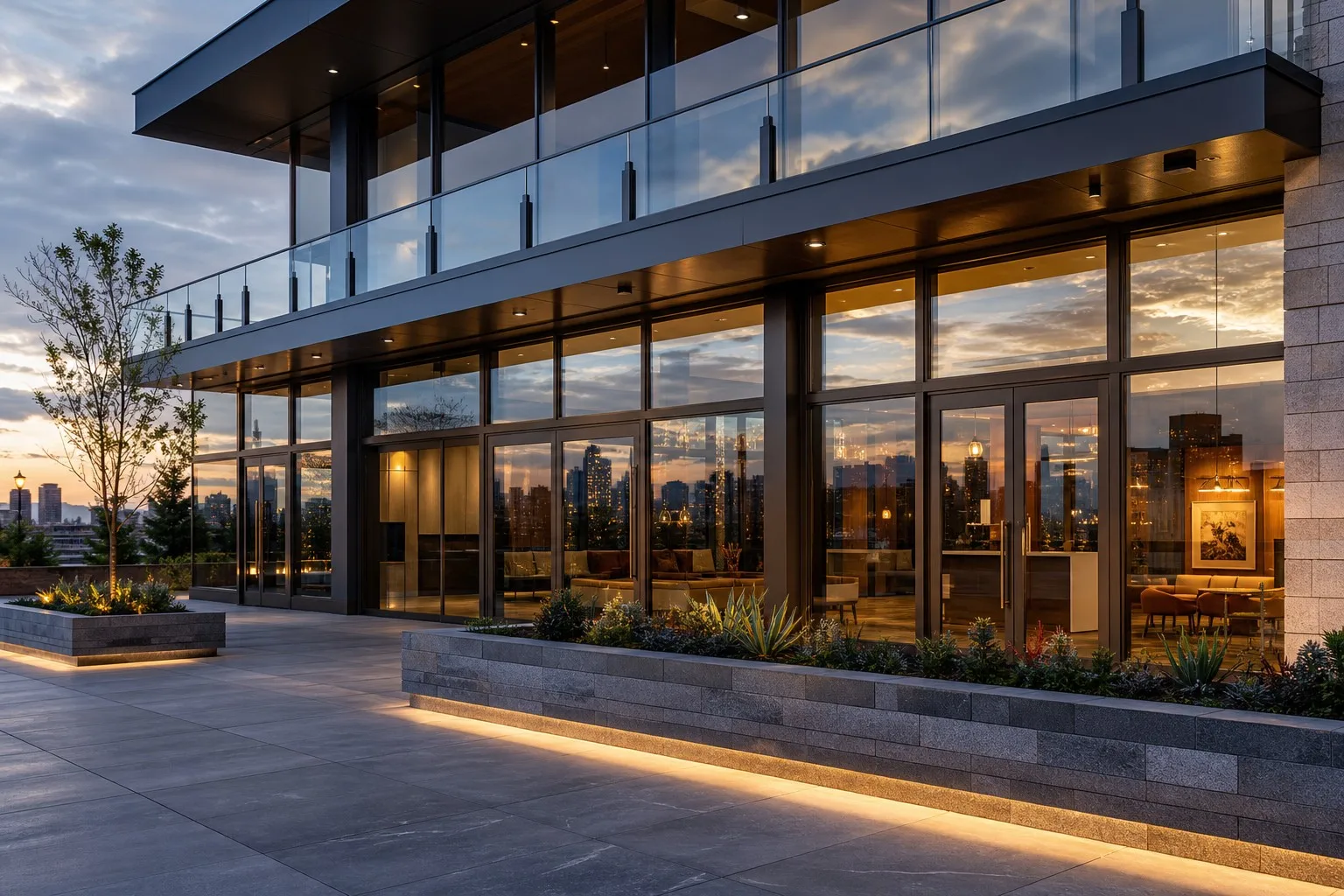

1. System Overview — The Integrated Facade
The Aluminum Combination Window & Door system fuses fixed windows, operable windows, and doors into one continuous architectural facade. Where stand-alone products meet, the joint is the weak point; an integrated system eliminates those weak points through precision jointing, reinforced mullions, and a single sealed envelope. As a premier manufacturer in China, Richocean engineers combination systems that deliver a curtain-wall aesthetic with residential functionality at factory-direct prices.
2. Core Material Science — 6063-T6 Frame Metallurgy
In a combination facade, fixed picture windows merge with active sliding or casement doors, so the frame must manage static glass loads and dynamic wind loads simultaneously. Richocean specifies 6063-T6 aluminum alloy.
Multi-cavity profiles provide the stiffness for large spans without visual bulk, while housing thermal breaks and drainage paths. Deflection under ASTM E330 design load is held to less than L/175.
3. Precision Jointing — The Weak-Point Eliminator
Where stand-alone windows fail is where they meet another component. Richocean employs dual-joint precision jointing:
- 45° miter bonding: structural two-part epoxy injected through CNC-machined ports
- SS304 corner cleats: hammered and locked to hold frames square under pressure
- Hidden fasteners: uninterrupted exterior sightline
4. Reinforced Mullions — The Hidden Backbone
For a seamless glass wall, mullions bear the structural load. Richocean employs reinforced mullions — hollow aluminum profiles sleeved over galvanized steel tube cores:
| Benefit | Engineering Detail |
|---|---|
| Flexural rigidity | Steel core + aluminum corrosion/thermal performance |
| Aesthetic | Allows larger spans or reduced profile width |
| FEA verified | Deflection within L/175, no structural fatigue |
5. EPDM Multi-Stage Sealing
Air and water infiltration are catastrophic in high-end construction. Richocean shields the interior with a three-stage EPDM sealing matrix:
- Stage 1 — outer labyrinth: pressure-equalization chamber against driving rain
- Stage 2 — central seal: isothermal barrier at the thermal-break line
- Stage 3 — inner seal: airtight barrier for energy and acoustic performance
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.10 cfm/ft² at 1.57 psf |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural | ASTM E330 | 4500 Pa design |
| Thermal Break | PA66GF25 | U-value as low as 1.4 W/(m²·K) |
| Acoustic | STC | up to 45 dB |
7. Technical FAQ
Q: How is large-span safety ensured in commercial facades?
A: Finite Element Analysis (FEA) is run for every project; the reinforced mullion system keeps deflection within 1/175 of span under extreme wind loads.
Q: How are waterproof joints maintained over time?
A: Continuous-density EPDM with vulcanized corners plus structural silicone glazing rated for 25 years; a redundant internal condensation gutter provides backup.
Q: How is soundproof performance optimized in urban sites?
A: Asymmetric laminated Low-E glass (6mm+8mm) breaks the coincidence frequency, improving soundproofing without significant added weight.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for integrated combination systems, bridging mass production and bespoke engineering. Vertical integration — from billet casting to final facade assembly — delivers factory prices 30–40 percent below competitors requiring third-party subcontracting.
9. Illustrative Project Applications
Example A — Commercial High-Rise Facade (Illustrative)
3.0m floor-to-ceiling combination systems with SentryGlas interlayers adjacent to a highway; achieved STC 42 with zero leak callbacks. Illustrative example values.
Example B — Luxury Residential Villa (Illustrative)
A 15m glass wall combining four fixed windows and two sliding doors with a flush track-to-wall connection; ADA-compliant 5mm threshold. Illustrative example values.
10. Price Analysis
- System complexity: more integration points require specialized adapters — the primary cost driver
- Oversized glass: panes over 3m require tempered runs and heavy-lift logistics — +15–30%
- Custom nodes: bespoke corner profiles add one-time mold fees (~$1,200/profile) amortized over volume
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers structural consultation, U-value simulation, real-time video updates from the factory floor, and a 10-year structural warranty. The founder’s philosophy — Engineering First, Design Always — holds that a facade is more than a barrier; it is the interface through which architecture breathes. Vertical control of every value chain step ensures that integrity.
12. Conclusion
The Aluminum Combination Window & Door system is the future of facade integration. With 6063-T6 precision jointing, reinforced mullions, EPDM multi-sealing, and Low-E soundproof glass, Richocean delivers this engineering from China at factory-direct prices — the definitive choice for seamless integrated facades.
