1. System Overview — One Opening, Several Window Types, One Performance Target
A combination window and door unit is what happens when a single architectural opening has to do more than one job: a fixed pane for the view, an opening leaf for ventilation, a door leaf for access, and sometimes a transom or a spandrel for proportions — all inside one frame line. Richocean fabricates these units on CNC lines in Foshan, mullion-linked from 6063-T6 extrusions with thermally broken frames, and delivers them as a single tested assembly rather than a set of separate products.
The engineering interest is in the coupling. A fixed pane and an opening leaf behave differently under wind load; a door at the bottom of a tall unit adds a hinge line; and every mullion between them is a structural member that also has to be thermally broken, drained and sealed. Designing these as separate products and bolting them together on site is how performance gets lost.
2. Core Material Science — 6063-T6 Sections and Mullion Reinforcement
In a combined unit the mullion carries load from the panes above and beside it, so the section design is governed by the largest span, not the smallest. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, frame wall thickness of 1.8–2.5 mm with heavier sections or steel reinforcement at structural mullions, and CNC machining held to 0.1 mm so the corners, drainage slots and hardware pockets of different elements align as one frame.
The usual failure mode in combined units is a mullion specified for the pane next to it rather than for the pane above it, which shows up as deflection or as glass stress under design wind pressure.
3. Combination Types and Where Each Is Used
Combinations follow from the architectural brief, and each type carries a different engineering consequence:
- Fixed plus opening window: the most common pairing, giving daylight with a ventilating leaf in one frame line
- Door plus side light or transom: a door leaf with fixed glazing beyond or above it, forming a facade element
- Sliding door plus fixed panel: a wide opening with a permanently glazed section, common on terraces and balconies
- Tilt and turn above fixed glazing: ventilation high in the room with uninterrupted low-level glass
- Corner or angled coupling: two units joined at an angle with a purpose-made corner post
- Stacked combinations: vertically coupled units across a double-height space, which concentrates load in the lower frame
- Curtain-wall-like runs: repeated coupled units forming a glazed facade with internal mullions
As the combination becomes more like a facade, the structural review moves from “window” to “mullion design”, and the drainage path has to be planned across the coupling rather than within one product.
4. Structural Engineering — Load Transfer Across the Coupling
This is the part of combined units that most often goes unexamined, because each product passes on its own but the assembly does not:
- Mullion spans: horizontal and vertical mullions designed for the tributary area they actually support
- Deflection limits: checked so glass stress and gasket compression stay within limits at design pressure
- Coupling joints: mechanical connection between units detailed so load transfers through the frame, not through sealant
- Differential movement: allowance for thermal movement between a large fixed pane and a smaller opening leaf
- Sill and head conditions: loads transferred to structure at the correct points, not distributed arbitrarily
- Door leaf loads: hinge and lock forces from a door element carried into the coupled frame
- Reinforcement: steel or heavier aluminium inserts where a mullion’s section is insufficient
Where a door sits beside a large fixed pane, the door’s operating loads are added to everything the mullion already carries — which is why the coupling detail is drawn rather than improvised.
5. Drainage, Thermal Continuity and Weather Performance
Water and heat both try to cross the coupling, so both paths are designed:
- Continuous drainage: rebates and channels aligned across coupled units so water reaches a designed outlet
- Compartmentalisation: drainage sections separated so pressure equalisation works within each unit
- Thermal continuity: the polyamide break carried through mullions and coupling posts, not interrupted at the joint
- Sealing: continuous EPDM gaskets, with wet seals only where the design requires a secondary line
- Air and water: tested to ASTM E283 and ASTM E547 at the project’s design pressure
- Structural performance: tested to ASTM E330 for the assembly, not per component
- Frame U-values: reported to NFRC 100, with whole-assembly values agreed per project
The thermal break is the detail most commonly interrupted at a coupling: an unbroken aluminium path at the joint becomes both a condensation risk and a heat path that undermines otherwise good glazing.
6. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Frame wall thickness | Manufacturer spec | 1.8–2.5 mm |
| Thermal break | PA66GF25 | 24 / 34 mm |
| Frame U-value | NFRC 100 | 1.8–2.6 W/m2K |
| Glazing | Double / triple Low-E | sized per pane and span |
| Glass deflection | ASTM E1300 basis | verified per pane |
| Structural performance | ASTM E330 | tested as an assembly |
| Water Resistance | ASTM E547 | tested per project spec |
| Air Leakage | ASTM E283 | tested per project spec |
| Fabrication tolerance | CNC process | 0.1 mm |
7. Configuration Comparison — Separate Units vs Coupled Frame vs Facade System
| Criterion | Separate Units | Coupled Frame Unit | Facade System |
|---|---|---|---|
| Sightlines | double frame lines at the joint | single mullion, clean junction | designed grid, most controlled |
| Performance testing | per product | as one coupled assembly | as a facade mock-up |
| Thermal break continuity | interrupted at the joint | carried through the mullion | continuous grid design |
| Site work | two installs, joint sealed on site | one install, factory joint | unitised or stick install |
| Relative cost | lowest | moderate | highest |
8. Technical FAQ
Q: Can a window and a door be supplied as one factory-made unit?
A: Yes, and it is usually the better option. Coupling in the factory lets the mullion, thermal break, drainage path and seals be built as one frame, whereas joining two separate units on site leaves the joint to be sealed in weather with no continuous drainage or break through it.
Q: How is the mullion between a fixed pane and an opening leaf sized?
A: By tributary area, not by the smaller adjacent product. The mullion receives load from the panes beside it and above it, and where a door is part of the unit it also receives the door’s hinge and lock forces, so the section — and any reinforcement — is derived from the largest span it supports.
Q: Does a combined unit need to be tested as a whole?
A: For a project that specifies performance at the assembly level, yes. Each product can pass individually and the coupled assembly still fail, because the joint is where drainage, thermal break and load transfer are most easily interrupted — so structural, water and air performance is assessed on the coupled unit as installed.
Q: Which combination suits a large living space with a terrace?
A: Typically a sliding or lift-and-slide door coupled with a fixed glazed panel, sometimes with a fixed transom above. It gives a wide clear opening for access and a permanently glazed section for the view, with the mullion designed for the fixed panel’s tributary area.
9. China Market Position — Why Richocean

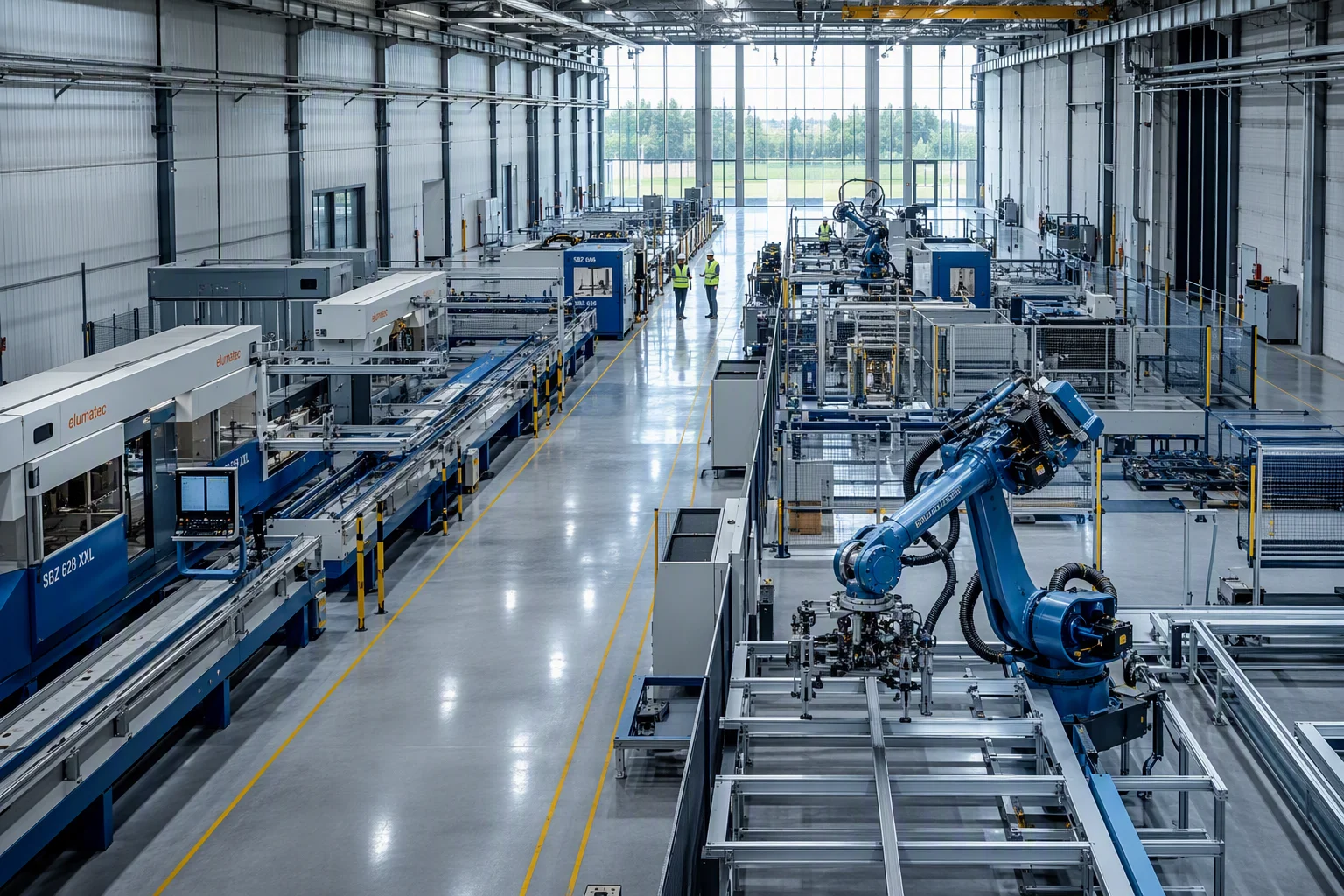

Richocean manufactures combination window and door units in Foshan on automated extrusion and CNC fabrication lines, with in-house glazing, hardware assembly and coupling fabrication, exporting to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation and installation guidance supplied per project.
10. Illustrative Project Applications
Example A — Penthouse Terrace Elevation (Illustrative)
A coupled unit combining a lift-and-slide door with a fixed glazed panel and a fixed transom above, with the mullion designed for the fixed panel’s tributary area and the drainage path continuous across the coupling. Illustrative configuration; not a quoted project.
Example B — Hotel Guest Room Facade (Illustrative)
Repeated coupled units forming a facade run, each combining a fixed pane with a tilt-and-turn leaf and a spandrel panel, fabricated to a single grid so that mullion lines align across rooms. Illustrative configuration; not a quoted project.
11. Price Factors — What Drives Cost
Combined units are quoted per opening because the coupling, glazing mix and hardware dominate cost. Cost drivers include:
- Combination type: fixed with opening window, door with side light, or sliding with fixed panel
- Unit size and mullion spans: larger tributary areas require heavier sections or reinforcement
- Glazing mix: different panes in one unit may need different thicknesses and builds
- Opening hardware: hinge, lock and handle classes, and door elements within the unit
- Thermal specification: break depth and whole-assembly U-value target
- Testing scope: assembly-level structural, water and air testing for large projects
- Geometry: corner couplings, angled units, raked heads and bespoke posts
- Finish and exposure: powder coat or anodized, with C5-M grade for coastal sites
12. Installation, Commissioning & Maintenance
Because a coupled unit arrives as one frame, installation discipline shifts to the setting-out and the interfaces:
- Opening survey: structural opening and diagonals checked against the fabrication drawing before delivery
- Handling: large coupled frames braced and lifted on the frame, not on a mullion or a glass edge
- Setting: packers positioned under mullions and at load-bearing points, not only at corners
- Anchoring: fixings to the structural detail, with the frame’s movement allowance preserved
- Sealing: backer rod and sealant at the perimeter, with drainage outlets left clear
- Commissioning: each opening leaf and door adjusted for gasket compression, latch alignment and smooth operation
- Maintenance: periodic checks of drainage slots, gaskets, hardware and sealant at the coupling
Handover should record the fabrication tolerances, the glazing build per pane, the hardware used on each leaf and the maintenance interval for drainage and gaskets.
13. 360° Service & Founder Philosophy
Richocean’s 360 service covers opening surveys and shop drawings, mullion and glazing engineering, coupling and drainage detailing, hardware and finish selection, installation video guidance, and warranty terms on profiles, glazing and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every mullion, gasket and coupling must satisfy the strictest global standards.
14. Conclusion
The Combination Window And Door Manufacturer China Factory Price Aluminum Thermal Break Fixed Opening advantage is total — 6063-T6 frames with reinforced mullions, thermally broken and continuously drained coupling details, glazing sized per pane and CNC fabrication to 0.1 mm, delivered directly from Richocean’s Foshan factory. Send your elevations with opening sizes and frame line details for a project-specific quotation.
