Picture Windows Manufacturer China Factory Price Fixed Frame Large Panes
1. System Overview — Maximum Glass, Minimum Frame
The Picture Windows Manufacturer China Factory Price Fixed Frame Large Panes benchmark — Richocean’s picture windows are non-operating assemblies engineered to hold large glass panes in the narrowest practical frame, maximising daylight and view while removing the leakage paths and hardware wear of opening sashes. As a Foshan factory, Richocean engineers fixed frames in 6063-T6 alloy with reinforced sections at factory-direct pricing.
2. Core Material Science — 6063-T6 Fixed Frames
Because a fixed frame has no sash to distribute load, the frame and glass work as one structural unit. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with wall thickness of 2.0–3.0 mm and steel reinforcement once a pane spans beyond standard limits. Corner joints are CNC-cut and crimped to 0.1 mm accuracy.
Where a picture window sits in a facade with mullions, Richocean details reinforced mullions so each pane bay behaves independently under wind load.
3. Glazing Specification — Where Glass Becomes Structure
In a fixed window the glass itself carries a large share of the load, so thickness is sized by span and pressure rather than chosen by appearance:
- Thickness: sized to span and design pressure, commonly 8–12 mm monolithic
- Laminated / SGP: used where post-break integrity or overhead glazing is required
- Insulating units: Low-E double glazed typical; triple glazed for cold climates
- Slim sightlines: achieved by detailing glass edge cover and rebate depth
- Acoustics: asymmetric laminated builds improve STC performance
Deflection is the governing check for large panes, and is verified against recognised glass design practice such as ASTM E1300 as part of the shop drawing review.
4. Hardware Engineering — Fewer Parts, Fewer Failure Points
A fixed window removes operator hardware entirely, which is why it is often paired with opening units in the same elevation:
- No hinges or locks: removes wear items and leakage paths
- Setting blocks: positioned per glazing practice to carry pane weight
- Pressure plates / glazing beads: mechanically fixed with EPDM gaskets
- Paired with operating units: casement or tilt-turn sashes for ventilation
In practice, designers combine a large fixed picture pane for the view with a smaller opening sash alongside it for air, giving both performance and usability.
5. Weather Performance — Sealing a Single Perimeter
With no moving sash, the entire weather defence is a single continuous perimeter seal:
- Drainage: sill channel with covered weep outlets
- Seals: continuous EPDM gaskets at glass and frame perimeter
- Rated performance: water and air testing to ASTM E547 / E283
- Wind stability: engineered to project-specific design pressure (ASTM E330)
6. Performance Specification Table
| Parameter | Standard | Typical Value |
|---|---|---|
| Frame U-value (thermal break) | NFRC 100 | 1.8–2.6 W/m²K |
| Glass deflection | ASTM E1300 | sized to span and pressure |
| Structural | ASTM E330 | engineered to design pressure |
| Water Resistance | ASTM E547 | tested per project spec |
| Air Leakage | ASTM E283 | tested per project spec |
| Sightline Width | Manufacturer spec | minimised by design |
7. Technical FAQ
Q: Why choose a fixed picture window instead of an opening one?
A: A fixed unit removes hinges, locks, and sash seals — the main wear and leakage points — and allows far narrower sightlines, so it delivers more glass and better weather performance per opening. It is normally paired with a separate opening sash for ventilation.
Q: How large can a single picture pane be?
A: Pane size is governed by thickness, wind pressure, and the acceptable deflection limit rather than by a fixed maximum. Larger spans require thicker, laminated, or SGP glass and often steel reinforcement in the frame.
Q: Can a picture window be used in a high-rise facade?
A: Yes — fixed glazing is common in high-rise facades because it removes the leak paths of opening joints. The design must be verified for design pressure, glass deflection, and safe handling during installation at height.
8. China Market Position — Why Richocean
Richocean manufactures fixed picture window systems in Foshan with automated extrusion, CNC fabrication, and glazing assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation supplied per project.
9. Illustrative Project Applications

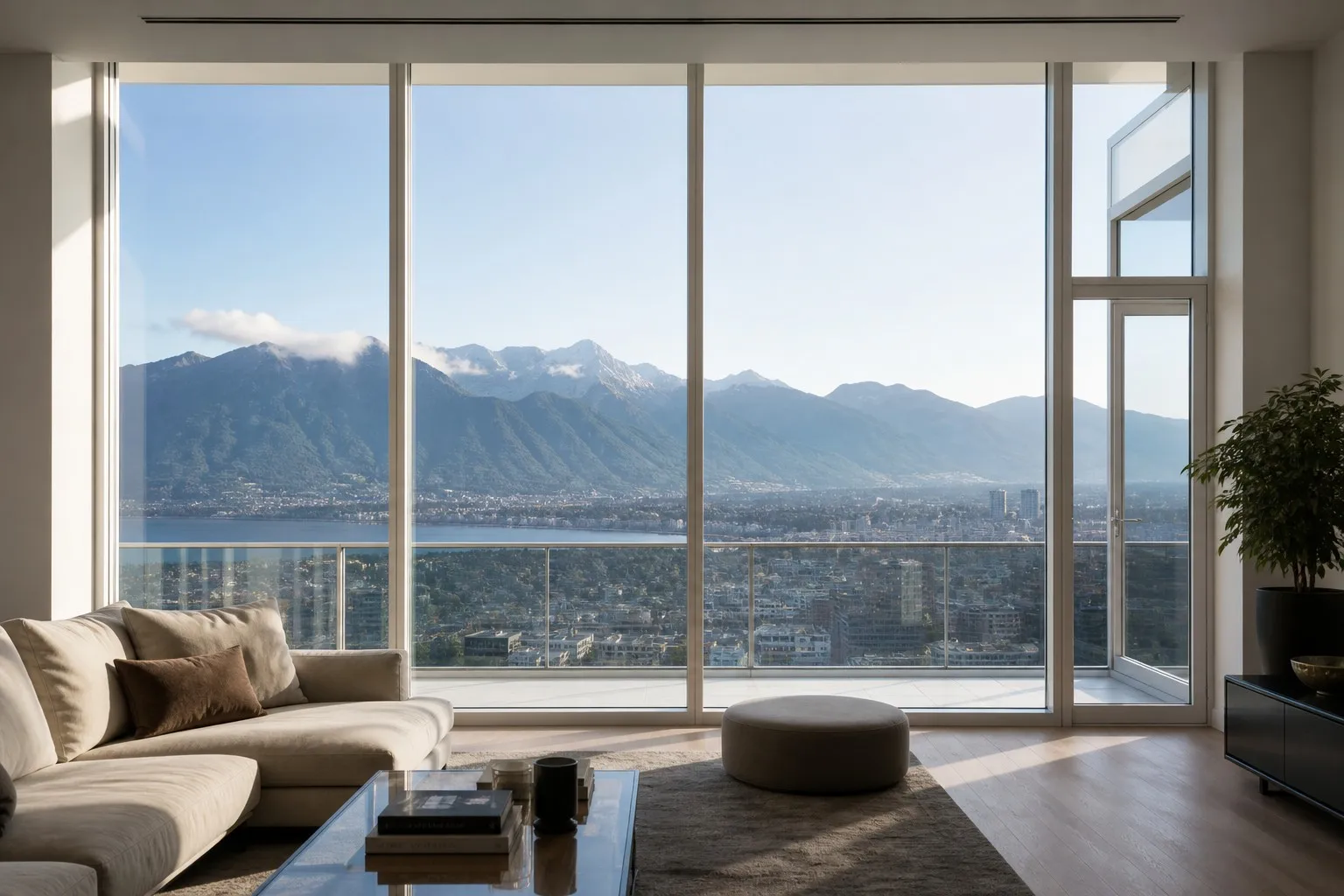

Example A — High-Rise Panoramic Elevation (Illustrative)
A facade scheme using large fixed picture panes for view capture, with narrow opening sashes placed beside them for ventilation. Illustrative configuration; not a quoted project.
Example B — Commercial Atrium Glazing (Illustrative)
A commercial atrium using fixed glazing with laminated glass where post-break integrity is required, with deflection verified for the design pressure. Illustrative configuration; not a quoted project.
10. Price Factors — What Drives Cost
Picture windows are quoted per assembly because pane size and reinforcement drive the engineering. Cost drivers include:
- Pane size and count: larger or more panes raise glass and handling cost
- Glass build: monolithic vs laminated vs SGP vs triple glazed
- Frame reinforcement: steel inserts for long spans and high pressure
- Sightline target: narrower frames require more precise fabrication
- Thermal break: non-thermal vs thermal-break framing
- Installation conditions: high-rise handling and access requirements
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, glass deflection review, reinforced mullion detailing, installation video documentation, and warranty terms on profiles and glazing. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every pane, gasket, and setting block must satisfy the strictest global standards.
12. Conclusion
The Picture Windows Manufacturer China Factory Price Fixed Frame Large Panes advantage is total — 6063-T6 fixed profiles, deflection-verified large panes, reinforced mullions, and single-perimeter sealing delivered directly from Richocean’s Foshan factory. Send your opening schedule for a project-specific quotation.
