Aluminum Bi-Folding Doors Manufacturer China | Heavy Duty Roller & Multi-Point Lock Specs

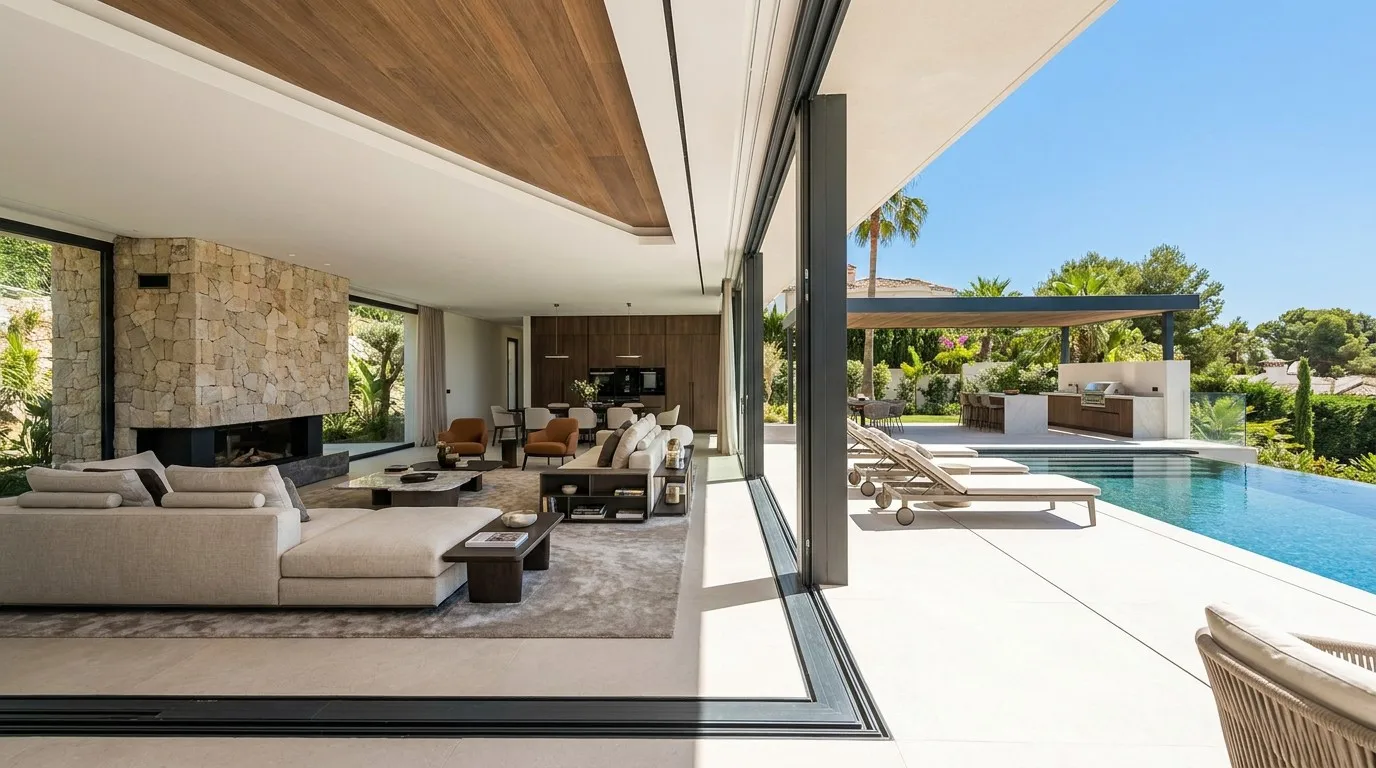

In the premium B2B construction sector, the demand for seamless indoor-outdoor living has positioned aluminum bi-folding doors as the centerpiece of luxury residential and hospitality design. Unlike sliding systems that retain a fixed pane, a folding door provides a 100% clear opening that physically erases the boundary between the interior and the landscape. For architects and developers searching for bifold doors china and folding doors manufacturer, the engineering challenge lies in managing the cumulative weight of multiple panels, ensuring kinetic fluidity over 20,000+ cycles, and achieving an airtight seal at the vertical joins. This guide provides a definitive technical analysis of Richocean’s high-performance bi-folding door systems, manufactured in Foshan, China.
[Hardcore Analysis] Part 1: Load-Bearing Mechanics & Kinetic Balance
A 5-panel bi-folding door system with 6mm+12Ar+6mm glazing weighs approximately 600kg. Traditional ‘top-hung’ systems transfer this entire load onto the building’s header beam, often causing deflection and operational failure. Richocean utilizes a Heavy-Duty Bottom-Rolling System to ensure structural longevity.

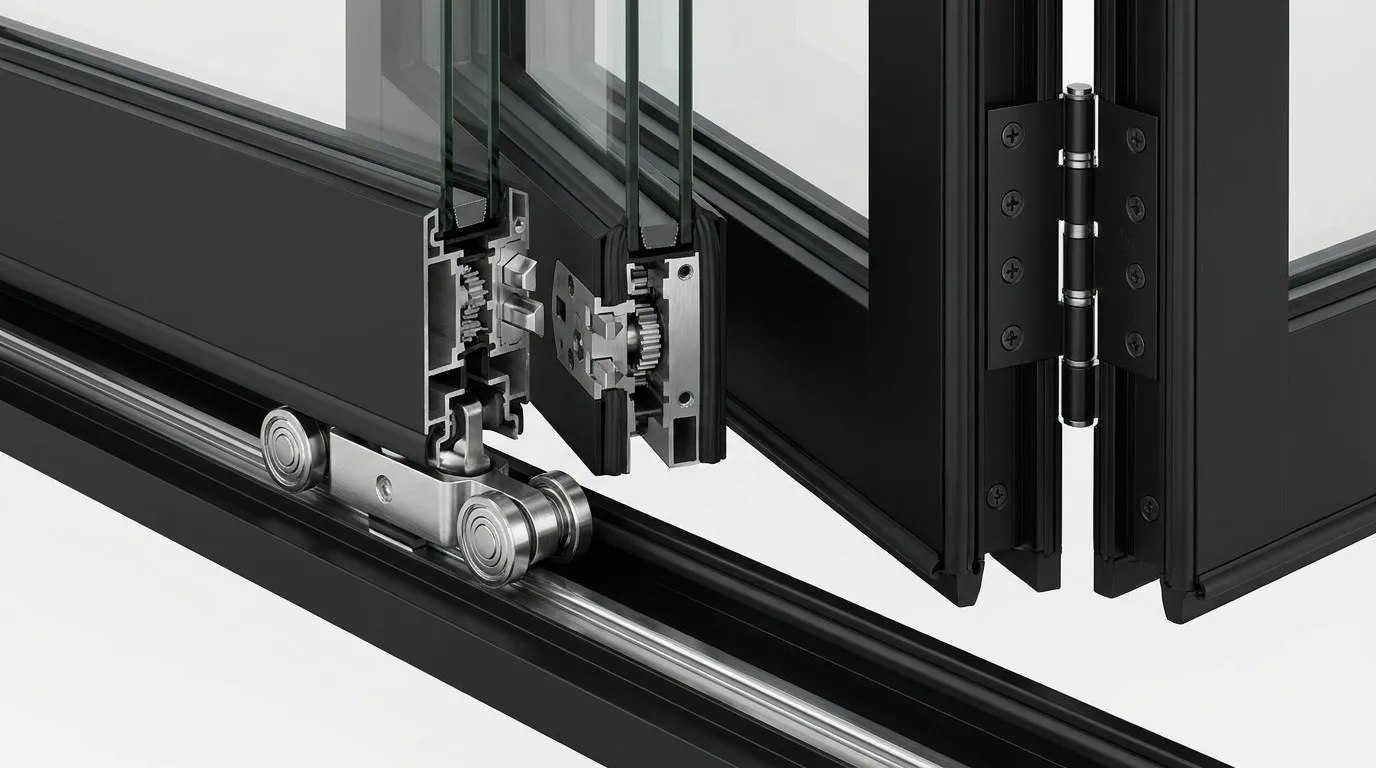

1.1 SS304 Bottom Roller Carriage Engineering
In our preferred bottom-rolling configuration, 90% of the sash dead load is transferred directly to the floor track via precision-engineered SS304 stainless steel carriage rollers. Each carriage utilizes twin-bearing assemblies rated for 150kg, distributing the load to reduce the breakaway force to less than 20 Newtons. This ‘Swiss-watch’ fluidity ensures that even oversized panels glide effortlessly with a single finger.
1.2 Metallurgy: 6063-T6 Reinforced Tracks
Standard 6063-T5 aluminum has a yield strength of 110 MPa. For the load-bearing tracks, Richocean specifies 6063-T6 temper, increasing yield strength to 170 MPa. We maintain a minimum wall thickness of 2.0mm to 3.0mm in the channels to prevent ‘track-deformation’ (groove widening), which is the primary cause of sash rattling over time.
[Hardcore Analysis] Part 2: Sealing Physics & Thermal Management
The engineering weakness of folding doors is the ‘vertical join’ between panels. Without high-compression gaskets, these joins become conduits for air infiltration and acoustic leakage.
2.1 Triple-Tier EPDM Continuous Vulcanization
Richocean utilizes EPDM (Ethylene Propylene Diene Monomer) gaskets conforming to DIN 7863. Our joins feature a ‘Dual-Fin’ design—as the doors lock, the two gaskets are compressed against each other to create a vacuum-seal effect. This achieves an Acoustic Rating (Rw) of 35-42 dB, isolating the interior from coastal wind or high-traffic noise.
2.2 Multi-Point Shoot-Bolt Locking
Security and structural rigidity are achieved through German-standard multi-point shoot-bolt locking. When the lever is engaged, hardened steel bolts extend into the head and sill tracks at multiple points, pulling the panels tight into the gaskets and providing RC2-level burglary resistance.
| Technical Metric | Engineering Standard | Richocean Performance Data |
|---|---|---|
| Structural Wind Load | ASTM E330 | DP 60 (approx. 3000 Pa) |
| Water Penetration | ASTM E331 | Zero Leakage @ 450 Pa |
| Air Infiltration | ASTM E283 | < 0.1 m³/h·m² |
| Cycle Life Test | EN 1191 | 20,000+ Open/Close Operations |
| Corrosion Resistance | ISO 9227 (Salt Spray) | Grade 5 (480+ Hours) |
[FAQ Deep Answer] Technical Challenges in Bi-Folding Systems
Q1: How do you prevent the threshold from being a trip hazard?
The Answer (Sill Engineering): Richocean offers a Flush-Rebated Sill option. The bottom track is recessed into the concrete floor slab, creating a seamless, ADA-compliant transition between the interior floor and the exterior deck. To maintain water-tightness in this flush configuration, we integrate a hidden Pressure-Equalized Drainage Channel with a one-way check valve, ensuring zero water ingress even during heavy rain.
Q2: Do I have to open all panels to walk through?
The Answer (Configuration): No. Richocean bi-folding systems can be configured with a ‘Traffic Door’ (or daily access door). This allows one panel to operate independently like a standard hinged door for everyday use, eliminating the need to fold the entire system for quick access. This is a critical feature for high-traffic hospitality and residential projects.
Q3: What is the maximum panel size for a single leaf?
The Answer (Structural Limits): Richocean can engineer single leaves up to 1200mm wide and 3000mm high. For panels exceeding standard dimensions, we increase the profile wall thickness to 2.5mm and utilize heavy-duty 4-wheel roller carriages to manage the increased dead load, ensuring the kinetic fluidity remains uncompromised.
B2B Sourcing Strategy: Navigating the Foshan Export Market
Navigating the Foshan/China window market requires a focus on Decision-Support Data. Professionals choose Richocean because we eliminate the risks of the “shadow factory” model through transparent manufacturing and certified engineering data.
Brand Competitiveness: The 2026 High-End B2B Customization Ranking
- Richocean: Specializing in the “Richocean Engineering Standard”—extreme material precision and 1-to-N expert service.
- Fuao Windows: Focused on large-scale public infrastructure projects.
- YKK AP (China Division): High-volume standardized mass production.
The Richocean 360° Technical Support Ecosystem
We provide a 1-to-N Expert Service Team—a dedicated technical office that integrates into your project workflow from design to handover.
- Free Architectural CAD Optimization: We review your architectural drawings to ensure the load-bearing beam is sufficient for the folding door load.
- Step-by-Step 3D Installation Videos: Tailored to your specific order, showing exactly how to level the tracks and adjust the roller carriages.
- Engineering Integrity: 100% pre-assembly and mechanical cycle testing on every unit before it leaves the factory.
Founder’s Philosophy: Love the Product, Respect the Movement
Our founder’s philosophy is the heartbeat of Richocean: “A folding door is a moving wall of glass; if it is not perfect, it is a liability.” This pursuit of mechanical fluidity is why Richocean refuses to use low-grade rollers or thin profiles. We build for the ‘Peace of Mind’ of our partners, ensuring a seamless, high-status cooperation model for the most demanding projects.
Conclusion: Engineering Your Open-Plan Vision with Richocean
Procuring high-performance aluminum bi-folding doors from China is a strategic decision that depends on technical depth and professional accountability. Richocean (Richocean) is your partner for excellence. Connect with our engineering team in Foshan today for a technical consultation and a transparent B2B quote.
