1. System Overview — A Door That Folds Into a Wall
A folding door is a full height door set in which several tall panels are hinged together and fold to one side, opening a wide aperture between the interior and the exterior. What makes it a door rather than a folding window is the full height, the floor threshold and the entry function: it is walked through, it carries the weather at the base, and it is the building’s primary opening at the terrace or the entrance. Richocean manufactures folding doors in Foshan from 6063-T6 thermally broken aluminum, with full height bi-fold panels, a low profile threshold, header and floor tracks, and multipoint locking on the central panels.
Three questions decide whether a folding door works: whether the panels and the tracks are rated to the full height and the weight they carry, whether the threshold seals the base for the weather it is walked through in, and whether the folding direction and the lock are set so the aperture opens the way the building needs it to. The panel is the product, and the threshold is where the door earns its weather performance.
2. Full Height Panels — Weight, Self-Bow and the Hinge Rating
A folding door panel is tall and narrow, and its geometry is the design, because the panel must carry its own weight and its glazing across the full height:
- Panel section: the panel is an extruded aluminum profile sized so it spans the full height without self-bowing, with reinforcement set to the panel weight and the glazing load
- Panel width from the hinge: the panel width is set by the hinge rating, not by the aperture, because each panel must carry its own weight and its glazing at the hinge line, so the number of panels is worked out from the width the hinge allows
- Glazing to the panel: the panel is glazed full height, and the glass is sized to the panel, with the edge support and the sealant line following the panel profile
- Fixed end panel: one end panel is fixed, anchoring the set and carrying the lock load, while the other panels fold, and the fixed panel is detailed to hold the aperture
- Reinforcement: steel is added at the hinge lines and at the lock position, where the panel carries the moving load, so the panel does not twist or sag across the height
The panel is a narrow tall element, and its width is limited by the hinge, not by the opening. Add a panel and the aperture grows, but each added panel adds a weight and a hinge, so the door is built out from the panel width the hinge allows, and the fixed end panel is the one that anchors the whole set.
3. Tracks and Threshold — Where a Folding Door Earns Its Weather
The folding door runs on a header track at the top and a floor track at the base, and the threshold is the joint that seals the weather it is walked through in:
- Header track: the top track carries the panel weight and the folding action, and is sized to the set weight, so the panels run true across the full aperture
- Floor track: the bottom track carries the panels at the base and sets the running resistance, and is detailed to drain the water that reaches it rather than store it
- Low profile threshold: the threshold is set low so the door is walked through easily, and the low profile is balanced against the weather seal it must hold
- Threshold seal: the base seal compresses against the threshold to keep the driving rain out, and is the weather joint the door is rated to
- Drainage at the base: water that reaches the floor track and the threshold is drained through the track and the threshold weeps, so the water is routed out and not stored at the base
- Track setting: the header and the floor track are set level and in line, because a racked track binds the panels and the door never opens cleanly
The tracks and the threshold are where a folding door earns its weather performance, and they are rated to the weight the set carries and the weather it seals. The low profile threshold is a balance between the ease of walking through and the seal it must hold, and the drainage at the base is detailed so the water the door admits is routed out, not stored.
4. Folding Mechanism and Multipoint Locking
The folding door is driven by its hinges and secured by its lock, and the two are designed together so the aperture opens and closes cleanly:
- Bi-fold hinges: the panels are joined by heavy bi-fold hinges rated to each panel weight, and the hinges are the moving joints the set is rated to
- Folding direction: the set folds to one side, and the direction is set at the design stage to the building layout, because the folded stack occupies one side of the aperture
- Multipoint lock: the central panels carry a multipoint lock that bolts the set to the frame, and the lock is the security path the door is rated against
- Anti-lift: the set includes anti-lift protection so the panels cannot be lifted off the track, closing the path a folding door leaves open
- Handle and operation: the handle operates the lock and the set, and the operation is checked through the full fold so the lock engages at every point
- Replaceability: the hinges and the lock are chosen so they can be swapped without dismantling the set when they reach the end of their service life
The folding mechanism and the lock are designed together, because the lock bolts the folded set to the frame and the hinges carry the panels as they move. The folding direction is set at the design stage, and the anti-lift protection is what keeps the panels on the track, so the door is secure as well as operable.
5. Thermal Break and the Moving Joints
The folding door is a set of moving joints, and the thermal break must run through them so the door holds its insulation while it moves:
- Thermal break in the panels: a PA66GF25 break of 24/34 mm runs through each panel, so the full height of the door holds its thermal break
- Break at the joints: the break is carried through the panel joints, so the moving joints do not become thermal bridges the fixed frame would not have
- Moving-joint insulation: the multiple moving joints are where a folding door loses its insulation, and the break and the seal at each joint set the door’s thermal performance
- Threshold thermal break: the threshold carries the break at the base, so the door holds its insulation at the joint it is walked through in
- Condensation: the break keeps the interior reveal above dew point across the full height, which is the part of a door a non-broken threshold would not manage
The thermal break runs through the panels and the joints, so the door holds its insulation while it moves, and the threshold carries the break at the base. The multiple moving joints are where a folding door loses its insulation, and the break and the seal at each joint are what set the door’s thermal performance.
6. Glazing and Safety
- Glazing to the panel: the panels are glazed with double or triple glazed Low-E units, sized to the panel and cut to its profile
- Safety glazing: where the glass is within reach or at the entry, the panes are laminated or toughened and classified to EN 12600, so the glass holds if it is struck
- Glazing in the rating: where the door is rated for intrusion, the glazing is part of the rating, and a laminated security pane is specified to hold the class
- Edge support: the glass is supported around its full perimeter, and the edge support and the sealant line follow the panel profile
- Coating: the Low-E coating is set to the project’s thermal and solar specification, with the coating on the correct surface for the climate
The glazing is sized to the panel and cut to its profile, and the safety glass is classified to EN 12600 where the glass is within reach or at the entry. Where the door is rated for intrusion, the glazing is part of the rating, so the pane is specified to hold the class as well as the thermal and the solar performance.
7. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Panel walls | Manufacturer spec | 1.8–2.4 mm, reinforced at hinges |
| Thermal break | PA66GF25 | 24 / 34 mm |
| Tracks | Manufacturer spec | header + floor, low threshold |
| Glazing | EN 12600 | double or triple Low-E |
| Lock | Multipoint | central panels, anti-lift |
| Structural performance | ASTM E330 | tested to design pressure |
| Water resistance | ASTM E547 | tested per project spec |
| Hardware | SS304 / SS316 | SS316 for coastal |
8. System Comparison — Bi-Fold vs Sliding vs Fixed Plus Sliding
| Criterion | Bi-Fold Door | Sliding Door | Fixed + Sliding |
|---|---|---|---|
| Opening | wide, panels fold to one side | wide, sashes pass each other | partial, one fixed bay |
| Aperture use | folded stack occupies one side | sashes overlap at the side | fixed bay reduces the opening |
| Moving joints | many, at each panel | few, at the sash | few, at the sliding sash |
| Threshold | low profile, at the base | low or recessed track | low or recessed track |
| Insulation | lower, many moving joints | higher, fewer joints | higher, fewer joints |
| Relative cost | premium | moderate | moderate |
9. Technical FAQ
Q: How many panels does a folding door need?
A: It is worked out from the panel width the hinge allows, not from the aperture. Each panel must carry its own weight and its glazing at the hinge line, so the panel width is set by the hinge rating, and the number of panels is what the aperture needs at that width. One end panel is fixed to anchor the set, and the rest fold, so the door is built out from the panel width, and each added panel adds a weight and a hinge.
Q: What does the threshold do for the weather?
A: The threshold is the joint that seals the base of the door, and it is where the folding door earns its weather performance. The base seal compresses against the low profile threshold to keep the driving rain out, and the water that reaches the floor track and the threshold is drained through the track and the threshold weeps, so the water is routed out and not stored at the base. The low profile is balanced against the seal it must hold.
Q: Why is a folding door less insulating than a sliding door?
A: Because the folding door has a moving joint at every panel, and the moving joints are where the insulation is lost. A sliding door has few joints at the sash, so it holds its insulation better, and the bi-fold’s thermal break has to run through each panel joint to hold the performance it can. The break and the seal at each joint are what set the folding door’s thermal performance, and the multiple joints are why it is rated lower than a sliding door of the same glass.
Q: How is a folding door kept secure?
A: The central panels carry a multipoint lock that bolts the folded set to the frame, and the set includes anti-lift protection so the panels cannot be lifted off the track. The lock is the security path the door is rated against, and the anti-lift closes the path a folding door would otherwise leave open. The folding direction is set at the design stage, and the lock is checked through the full fold so it engages at every point, so the door is secure as well as operable.
10. China Market Position — Why Richocean
Richocean manufactures folding doors in Foshan with automated extrusion, CNC fabrication and in-house anodizing and coating lines, exporting to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation, hinge and threshold coordination and lock integration guidance supplied per project.
11. Illustrative Project Applications

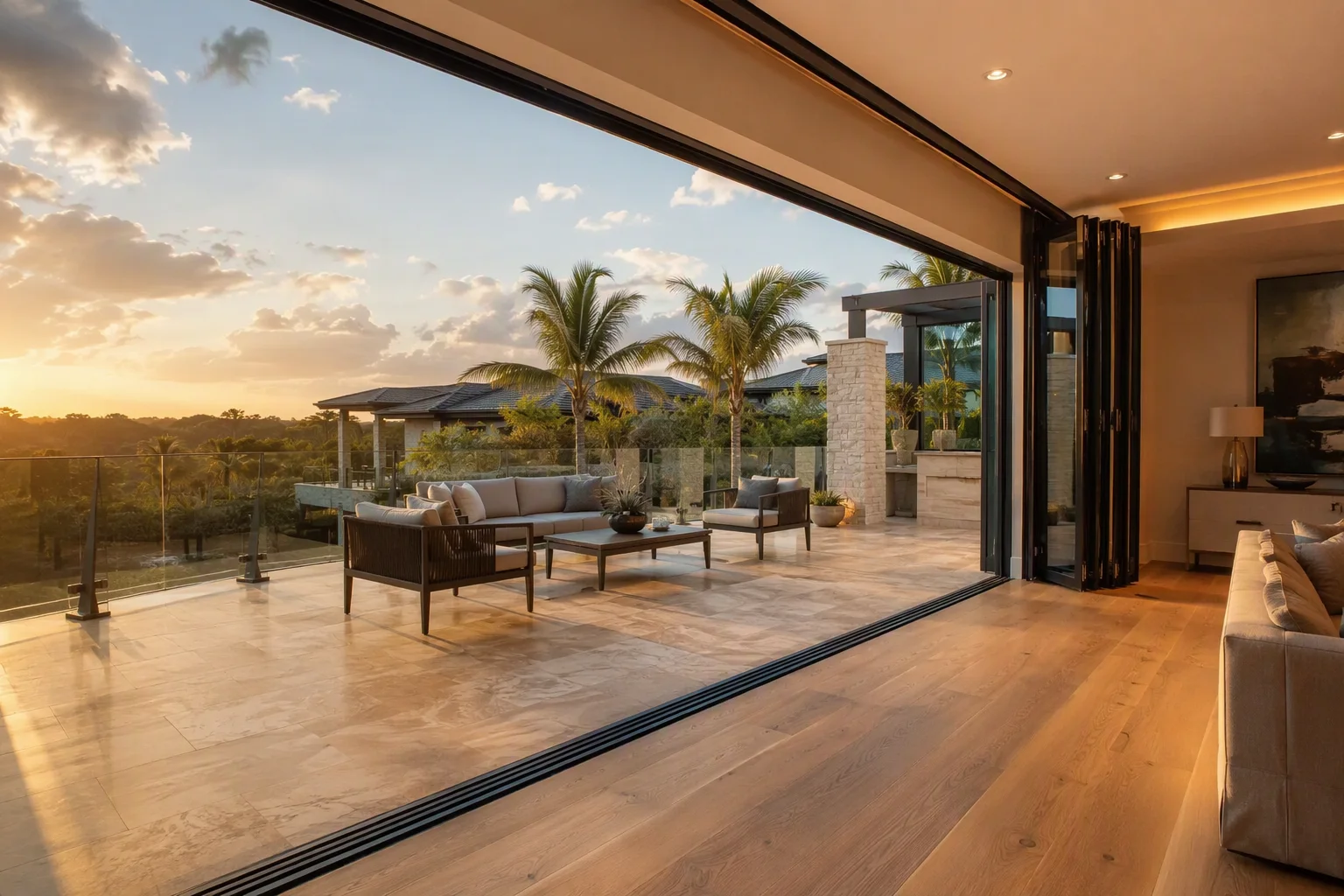

Example A — Terrace Bi-Fold (Illustrative)
A full height bi-fold door with four panels, a fixed end panel, a low profile threshold with a base seal and drainage, and a multipoint lock on the central panels, opening a wide aperture from a living room onto a stone terrace, in a coastal setting with SS316 hardware. Illustrative configuration; not a quoted project.
Example B — Entrance Bi-Fold (Illustrative)
A bi-fold entrance door with triple glazed panels, laminated safety glazing classified to EN 12600, a multipoint lock to the required intrusion class and anti-lift protection, in a thermally broken set with a low threshold, at the main entry of a residence. Illustrative configuration; not a quoted project.
12. Price Factors — What Drives Cost
Folding doors are usually quoted per set, and the rate rises with the panel count, the height and the hardware. Cost drivers include:
- Panel count and width: the number of panels set by the aperture and the hinge width, with each added panel adding a weight and a hinge
- Full height: the height of the set, which sets the panel section and the reinforcement
- Hinge rating: the bi-fold hinges sized to each panel weight, and the hardware the set is rated to
- Threshold and tracks: the low profile threshold, the base seal and the header and floor tracks, detailed for the weather
- Glazing build: double versus triple glazed, laminated panes and coatings, classified to EN 12600
- Lock and security: the multipoint lock, the anti-lift protection and the intrusion class where required
- Finish and exposure: powder coat, anodized or PVDF, with C5-M and SS316 for coastal sites
13. Installation, Commissioning & Maintenance
- Setting out: the opening checked for square, level and plumb, because a racked frame binds the panels and the door never opens cleanly
- Track setting: the header and the floor track set level and in line, and the threshold set to its profile with the base seal compressed evenly
- Panel hanging: the panels hung on their hinges to the fixed end panel, with the folding direction confirmed and the panels running true
- Lock setup: the multipoint lock aligned so every bolt engages, the anti-lift set and the operation checked through the full fold
- Drainage check: the floor track and the threshold weeps confirmed open and water tested before handover
- Operation check: the set cycled through open, closed and locked, with the panels confirmed true and the lock confirmed at every point
- Maintenance: periodic inspection of the hinges, the tracks, the threshold seal and the lock, with the panels checked for running true across the aperture
Handover should record the set, the panel count and the hinge rating, the threshold and the tracks, the lock and the anti-lift, and the maintenance interval for the hinges, the tracks and the seal.
14. 360° Service & Founder Philosophy
Richocean’s 360 service covers schedule review and shop drawings, panel and hinge checks, threshold and track coordination, lock and anti-lift specification, glazing and safety coordination, installation and commissioning guidance and warranty terms on profiles, glazing, hinges and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every panel, hinge and threshold seal must hold for the life of the building, because a folding door is only as good as its folded and locked position.
15. Conclusion
The Folding Doors Manufacturer China Foshan Factory Price Aluminum Bi-Fold Terrace Threshold advantage is total — 6063-T6 thermally broken full height bi-fold panels, a low profile threshold with drainage, header and floor tracks, multipoint locking with anti-lift, and coastal-grade finishes, delivered directly from Richocean’s Foshan factory. Send your drawings with the aperture size and the height for a project-specific quotation.
