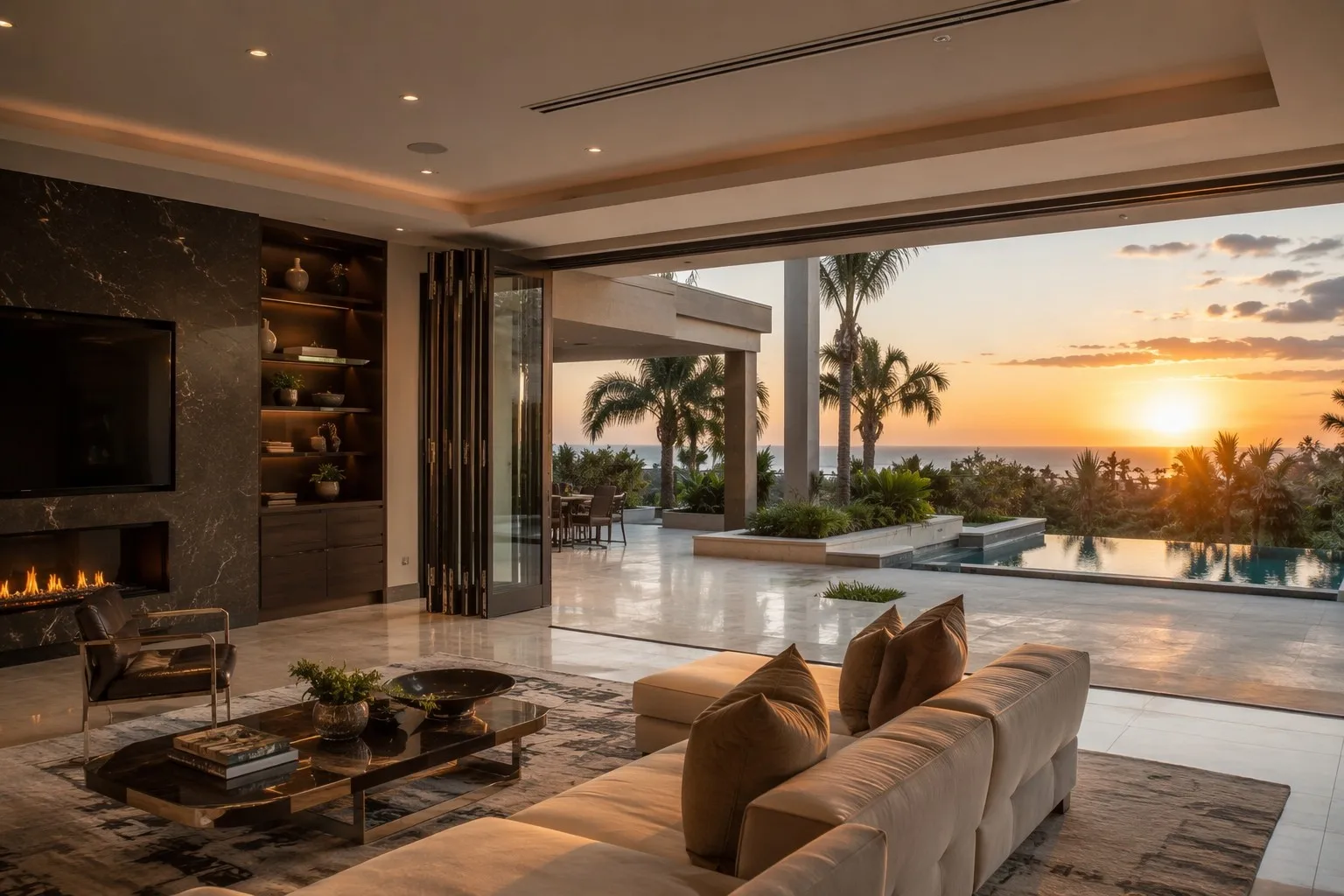

In the evolving landscape of contemporary architecture, the boundary between interior sanctuaries and the expansive outdoors has become increasingly fluid. The architectural demand for wide-span openings that provide unobstructed views while maintaining rigorous structural integrity has led to the global adoption of high-performance aluminum bi-folding systems. As a leading Aluminum Folding Doors Manufacturer China, Richocean has pioneered the integration of aerospace-grade materials with precision engineering to deliver Factory Price solutions that redefine luxury and durability.
1. Core Technical Analysis: The Science of Structural Superiority
6063-T6 Aluminum Alloy: The Foundation of Strength
Richocean bi-fold systems are exclusively extruded from 6063-T6 primary aluminum billet. Unlike secondary or recycled aluminum often found in lower-tier markets, 6063-T6 offers a superior strength-to-weight ratio and exceptional surface finish capabilities. The ‘T6’ tempering process involves solution heat treatment and artificial aging, which elevates the tensile strength to approximately 215 MPa (31,000 psi) and yield strength to 170 MPa (25,000 psi). This material specification is critical for Slim Frame designs, where the reduced profile width must compensate with increased wall thickness (typically 2.0mm to 3.0mm) to support heavy double-glazed units over spans exceeding 6 meters.
PA66GF25 Polyamide Thermal Break Technology
To combat thermal bridging—a common weakness in traditional aluminum frames—Richocean employs PA66GF25 thermal insulation strips. Composed of Polyamide 6.6 reinforced with 25% glass fiber, these strips match the thermal expansion coefficient of aluminum, preventing structural stress during extreme temperature fluctuations. The multi-cavity design of our profiles creates static air pockets that significantly reduce the U-value of the frame, ensuring that our Low-E systems meet the most stringent energy codes in Europe and North America.
SS316 Heavy-Duty Roller & Anti-Sway Guide Systems
The operational longevity of a bi-folding door is determined by its carriage system. Richocean utilizes Marine Grade SS316 stainless steel rollers equipped with high-precision ball bearings. Each roller assembly is rated to support up to 150kg per leaf, ensuring a ‘finger-tip’ glide experience even for triple-glazed panels. Our proprietary Anti-Sway Guide system at the bottom track utilizes a dual-contact point mechanism. This engineering feature eliminates the ‘rattle’ commonly associated with folding doors in high-wind zones, providing a stable, linear path for the panels during transition.
2. Performance Parameters: Engineering Validated by International Standards
Reliability is not a claim; it is a measured metric. Richocean products undergo rigorous testing to ensure they withstand the harshest environmental conditions.
| Test Category | Standard Method | Richocean Performance Value |
|---|---|---|
| Air Infiltration | ASTM E283 | Less than 0.1 cfm/sqft at 1.57 psf (75 Pa) |
| Water Penetration | ASTM E331 | No leakage at 720 Pa (15.0 psf) |
| Structural Wind Load | ASTM E330 | Design Pressure (DP) 60+ (3000 Pa) |
| Operational Life Cycle | AAMA 920 | 100,000+ Opening/Closing Cycles |
| Acoustic Insulation | ASTM E90 (STC) | 38 – 42 dB (Depending on Glass Config) |
| Thermal Transmittance | NFRC 100/200 (U-Factor) | 1.6 – 2.0 W/sq.m.K (with Argon Low-E) |
3. Advanced Glass Integration: The Low-E Advantage
The glass represents over 80% of the door’s surface area, making it the most significant factor in thermal performance. Richocean provides factory-integrated Low-E (Low Emissivity) glass solutions designed for specific climates.
- Soft-Coat Low-E: Silver-based coatings applied in a vacuum chamber, offering the lowest U-values and high visible light transmittance.
- Warm Edge Spacers: Replacing traditional aluminum spacers with composite materials like Swisspacer to prevent condensation at the glass edges.
- Argon Gas Filling: Inert gas injected into the IGUs (Insulated Glass Units) to minimize convective heat transfer between panes.
4. Design Aesthetics & Slim Frame Philosophy
Our Slim Frame philosophy is driven by the desire to maximize the visual ‘aperture.’ By reducing the visible stile width to as little as 45mm, Richocean bi-fold doors offer a 15% increase in visible glass compared to standard market alternatives. This is achieved through the use of high-yield 6063-T6 alloy and internal structural ribbing that maintains the necessary Moment of Inertia to resist wind deflection without the need for bulky profiles.
Threshold Versatility
- Weather-Rated High Sill: Features a 50mm upstand with a specialized drainage weep system for exterior applications exposed to driving rain.
- Flush/No-Barrier Track: Recessed into the floor for a seamless transition between indoor and outdoor spaces, ideal for sheltered patios or commercial interiors (ADA compliant).
5. Technical FAQ: Expert Solutions for Complex Installations
Q: How do we optimize the number of leaves for a 5-meter opening?
A: For a 5000mm opening, we typically recommend a 5-panel configuration (550 or 541). This allows for a ‘traffic door’ (daily access door) that operates independently of the folding mechanism. A 5-panel system ensures that each leaf remains under 1000mm in width, which is the optimal weight for long-term roller health.
Q: What are the reinforcement options for typhoon-prone coastal regions?
A: Coastal projects require our ‘Heavy-Duty Hurricane Series.’ This includes multi-point locking systems with 7-point engagement, reinforced T-cleats in the corners, and 12mm+1.52PVB+12mm laminated safety glass. All hardware is upgraded to SS316 to resist salt-spray corrosion.
Q: Can the tracks be completely hidden?
A: Yes. Using our sub-sill drainage system, the track can be installed flush with the finished floor level. It requires a pre-engineered channel in the concrete slab with integrated drainage outlets to manage any water that enters the track profile.
6. China Folding Door Market Ranking: Why Richocean is #1
In the competitive landscape of the Foshan Door Factory cluster, Richocean consistently ranks as the top-tier manufacturer for B2B export. Our #1 position is sustained by three pillars:
- Vertical Integration: From aluminum extrusion to glass processing and hardware assembly, we control the entire value chain.
- R&D Investment: 8% of annual revenue is redirected into thermal performance simulation and hardware endurance testing.
- Global Compliance: We are one of the few factories in China with full AAMA, NFRC, and CE certifications for our entire bi-fold product line.
7. Engineering Case Studies
The Sydney Waterfront Villa (Australia)
Challenge: An 8-meter opening facing the Pacific Ocean, requiring extreme corrosion resistance and wind load capacity.
Solution: Richocean 80-Series Bi-folds with 25-micron Clear Anodized finish (Class 1) and SS316 hardware. The project utilized a 3+5 configuration, allowing the owner to open only one side for daily use or the entire span for entertaining.
The London Contemporary Restaurant (UK)
Challenge: Strict Part-L thermal regulations and a requirement for a completely flush threshold for accessibility.
Solution: Triple-glazed Low-E units with a total system U-value of 1.2 W/sq.m.K. The use of our ‘Low-Threshold’ system with an external drainage gully satisfied both the architect’s aesthetic vision and local building codes.
8. Price Analysis & B2B Sourcing Strategy
Navigating the Folding Door Price landscape requires an understanding of ‘cost-drivers.’ At Richocean, we offer Factory Price transparency. The primary factors influencing the final quote include:
- Leaf Count Premium: More leaves mean more hardware sets (hinges, rollers, locks). A 3-panel system is generally more cost-effective per square meter than a 6-panel system.
- Glass Specification: Standard clear double glazing is the baseline. Upgrading to Low-E, Laminated, or Tinted glass adds roughly 15-30% to the cost.
- Track Design: Recessed/Flush tracks with drainage systems require more complex extrusion and labor, impacting the unit price.
9. 360-Degree Service & The Founder’s Philosophy
Under the vision of our founder, Richocean was built on the principle of ‘Structural Integrity as a Service.’ We don’t just sell doors; we provide engineering consultation for international developers and architects. Our 360-degree service includes:
- CAD/BIM Support: Providing detailed shop drawings for site integration.
- On-Site Supervision: Digital installation guidance and video-link support for overseas contractors.
- 10-Year Warranty: A comprehensive guarantee covering the frame, finish, and hardware.
Conclusion
Richocean’s Aluminum Folding Doors represent the pinnacle of China’s manufacturing evolution. By combining Factory Price efficiency with the performance metrics of high-end European systems, we provide a Slim Frame Low-E solution that empowers architects to push the boundaries of design. Whether for a luxury villa extension or a high-traffic commercial facade, Richocean is the definitive China partner for global fenestration excellence.
