Aluminum Folding Doors Manufacturer China Factory Price Slim Frame Soundproof
1. System Overview — The Wide-Span Opening

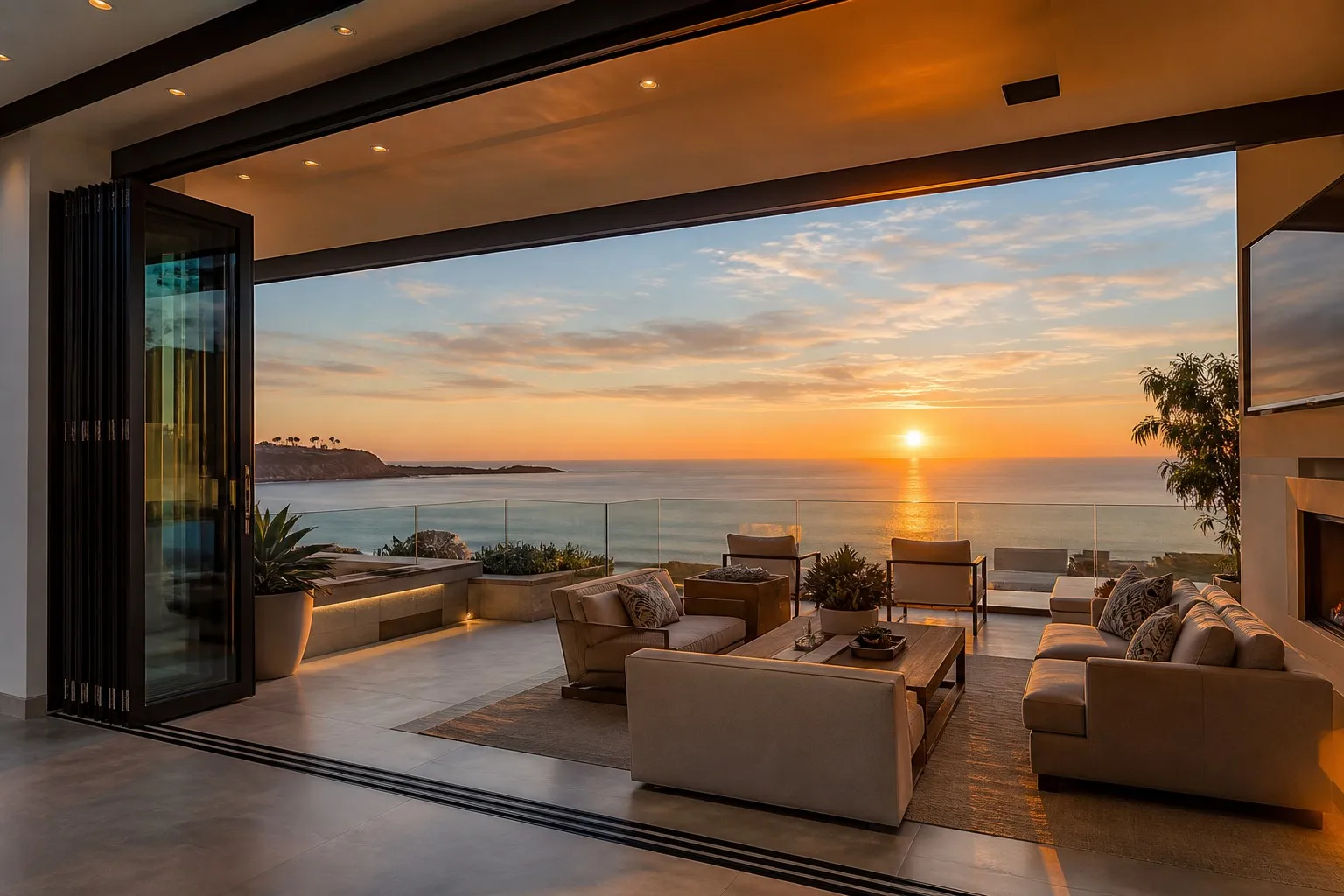

The Aluminum Folding Door — also known as the bi-fold patio door — is the pinnacle of wide-span opening solutions. It stacks multiple glass panels against the jamb, converting an entire wall into an aperture. For luxury villas, restaurant facades, and commercial terraces, this system collapses the boundary between interior and exterior with an elegance no other fenestration type matches. As a premier manufacturer in China, Richocean engineers these systems with slim-frame sightlines, SS316 hardware endurance, and acoustic performance — at factory-direct prices.
2. Core Material Science — 6063-T6 Frame Metallurgy
Each folding panel is simultaneously a structural element and a moving element. Richocean specifies 6063-T6 aluminum alloy for all folding profiles.
The Slim Frame design reduces visible stile width to 45–55mm, achieving a 96 percent glass-to-frame ratio. For panels exceeding 1200mm width, a galvanized steel stiffening core is inserted into the sash chamber; extrusion tolerance holds at plus or minus 0.1mm on interlocking stiles.
3. Folding Kinematics — Hardware That Never Fails
The bi-fold mechanism is a chain of interconnected panels: a lead panel with the operating handle, intermediate panels, and a trailing panel fixed to the jamb.
- Top-hung pivot hinges and bottom rollers on every panel junction
- Synchronized guide tracks in head and sill for parallel folding
- Multi-point locking on the lead panel perimeter
- SS316 roller carriages rated 150kg per panel, sealed ball bearings, 100,000 cycles
4. Thermal Performance — PA66GF25 Thermal Break
| Configuration | Frame U-Value | System U-Value (Low-E IGU) |
|---|---|---|
| No thermal break | 5.5 W/(m²·K) | — |
| PA66GF25 34mm | 2.0 W/(m²·K) | 1.4–2.0 W/(m²·K) |
5. Sealing & Soundproof Engineering
The acoustic challenge of a folding door lies in the number of panel joints. Richocean employs a multi-barrier sealing architecture:
- Barrier 1 — Continuous EPDM compression gaskets on every stile
- Barrier 2 — Interlocking aluminum profiles: tongue-and-groove meeting stiles
- Barrier 3 — Acoustic glass package: asymmetric 6mm + 12Ar + 8.76mm laminated (6+1.52PVB+6)
6. Performance Specification Table (ASTM)
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.10 cfm/sqft |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Performance | ASTM E330 | 4500 Pa / DP 50+ |
| Operational Cycle | EN 13126 / AAMA 920 | 100,000 cycles |
| Acoustic | ASTM E90 | STC 38–45 dB |
7. Technical FAQ
Q: How many panels should be specified for a given opening?
A: Panels are typically 600–1000mm wide. A 6-meter opening with 8 panels folds into a stack of roughly 700mm depth; wider panels reduce the stack but increase per-panel hinge load.
Q: What is the difference between a folding window and a folding door?
A: The terms are often interchangeable. Folding windows use slimmer profiles (45–55mm) for residential/light-commercial; folding doors use 80–120mm profiles for high-traffic and high-wind applications.
Q: How is wind load managed on tall folding panels?
A: For panels exceeding 2.8m, Richocean inserts internal steel stiffeners and increases top-hung hinge rating; the multi-point lock transfers wind load to the head track.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for bi-folding door export volume. The Foshan factory holds CE (EN 14351-1), AS2047 (Australia), and NFRC certifications simultaneously. Factory-direct pricing runs 30–50 percent below Western distributors, enabled by vertical integration of extrusion, thermal-break assembly, and hardware procurement.
9. Illustrative Project Applications
Example A — Australian Coastal Villa (Illustrative)
A 12-meter opening with SS316 hardware and 3.0mm frames for a cyclone-prone coastal site; 21.52mm laminated glass held Category 4 wind loads with zero ingress. Illustrative example values.
Example B — European Restaurant Terrace (Illustrative)
A 9-meter bi-fold system with acoustic glass; triple glazing met strict energy codes while acoustic lamination kept the dining room quiet on a busy street. Illustrative example values.
10. Price Analysis
- Panel count: each panel adds hinges, rollers, locking points — 4-panel system most economical per m²
- Hardware grade: SS316 rollers and premium hinges +15–20% vs standard; essential for coastal
- Glass tier: double-pane baseline; acoustic laminated +20%; triple-pane +25%
- Finish: PVDF or wood-grain +8–15% over standard powder coating
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD/BIM shop drawings, structural calculations, DDP logistics, and remote installation supervision. The founder’s philosophy: a folding door is a machine — a kinematic system with more moving parts than any other door type. Every hinge, roller, and locking pin must be engineered for a lifetime of cycles. This mechanical reliability, combined with China factory economics, is what positions Richocean as the definitive partner for large-opening architecture.
12. Conclusion
The Aluminum Folding Door transforms architecture by converting walls into apertures. With 6063-T6 metallurgy, SS316 folding hardware, soundproof glass packages, and factory-direct prices, Richocean delivers the engineering benchmark for seamless indoor-outdoor living.
