Folding Doors Manufacturer China Factory Price Aluminum Bifold Thermal Break Glass
1. System Overview — Removing the Wall Instead of Adding a Window
The Folding Doors Manufacturer China Factory Price Aluminum Bifold Thermal Break Glass benchmark — Richocean’s folding door systems stack multiple glazed leaves to one side or into a corner, clearing the opening so an interior and exterior space read as one volume. As a Foshan factory, Richocean engineers folding systems in 6063-T6 alloy with bottom-rolling hardware and polyamide thermal breaks at factory-direct pricing, so the hardware, the frame and the glazing are matched before assembly rather than on site.
The reason bifold systems need heavier engineering than an equivalent sliding door is mechanical: every leaf hangs or travels on rollers, and each fold doubles the load path concentration at the hinge stile. Get the roller grade, track alignment and leaf weight balance right and the system glides for years; get them wrong and the leaves sag, bind and lose their seal.
2. Core Material Science — 6063-T6 Profiles Sized for Movement
A folding leaf is both a door and a structural member, so profiles are selected by the span and the glazed weight they must carry. Richocean specifies 6063-T6 aluminum aged to 170 MPa yield, with frame wall thickness of 1.8–2.5 mm, steel or aluminium reinforcement through the hinge stiles where leaves are heavy, and CNC-machined junction and roller brackets held to 0.1 mm accuracy.
Leaf stacking width is a design constraint as much as a hardware one: a five-leaf system needs a clear pocket or wall return wide enough to park the folded stack, and that dimension is fixed early on the shop drawing.
3. Glazing Specification — Weight and Deflection Drive the Build
Folding leaves are usually the largest glazed moving panels on a project, so glazing and hardware are specified together:
- Leaf size: panel width is limited by leaf weight, roller rating and the stacking pocket available
- Build: double glazed Low-E typical; triple glazed for cold-climate projects
- Safety glazing: laminated or tempered glass on all moving leaves
- Deflection: glass thickness verified for span and design pressure per ASTM E1300 principles
- Acoustics: asymmetric laminated builds reduce external noise on street-facing elevations
- Solar control: Low-E or solar-control coatings limit heat gain on large south-facing panes
Because every leaf is a moving part, glass weight is also a maintenance variable: heavier leaves require higher-grade rollers and more rigorous alignment at commissioning.
4. Hardware Engineering — Rollers, Tracks, Hinges and Locking
Hardware is where a bifold system succeeds or fails, and every component is specified for load rather than appearance:
- Rolling system: bottom-rolling carriages carrying the leaf weight, which keeps the head track slim
- Rollers: SS316 or sealed-bearing rollers for corrosion-free travel
- Tracks: stainless or anodized rails levelled so leaves do not bind at mid-span
- Hinges: reinforced hinge stiles transferring load leaf to leaf, with adjustable pivots for alignment
- Locking: multi-point locking on the leading leaf, with shoot bolts engaging head and sill
- Folding hardware: 180-degree folding sets so the stack opens fully flat against a return wall
- Optional automation: 24 V DC motorized drive with BMS or remote control for heavy stacks
Corner configurations add a further requirement: a corner folding post or carousel set lets two runs meet without a fixed mullion, so the opening truly clears rather than being interrupted.
5. Weather, Thermal & Performance Engineering
A wide folding opening has more seal length than any other door type, so weather detailing is deliberate:
- Thermal break: polyamide isolation through frame and leaf limits conductive heat loss
- Interleaf seals: continuous EPDM gaskets between leaves, recompressed each time the system closes
- Drainage: bottom track drainage channels discharging to the exterior, with weep paths kept clear
- Threshold options: low-profile or flush-track thresholds where level access is required
- Air and water: tested to ASTM E283 and ASTM E547
- Structural: engineered to project-specific design pressure (ASTM E330)
- Corrosion: C5-M-grade coating and SS316 hardware for coastal projects
Thermal performance is quoted for the complete opening, since the frame, glazing, interleaf seals and threshold each contribute to the whole-system U-value.
6. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Thermal break | PA66GF25 polyamide | 24 / 34 mm |
| Frame U-value | NFRC 100 | 1.8–2.6 W/m2K |
| Glass deflection | ASTM E1300 basis | sized to span and pressure |
| Air Leakage | ASTM E283 | tested per project spec |
| Water Resistance | ASTM E547 | tested per project spec |
| Structural | ASTM E330 | engineered to design pressure |
| Cycle endurance | Manufacturer spec | cycle-tested per spec |
7. System Comparison — Folding vs Sliding vs Lift-and-Slide
| Criterion | Folding | Sliding | Lift-and-Slide |
|---|---|---|---|
| Clear opening | up to nearly full width | about half the width per panel set | about half, with heavier panels |
| Stacking space | needs a pocket or wall return | panels overlap in the same plane | panels overlap in the same plane |
| Corner opening | possible with corner hardware | requires a fixed corner post | requires a fixed corner post |
| Seal complexity | highest (many interleaf seals) | moderate | moderate, heavier hardware |
| Panel weight limit | lowest per leaf | moderate | highest |
8. Technical FAQ
Q: How wide can a folding door opening be?
A: The opening itself can be very wide, but the practical limit is the number of leaves and the stacking pocket needed to park them. Each leaf is limited by glass weight and roller rating, so a wider opening simply means more leaves and a larger pocket or return wall.
Q: Top-hung or bottom-rolling — which is better?
A: Bottom-rolling carriages carry the leaf weight on the floor track, which keeps the head detail slim and suits most residential and hospitality projects. Top-hung systems keep the floor line clear but transfer load to the head structure, which must be designed for it.
Q: Do folding doors leak in heavy rain?
A: A folding opening has many seals, so weather performance depends on correct sealing, drainage and alignment. Interleaf EPDM gaskets are recompressed each time the system closes, and the bottom track drains to the exterior. Performance is verified to ASTM E547 and E283 for the project specification.
Q: Can a folding door clear a corner completely?
A: Yes — a corner folding set with a corner post or carousel allows two runs to meet and fold away, so the corner reads as open. The detail must be set at design stage because it changes the track layout and the stacking direction.
9. China Market Position — Why Richocean
Richocean manufactures folding door systems in Foshan with automated extrusion, CNC fabrication, and roller and hardware assembly lines, and exports to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation and hardware schedules supplied per project.
10. Illustrative Project Applications
Example A — Villa Indoor-Outdoor Living (Illustrative)

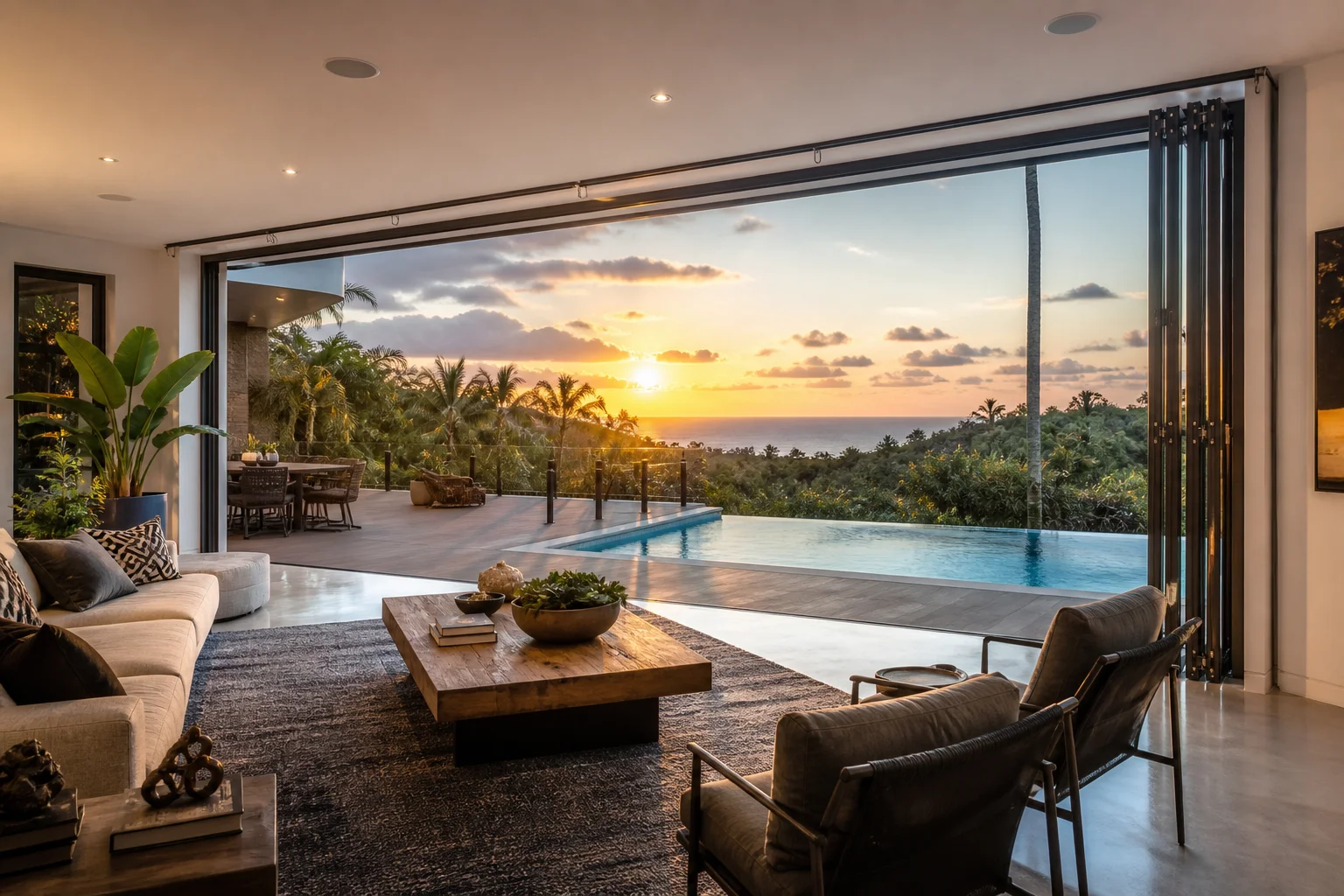

A five-leaf corner folding system opening a living room fully to a pool terrace, with bottom-rolling carriages, reinforced hinge stiles and SS316 rollers specified for a coastal site. Illustrative configuration; not a quoted project.
Example B — Restaurant Terrace Frontage (Illustrative)
Folding frontage specified for a hospitality venue to open the dining area to a terrace during service hours, with flush-threshold access where level entry was required. Illustrative configuration; not a quoted project.
11. Price Factors — What Drives Cost
Folding doors are quoted per leaf and per set because leaf count and hardware grade dominate cost. Cost drivers include:
- Number of leaves: more leaves means more profiles, hinges, rollers and seals
- Leaf size and glazed weight: heavier panels require reinforced stiles and heavier carriages
- Rolling system: bottom-rolling vs top-hung, and roller grade including SS316 options
- Configuration: straight run vs corner folding with corner hardware
- Threshold type: standard track vs low-profile or flush-track for level access
- Glass build: double vs triple glazing, laminated safety, Low-E coatings
- Automation: manual vs 24 V DC motorized drive with remote or BMS control
12. Installation, Commissioning & Maintenance
Folding systems are alignment-sensitive, and most field complaints trace back to the track and the levelling rather than the profiles:
- Track installation: rails set level and straight to the manufacturer’s tolerance, on a substrate that will not settle
- Drainage: bottom track discharge kept clear and graded away from the interior
- Stacking clearance: pocket or return dimension checked against the folded stack before frames are fixed
- Leaf alignment: hinge and carriage adjustment used to bring interleaf seals into even compression
- Locking verification: leading-leaf multi-point locking and shoot bolts checked at head and sill
- Maintenance: periodic track cleaning, roller inspection and lubrication, and seal replacement when compression is lost
Because the hardware does the work, handover should include the roller rating, the stacking dimension, the adjustment procedure and a maintenance interval for tracks and gaskets.
13. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD shop drawings, leaf-weight and roller sizing, stacking-dimension and corner-detail review, hardware schedules, installation video guidance, and warranty terms on profiles, hardware and finishes. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every roller, hinge and seal must satisfy the strictest global standards.
14. Conclusion
The Folding Doors Manufacturer China Factory Price Aluminum Bifold Thermal Break Glass advantage is total — 6063-T6 reinforced folding profiles, PA66GF25 thermal breaks, bottom-rolling SS316 hardware, corner folding capability and large Low-E glazed leaves, delivered directly from Richocean’s Foshan factory. Send your opening drawings and stacking requirements for a project-specific quotation.
