Aluminum Picture Windows Manufacturer China Factory Price Fixed Panoramic Glass

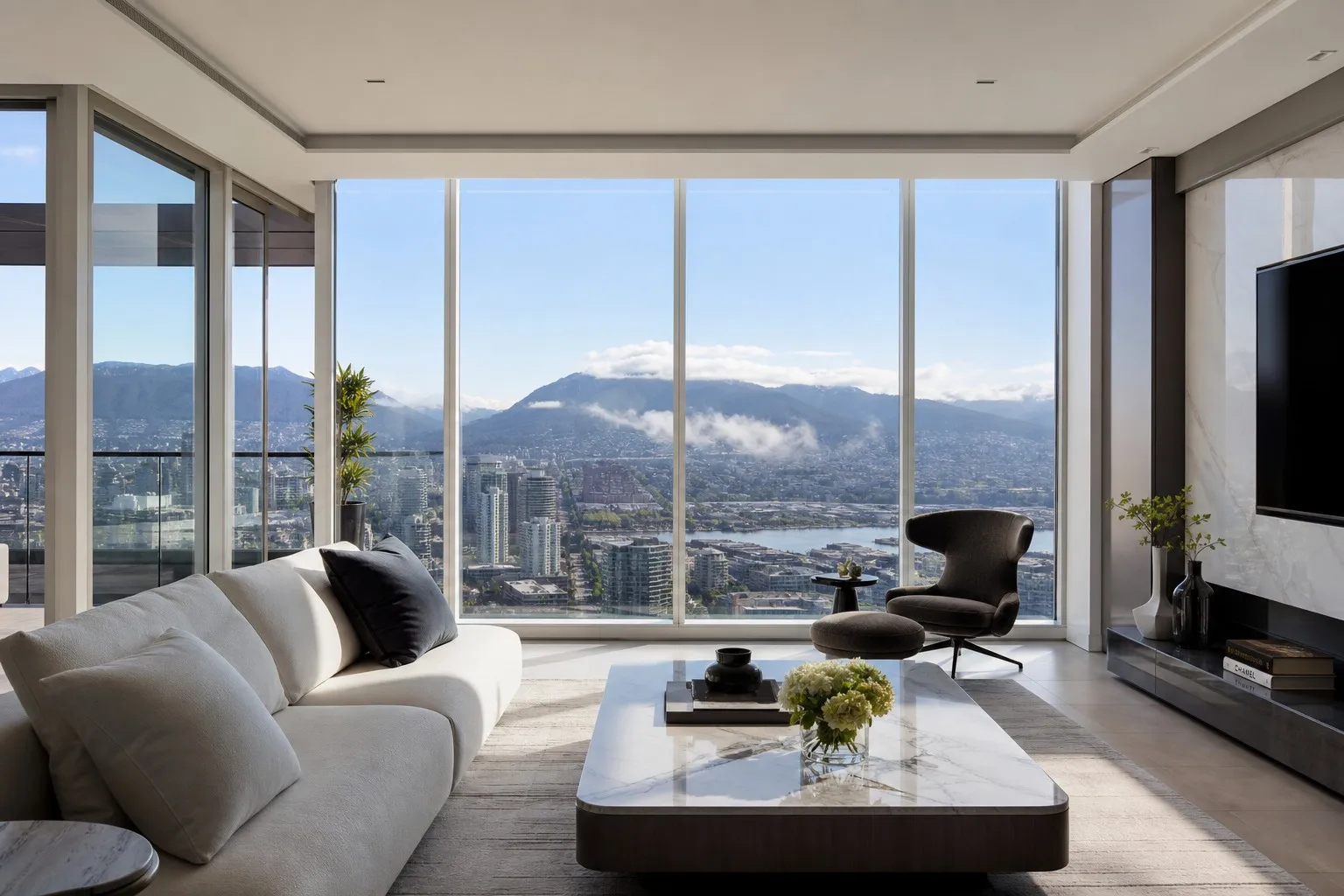

1. System Overview — The Frameless View
The Aluminum Picture Window is a fixed, non-operable glazing unit designed to maximize views and daylight with minimal framing. As a premier manufacturer in China, Richocean engineers picture windows with 6063-T6 frames, large-span glass, and Low-E glazing, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the large glass. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells, with a 24–34mm depth.
3. Large-Span Glazing — The Big Picture
The defining feature of the picture window is its large fixed glass:
- Typical spans: 2,400–6,000mm wide × 2,400–3,000mm high
- Glass thickness: 8–12mm tempered, or 10.76mm laminated for safety
- Minimal sightlines: slim 35–50mm frame faces maximize glass area
4. Structural Engineering — Wind Load
The large glass surface demands rigorous wind-load engineering:
- Wind pressure: calculated per site height, exposure, and location
- Glass deflection: limited to span/60 per ASTM E1300
- Frame reinforcement: steel cores for spans above 4,000mm
5. Low-E Glazing & Safety
Performance is delivered by Low-E glazing and safety glass options:
- Low-E coating: reflects long-wave infrared, reduces heat loss 40–60%
- Tempered glass: 620°C heat treatment, EN 12150
- Laminated option: SGP interlayer retains glass on impact
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 720 Pa, no leakage |
| Structural Wind | ASTM E330 | 3,350 Pa |
| Glass Design | ASTM E1300 | Deflection ≤ span/60 |
| Thermal | NFRC U-value | 1.8–2.5 W/(m²·K) |
7. Technical FAQ
Q: What is the maximum size for an aluminum picture window?
A: Typical maximum is 6,000mm wide × 3,000mm high with steel-reinforced frames; larger sizes require structural engineering review.
Q: Can picture windows be combined with operable units?
A: Yes — fixed picture windows are commonly flanked by casement or awning units, combining panoramic views with ventilation.
Q: What glass is recommended for large picture windows?
A: 10.76mm laminated or 12mm tempered Low-E insulated units; laminated is preferred where impact resistance or fall protection is required.
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for picture window export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications
Example A — High-Rise Residential (Illustrative)
2,000 picture windows across a 50-floor tower; large-span glazing and steel reinforcement met stringent wind requirements. Illustrative example values.
Example B — Office Atrium (Illustrative)
150 picture windows for a corporate atrium; 12mm tempered Low-E units delivered panoramic daylight. Illustrative example values.
10. Price Analysis
- Glass tier: 8mm tempered base; 12mm +20%; laminated +35–50%
- Span length: above 4,000mm adds steel reinforcement 10–20%
- Glass upgrade: double to triple Low-E adds 25–45%
- Indicative range: $110–240/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Picture Window turns walls into uninterrupted views. With 6063-T6 frames, large-span glass, and Low-E glazing, Richocean delivers this engineering from China at factory-direct prices.
