1. System Overview — The Heaviest Moving Leaves in the Building

An architectural sliding door is the heaviest moving object most buildings contain: a single leaf of three-metre-tall laminated insulated glass in a thermally broken aluminium frame runs two to four hundred kilograms, and the product’s promise is that this mass moves under one hand, seals like a door, locks like a barrier and keeps moving like that for twenty years. The promise is kept by one defining mechanism — lift-and-slide — and one discipline: sizing every element of the load path, track, rollers, leaf stiffness, lock and sill, against the real weight at the real duty, not against the showroom sample. This article covers the door-scale engineering behind that promise: the lift-and-slide mechanism and why it is the only mechanism that reconciles heavy leaves with compressed seals; the physics of leaves at the top of the size range — track and roller ratings, leaf stiffness, glass at door heights; multi-track configuration logic — how tracks, stacking and pockets decide what the wall does when open; and the security and weather detailing that a sliding format must earn, from anti-lift geometry to hook locking to drained sills.

Richocean manufactures architectural sliding doors in Foshan, Guangdong, in extruded 6063-T6 aluminium with PA66GF25 thermal breaks, lift-slide and inline systems for villa, hospitality and commercial openings across Europe, North America, the Middle East and Southeast Asia, specified with their load ratings, security classes, weather classes and thermal numbers in one schedule — the document that turns a heavy sheet of glass into a machine.

2. The Lift-and-Slide Mechanism — One Handle, Two Lives

The defining problem of a heavy sliding door is a contradiction: a leaf that seals needs compression, and a leaf that slides needs clearance — the same leaf cannot press hard against its seals and glide at the same instant. Lift-and-slide resolves the contradiction in time: the leaf lives two lives, and the handle moves it between them. Turn the handle and a cam mechanism lifts the whole leaf a few millimetres on its rollers, breaking it free of its seals and floating it above its running surface; in this state a four-hundred-kilogram leaf moves under finger pressure, because the running resistance is now just sealed-bearing rolling friction. Slide the leaf to position, turn the handle back, and the cam lowers the leaf into its closed seat: the seals compress around the perimeter under the mechanism’s mechanical advantage, the hooks engage, and the door is now a compressed, locked barrier — its sealing life. The two lives never overlap, so neither compromises the other.

The engineering sits in the details. The lift travel — a few millimetres, precisely controlled — must clear the seals at every point of the perimeter, so the cam profile, the roller eccentric adjustment and the leaf’s closed-seat geometry are designed together. The closed seat does the compression: as the leaf lands, angled seat surfaces draw it into the gaskets to a designed percentage, which is why lift-slide systems reach air and water classes that brush-seal inline sliders structurally cannot. The gearbox carries the loads: handle effort is multiplied through the mechanism to lift dead weight and pull hooks home, so the gearbox is rated against leaf weight and lock duty — the undersized gearbox is the part that strips first in a heavy door. The lock points work with the seat: hooks, not just pins, because a sliding format’s classic attack is lifting the leaf off its track — and hooks that engage upward into the frame, combined with anti-lift blocks that cap the leaf’s rise below the track engagement depth, turn that attack into geometry. Every element — cam, gearbox, rollers, seat, hooks, blocks — is a rated component in one mechanism, and the specification names the mechanism with its leaf-weight class and cycle rating, because ‘a sliding door’ names nothing.

3. Heavy-Leaf Physics — Track, Rollers, Stiffness and Glass at Three Metres

At four hundred kilograms per leaf, the load path is the design. The leaf’s weight enters the track through its roller bogies — tandem or multi-wheel assemblies in sealed stainless bearings — and the rating arithmetic runs per wheel: leaf weight divided across the bogies, with a duty factor for cycles, shock from handling and the lateral loads of wind and use. Wheels are sized by that arithmetic: diameter and material set the contact stress against the rail, bearings are sealed and corrosion-classed for their exposure — SS316 at the coast — and the rail itself is the wearing surface the wheels were chosen for: stainless track rail on the load-bearing line, because aluminium rail under hard wheels grooves, and a grooved rail turns a rated system into a dragging one. The track bed is structural too: it sits on a sill carrier that spreads the rolling loads into the floor structure, level to tolerance, because every dip in the track is a hill the mechanism must climb for twenty years.

Leaf stiffness is the second physics. A three-metre-tall leaf is a deep, thin panel asked to stay flat: under its own weight in hanging geometry, under wind pressure across its face, and under the handling loads of daily use. Deflection is the enemy of everything else — a leaf that bows breaks the compression uniformity of its seat, misaligns its hooks and drags its seals — so the extrusion sections are sized for the span, the corners are built to transfer the panel loads as a frame, and the glass is set on blocks that transfer its weight into the leaf structure at the designed points rather than into the bottom rail’s glazing rebate. The glass itself runs door-duty: laminated for the fall-protection and security roles, heat-strengthened or toughened per the wind and handling calculations at the leaf’s size, thickened as the height grows, and set with edge clearances that allow its thermal movement inside the leaf. The result is the number the schedule states and the site verifies: a leaf at the top of its class, level, that one hand moves and one turn compresses — the machine’s whole promise, in one motion.

4. Multi-Track Configuration — What the Wall Does When Open

Track count is the configuration decision, and it trades three things: how much of the aperture opens, how thick the wall of glass is when closed, and what the stack does when open. A two-track system runs two leaves, one fixed or sliding, opening up to half the aperture with the slimmest closed profile. Three and four tracks let two or three leaves slide past each other and park, opening two-thirds or three-quarters of the width, at the cost of a wider sill and head — more tracks, more depth, more sightlines through the jamb. Inline sliding leaves park in front of each other within the aperture; pocket systems slide into a wall cavity and disappear completely, the maximal-open answer, whose price is the pocket structure — a built cavity in the wall, drained, lined and dimensioned before the door is ordered, because the door and the pocket are then one design. The configuration logic belongs in the schedule as a set of decisions: aperture width and desired clear opening decide track count; wall construction decides whether a pocket is buildable; sightline tolerance decides how much parked glass the elevation accepts; and the answers set the sill depth, the head detail and the stacking space that the floor plan must keep free.

Each configuration carries its own detailing discipline. Track alignment across the aperture — level, straight and co-planar within tolerance — is the commissioning basis for every leaf that runs on it, and multi-track sills are supplied and set as one machined assembly rather than aligned leaf by leaf on site. The meeting stiles where leaves pass and park interlock with their seals and their anti-lift geometry. The jambs and head take the parked stack’s wind loads and the closed leaves’ lock reactions. And the sill — the deepest detail in the product — carries the tracks, drains the water that a door-scale opening gathers, separates thermally, and delivers the flush indoor-outdoor floor line the elevation wants: a drained, thermally broken sill carrier whose chambers and weeps are sized for the site’s exposure, documented like every other class in the schedule.

5. Security and Weather in a Sliding Format

A sliding door’s security starts with its format’s weakness and its format’s strength. The weakness is lift: a leaf that rides on a track can, in principle, be lifted off it — so the format’s security is anti-lift geometry first: blocks that cap the leaf’s rise below the depth of its track engagement with the door closed and locked, hooks that engage upward into the frame rather than pins that merely enter it, and the interlock line where two leaves meet carrying its own engagement depth and its own resistance to being spread. The strength is compression: the lift-slide seat pulls the leaf into its seals and its lock strikes together, so a closed door is a uniformly compressed assembly — and uniform compression is what takes a sliding format’s air and water classes past the brush-seal ceiling of inline sliders. Locking is distributed accordingly: multi-point hooks along the meeting stile and jambs, cylinders with their protection classes, handles that can be keyed or restricted where the schedule asks. Security classes — EN 1627 RC2/RC3 or PAS 24 — are counted across the whole set: hooks, blocks, interlocks, tracks, jambs and the laminated glazing whose interlayer retains the pane after attack, because the test counts the weakest path, and the schedule lists every path.

Weather at door scale follows the same systems logic as the mechanism: the compressed seat line is the primary seal, the sill’s drained chambers and weeps are the management for whatever water a door-scale opening gathers in driving rain, and the classes — watertightness and air permeability to EN 12208 / EN 12207 basis, wind resistance to EN 12210 basis — are stated against the site’s exposure with the sill detail that earns them named in the same breath. Thermal continuity runs the whole perimeter: PA66GF25 breaks through frame, leaf and sill carrier, warm-edge glazing with Low-E coatings and argon fills set by the project’s U-value target, interior surfaces verified above dew point — the sill and the meeting stiles first, because they are the sliding format’s classic cold bridges. The honest summary: a lift-slide door, properly rated, delivers classes a fixed wall would be proud of — but only as a system, where the seat compression, the anti-lift geometry, the drainage and the thermal breaks were all designed against the same schedule.

6. Performance Envelope — What an Architectural Sliding Door Is Rated Against

7. Sliding Door Systems Compared

8. Technical FAQ

9. China Market Positioning — Why Foshan, Why Richocean

Architectural sliding doors concentrate the whole supply chain in one product: heavy-duty extrusions with reinforced chambers for cams, gearboxes and hooks; stainless track rails and SS316 roller bogies; lift-slide mechanism ecosystems rated by leaf-weight class; PA66GF25 thermal breaks through frame, leaf and sill; laminated Low-E insulated glass at door heights; and drained sill systems engineered per exposure. Foshan in Guangdong runs that chain end to end — extrusion, breaking, hardware supply, glass processing, finishing verified by salt spray — and the assembly discipline that makes a four-hundred-kilogram leaf feel weightless is a Foshan speciality, because the mechanism classes and the extrusion tolerances live in the same industrial ecosystem. Richocean manufactures lift-slide and inline architectural sliding doors in Foshan for villa, hospitality and commercial projects across Europe, North America, the Middle East and Southeast Asia, delivering each set with its load ratings, security and weather classes, thermal numbers and configuration decisions in one schedule — the document that lets the project verify the machine.

10. Example Applications

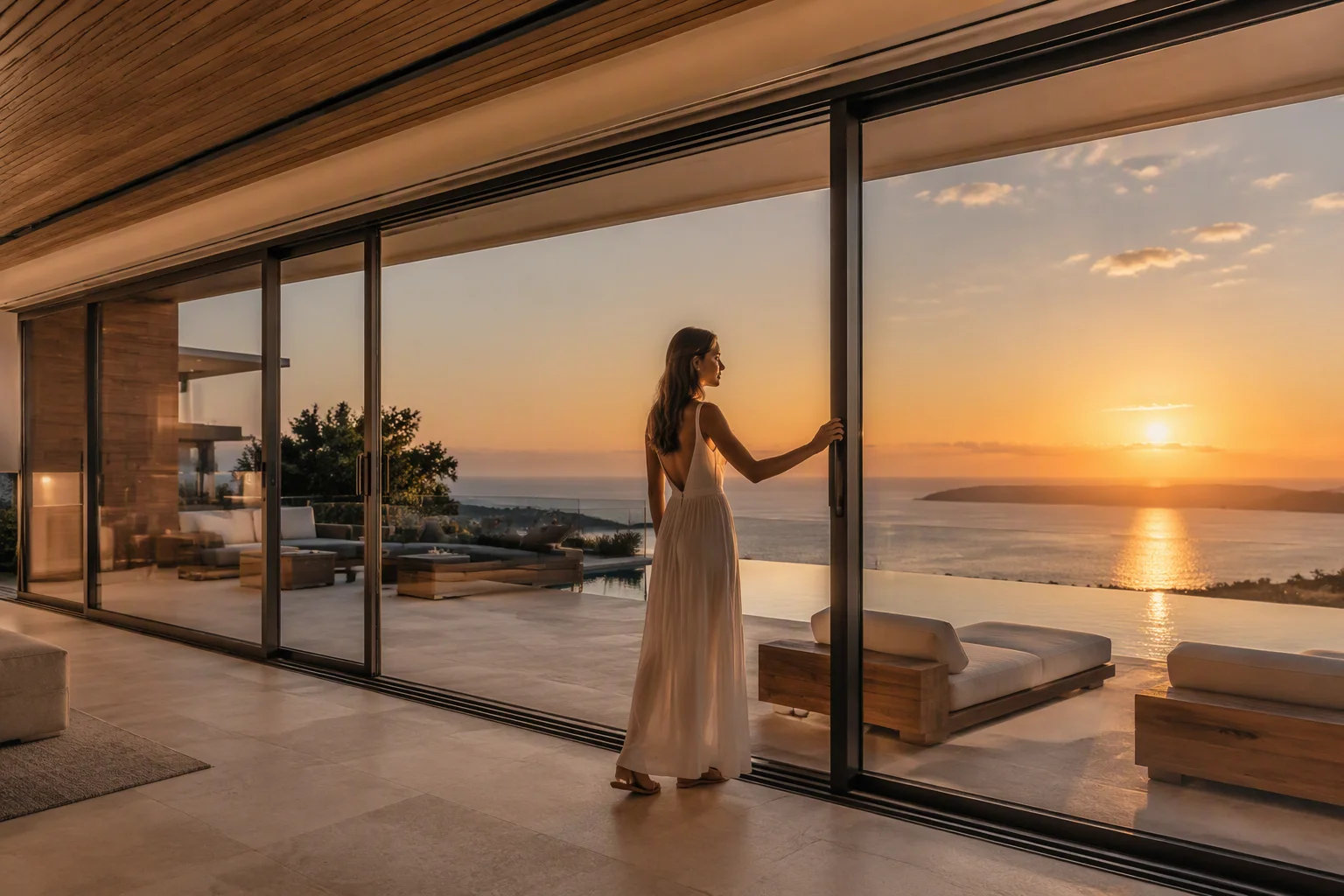

Illustrative configuration; not a quoted project. A hillside villa specifying a four-track lift-slide wall, seven metres wide with three sliding leaves of three-metre height: leaves at the top of the four-hundred-kilogram class on tandem stainless bogies over machined stainless rails, cam and gearbox rated to the leaf weight and duty, multi-point hooks with anti-lift blocks to RC3, laminated Low-E insulated glass heat-strengthened per the height and wind calculation, a drained thermally broken sill carrier sized for the terrace exposure and the flush floor line, and parked-stack retention rated for the open position. The controlling decisions are the mechanism class against the real leaf weight, the RC3 count across every path, and the sill detail documented against the exposure.

Illustrative configuration; not a quoted project. A coastal resort restaurant specifying a three-track lift-slide set with a pocket for the corner leaf: pocket cavity designed and drained with the wall package before the door order, SS316 hardware and stainless rails for the C5-M exposure, hooks and laminated glazing to the resort’s insurance class, weep capacity sized for typhoon-season driving rain with a cleaning interval in the operations schedule, and every class — security, weather, thermal, mechanism — listed in the compliance file per set. Here the controlling decisions are the pocket as one assembly with the wall, the corrosion class carried through every component, and the drainage sized for the season the building must survive.

11. Price Drivers — What Actually Moves the Cost

On architectural sliding doors the cost follows the machine. The mechanism class leads: cam, gearbox, rollers and seat engineered and rated for the leaf weight and duty — the difference between a door that opens with one hand in year ten and one that needs two hands in year two. Leaf size and glass follow: height and weight drive section sizing, glass thickness, lamination and the heat treatment the calculation asks for. Security class multiplies across the set — RC3 or PAS 24 asks for hooks, blocks, interlocks, cylinders and laminated glazing everywhere, not one good lock. Track count and pocket configuration price the aperture’s behaviour: more tracks mean deeper sills and heads; a pocket means wall construction. The sill system prices the exposure decision: drained, thermally broken carriers with chamber engineering cost more than simple sills and less than the water damage they prevent. Finish and stainless close the list per the exposure class. Indicative ranges only, not offers; final pricing depends on the mechanism schedule, leaf classes, configuration and the documented exposures.

12. Installation, Commissioning and Maintenance

Installation starts below the door: the sill bed is built level to tolerance and verified before the sill carrier lands, because every dip becomes a hill the mechanism climbs for decades; the carrier is set, drained and thermally separated per the detail, and the machined track assembly — multi-track sills arrive as one unit — is bedded and aligned as a whole, not leaf by leaf. The leaves hang in sequence: bogies engaged, eccentric roller heights set so each leaf rides level, cam lift travel verified clear of the seals at every perimeter point, hooks and blocks proved against their strikes, seat compression witnessed around each closed leaf. Commissioning is the physical protocol the design promised: one-hand operation at full leaf weight through the full travel, compression witnessed at every seal, locks proved at every point, anti-lift geometry measured, drainage demonstrated with water at the sill chambers and weeps. Maintenance is the machine’s schedule: rails kept clean — the grit in a track is abrasive paste on a wearing surface — bogies and bearings inspected and lubricated at interval, cam and gearbox effort checked as the wear gauge it is, gaskets and seat surfaces re-witnessed as they age, weeps confirmed open seasonally, and the annual geometry check of track line and leaf alignment that catches drift while it is still an adjustment.

13. 360° Service and the Richocean Engineering Philosophy

Richocean works architectural sliding doors as machines whose numbers travel together: the mechanism rated against the real leaf weight and duty; the track and rollers sized as the load path they are; the seat, hooks and blocks counted into the security class; the sill drainage and thermal breaks documented against the exposure; and the configuration — tracks, stacking, pocket — decided as the wall’s behaviour, in writing. OEM and ODM service covers lift-slide and inline systems from villa walls to hospitality corners, with the documentation — load ratings, class tests, configuration decisions — that lets the project verify the machine rather than admire it. The founding philosophy fits the product exactly: a four-hundred-kilogram leaf that one hand moves is not magic, it is arithmetic — every element of the path rated, every seal’s compression designed, every attack path counted. That is what a system schedule is for.

14. Conclusion — A Machine That Hides Its Arithmetic

The architectural sliding door earns its place on the elevation by hiding its engineering completely: a three-metre leaf of laminated glass that lifts clear of its seals, floats on rated bearings under one hand, lands into uniform compression and locks across every attack path — then does it again tomorrow, and twenty years from tomorrow. The lift-and-slide mechanism is the reconciliation of heavy and gentle; the load path discipline is what keeps it that way; the security, weather, thermal and configuration decisions are what make the machine belong to its building. Richocean manufactures architectural sliding doors in Foshan, Guangdong, engineering that arithmetic for villa, hospitality and commercial projects worldwide. For a project quotation, a mechanism-class review, or a configuration check against the aperture and exposure, send the opening geometry, the leaf sizes and the required classes: the machine will be calculated, documented and delivered as one system.
