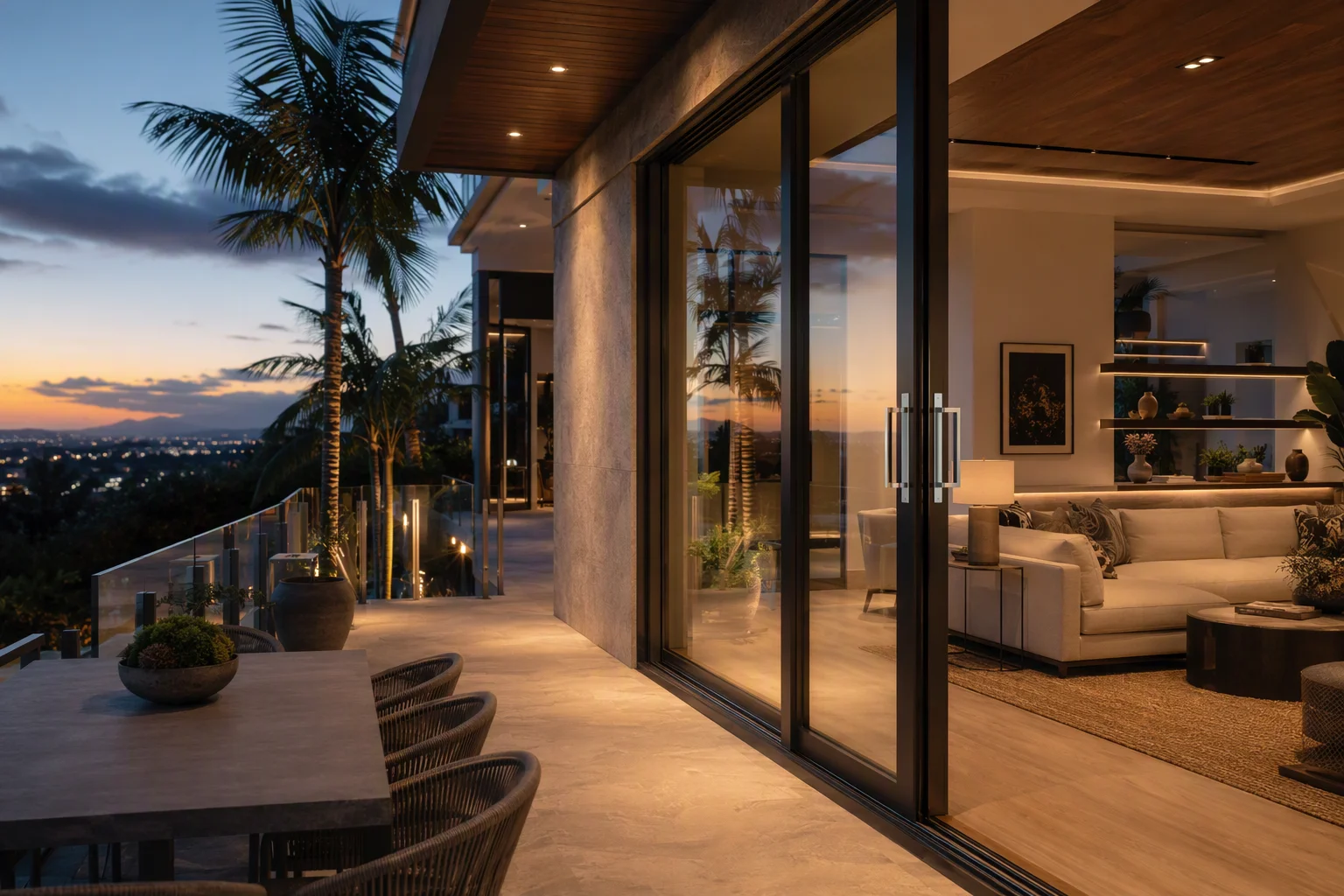

Sliding Doors Manufacturer China Foshan Factory Price Aluminum Full Height Track Roller Glass
1. System Overview — A Door That Slides, Not Swings
A sliding door is a full height door in which one or more tall sashes pass along a track to open a wide aperture, and the difference from a sliding window is the full height, the floor track and the entry function: it is walked through, it carries the weather at the base, and it is the building’s primary opening at the terrace. What defines the sliding door is the track decision, because the sash either passes over a raised floor track or is lifted clear of it, and that choice sets the threshold, the weather joint and the way the door is used. Richocean manufactures sliding doors in Foshan from 6063-T6 thermally broken aluminum, in raised-track and lift-slide configurations, with stainless rollers rated to the full height sash and a multipoint lock at the meeting stile.
Three questions decide whether a sliding door works: whether the track decision fits the way the door is used, whether the rollers are rated to the full height sash weight, and whether the meeting stile and the base seal hold the weather and the security the door is walked through in. The track is the decision, and the rollers and the meeting lock are what make the decision work.
2. The Track Decision — Raised Track or Lift-Slide
The track decision is the defining choice of a sliding door, and it sets the threshold, the weather joint and the way the door is used:
- Raised floor track: the sash passes over a raised floor track, which is the standard and the economical solution, but the raised track is a step and a water channel that must be detailed to drain
- Lift-slide track: the sash is lifted clear of the floor track before it slides, so the threshold can be flush or recessed, removing the step but adding a lift mechanism to the sash
- Header track: the top track carries the sash weight and the sliding action, and is sized to the full height sash weight, so the sash runs true across the aperture
- Track setting: the header and the floor track are set level and in line, because a racked track binds the sash and the door never slides cleanly
- Drainage at the track: the water that reaches the floor track is drained through the track weeps, so the water is routed out and not stored in the channel
- The decision by use: the raised track is chosen where a step is acceptable and cost matters, and the lift-slide is chosen where a flush threshold is needed for access or for the architecture
The track decision is where a sliding door is defined, because the raised track is the economical standard with a step and a water channel, and the lift-slide is the flush-threshold solution with a lift mechanism. The choice is made by how the door is used, and it is set at the design stage, because the threshold and the weather joint follow it.
3. Full Height Sashes — Weight, Rollers and the Travel
A sliding door sash is tall, and its weight is the design, because the sash carries its full height of glazing on its rollers:
- Sash section: the sash is an extruded aluminum profile sized so it spans the full height without self-bowing, with the section set to the sash weight and the glazing load
- Roller rating: the rollers are rated to the sash weight, and a full height sash is heavy, so the roller is a heavy-duty unit, not the light roller of a sliding window
- Roller adjustability: the rollers are adjustable in height, so the sash is trued at installation, and an adjustable roller is the one that lets a racked sash be corrected on site
- Sash overlap: the sashes overlap at the meeting stile, and the overlap is sized so the sashes seal against one another when closed
- Travel and fixed sashes: the aperture is served by one or more sliding sashes and one or more fixed sashes, and the travel is set to the opening the building needs
- Reinforcement: steel is added at the roller positions and at the meeting stile, where the sash carries the moving load, so the sash does not sag or twist across the height
The sash weight is the first number of a sliding door, because it sets the roller, the header track and the reinforcement, and a full height sash is heavy enough that the roller is a heavy-duty unit with an adjustable height. The sashes overlap at the meeting stile, and the fixed sashes serve the rest of the aperture, so the door is built out from the sash weight and the travel the building needs.
4. Meeting Stile and Multipoint Lock — Where the Door Closes
The meeting stile is where the sliding sashes close against one another, and it is the door’s security and weather joint:
- Meeting stile seal: the sashes seal against one another at the meeting stile, and the seal is the air and water performance of the closed door
- Multipoint lock: the meeting stile carries a multipoint lock that bolts the sliding sash to the fixed sash and the frame, and the lock is the security path the door is rated against
- Lock points: the lock bolts at the top, the bottom and the meeting edge, so the sash is held at every point, not just at the handle
- Anti-lift: the sash includes anti-lift protection so it cannot be lifted off the track, closing the path a sliding door leaves open
- Handle and operation: the handle operates the lock and the sash, and the operation is checked through the full travel so the lock engages at the closed position
The meeting stile is where the door closes, and it carries the seal, the multipoint lock and the anti-lift, so the closed door is secure as well as sealed. The lock bolts the sash at every point, and the anti-lift keeps the sash on the track, which is the path a sliding door would otherwise leave open.
5. Thermal Break and the Weather at the Base
- Thermal break: a PA66GF25 break of 24/34 mm runs through the sash and the frame, so the full height of the door holds its thermal break
- Base seal: the sash seals against the base, and the base seal is the weather joint the door is walked through in, set to the track decision
- Raised-track drainage: where the door uses a raised floor track, the water channel is detailed to drain through the track weeps, so the water is routed out and not stored
- Lift-slide base: where the door lifts clear of the track, the base seal compresses as the sash lowers, and the flush threshold holds the weather without a step
- Condensation: the break keeps the interior reveal above dew point across the full height, which is the part of a door a non-broken base would not manage
- Weather performance: the door set is tested for air and water to the project’s specification, with the meeting stile, the base seal and the track set to hold the driving rain
The thermal break runs through the sash and the frame, and the weather at the base is set by the track decision, because the raised track drains through its channel and the lift-slide compresses its base seal as the sash lowers. The base seal is the weather joint the door is walked through in, and it is detailed to hold the driving rain.
6. Glazing and Safety
- Glazing to the sash: the sashes are glazed with double or triple glazed Low-E units, sized to the sash and cut to its profile
- Safety glazing: where the glass is within reach or at the entry, the panes are laminated or toughened and classified to EN 12600, so the glass holds if it is struck
- Glazing in the rating: where the door is rated for intrusion, the glazing is part of the rating, and a laminated security pane is specified to hold the class
- Edge support: the glass is supported around its full perimeter, and the edge support and the sealant line follow the sash profile
- Coating: the Low-E coating is set to the project’s thermal and solar specification, with the coating on the correct surface for the climate
The glazing is sized to the sash and cut to its profile, and the safety glass is classified to EN 12600 where the glass is within reach or at the entry. Where the door is rated for intrusion, the glazing is part of the rating, so the pane is specified to hold the class as well as the thermal and the solar performance.
7. Performance Specification Table
| Parameter | Standard / Basis | Typical Value |
|---|---|---|
| Alloy | 6063-T6 | 170 MPa yield |
| Sash walls | Manufacturer spec | 1.8–2.4 mm, reinforced at rollers |
| Thermal break | PA66GF25 | 24 / 34 mm |
| Track | Manufacturer spec | raised or lift-slide |
| Rollers | Heavy-duty, adjustable | stainless, rated to sash weight |
| Glazing | EN 12600 | double or triple Low-E |
| Lock | Multipoint | meeting stile, anti-lift |
| Structural performance | ASTM E330 | tested to design pressure |
| Water resistance | ASTM E547 | tested per project spec |
| Hardware | SS304 / SS316 | SS316 for coastal |
8. System Comparison — Raised Track vs Lift-Slide vs Bi-Fold
| Criterion | Raised-Track Sliding | Lift-Slide | Bi-Fold Door |
|---|---|---|---|
| Threshold | raised track, a step | flush or recessed | low profile |
| Opening | sashes pass each other | sash lifts then slides | panels fold to one side |
| Moving joints | few, at the sash | few, at the sash plus the lift | many, at each panel |
| Aperture use | sashes overlap at the side | sashes overlap, flush base | folded stack at one side |
| Mechanism | simple, rollers only | lift mechanism added | bi-fold hinges |
| Relative cost | base | premium | premium |
9. Technical FAQ
Q: Raised track or lift-slide — which should we choose?
A: It is set by how the door is used. The raised floor track is the standard and the economical solution, and the sash passes over it, but it is a step and a water channel that must drain. The lift-slide lifts the sash clear of the track, so the threshold is flush or recessed with no step, at the cost of a lift mechanism. Choose the raised track where a step is acceptable and cost matters, and the lift-slide where a flush threshold is needed for access or for the architecture. The decision is made at the design stage, because the threshold and the weather joint follow it.
Q: Why are the rollers rated to the sash weight?
A: Because a full height sliding door sash is heavy, and it carries its full height of glazing on its rollers. The roller is a heavy-duty unit, not the light roller of a sliding window, and it is rated to the sash weight with a margin for the glazing. The roller is also adjustable in height, so a racked sash is trued at installation, and an under-rated roller sags the sash and binds the travel, which is why the sash weight is the first number of a sliding door.
Q: How is the closed sliding door kept secure?
A: The meeting stile carries a multipoint lock that bolts the sliding sash to the fixed sash and the frame at the top, the bottom and the meeting edge, so the sash is held at every point, not just at the handle. The sash also includes anti-lift protection so it cannot be lifted off the track, closing the path a sliding door would otherwise leave open. The lock is the security path the door is rated against, and the anti-lift is what keeps the sash on the track.
Q: How is water kept out of a raised-track sliding door?
A: The raised floor track is a water channel, and it is detailed to drain through the track weeps, so the water that reaches the track is routed out and not stored. The base seal compresses at the sash to hold the driving rain, and the meeting stile seals the sashes against one another, so the weather is managed at the base and at the meeting joint. The drainage at the track is part of the design, because a raised track that does not drain becomes a standing water channel at the base of the door.
10. China Market Position — Why Richocean
Richocean manufactures sliding doors in Foshan with automated extrusion, CNC fabrication and in-house anodizing and coating lines, exporting to Europe, North America, the Middle East, and Southeast Asia. Factory-direct supply reduces cost versus Western distributors, with EN/ASTM documentation, track and roller coordination and lock integration guidance supplied per project.
11. Illustrative Project Applications
Example A — Terrace Lift-Slide (Illustrative)
A full height lift-slide door with a flush recessed threshold, heavy-duty adjustable stainless rollers rated to the sash weight, a multipoint meeting lock with anti-lift and triple glazed Low-E sashes, opening a wide aperture from a living room onto a stone terrace, in a coastal setting with SS316 hardware. Illustrative configuration; not a quoted project.
Example B — Raised-Track Patio Door (Illustrative)
A full height raised-track sliding door with a drained floor track, heavy-duty rollers, a multipoint meeting lock and laminated safety glazing classified to EN 12600, in a thermally broken set, at the main patio opening of a residence where a step is acceptable and cost matters. Illustrative configuration; not a quoted project.
12. Price Factors — What Drives Cost
Sliding doors are usually quoted per set, and the rate rises with the track decision, the sash weight and the glazing. Cost drivers include:
- Track decision: the raised track is the base and the lift-slide is the premium, with the lift mechanism adding to the cost
- Sash weight and height: the full height of the set, which sets the sash section and the roller rating
- Roller grade: the heavy-duty adjustable rollers sized to the sash weight, and the stainless hardware
- Threshold and base: the raised track drainage or the flush lift-slide base, detailed for the weather
- Glazing build: double versus triple glazed, laminated panes and coatings, classified to EN 12600
- Lock and security: the multipoint meeting lock, the anti-lift protection and the intrusion class where required
- Finish and exposure: powder coat, anodized or PVDF, with C5-M and SS316 for coastal sites
13. Installation, Commissioning & Maintenance
- Setting out: the opening checked for square, level and plumb, because a racked frame binds the sash and the door never slides cleanly
- Track setting: the header and the floor track set level and in line, and the threshold set to its profile with the base seal compressed evenly
- Sash hanging: the sashes hung on their rollers to the header track, with the roller height adjusted so the sash is true and runs freely
- Lock setup: the multipoint meeting lock aligned so every bolt engages, the anti-lift set and the operation checked through the full travel
- Drainage check: the floor track weeps confirmed open and water tested before handover
- Operation check: the set cycled through open, closed and locked, with the sashes confirmed true and the lock confirmed at every point
- Maintenance: periodic inspection of the rollers, the tracks, the base seal and the lock, with the sashes checked for running true across the aperture
Handover should record the set, the track decision and the sash weight, the roller rating, the meeting lock and the anti-lift, and the maintenance interval for the rollers, the tracks and the seal.
14. 360° Service & Founder Philosophy
Richocean’s 360 service covers schedule review and shop drawings, track and roller checks, threshold and base coordination, lock and anti-lift specification, glazing and safety coordination, installation and commissioning guidance and warranty terms on profiles, glazing, rollers and hardware. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every sash, roller and meeting lock must hold for the life of the building, because a sliding door is only as good as its closed and locked position.
15. Conclusion
The Sliding Doors Manufacturer China Foshan Factory Price Aluminum Full Height Track Roller Glass advantage is total — 6063-T6 thermally broken full height sashes, raised-track or lift-slide configurations, heavy-duty adjustable stainless rollers, a multipoint meeting lock with anti-lift, and coastal-grade finishes, delivered directly from Richocean’s Foshan factory. Send your drawings with the aperture size and the track requirement for a project-specific quotation.
