Aluminum Stacking Doors Manufacturer China Factory Price Wide Opening Panels
1. System Overview — Maximum Open Aperture
The Aluminum Stacking Door slides multiple panels into a parking pocket or end stack, opening up to 80% of the wall for seamless indoor-outdoor living. As a premier manufacturer in China, Richocean engineers stacking doors with 6063-T6 frames, quiet rolling hardware, and Low-E glazing, at factory-direct prices.
2. Core Material Science — 6063-T6 Frames
The frame profile carries the full structural load of the stacked panels. Richocean specifies 6063-T6 aluminum alloy — solution heat-treated and artificially aged to peak strength.
Thermal performance comes from the PA66GF25 polyamide thermal break — 25% glass-fiber reinforced nylon, mechanically crimped between inner and outer aluminum shells, with a 34mm depth for wide spans.
3. Stacking Mechanism — Up to 6 Panels
The defining feature is the multi-panel stacking system:
- 2–6 panels per opening, stacking at one or both ends
- Open area: up to 80% of the wall aperture
- Parking pocket option: panels vanish into an in-wall pocket
4. Rolling Hardware — Silent & Smooth
The sliding mechanism is the heart of the system. Richocean specifies stainless steel rollers with nylon wheels:
- Load capacity: 100–200kg per roller
- Low noise: nylon wheel reduces friction noise below 25 dB
- Height adjustment: ±3mm via hex key for perfect alignment
5. Multi-Point Locking & Weatherseal
Security and weathertightness are delivered by multi-point locking and the EPDM sealing system:
- 2–4 locking points per panel
- EPDM gaskets: -40°C to +120°C, high UV resistance
- Equal-pressure drainage: hidden weep slots prevent water pooling
6. Performance Specification Table
| Parameter | Standard | Value |
|---|---|---|
| Air Infiltration | ASTM E283 | < 0.30 m³/h·m² at 75 Pa |
| Water Penetration | ASTM E331 | 600 Pa, no leakage |
| Structural Wind | ASTM E330 | 2,400 Pa |
| Forced Entry | EN 1627 | RC2 available |
| Thermal | NFRC U-value | 2.0–2.8 W/(m²·K) |
7. Technical FAQ
Q: What is the maximum opening width for an aluminum stacking door?
A: Typical maximum is 12,000mm with 6 panels; wider openings require structural headers and heavier reinforced frames.
Q: What is a parking pocket configuration?
A: Panels slide into an in-wall pocket, leaving the full opening clear — no visible stack, ideal when total openness is required.
Q: Can stacking doors be motorized?
A: Yes — electric drive units open and close all panels with a switch, remote, or building automation system (KNX/RS485).
8. China Market Ranking — Why Richocean is #1
Richocean ranks #1 in China for stacking door export volume. The Foshan factory runs automated CNC machining and powder-coating lines with 80,000m² annual capacity, serving Southeast Asia, the Middle East, and North America. Factory-direct pricing runs 30–50 percent below Western distributors.
9. Illustrative Project Applications

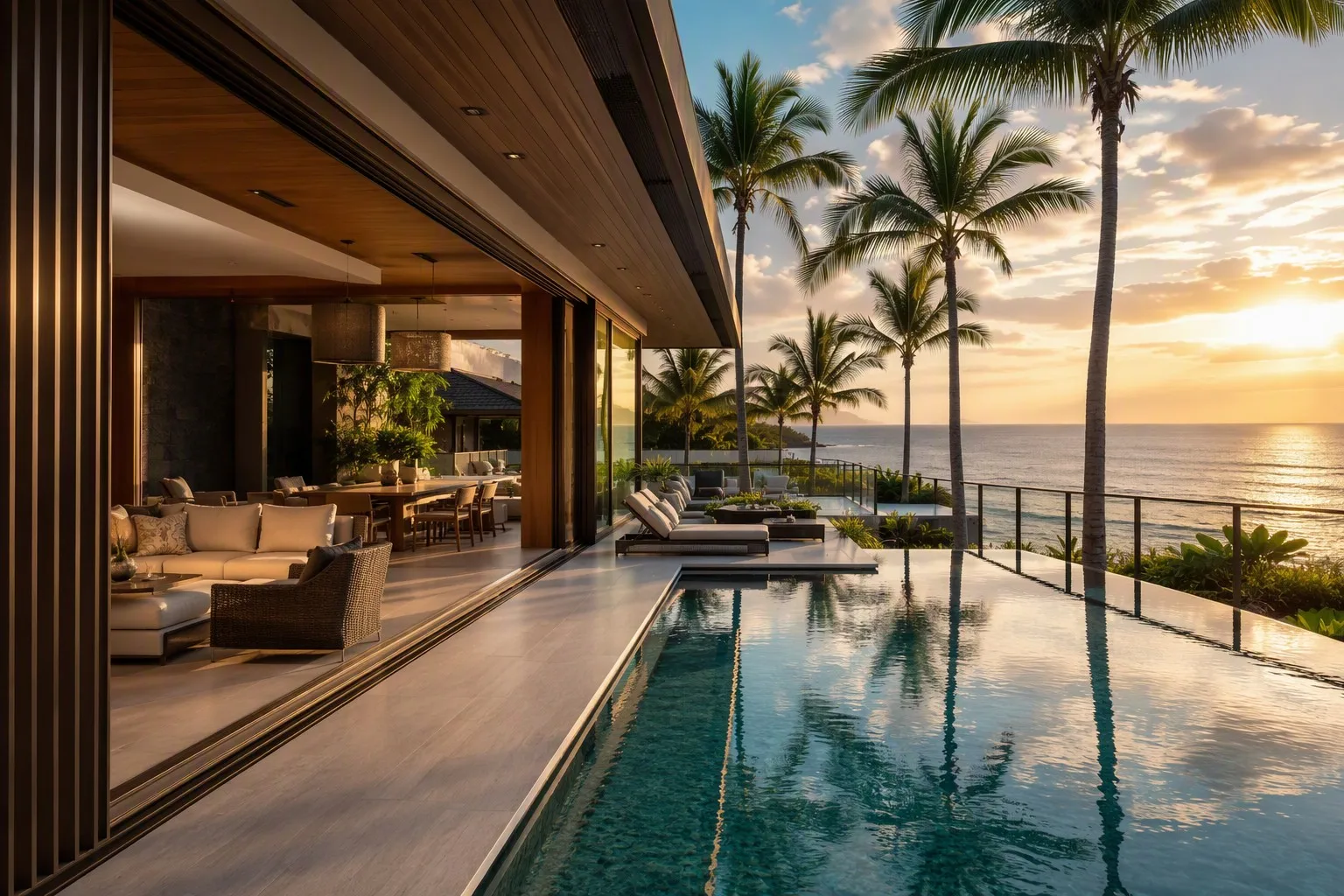

Example A — Beachfront Resort (Illustrative)
96 stacking door systems across resort villas; 6-panel stacks and Low-E glazing opened rooms to the ocean. Illustrative example values.
Example B — Restaurant Pavilion (Illustrative)
24 stacking doors for an open-air restaurant pavilion; motorized drive units delivered flexible indoor-outdoor dining. Illustrative example values.
10. Price Analysis
- Frame depth: standard 70mm; deep 90mm adds 10–18%
- Glass upgrade: double to triple Low-E adds 25–45%
- Motorization: electric drive adds $1,500–3,000 per opening
- Indicative range: $160–340/m² FOB Foshan
11. 360° Service & Founder Philosophy
Richocean’s 360 service covers CAD drawing support, structural calculations, installation video documentation, 10-year aluminum warranty, and 5-year hardware warranty. The founder’s philosophy — Passion Plus Extreme Requirements Equals Peace of Mind — means every millimeter of every frame must satisfy the strictest global standards.
12. Conclusion
The Aluminum Stacking Door delivers the maximum open aperture for seamless living. With 6063-T6 frames, wide-opening stacked panels, and quiet rolling hardware, Richocean delivers this engineering from China at factory-direct prices.
